KitchenAid KBSD608EBS01: Auto-Defrost System Failure Repair in Houston, TX
📞 Call (346) 512-3688🔧 Performed by Alex
The Problem
- •Freezer compartment unable to reach and hold target temperature — running noticeably warmer than the set point
- •Fresh food section also drifting above safe range due to thermal crossover from the blocked freezer
- •No audible defrost cycle activity during the expected defrost window — compressor running continuously without cycling off
- •Frost accumulation visible through the rear freezer panel vent grille, restricting airflow from the evaporator fan
🔍 Diagnosis
On arrival at the 77578 property, the KitchenAid KBSD608EBS01 built-in column refrigerator was running continuously but failing to maintain freezer temperature below 20°F — well outside the design target of 0°F. The compressor was audible and uninterrupted, which immediately suggested an airflow blockage rather than a sealed-system failure. The fresh food section had drifted to approximately 48°F. The rear freezer panel was removed to expose the evaporator coil. What was found was a fully encased evaporator — a solid block of ice several inches thick surrounding the entire coil assembly, accumulated over what appeared to be months of failed defrost cycles. Airflow from the evaporator fan was completely obstructed. A multimeter was used to test each component in the defrost circuit. The defrost heater measured within acceptable resistance range. The bimetal thermal cutout — a safety device mounted directly on the evaporator that interrupts the defrost heater if temperatures exceed a safe ceiling — read OL (open loop), confirming a permanent open circuit. This component had tripped and failed non-resettably, which is a known failure mode on 2017–2019 KitchenAid built-in column units under the KBSD series. Once the thermal cutout opens permanently, the defrost heater receives no power regardless of the defrost timer or control board commands, and ice accumulates without limit. The defrost heater was also replaced preventively given its age and thermal stress history.
🔧 The Repair
- ✓Step 1: Powered down the KBSD608EBS01 and removed all freezer drawer assemblies to gain unobstructed access to the rear evaporator panel.
- ✓Step 2: Removed the rear freezer liner panel — secured by multiple Torx T-20 screws — and documented the full extent of ice accumulation on the evaporator coil with photos.
- ✓Step 3: Performed controlled mechanical defrost of the evaporator coil using hot water flushes and plastic scrapers, clearing all ice from the coil fins, drain trough, and drain line without damaging the aluminum evaporator tubing.
- ✓Step 4: Disconnected the defrost circuit wiring harness and tested the bimetal thermal cutout with a Fluke 117 multimeter — confirmed OL (open circuit), indicating permanent failure. Also tested the defrost heater element, which read approximately 30 ohms, consistent with a marginal but borderline serviceable unit; elected replacement given operational history.
- ✓Step 5: Removed the failed bimetal thermal cutout and the original defrost heater from their mounting clips on the evaporator assembly.
- ✓Step 6: Installed a new OEM-equivalent bimetal thermal cutout and defrost heater, securing both components to the evaporator bracket and reconnecting the wiring harness with factory-style terminals.
- ✓Step 7: Reinstalled the rear freezer liner panel, confirmed all Torx screws torqued evenly, reseated drawer glides and freezer drawers, and restored power to the unit.
- ✓Step 8: Monitored a full defrost cycle initiation via the control board's forced-defrost mode to confirm the heater activated and the thermal cutout did not re-trip. After 2.5 hours of runtime, freezer measured 1°F and fresh food section measured 37°F — both within KitchenAid specification.
✓ Result
After 2.5 hours of runtime following the repair, the KBSD608EBS01 reached 1°F in the freezer and 37°F in the fresh food section — fully within KitchenAid's factory specifications. The homeowner in the 77578 area had been tolerating degraded performance for several weeks before the unit stopped cooling effectively. Most of the freezer contents were salvageable. The customer was visibly relieved and mentioned they had been considering replacement — this repair extended the unit's service life at a fraction of that cost. A 90-day labor warranty was issued on all replaced components.
💡 Technician Notes
KitchenAid KBSD-series built-in column refrigerators are well-engineered units, but their defrost systems share a known vulnerability: the bimetal thermal cutout mounted on the evaporator is a one-time safety device. Once it trips — whether from a momentary voltage spike, a slow-failing heater that ran too hot, or simply age — it does not reset. The compressor will keep running and the unit will appear to be 'working,' but temperatures will slowly drift upward over weeks as ice builds. The early warning sign specific to this failure is frost appearing on the interior back wall of the freezer drawer compartment or airflow that feels weak even when the compressor is clearly running. The single most effective prevention for KBSD-series units is an annual forced-defrost cycle test via the control board service mode to confirm the heater activates and completes a normal cycle. This takes about 10 minutes and catches a failing cutout or heater before total ice-over occurs. If your KitchenAid built-in is more than 5 years old and you notice the freezer temperature creeping above 10°F without explanation, do not wait — ice accumulation at that stage compounds quickly and can stress the compressor.
Frequently Asked Questions
Why did my KitchenAid KBSD608EBS01 built-in refrigerator stop freezing?
The most common cause on the KBSD608EBS01 is a failed bimetal thermal cutout in the defrost circuit. When this component opens permanently, the defrost heater never activates, ice accumulates on the evaporator coil over weeks, and airflow to the freezer is eventually choked off completely. The compressor keeps running, but nothing gets cold. This is a well-documented failure pattern on KitchenAid built-in column units from the 2017–2019 production window.
How much does it cost to repair the defrost system on a KitchenAid built-in refrigerator in Houston?
For a KitchenAid KBSD-series built-in column unit, a defrost system repair — covering diagnostic, thermal cutout replacement, defrost heater replacement, and evaporator cleaning — typically runs between $280 and $420 in the Houston area depending on parts sourcing and labor time. If the evaporator coil itself is damaged from prolonged ice accumulation, costs increase. Most repairs on this specific failure are completed in a single visit of 2–3 hours.
What happens if I ignore a frozen evaporator on my KitchenAid refrigerator?
Leaving a frozen evaporator unaddressed on a KitchenAid KBSD-series unit puts the compressor under sustained stress — it runs continuously trying to overcome the blocked airflow, which shortens compressor life significantly. Beyond food safety risks from temperatures above 40°F, you risk turning a $350 defrost component repair into a $1,200–$2,000 compressor replacement. The ice also puts pressure on evaporator tubing joints, which can eventually cause refrigerant leaks.
Is it worth repairing a 2018 KitchenAid built-in refrigerator or should I replace it?
A 2018 KitchenAid KBSD608EBS01 is only 6–7 years old and was a premium-tier appliance. Defrost system repairs are mechanical failures unrelated to the sealed system or electronics, and the unit has substantial remaining service life. Replacement for a built-in column of this class runs $4,000–$7,000+. Unless there is a sealed-system or compressor failure stacked on top of this, repair is clearly the right call at this age and for this failure type.
How often should the defrost system be tested on a KitchenAid KBSD-series built-in refrigerator?
KitchenAid's service documentation supports a forced-defrost initiation test as part of any preventive maintenance visit. For Houston homeowners, where high ambient humidity accelerates frost load on the evaporator, running a forced-defrost check annually is practical. The KBSD608EBS01 has a control board service mode that initiates a manual defrost cycle — a technician can verify heater activation, cutout continuity, and drain line clearance in under 15 minutes during a single preventive visit.

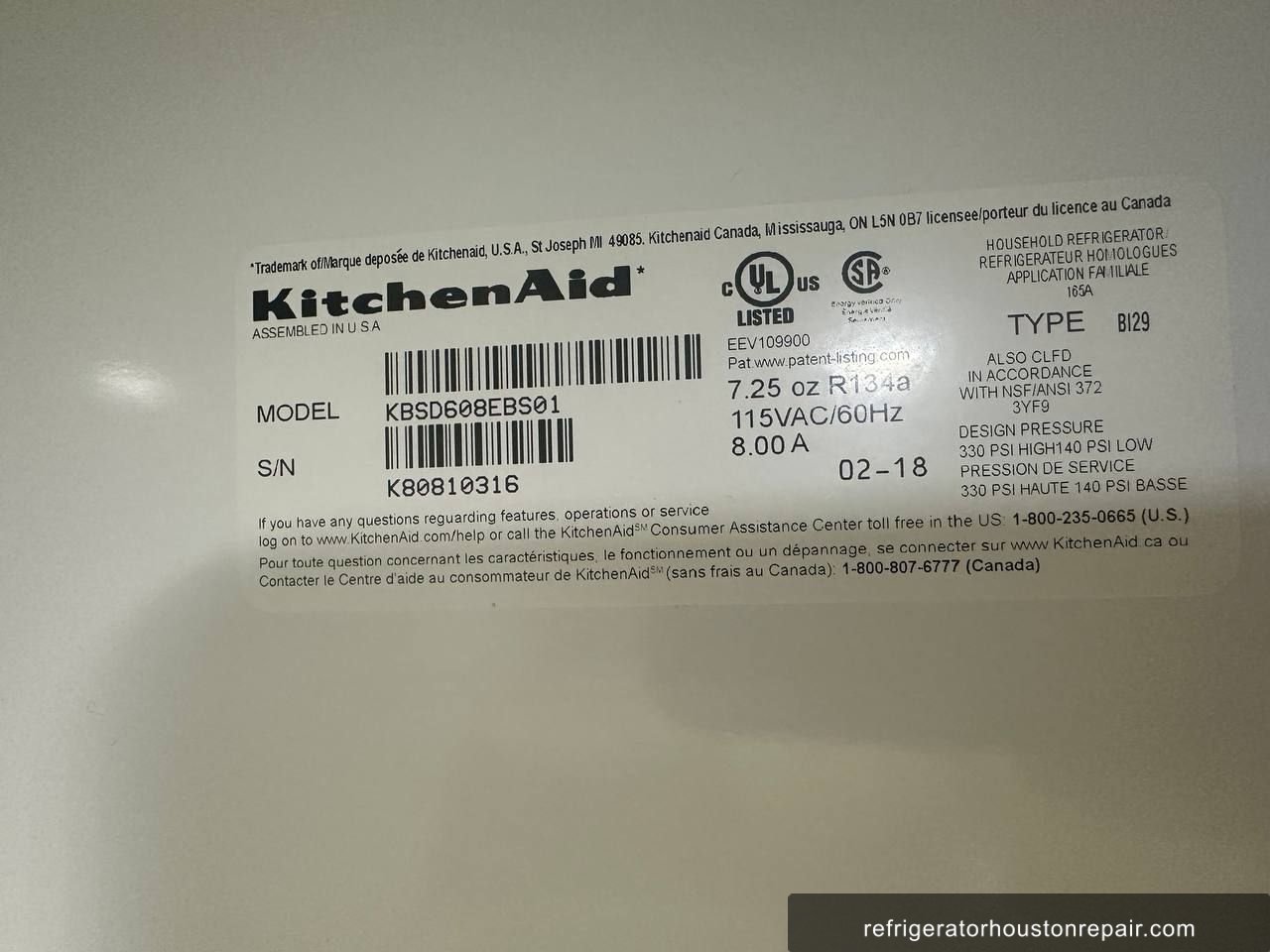

Repair Summary
- Brand
- KitchenAid
- Model
- KBSD608EBS01
- Repair Type
- Auto-Defrost System Restoration — Thermal Cutout and Defrost Heater Replacement
- Refrigerant
- R-134a
- Root Cause
- Open-circuit bimetal thermal cutout blocking defrost cycle entirely
- Parts Replaced
- ✓Bimetal thermal cutout (defrost limit thermostat) — OEM-equivalent replacement rated for KBSD-series evaporator assembly
- ✓Defrost heater element — OEM-equivalent replacement for KitchenAid KBSD608EBS01 evaporator coil
- Location
- Houston, TX 77578
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Houston and surrounding areas.
View Houston Service Area →📸 Repair Photos

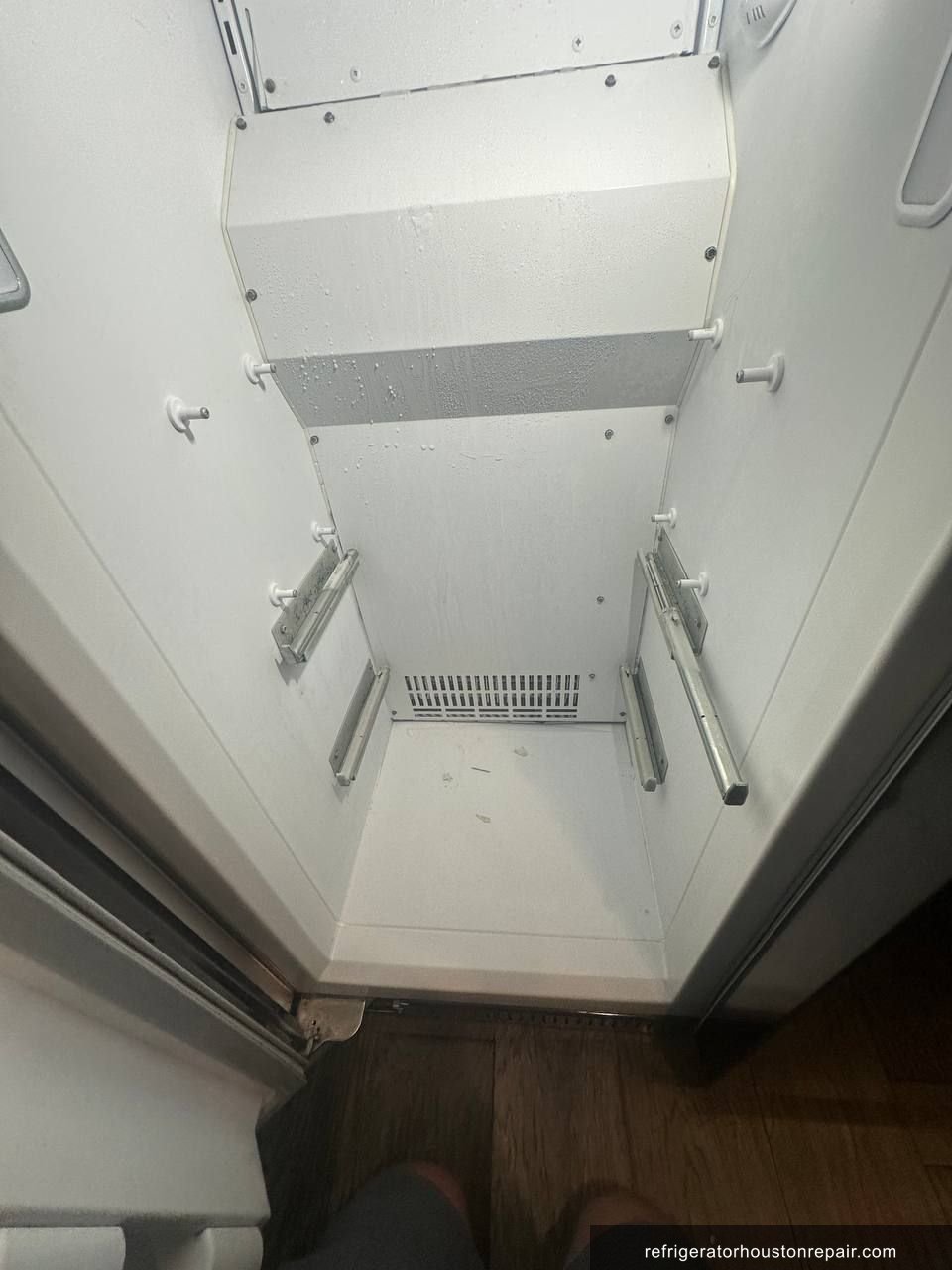

KitchenAid KBSD608EBS01 repair in Houston, TX — photo 3
