KitchenAid KBSD606ESS01 — Defrost Bi-Metal Thermostat Failure & Freezer Not Cooling
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Freezer not maintaining temperature — food feels soft or partially thawed
- •Ice in the ice maker is melting and no new ice is being produced
- •Visible frost or ice buildup on the back wall of the freezer compartment
- •Refrigerator section warmer than usual despite compressor running
🔍 Diagnosis
Technician Serhii arrived at the Memorial, TX (77077) residence and began a systematic inspection of the KitchenAid KBSD606ESS01 — a U.S.-made French door bottom-freezer refrigerator rated at 115 VAC / 60 Hz and 8.00 A, using R-134a refrigerant charged to 6.75 oz (191 g) per the confirmed appliance label (Serial: KS51200163). The customer reported that the freezer compartment was not holding temperature, food was thawing, and the built-in ice maker had stopped producing ice entirely. Serhii started by pulling the freezer evaporator cover panel to inspect the defrost system. He found a heavy accumulation of frost and ice completely blocking the evaporator coil — a classic indicator of a defrost cycle failure. Using a calibrated multimeter, he tested continuity across the bi-metal defrost thermostat. The thermostat showed an open circuit (OL reading) when it should have closed at approximately -3°F to allow the defrost heater to energize. The defrost heater itself tested within its rated resistance range, confirming the heater was not the root cause. The defrost control timer/board was also verified as functional. The failed component was conclusively identified as the bi-metal wire harness thermostat assembly, OEM part number W10482187. Because the evaporator was completely iced over, airflow through the cooling circuit was severely restricted, which also explains the ice maker shutdown — insufficient cold air circulation had halted ice production entirely.
🔧 The Repair
- ✓Disconnected the refrigerator from the 115 VAC power supply and verified zero voltage at the outlet with a multimeter before opening any panels.
- ✓Removed all freezer drawer assemblies and shelving to gain full access to the rear freezer compartment wall and evaporator cover.
- ✓Unscrewed and carefully removed the evaporator cover panel, exposing the evaporator coil and attached defrost system components.

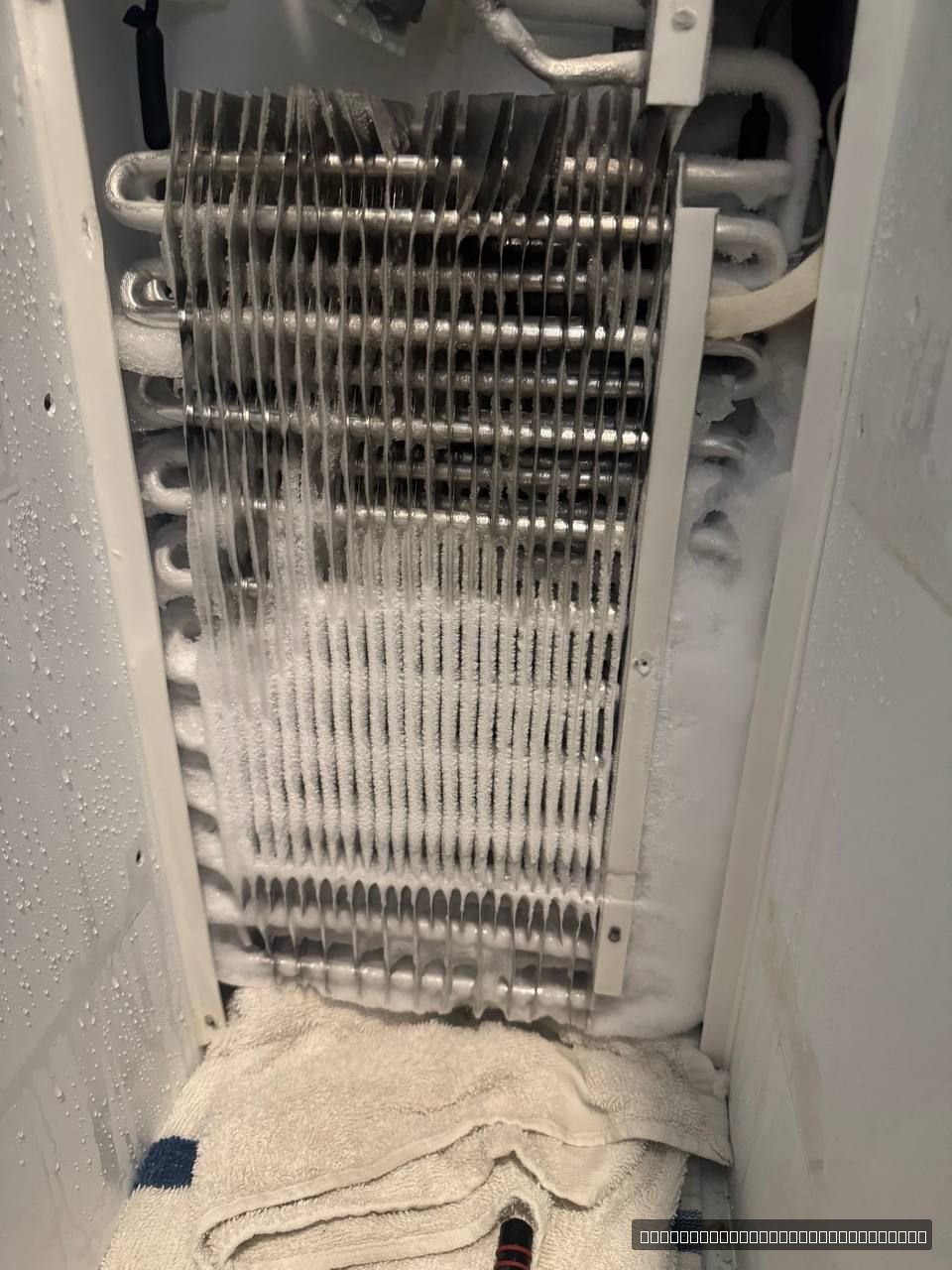

- ✓Documented the extent of ice accumulation on the evaporator coil with photos — frost build-up was approximately 2 inches thick across the full coil face.
- ✓Performed a manual defrost using a steamer tool to safely melt all ice from the evaporator coil without damaging the coil fins or refrigerant lines charged with R-134a at 6.75 oz / 191 g.
- ✓Used a calibrated multimeter to test the bi-metal defrost thermostat (W10482187 harness assembly): measured open circuit (OL) confirming the component had failed in the open position.
- ✓Verified the defrost heater resistance — measured within specification — confirming the heater was functional and not a contributing failure.
- ✓Checked the defrost control board for error codes and confirmed normal operation; isolated the bi-metal thermostat as the sole failed component.

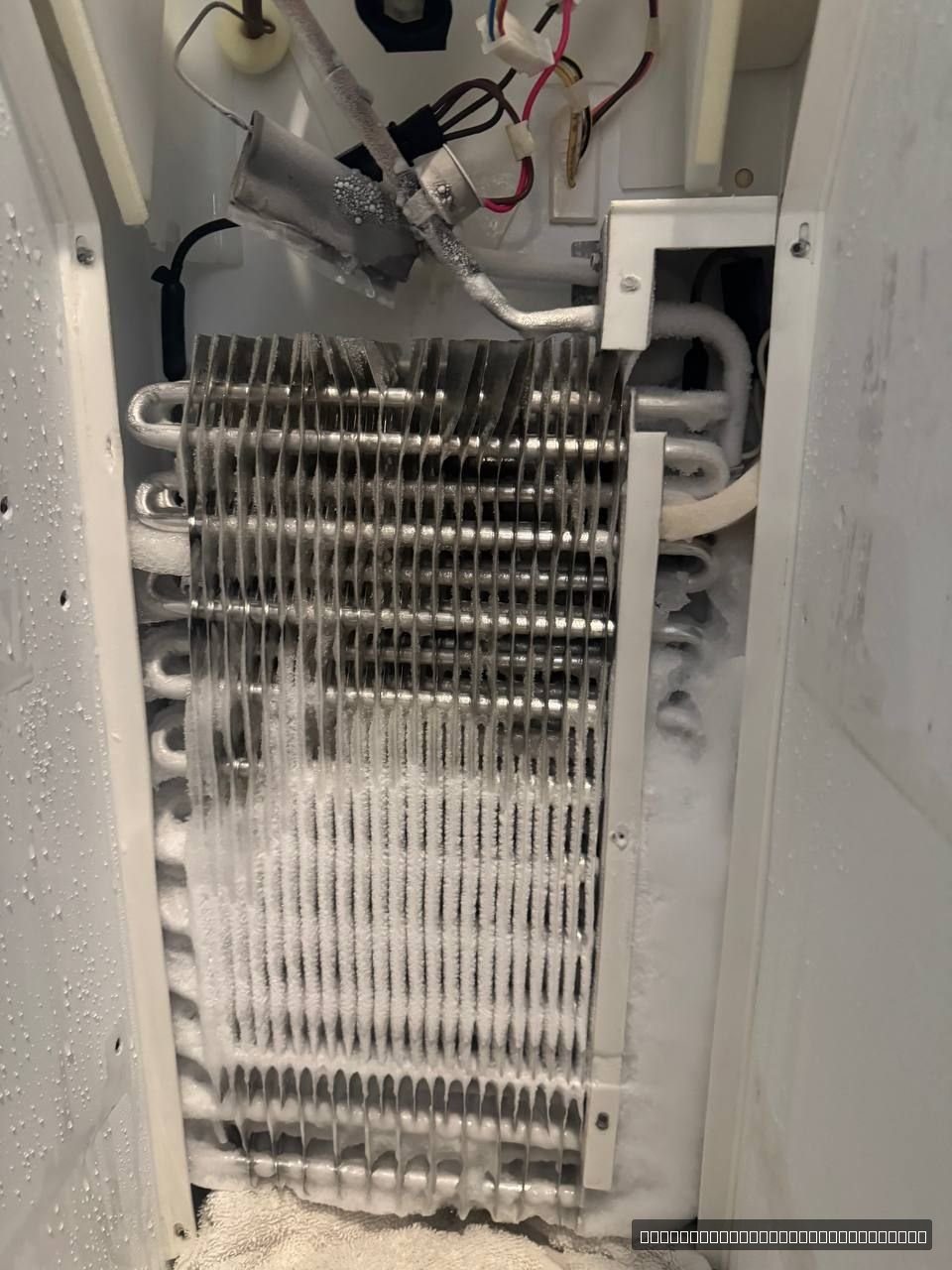

- ✓Disconnected the faulty W10482187 Bi-Metal Wire Harness from the wiring loom and evaporator mounting bracket, noting wire routing and connector orientation.
- ✓Installed the new OEM W10482187 Bi-Metal Wire Harness thermostat, securing it to the correct mounting position on the evaporator inlet tube and reconnecting all electrical connectors to the original routing.
- ✓Straightened any bent evaporator fins using a fin comb to restore full airflow across the coil surface.
- ✓Reassembled the evaporator cover panel, reinstalled all freezer drawers and shelving, and restored power to the unit. Verified that the defrost cycle initiated and completed normally, and confirmed cold air delivery to both freezer and refrigerator compartments. Also performed a scheduled maintenance service including condenser coil cleaning, door gasket inspection, and ice maker operational check.
✓ Result
Following installation of the new bi-metal defrost thermostat and manual defrost of the evaporator coil, the KitchenAid KBSD606ESS01 returned to full operation. The freezer compartment reached 0°F and the fresh-food section stabilized at 37°F within approximately four hours. The ice maker resumed normal ice production the same evening. The customer was extremely satisfied with the same-day repair and the fact that no return visit was required. A standard 90-day labor warranty was provided on the completed repair.
💡 Technician Notes
KitchenAid French door refrigerators like the KBSD606ESS01 rely on a precisely timed defrost cycle to prevent evaporator icing. If you notice your freezer temperatures gradually rising over several weeks, food softening, or a significant drop in ice production, don't wait — these are early warning signs of a defrost system issue. Bi-metal thermostats can fail silently; the freezer may still feel cold initially because the compressor is running, but restricted airflow will eventually cause full warm-up. We recommend cleaning the condenser coils every 6–12 months, especially in Houston's dusty climate, and checking door gaskets for cracks or gaps annually. KitchenAid built-in ice makers also contain heating elements that can burn out over time — if ice production suddenly stops, have a technician inspect the ice maker heater before assuming the sealed system is at fault. Catching defrost failures early prevents compressor overwork and significantly extends appliance lifespan.
Frequently Asked Questions
Why did my KitchenAid KBSD606ESS01 freezer stop cooling even though the compressor is still running?
When the bi-metal defrost thermostat fails on the KitchenAid KBSD606ESS01, the evaporator coil ices over completely and blocks airflow. The compressor continues running, but cold air can no longer circulate into the freezer or refrigerator compartments. Replacing the defrost thermostat — part W10482187 — and manually defrosting the coil restores normal operation without touching the sealed R-134a refrigerant system.
How much does it cost to replace the bi-metal defrost thermostat on a KitchenAid French door refrigerator?
The OEM bi-metal thermostat harness (W10482187) for the KitchenAid KBSD606ESS01 is a relatively affordable part. Total repair cost including labor, manual defrost of the evaporator, and reassembly typically ranges from $180 to $320 depending on the service provider. In most cases, a trained technician can complete this repair in a single visit, as was done here in Memorial, TX 77077.
What are the warning signs that the defrost thermostat is failing in a KitchenAid refrigerator?
Early warning signs include gradually rising freezer temperatures, food that feels partially soft, a slowdown or complete stop in ice maker production, and visible frost build-up on the back wall of the freezer compartment. In the KitchenAid KBSD606ESS01, the defrost cycle runs automatically, so owners may not notice the failure until the evaporator is fully blocked and temperatures become unsafe.
Is it worth repairing a KitchenAid KBSD606ESS01 with a defrost thermostat failure, or should I replace it?
A defrost thermostat failure is one of the most cost-effective refrigerator repairs available. The KitchenAid KBSD606ESS01 is a high-end built-in model with a replacement cost well above $3,000. A bi-metal thermostat repair is typically under $350 and restores full function. Unless the refrigerator has multiple simultaneous failures or a sealed system leak, repair is almost always the financially sensible choice for this model.
After replacing the defrost thermostat on my KitchenAid refrigerator, how long before it reaches normal temperature?
After a bi-metal defrost thermostat replacement and manual evaporator defrost on the KitchenAid KBSD606ESS01, expect the freezer to reach 0°F and the fresh-food compartment to stabilize around 37°F within 3 to 5 hours. Avoid loading large amounts of warm food during this period. The ice maker typically resumes production within 6 to 12 hours once the freezer reaches its target temperature.
Repair Summary
- Brand
- KitchenAid
- Model
- KBSD606ESS01
- Repair Type
- Defrost System Repair / Bi-Metal Thermostat Replacement
- Refrigerant
- R-134a
- Root Cause
- Failed bi-metal defrost thermostat blocked automatic defrost cycle
- Parts Replaced
- ✓W10482187 Harness, Bi-Metal Wire — OEM KitchenAid/Whirlpool defrost thermostat assembly (carried on truck, installed same visit)
- Location
- Memorial, TX 77077
- Status
- ✓ Completed
