The Problem
- •Refrigerator completely stopped cooling — both fresh food and freezer sections warming above safe food temperatures
- •Repetitive clicking noise coming from the rear of the unit every 30 to 60 seconds
- •Compressor attempting to start but immediately shutting off without completing a full run cycle
- •No error codes displayed on the control panel despite an active electrical fault in the system
🔍 Diagnosis
When I arrived at the residence in The Woodlands 77382, the KitchenAid KBRO36FTX00 built-in refrigerator had been down for approximately 18 hours. The fresh food compartment read 58°F and the freezer had climbed to 29°F. The clicking noise the homeowner described was immediately apparent. It was a rapid relay-click pattern repeating every 45 seconds, originating from the main control board at the rear of the unit. I pulled the unit out from its built-in enclosure and connected a clamp meter to the compressor circuit. Each time the click fired, I saw a brief 2.1-amp draw spike that collapsed within one second, confirming the compressor was not reaching full startup. The compressor itself tested within spec at 4.8 ohms across run and start windings, which ruled out a seized or shorted compressor. I then tested the control board's relay output with a multimeter. The relay was intermittently firing with irregular voltage output, dropping to 87V AC on attempted starts instead of the required 120V AC. This is a known failure pattern on the KBRO36FTX00 series: the onboard relay contacts degrade over time due to the thermal cycling specific to built-in installations with limited rear ventilation. The board was sending the start signal but could not sustain the voltage needed to energize the compressor through a full start sequence. I confirmed the R-134a system showed 25 psi on the low side at ambient, consistent with a fully charged, non-running system, which further eliminated the sealed system as the source of the problem.
🔧 The Repair

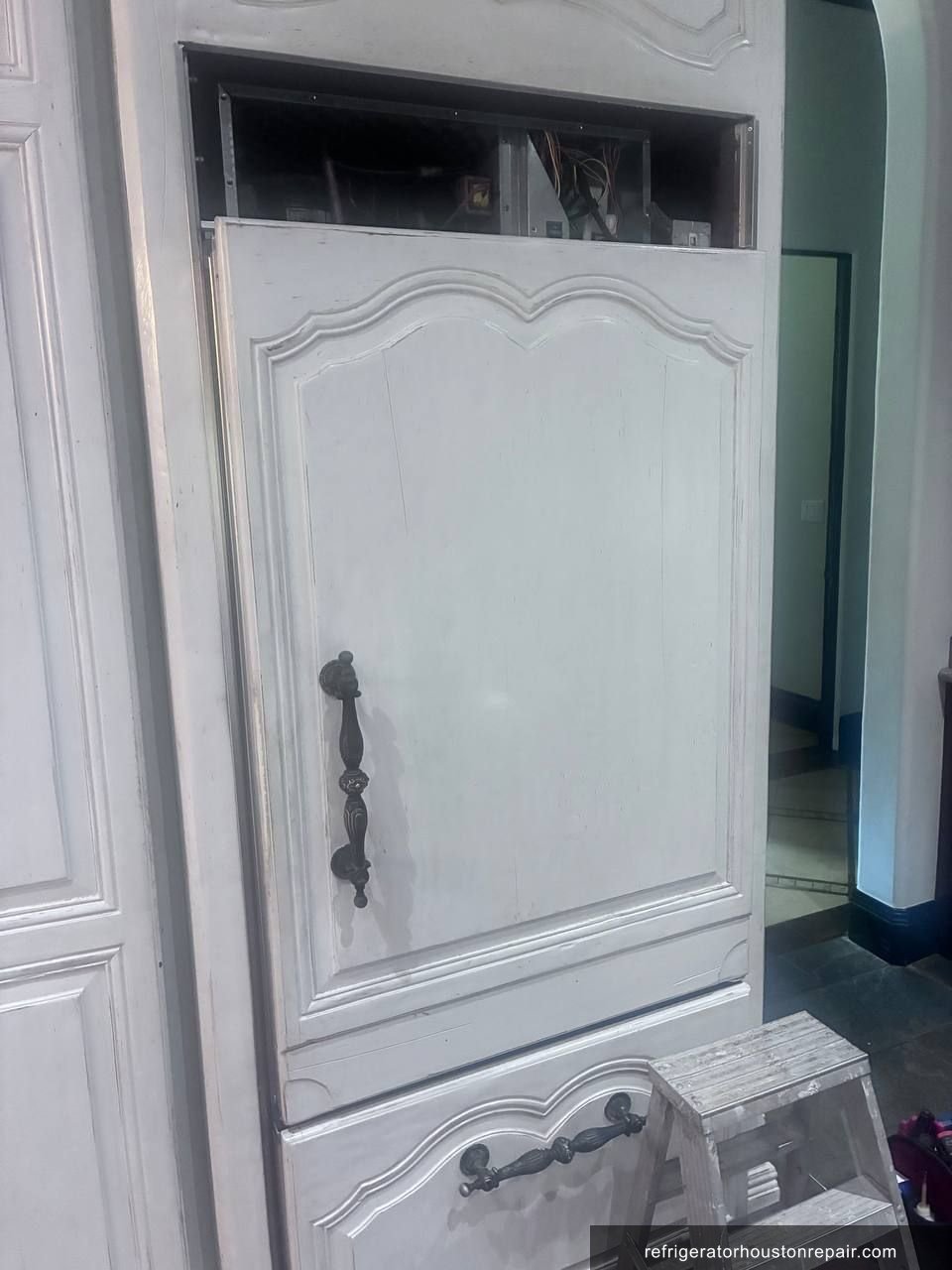

- ✓Step 1: Powered down the KBRO36FTX00 at the circuit breaker and pulled the unit forward from the built-in cabinet recess to access the rear service panel.
- ✓Step 2: Removed the rear lower access panel using a T20 Torx driver to expose the main control board and compressor assembly.
- ✓Step 3: Photographed all wiring harness connections on the existing control board before disconnecting to document routing and connector positions for reinstallation reference.
- ✓Step 4: Tested the existing board's relay output with a Fluke 117 multimeter, confirming irregular 87V AC output on compressor start attempts against a required 120V AC, verifying board failure.

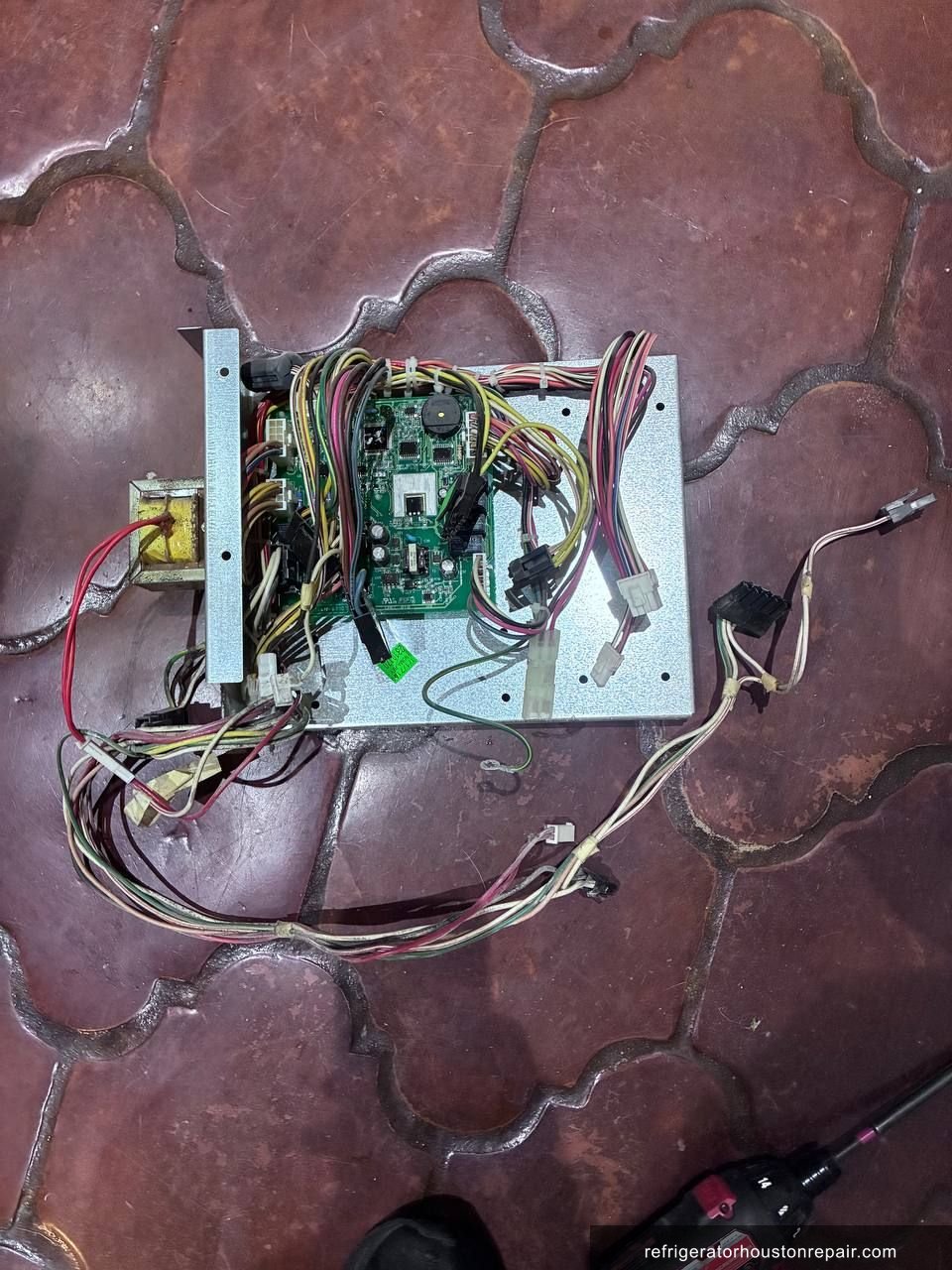

- ✓Step 5: Disconnected all wiring harnesses from the failed main control board, released the four mounting clips, and removed the board from the chassis.

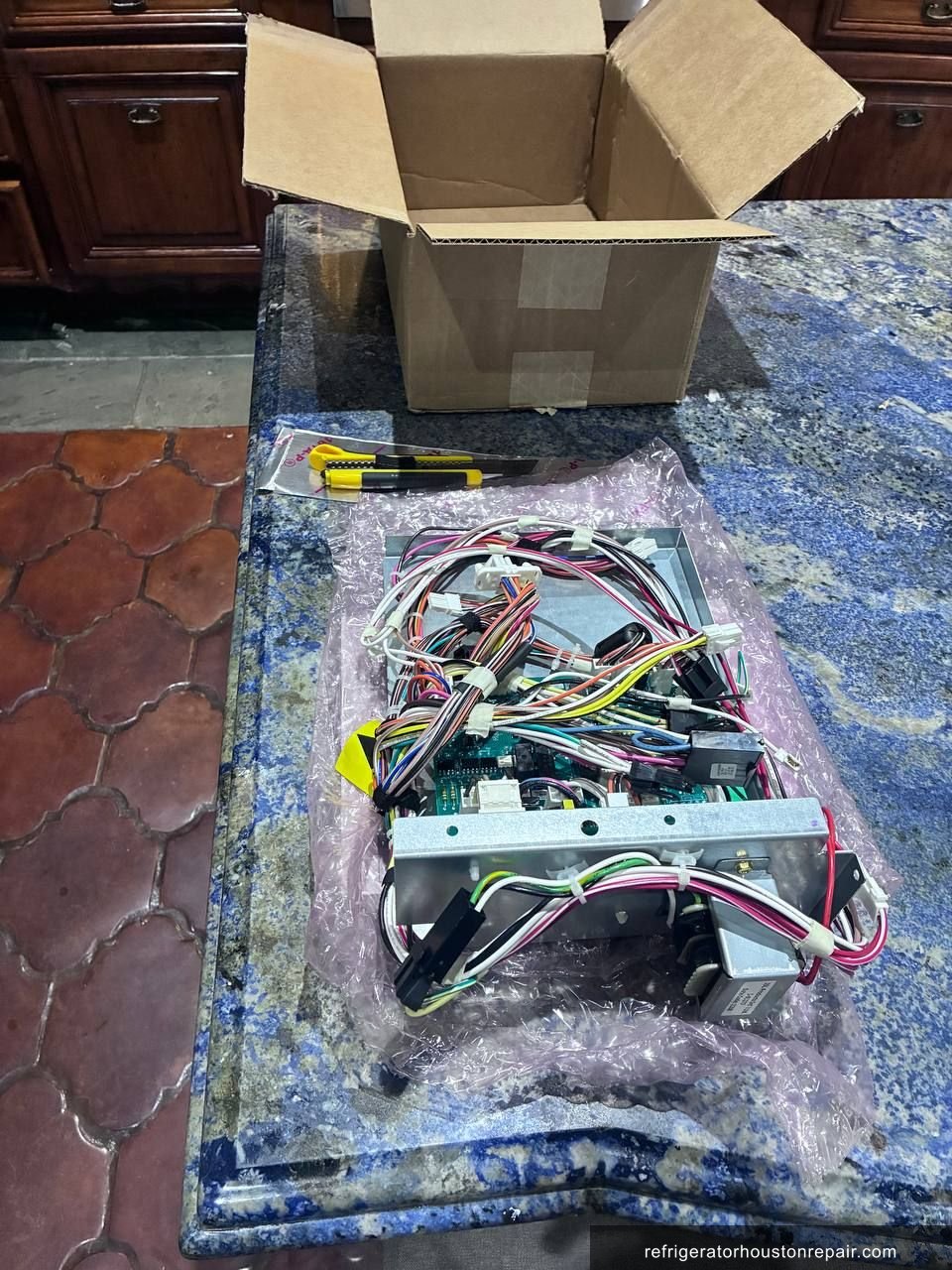

- ✓Step 6: Installed the upgraded KitchenAid main control board kit designed specifically for the KBRO36FTX00 series, which includes reinforced relay components rated for higher thermal cycling endurance.
- ✓Step 7: Reconnected all wiring harnesses per the documented photos, re-secured the board with the mounting clips, and restored power at the breaker.
- ✓Step 8: Monitored the compressor startup, confirmed a clean 119.4V AC draw, and measured temperatures after a 2-hour runtime. Fresh food compartment reached 37°F and the freezer stabilized at 0°F. No clicking noises present.
✓ Result
After the upgraded control board was installed, the KBRO36FTX00 started cleanly on the first attempt. Within two hours the fresh food section was down to 37°F and the freezer hit 0°F. The clicking noise was completely gone. I gave the homeowner a 90-day labor warranty and sourced the part with a 1-year manufacturer warranty. The homeowner in The Woodlands was relieved that most of the food in the freezer had survived thanks to the quick turnaround, and they mentioned this was the first issue the unit had given them in seven years of daily use.
💡 Technician Notes
KitchenAid built-in refrigerators like the KBRO36FTX00 run in tight cabinet enclosures that restrict airflow behind the unit. Over time this causes the main control board to run hotter than it was designed for, which degrades the relay contacts. The early warning sign for this specific failure is an intermittent clicking pattern that comes and goes over a few days before the unit stops completely. Many homeowners mistake this for an icemaker issue. It is not. If you hear a rhythmic click from the rear every 30 to 90 seconds, that is a relay cycling on a struggling board. The one maintenance step that extends board life on this model is ensuring at least 2 inches of clearance behind the unit for air circulation and vacuuming the condenser coil area once a year. Do not wait more than 24 hours after the clicking starts before calling for service. A board that has been click-cycling for days can sometimes damage the compressor start components, turning a straightforward board replacement into a more involved repair.
Frequently Asked Questions
Why is my KitchenAid KBRO36FTX00 built-in refrigerator making a clicking noise and not cooling?
On the KBRO36FTX00, that clicking pattern is almost always the main control board relay trying and failing to start the compressor. The relay contacts degrade in built-in installations due to heat buildup in the cabinet enclosure. The compressor itself is often fine. A technician needs to test the board output voltage before assuming the compressor has failed.
How much does it cost to replace the main control board on a KitchenAid built-in refrigerator in The Woodlands TX?
For a KitchenAid KBRO36FTX00 in The Woodlands, a main control board replacement typically runs between $380 and $550 total, depending on the specific board kit required and labor time. The upgraded kit for this model costs more than a standard board but includes reinforced relay components that address the root cause rather than just swapping in an identical part that will fail the same way.
What happens if I ignore the clicking noise on my KitchenAid built-in refrigerator and don't repair it?
If the clicking continues without repair, the relay on the control board will eventually stop firing altogether and the refrigerator will not attempt to start at all. Worse, repeated failed start attempts can overheat the compressor start capacitor or winding insulation. What starts as a $400 to $500 board repair can escalate into a compressor replacement costing $900 or more if the problem is left unaddressed for too long.
Is it worth repairing a KitchenAid KBRO36FTX00 built-in refrigerator or should I replace it?
A control board failure on the KBRO36FTX00 is one of the most cost-effective repairs on this model. The sealed system, compressor, and cabinet are typically in excellent condition when the board fails. KitchenAid built-in refrigerators cost $4,000 to $7,000 new. A $400 to $550 board replacement on a unit with intact cooling components is almost always the right financial call, especially when the rest of the appliance is structurally sound.
What is the upgraded control board kit for the KitchenAid KBRO36FTX00 and why is it better than the standard board?
The upgraded kit for the KBRO36FTX00 replaces the original relay assembly with components rated for higher thermal cycling endurance. The original board's relay contacts were not designed for the sustained heat that builds up in a tightly enclosed built-in installation. The upgraded kit addresses this directly. Using a standard replacement board without the reinforced relay is likely to result in the same failure pattern within a few years under the same operating conditions.
Repair Summary
- Brand
- KitchenAid
- Model
- KBRO36FTX00
- Repair Type
- Main Control Board Replacement with Upgraded Kit
- Refrigerant
- R-134a
- Root Cause
- Failed main control board causing compressor relay click-cycling
- Parts Replaced
- ✓Main control board upgraded replacement kit for KitchenAid KBRO36FTX00 — includes reinforced relay assembly rated for built-in installation thermal cycling
- Location
- The Woodlands, TX 77382
- Status
- ✓ Completed
