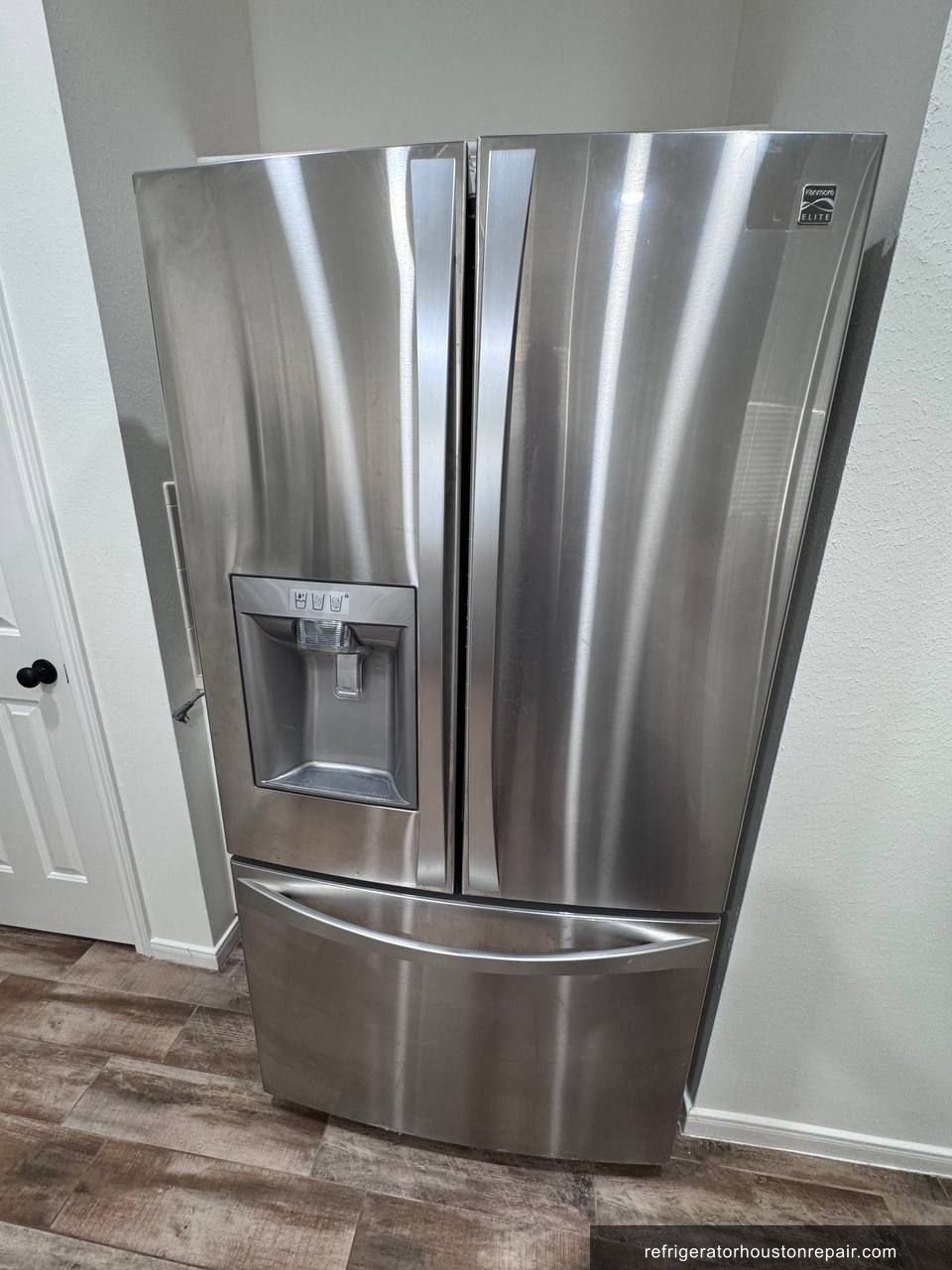

Kenmore Elite 795.74023.412: Linear Compressor Failure Repair in Katy, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Both fresh food and freezer sections reading 74°F with no cooling at all
- •Compressor running and audible but body completely cold to the touch after extended runtime
- •No temperature drop despite the unit appearing to operate normally from the outside
🔍 Diagnosis
I arrived to find the unit fully unplugged. The customer had just moved into the home and discovered the refrigerator not cooling. After powering it on, I let it run and took temperature readings across both compartments. Fresh food section: 74°F. Freezer: 74°F. Ambient room temp was close to that, meaning zero active cooling had occurred. The compressor was humming, which told me the motor was receiving power, but the body of the compressor was completely cold after several minutes of runtime. That is a classic tell on LG-platform linear compressors. A healthy compressor gets warm to hot within the first few minutes of operation as it compresses refrigerant. A cold body with an audible motor means the piston assembly is not building pressure. I connected my manifold gauges and confirmed: suction and discharge pressures were equalized, with no pressure differential being generated. The system also showed signs of oil contamination when I began recovery. During refrigerant evacuation, I could see oil in the line, which tells me the compressor had been failing for some time and circulating oil into the sealed system. The Kenmore Elite 795.74023.412 uses an LG-sourced linear compressor, a known failure point on this entire platform. The system required full evacuation, compressor swap, new filter drier, line flush, and a fresh charge of R-134a at the label spec of 4.76 oz.
🔧 The Repair
- ✓Step 1: Powered on the unplugged unit, allowed runtime, and confirmed both compartments at 74°F with no cooling trend over 10 minutes of operation.
- ✓Step 2: Touched compressor body after several minutes of runtime and confirmed it was cold, consistent with a failed LG linear piston assembly producing no compression.
- ✓Step 3: Connected manifold gauges to the service ports and recorded equalized low-side and high-side pressures with zero differential, confirming total compressor failure.
- ✓Step 4: Connected recovery machine and began R-134a refrigerant recovery per EPA 608 protocol. Observed oil contamination in the recovered refrigerant stream, indicating internal compressor wear had circulated oil throughout the sealed system.
- ✓Step 5: Disconnected and removed the failed LG linear compressor. Flushed the sealed system lines to remove residual oil contamination.
- ✓Step 6: Installed replacement LG-platform linear compressor compatible with model 795.74023.412. Brazed all connections and pressure-tested joints.
- ✓Step 7: Replaced the filter drier with a new unit to ensure all moisture and debris introduced during the repair were captured before system startup.

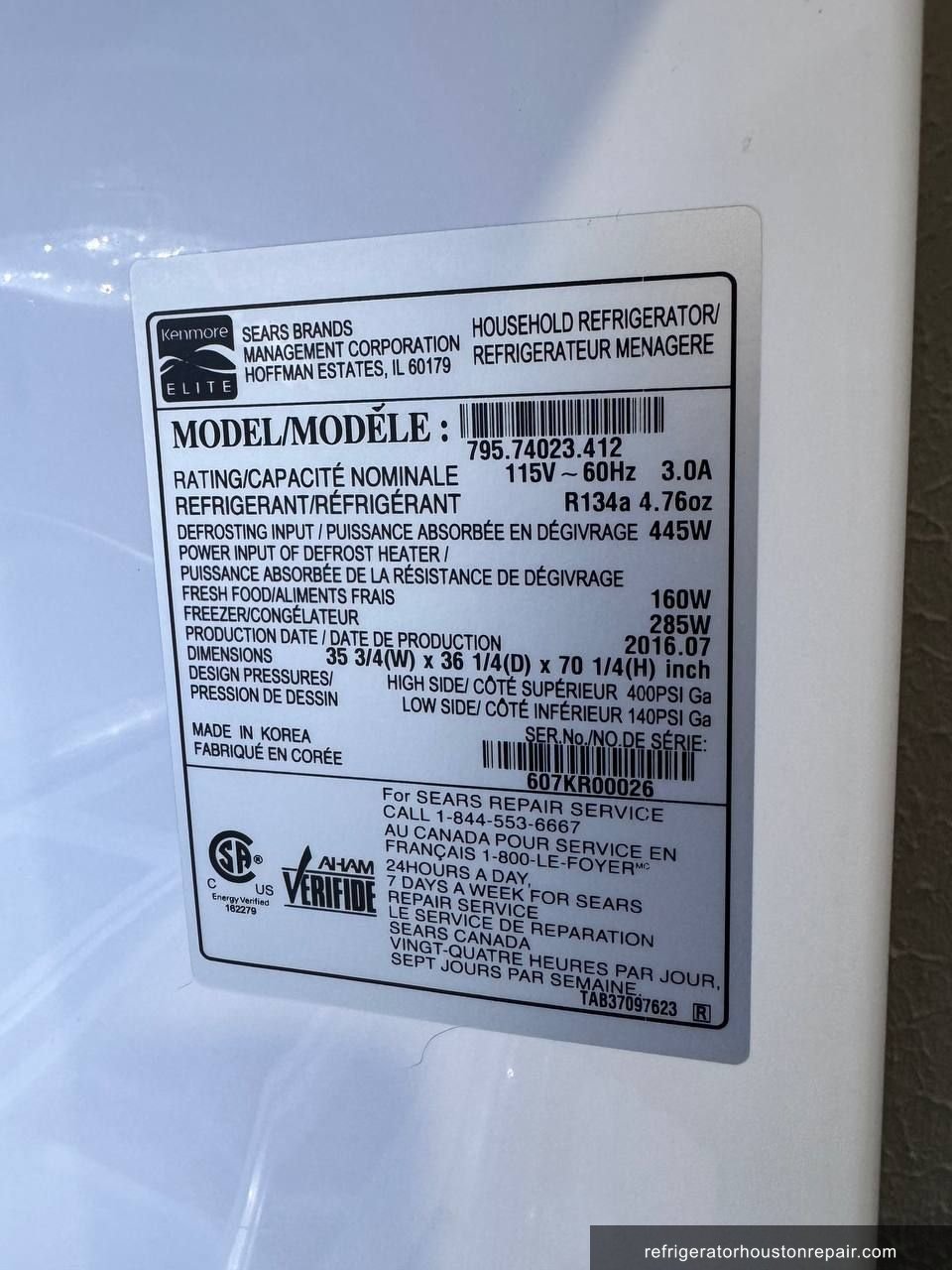

- ✓Step 8: Pulled deep vacuum on the sealed system using a two-stage vacuum pump, held vacuum to confirm no leaks, then recharged with 4.76 oz of R-134a per the appliance label specification.
- ✓Step 9: Powered the unit on and monitored performance. Within 15 minutes, both compartments showed active temperature drop. Fresh food section reached 38°F and freezer reached 0°F within 2 hours of full runtime.
✓ Result
The repair took approximately 2.5 hours from start to finish on the return visit. Before I finished loading my tools into the truck, both compartments were already showing active temperature drop, which the customer noticed on their own. Fresh food reached 38°F and the freezer hit 0°F within 2 hours. The customer had just moved into their home in ZIP 77450, less than 9 minutes from my location, and was relieved the refrigerator was running the same day they called. They had held off on restocking after the move, so no food was lost.
💡 Technician Notes

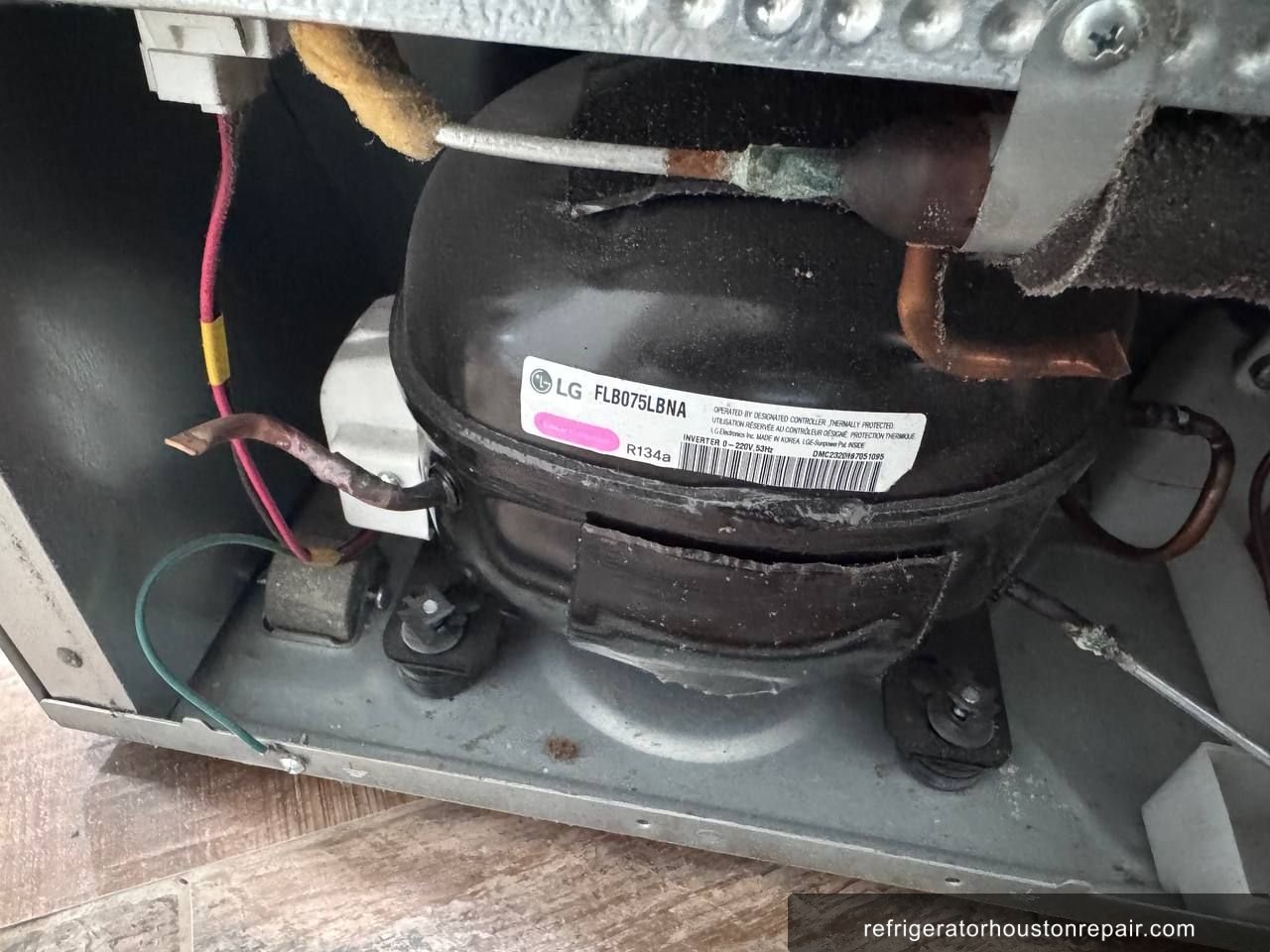

Kenmore Elite models in the 795 series are built on the LG platform and use the same LG linear compressor found in LG French door refrigerators. That compressor has a documented failure pattern, and one of the earliest signs is subtle. The unit runs, sounds normal, but the freezer takes longer than usual to recover after you open the door. Most homeowners chalk that up to the Houston heat. Do not. That lag in recovery is the compressor losing efficiency before it fails completely. If you own a Kenmore Elite 795 series unit, do not unplug it before a technician arrives. Unplugging wipes the fault codes stored in the control board, which help speed up diagnosis. The one maintenance step that extends sealed system life on these units is keeping the condenser coils clean. Dirty coils force the compressor to run longer and hotter, and that heat accelerates wear on the linear piston. Clean them every 6 months with a vacuum and brush. If you hear a clicking sound at startup followed by the compressor going quiet, call the same day.
Frequently Asked Questions
Why did my Kenmore Elite 795 refrigerator stop cooling even though the compressor is still running?
On Kenmore Elite 795 series units, the LG linear compressor inside the unit is running but its piston assembly fails to build pressure. The motor hums and the unit sounds normal, but no compression means no refrigeration cycle. A cold compressor body during runtime is the clearest sign of this failure. This is a known issue across LG-platform Kenmore models.
How much does it cost to replace the compressor on a Kenmore Elite 795 refrigerator in Katy, TX?
A full sealed system repair on a Kenmore Elite 795 series, including compressor, filter drier, system flush, and R-134a recharge, typically runs between $400 and $700 in the Katy and Houston area depending on parts availability and system contamination. Same-day service is available in 77450. Diagnosis is a separate charge and is applied toward the repair if you proceed.
What happens if I keep running my Kenmore Elite refrigerator with a failed linear compressor?
Running a Kenmore Elite 795 with a seized linear compressor will not cause immediate safety issues, but a failing compressor circulates degraded oil through the sealed system. That oil contaminates the evaporator and condenser coils, making a future repair more expensive. The longer it runs in a failed state, the more thorough the system flush needs to be before a new compressor will work reliably.
Is it worth replacing the compressor on a Kenmore Elite 795 or should I just buy a new refrigerator?
If the unit is under 10 years old and the rest of the refrigerator is in good condition, a compressor replacement on a Kenmore Elite 795 is worth it. These units retail for $1,200 to $1,800 new. A sealed system repair at $400 to $700 gives you a working refrigerator for a fraction of replacement cost. If the unit is over 12 years old or has had prior sealed system work, replacement starts to make more financial sense.
Why did the technician replace the filter drier when replacing my Kenmore Elite compressor?
The filter drier in a sealed refrigeration system captures moisture and debris. When a linear compressor fails, it often sheds internal material and contaminates the refrigerant with oil. Opening the sealed system to replace the compressor also introduces atmospheric moisture. Installing a new filter drier as part of every sealed system repair on a Kenmore Elite 795 protects the new compressor from premature failure caused by contamination.
Repair Summary
- Brand
- Kenmore Elite
- Model
- 795.74023.412
- Repair Type
- Sealed System Overhaul: Linear Compressor Replacement
- Refrigerant
- R-134a
- Root Cause
- Failed LG-sourced linear compressor with contaminated sealed system
- Parts Replaced
- ✓LG-platform linear compressor (OEM-compatible replacement for Kenmore Elite 795.74023.412)
- ✓Filter drier (inline sealed system drier, replaced as part of sealed system overhaul)
- ✓R-134a refrigerant, 4.76 oz per appliance label specification
- Location
- Katy, TX 77450
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Katy and surrounding areas.
View Katy Service Area →📸 Repair Photos

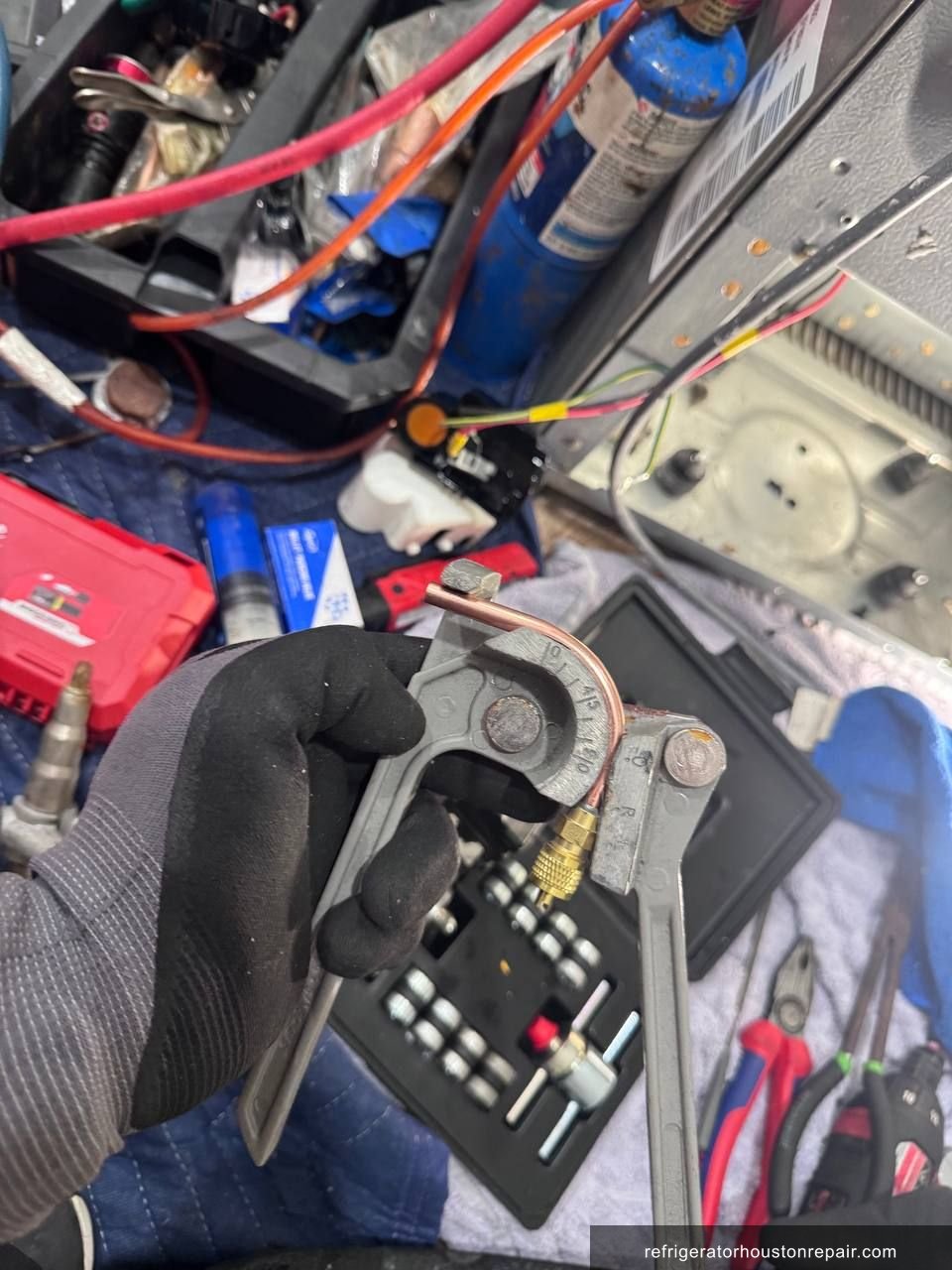

Kenmore Elite 795.74023.412 repair in Katy, TX — photo 3

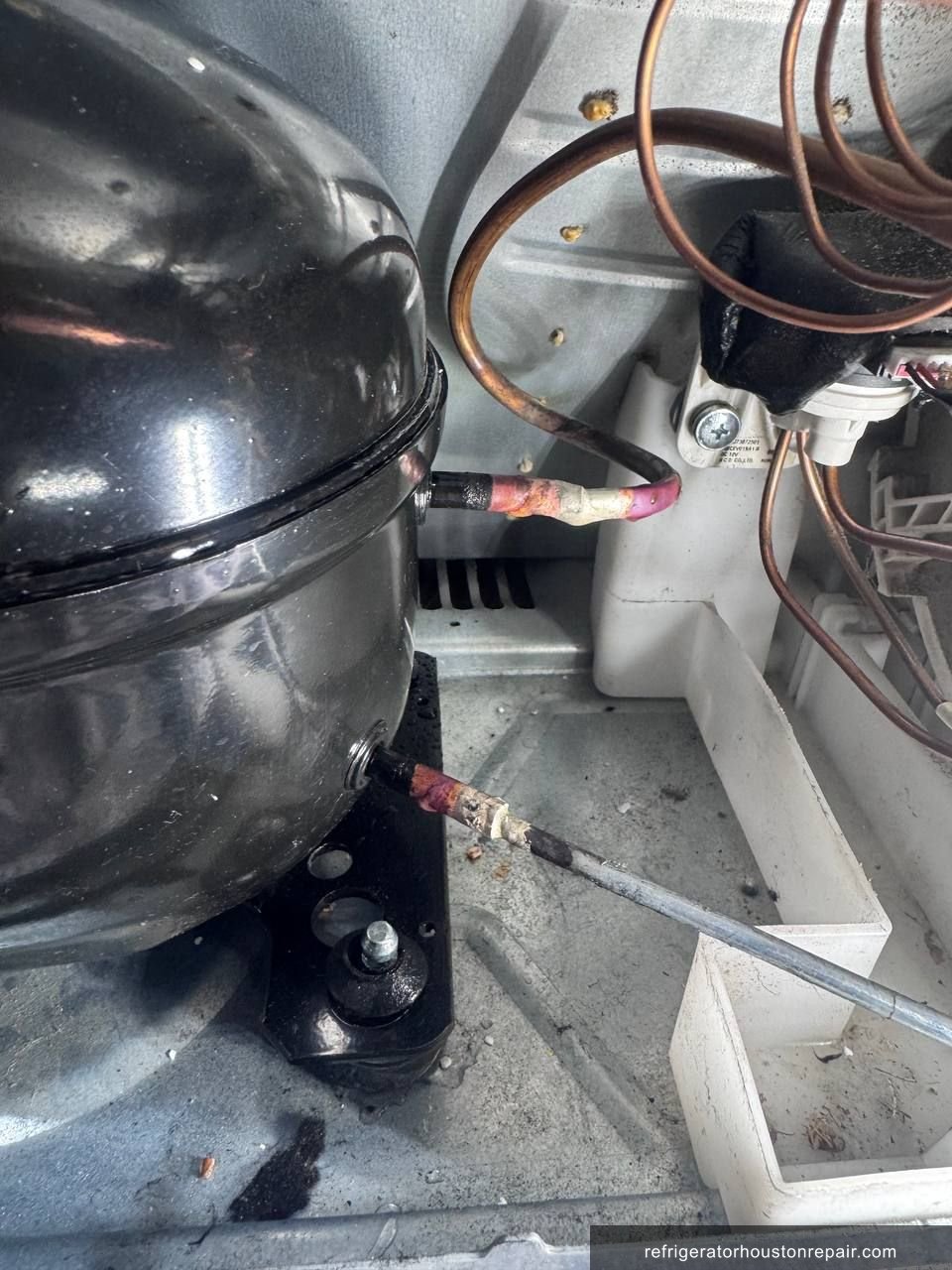

Kenmore Elite 795.74023.412 repair in Katy, TX — photo 4

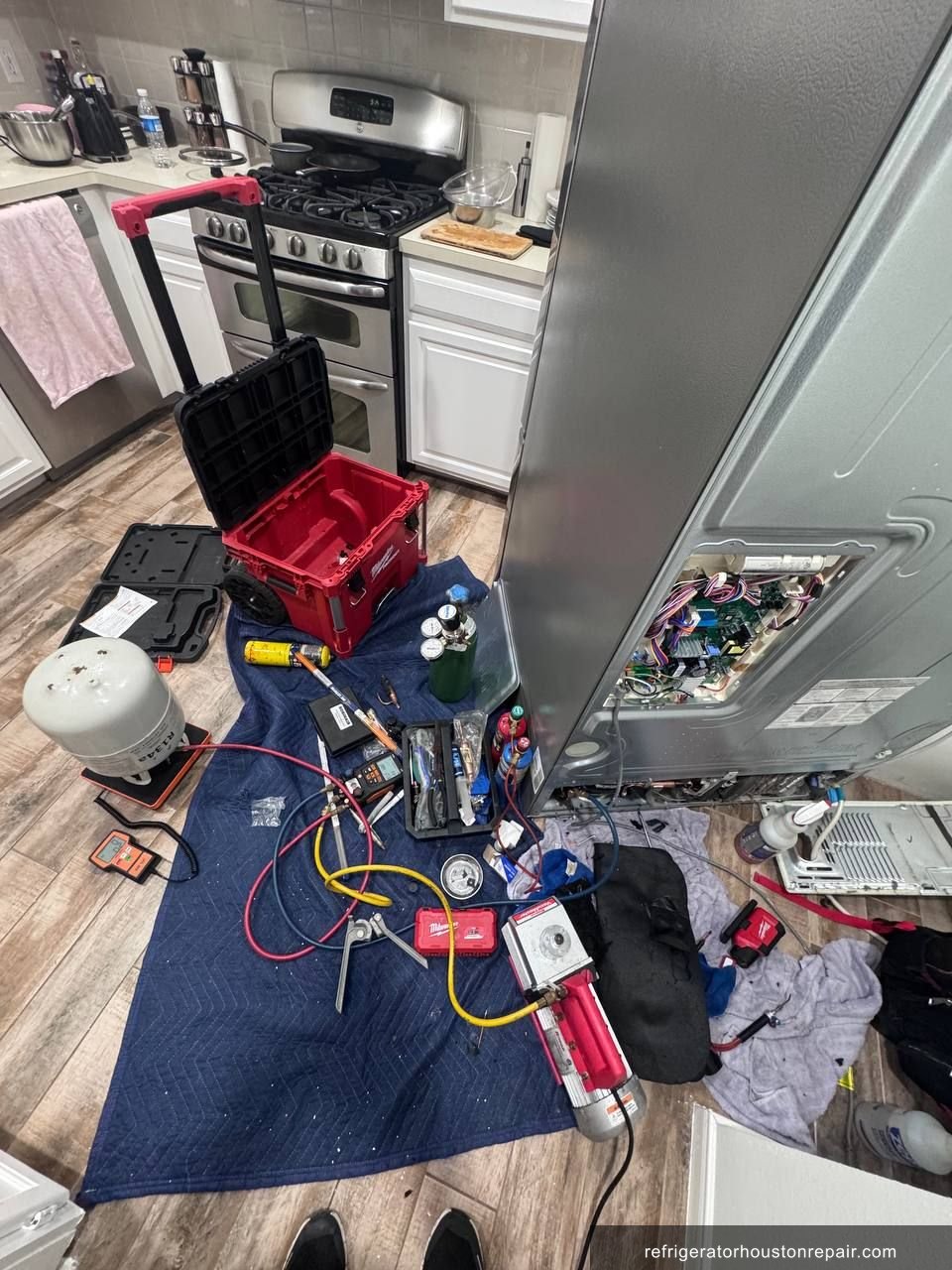

Kenmore Elite 795.74023.412 repair in Katy, TX — photo 5
