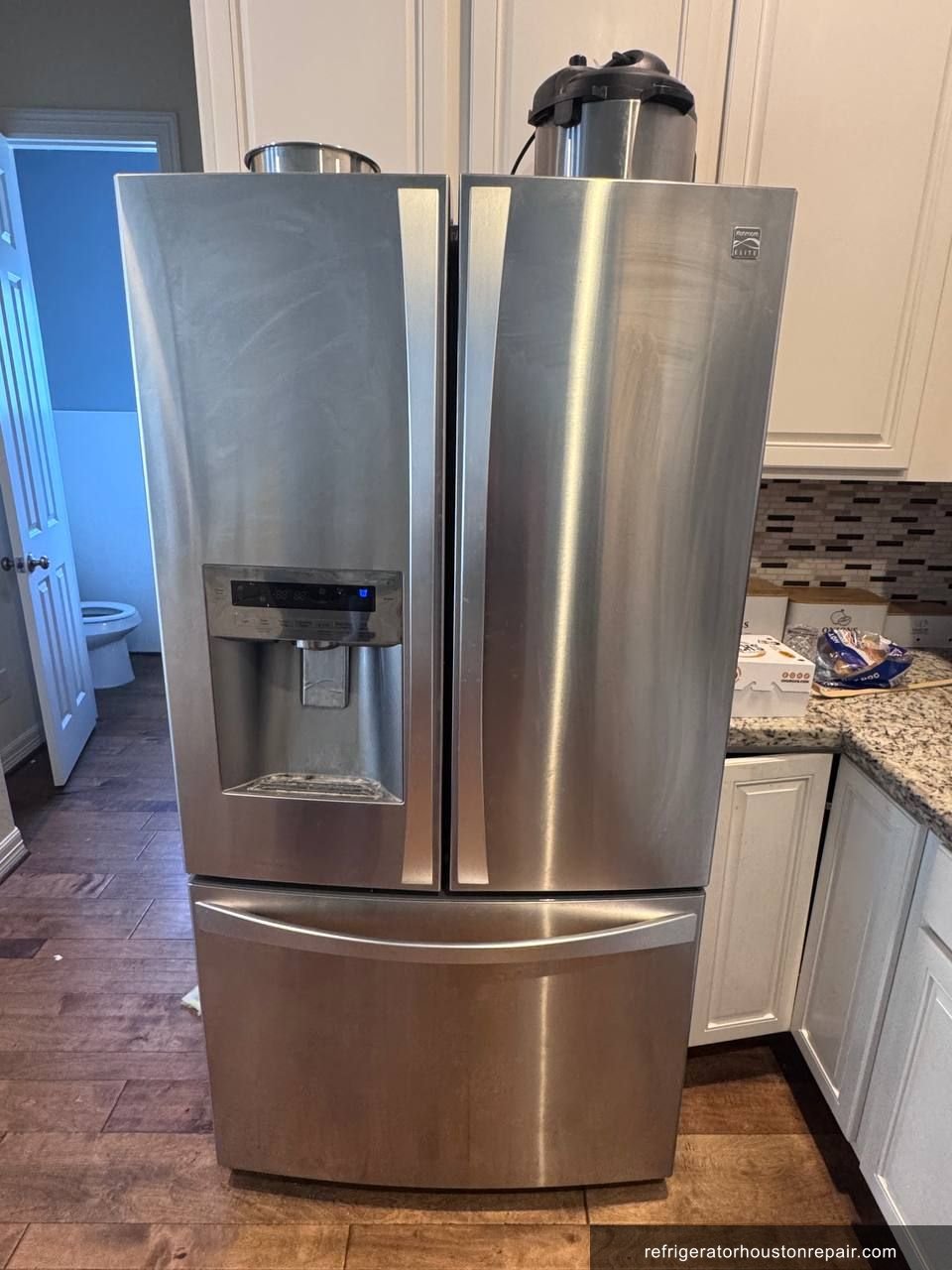

Kenmore Elite 795.72053.114: Refrigerant Loss Repair in Memorial, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Fresh food compartment temperature above 50°F — food spoiling at room temperature
- •Freezer reading 27 to 28°F instead of 0°F, ice soft and starting to melt
- •Compressor running continuously without pulling temperatures down
- •Previous compressor replacement on record, suggesting sealed system history
🔍 Diagnosis
I arrived at the Memorial home late in the evening. The customer told me her Kenmore Elite had stopped cooling properly over the past day or two. I checked the fresh food section first with a calibrated digital thermometer and got a reading above 50°F. The freezer was sitting at 27 to 28°F. Neither zone was close to safe food storage temperature. When I looked at the compressor, I noticed it had already been replaced at some point. That immediately told me the sealed system had been opened before, which raised the question of whether the refrigerant charge was still correct. I connected my manifold gauges to the service port. With the unit running, suction pressure was reading around negative 2 psi. That is well below normal operating range for R-134a systems on this platform, which should sit in the range of 20 to 30 psi on the low side under normal load. I shut the unit off and let the system equalize. Pressure climbed to only about 27 psi. That equalization pressure confirmed a significantly undercharged system. On the Kenmore Elite 795-series, which is built on the LG French door platform, low refrigerant charge after a prior compressor swap is a known outcome when the system is not properly evacuated and recharged to spec. The nameplate on this unit calls for 4.76 oz of R-134a, though I referenced that figure alongside my gauge readings to confirm the system needed a full service.
🔧 The Repair

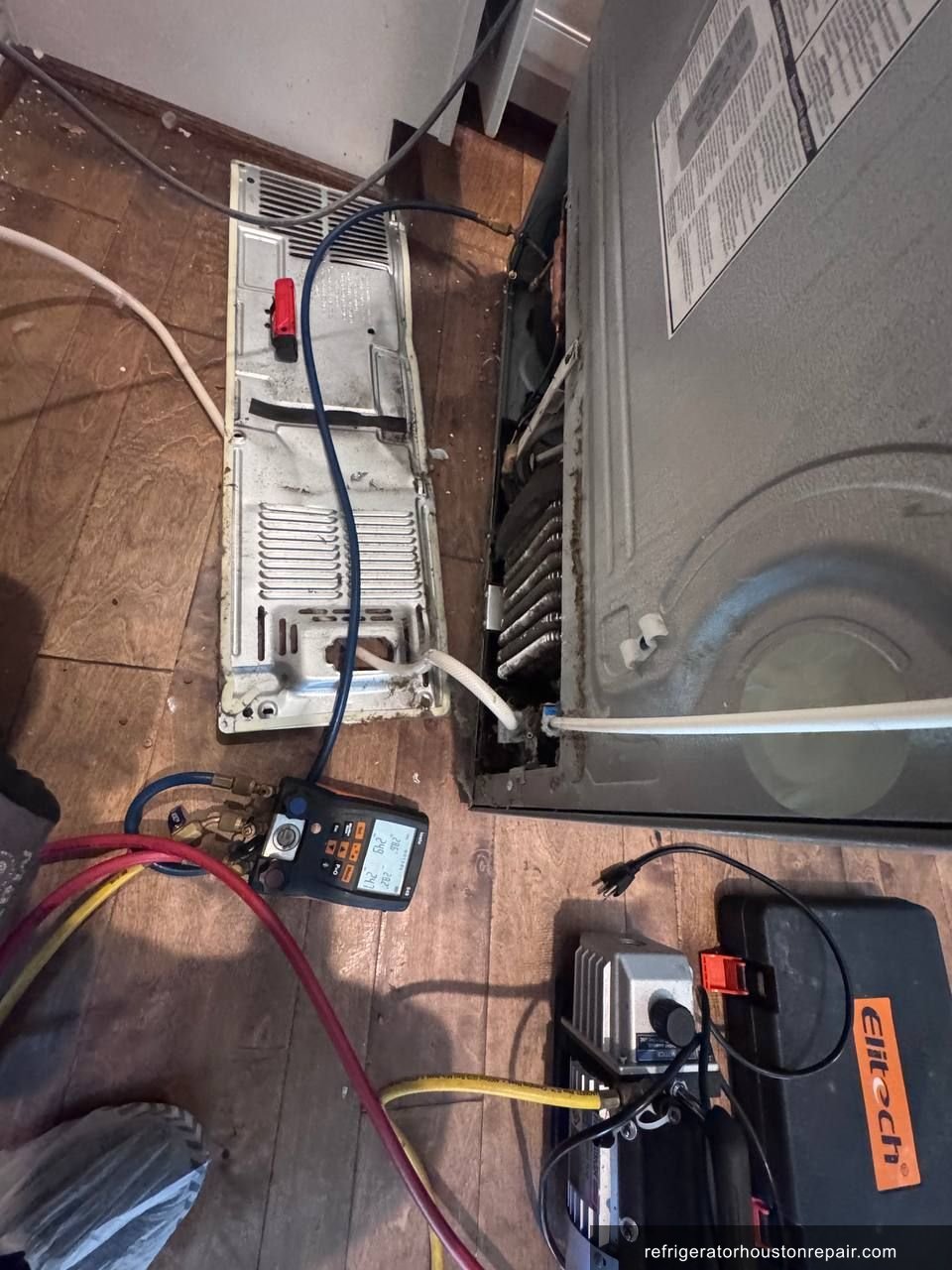

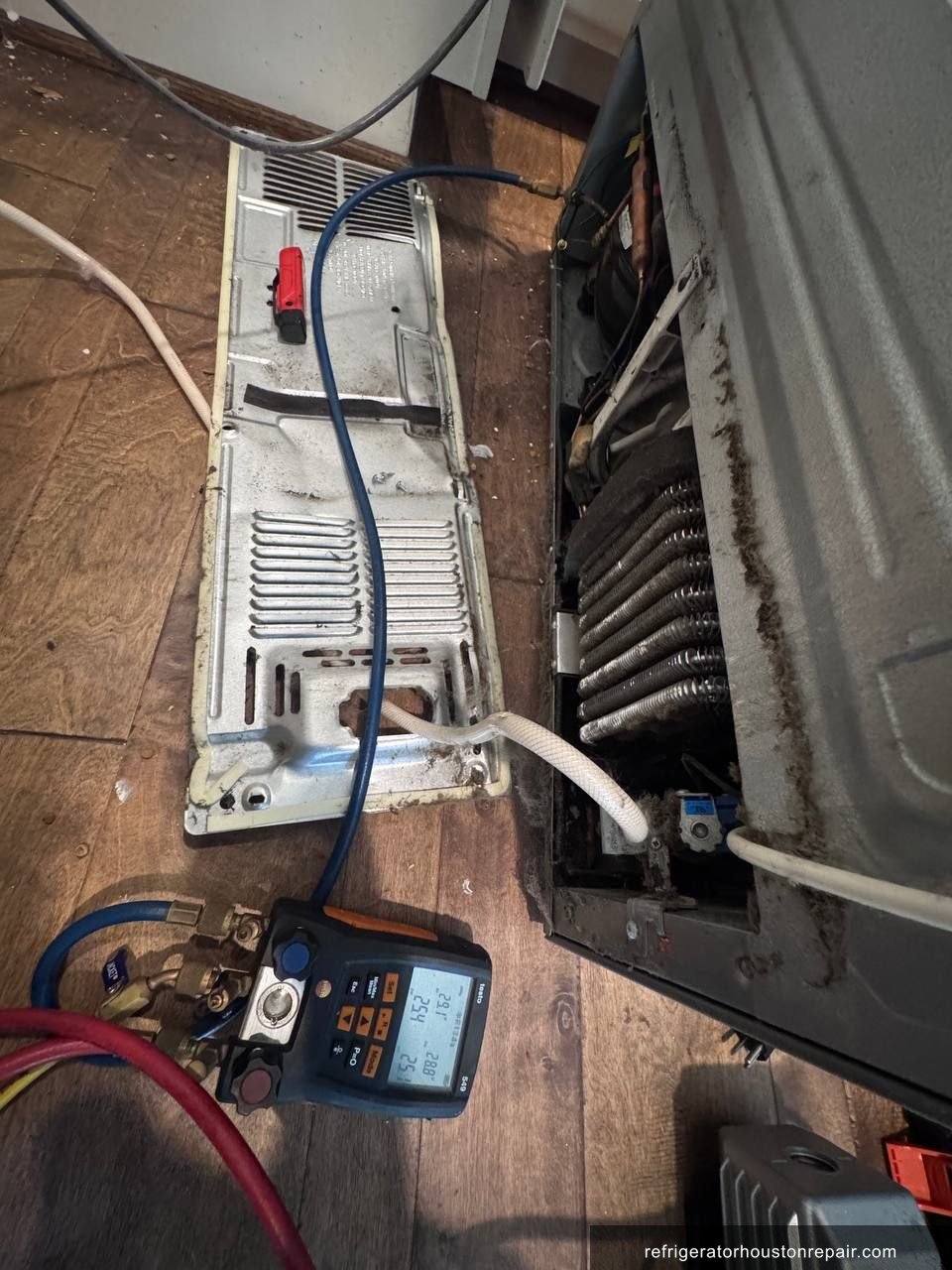

- ✓Step 1: Connected digital manifold gauge set to the low-side service port and recorded running suction pressure at negative 2 psi with the compressor active.
- ✓Step 2: Shut the unit off and measured equalization pressure at approximately 27 psi, confirming refrigerant charge was severely depleted.
- ✓Step 3: Connected refrigerant recovery machine and recovered all remaining R-134a from the sealed system per EPA Section 608 protocol.
- ✓Step 4: Inspected service port valve cores and line connections for visible damage or signs of the prior compressor swap workmanship.
- ✓Step 5: Connected vacuum pump to the system and pulled a deep vacuum, targeting below 500 microns to remove all moisture and non-condensables from the sealed system.
- ✓Step 6: Held vacuum for a full monitoring period to confirm the system held and there were no active leaks present.
- ✓Step 7: Recharged the system with 4.76 oz of R-134a as specified on the unit nameplate, charging by weight using a calibrated refrigerant scale.
- ✓Step 8: Monitored suction and discharge pressures during startup and confirmed normal operating readings. By the following morning, fresh food compartment measured 37°F and the freezer reached 0°F.
✓ Result
By the time I left the home that evening, the Kenmore Elite was already pulling temperatures down noticeably. The compressor was running steady and the suction pressure had stabilized in the normal range. The next morning the customer confirmed the fresh food section was at 37°F and the freezer was sitting at 0°F exactly. The food she had kept in coolers overnight was safe to put back. She was relieved to have it resolved the same night she called, without losing a full refrigerator of groceries.
💡 Technician Notes
Kenmore Elite French door units on the 795-series platform are LG-built, and the sealed system has tight tolerance specs. If this refrigerator had a compressor replaced at some point in the past and the shop did not recharge to exact weight, the system will slowly show declining performance over months, not days. The first sign is usually the freezer running warmer than normal before the fresh food section becomes noticeably warm. Do not ignore a freezer reading above 10°F on this model. One maintenance step that matters: do not block the condenser coil access at the bottom rear of the unit. Dust buildup forces the compressor to work harder and accelerates refrigerant-related wear. If your Kenmore Elite 795-series loses cooling after a prior sealed system repair, call immediately. Running the compressor against a depleted charge causes bearing wear and risks another compressor failure.
Frequently Asked Questions
Why is my Kenmore Elite French door refrigerator not cooling after the compressor was replaced?
If a compressor was swapped on a Kenmore Elite 795-series and the system was not recharged to exact factory spec, the refrigerant charge will be off. This unit calls for 4.76 oz of R-134a by weight. Even a small shortage causes the compressor to run without pulling temperatures down, exactly what I found on this call in Memorial.
How much does a refrigerant recharge cost for a Kenmore Elite in Houston?
A sealed system service on a Kenmore Elite that includes recovery, full evacuation, and a fresh R-134a charge typically runs between $250 and $400 in the Houston area, depending on the amount of refrigerant needed and whether any components need attention. This job was completed the same evening the customer called, with no parts beyond refrigerant and a valve core.
What happens if I keep using my Kenmore Elite refrigerator when it is low on refrigerant?
Running a Kenmore Elite 795-series with a depleted refrigerant charge puts constant strain on the compressor. The compressor runs without building proper head pressure, which causes overheating and accelerated bearing wear. On this model, a low charge left unaddressed for weeks often leads to compressor failure. That repair costs several times more than a refrigerant recharge.
Is it worth repairing a Kenmore Elite 795-series refrigerator or should I replace it?
The 795-series Kenmore Elite is a well-built LG-platform unit. If the compressor is original and the sealed system is otherwise intact, a refrigerant recharge is absolutely worth doing. If the compressor has already been replaced once and refrigerant management was poor, get a technician to evaluate the full system before deciding. A second compressor failure in a few years changes the math.
How do I know if my Kenmore Elite was recharged to the correct refrigerant amount?

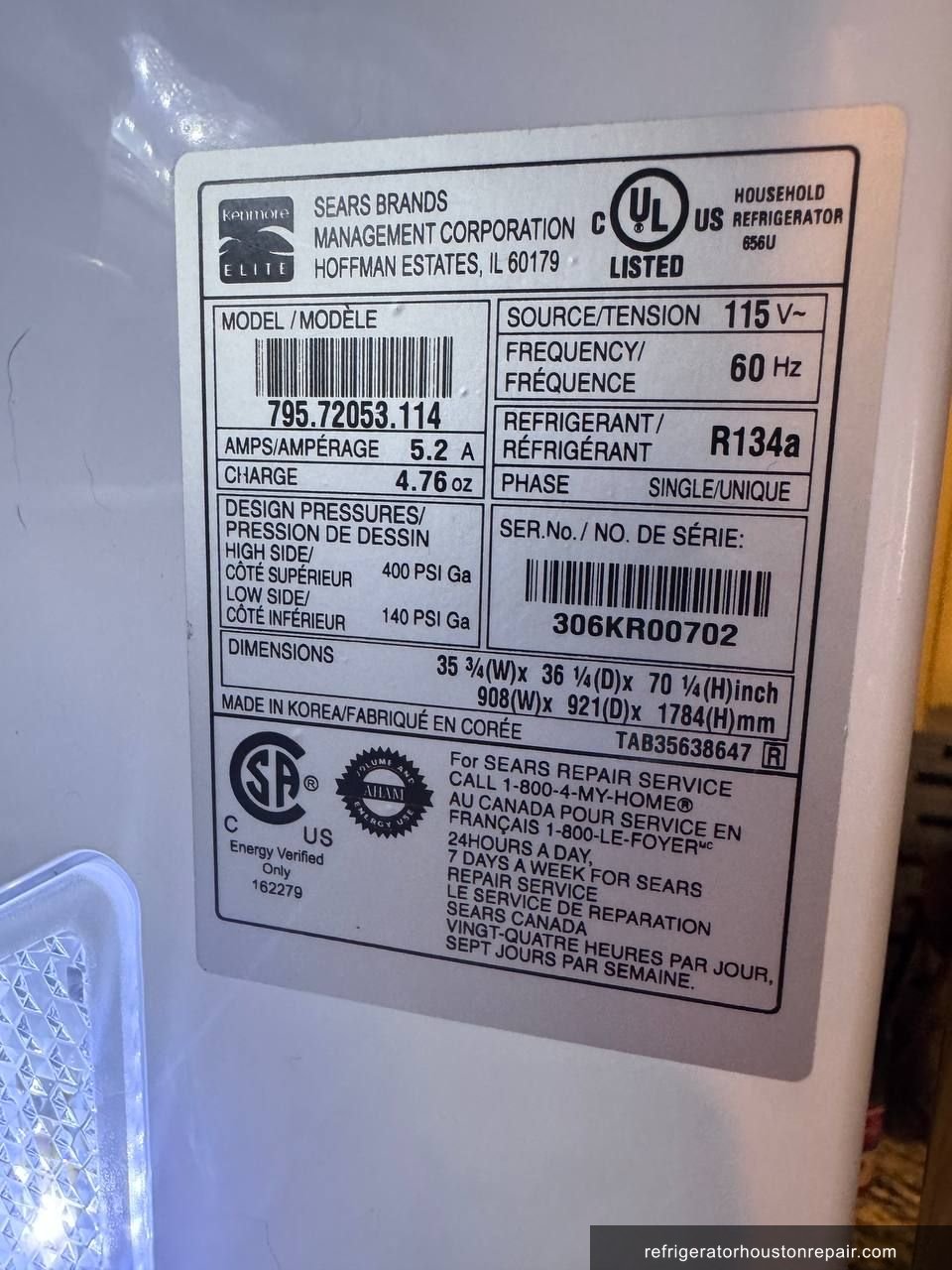

The only reliable method is charging by weight using a calibrated refrigerant scale, not by pressure alone. The nameplate on the Kenmore Elite 795.72053.114 specifies 4.76 oz of R-134a. Manifold gauge pressures give a real-time check but weight is the definitive standard. I always verify both readings before closing out a sealed system job.
Repair Summary
- Brand
- Kenmore Elite
- Model
- 795.72053.114
- Repair Type
- Sealed System Refrigerant Recovery, Evacuation, and Recharge
- Refrigerant
- R-134a
- Root Cause
- Depleted R-134a charge from prior sealed system service
- Parts Replaced
- ✓R-134a refrigerant, 4.76 oz by weight (factory specification for Kenmore Elite 795.72053.114)
- ✓Service port valve core (replaced as precaution given prior sealed system access)
- Location
- Memorial, TX 77043
- Status
- ✓ Completed
