Kenmore Elite 795.72042.112: Compressor Replacement in Pearland, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Refrigerator compartment climbing above 55°F despite the unit running continuously
- •Freezer section completely warm — ice melted and frozen food thawed over 24–36 hours
- •Compressor running but producing no measurable head pressure — cycling on thermal overload
- •Audible clicking from the compressor relay as the motor repeatedly attempted to start and failed
🔍 Diagnosis

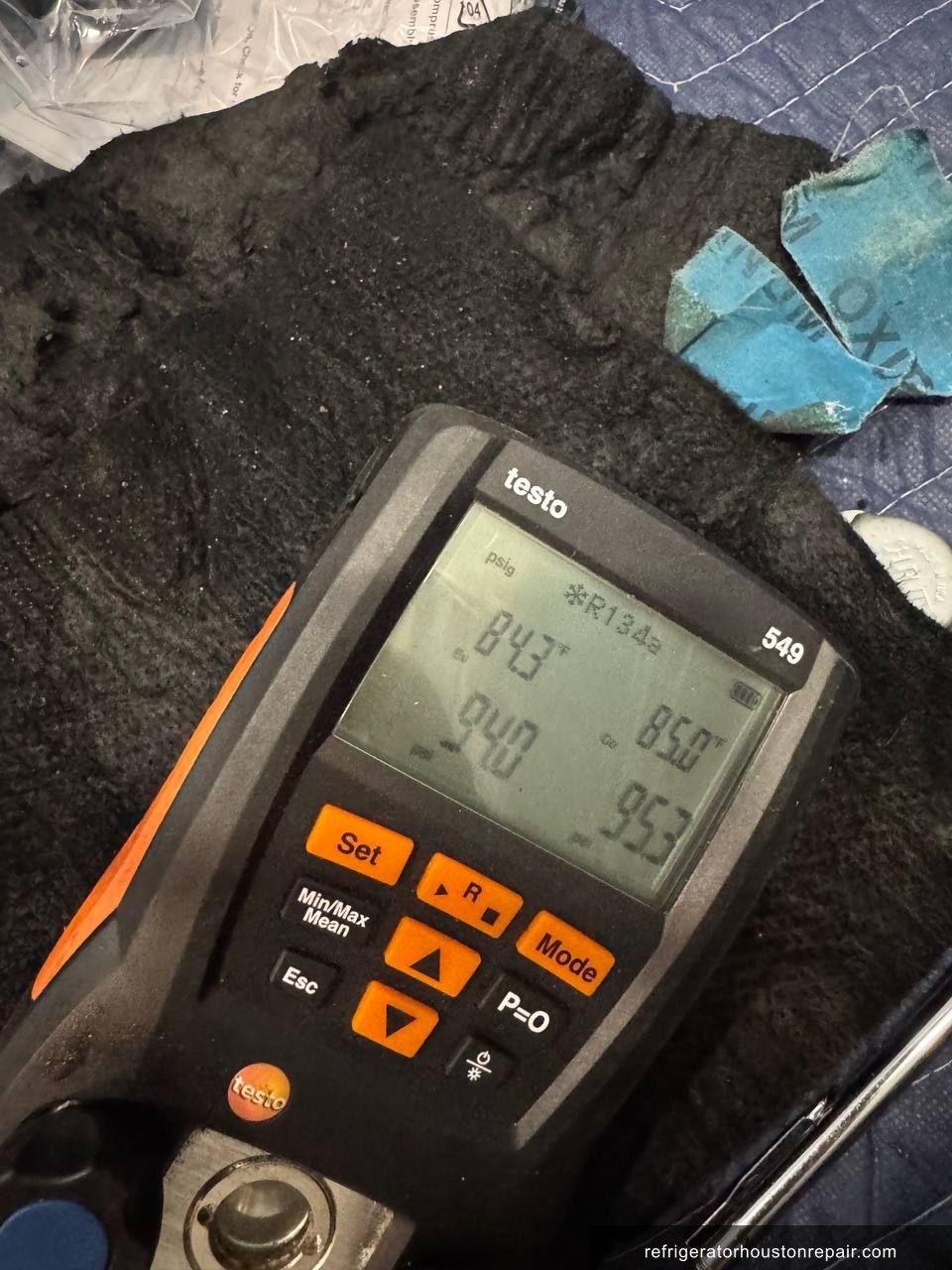

On arrival at the Pearland home, the Kenmore Elite 795.72042.112 was running — the evaporator fan was spinning and the condenser fan was turning — but neither compartment was cooling. The fresh food section measured 58°F and the freezer read 41°F, well outside the unit's design targets of 37°F and 0°F respectively. Manifold gauges connected to the low-side Schrader port showed suction pressure sitting at 35 psi static with the compressor energized — nearly identical to the high-side, indicating the compressor was not pumping refrigerant. A functional R-134a compressor on this platform should pull suction down to approximately 0–5 psi under load and push discharge to 130–160 psi. A clamp meter on the compressor start winding confirmed it was drawing a brief surge of current before the internal thermal overload tripped — a classic sign of a mechanically seized or valve-failed compressor. The 795.72042.112 is a Kenmore-badged LG-platform bottom-freezer unit, and compressor failures on these models — particularly units over a decade old operating in Houston's high-ambient-temperature conditions — are a documented pattern. Continuous heat stress in garages or non-air-conditioned kitchens accelerates bearing wear and weakens internal reed valves. With the unit fitting the kitchen aesthetic and the homeowner preferring to preserve the existing setup, compressor replacement was the appropriate path forward.
🔧 The Repair
- ✓Step 1: Recovered the existing R-134a charge using an EPA 608-compliant recovery machine, capturing residual refrigerant from the sealed system before opening the circuit.

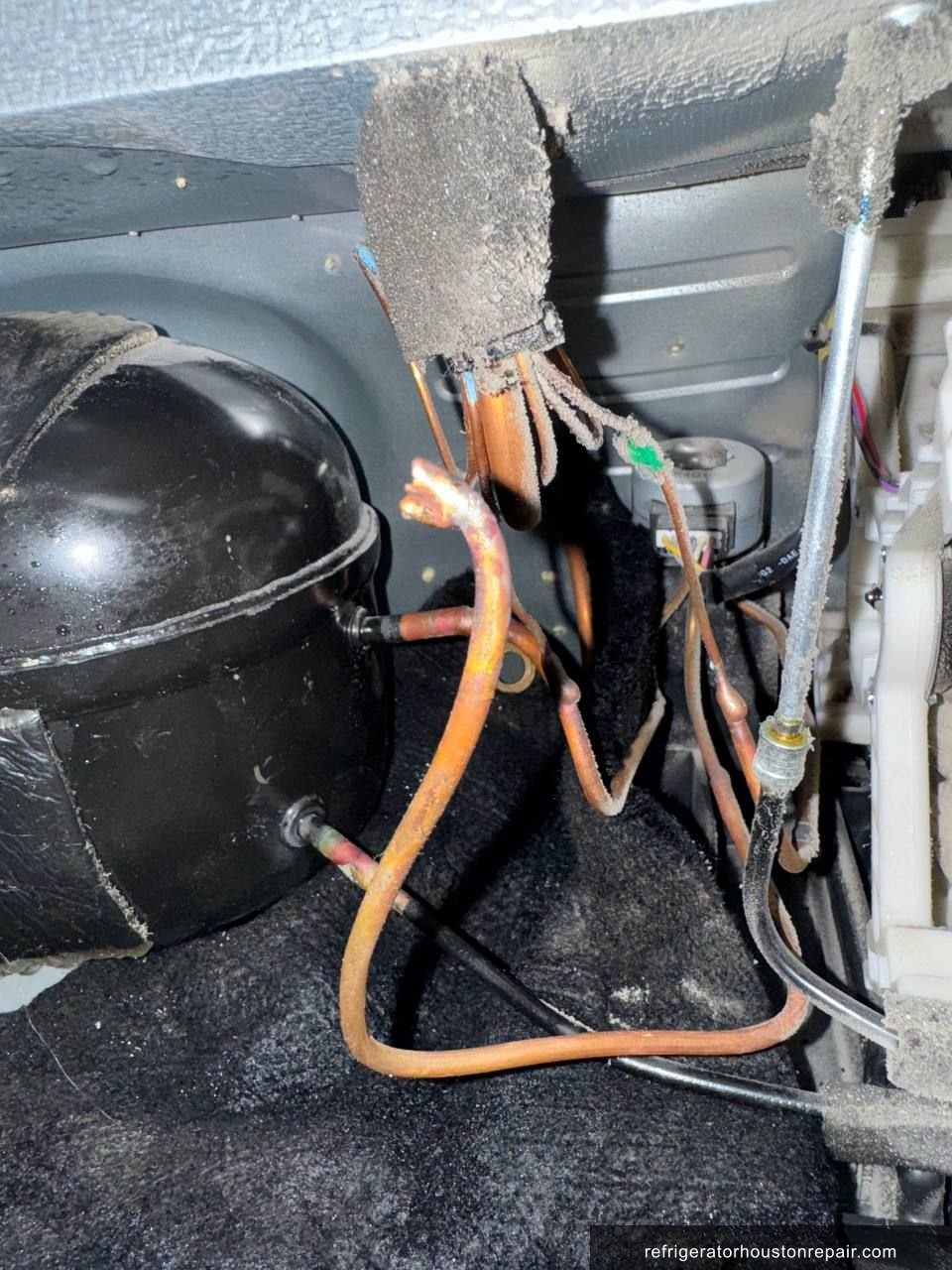

- ✓Step 2: Disconnected the compressor electrical terminals, removed the compressor mounting bolts, and cut the suction and discharge lines using a tube cutter to avoid introducing debris into the system.
- ✓Step 3: Removed the failed compressor from the Kenmore Elite 795.72042.112 and inspected the compressor cavity and adjacent filter-drier mounting point for oil contamination or debris — found minor oil pooling consistent with a slow internal leak prior to full failure.
- ✓Step 4: Installed a compatible replacement compressor rated for R-134a service, torqued mounting bolts to manufacturer spec, and brazed the suction and discharge line connections using nitrogen-purged brazing to prevent oxidation scale inside the copper lines.
- ✓Step 5: Installed a new bi-flow filter-drier inline on the liquid line to capture any residual moisture or particulate before refrigerant enters the metering device.
- ✓Step 6: Pressure-tested the sealed system with dry nitrogen to 90 psi — a conservative test pressure chosen deliberately given the unit's age (over 10 years), to avoid stressing older copper tubing and brazed joints beyond what the system has been designed to handle long-term.
- ✓Step 7: Held nitrogen pressure for 30 minutes, confirmed no pressure drop on the gauge, then pulled a deep vacuum to below 300 microns using a two-stage vacuum pump and verified the vacuum held before breaking with refrigerant.

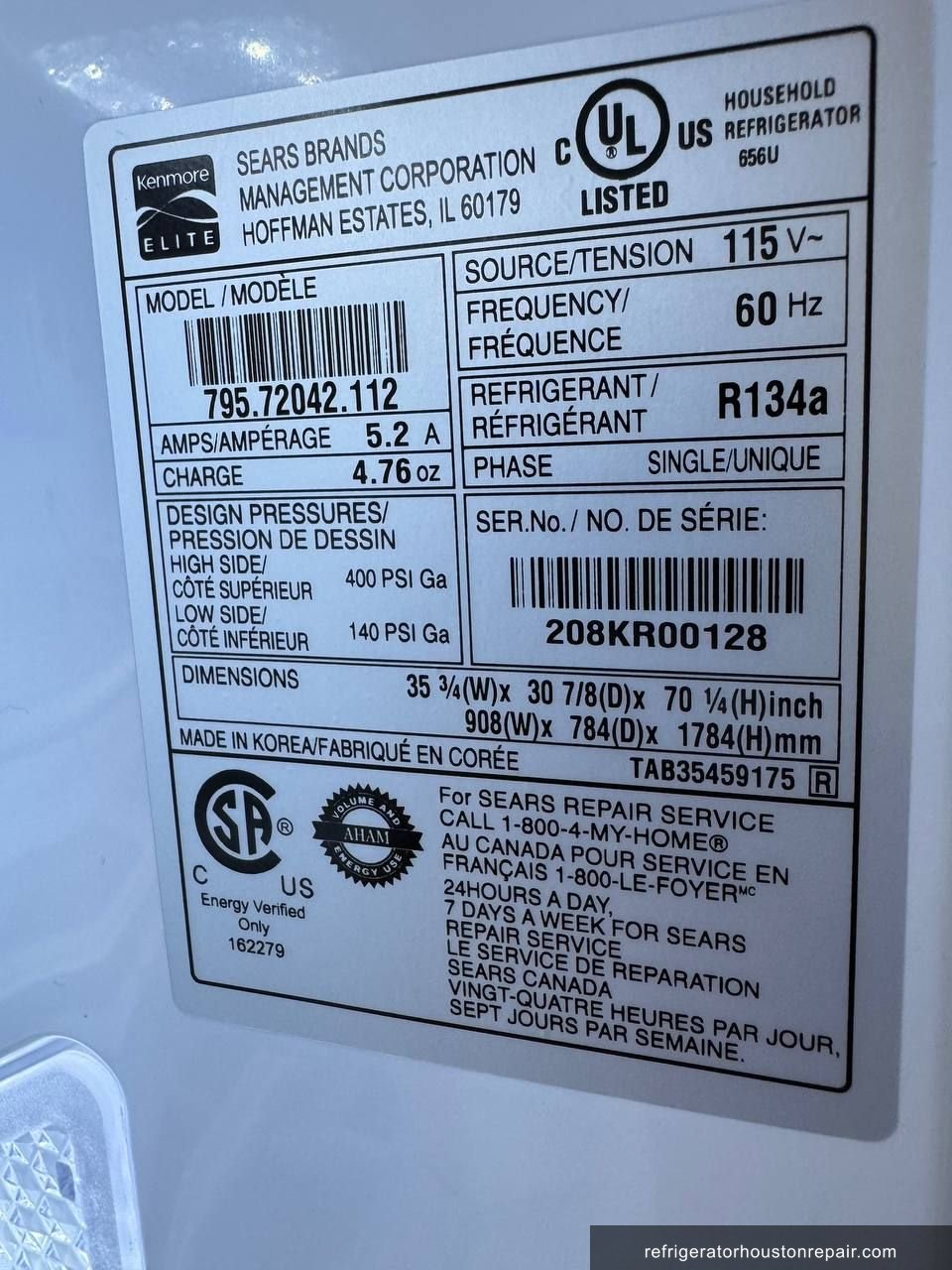

- ✓Step 8: Charged the system with exactly 4.76 oz of R-134a per the confirmed label specification. After a 2-hour runtime, fresh food compartment measured 37°F and freezer stabilized at 1°F — both within normal operating range.
✓ Result

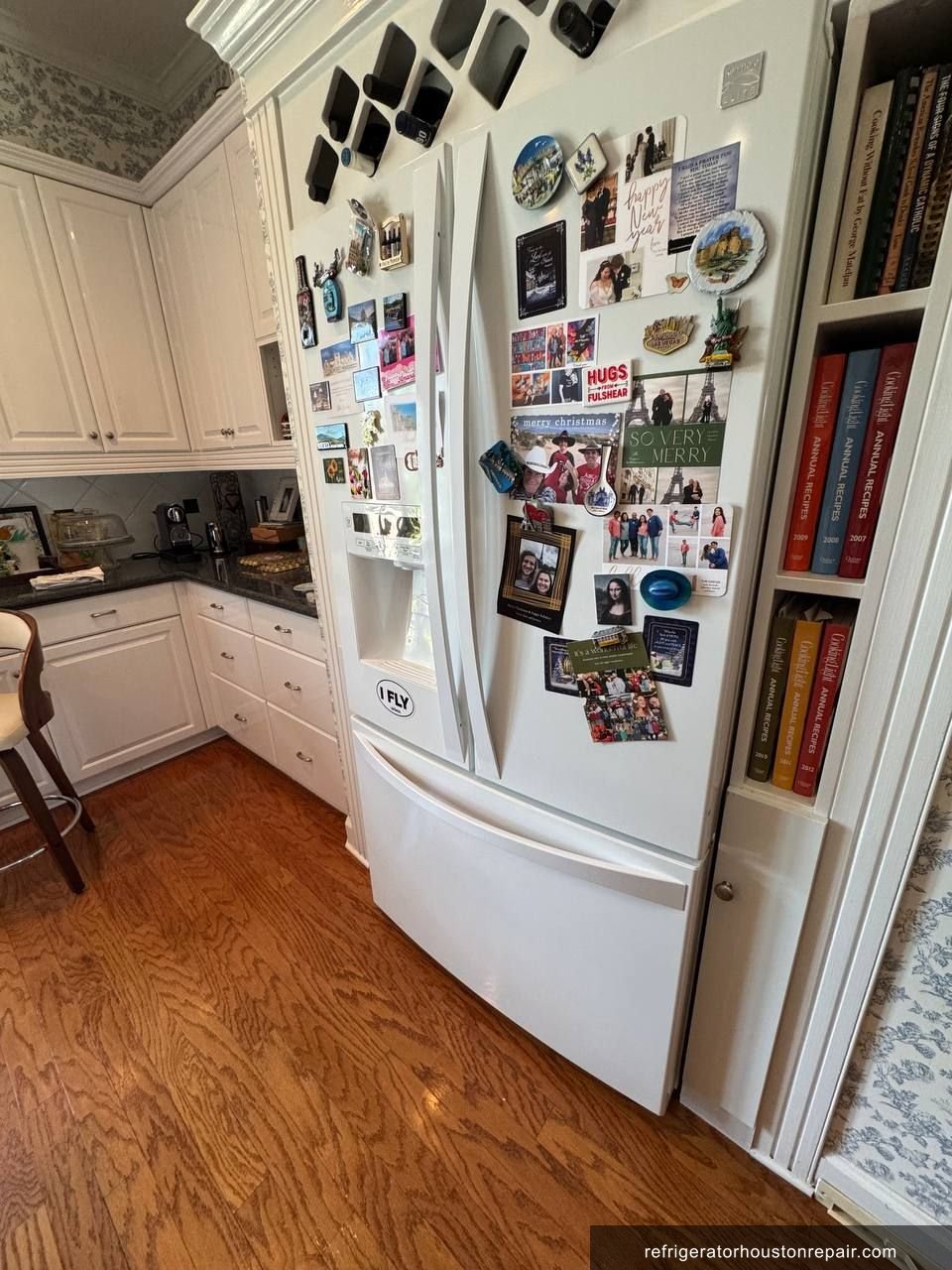

After a 2-hour stabilization period, the Kenmore Elite 795.72042.112 settled at 37°F in the fresh food section and 1°F in the freezer — right where it should be. The homeowner in the 77581 zip code had held off on replacement specifically because the white finish matched the kitchen perfectly, and the repair justified that call. Remaining food in the refrigerator was salvageable. The homeowner was visibly relieved and mentioned they had expected to be shopping for a new unit that weekend.
💡 Technician Notes
On LG-platform Kenmore units like the 795.72042.112, one of the earliest warning signs of compressor decline is an unusually warm condenser — if the lower rear grille of the unit feels hot to the touch even when the kitchen is cool, the compressor is working harder than it should. In Houston's climate, condenser coil cleaning every 6 months is not optional on these units — dust-clogged coils force the compressor to run hotter and longer, which is the primary driver of premature failure on decade-old machines. If you hear a clicking sound repeating every few minutes from the back of the refrigerator, that is the thermal overload cutting power to a struggling compressor — do not wait more than 24 hours to call. Every restart attempt on a failing compressor risks burning the start winding, which can turn a compressor-only repair into a full wiring harness job.
Frequently Asked Questions
Is it worth replacing the compressor on a Kenmore Elite bottom freezer that's over 10 years old?
It depends on the unit's overall condition and why you want to keep it. For the Kenmore Elite 795.72042.112, if the evaporator coils, fan motors, and control board are intact, a compressor replacement can extend the unit's life by 5–8 years at a fraction of replacement cost — especially when the unit fits your kitchen and discontinuation makes finding a matching replacement difficult.
How much does a compressor replacement cost on a Kenmore Elite refrigerator in Pearland TX?
Compressor replacement on a Kenmore Elite in the Pearland area typically runs $400–$700 in parts and labor depending on the compressor spec and refrigerant charge required. The 795.72042.112 uses 4.76 oz of R-134a, which is a straightforward charge. The total job usually takes 3–5 hours including brazing, leak testing, evacuation, and recharge.
What happens if I ignore a clicking compressor on my Kenmore refrigerator and don't get it repaired?
That clicking is the thermal overload cutting power to protect a compressor that can't start under load. Each restart attempt draws a high inrush current. Left unaddressed, the start winding burns out completely — and you lose all food. On Kenmore Elite units over 10 years old, this can also cause voltage spikes that damage the inverter or control board, turning a single-component repair into a much more expensive job.
Should I repair or replace my Kenmore Elite 795 series refrigerator if the compressor fails?
If the unit is 10–13 years old but the sealed system (evaporator, condenser, tubing) is clean and intact, repair usually wins — especially with R-134a systems, which are straightforward to recharge. If there's also corrosion on the evaporator, frost damage from a failed defrost system, or multiple failing components, replacement becomes more sensible. A technician can assess in person before you commit.
Why did the technician only pressure test to 90 psi instead of the standard 150 psi on my older Kenmore?
Standard nitrogen leak test pressure for R-134a systems is around 150 psi, but on refrigerators over 10 years old, brazed joints and copper tubing can become brittle. Testing to 90 psi — well above the system's operating high-side pressure of 130–160 psi — confirms integrity without risking a joint failure caused by the test itself. It's a practical call on aged sealed systems, not a shortcut.
Repair Summary
- Brand
- Kenmore Elite
- Model
- 795.72042.112
- Repair Type
- Compressor Replacement / Sealed System Repair
- Refrigerant
- R-134a
- Root Cause
- Failed compressor causing complete loss of refrigeration
- Parts Replaced
- ✓Replacement R-134a compressor compatible with Kenmore Elite 795.72042.112 (LG-platform bottom-freezer)
- ✓Bi-flow filter-drier (inline liquid line, installed new as part of sealed system repair)
- ✓Compressor start relay (replaced as a precaution given age and prior thermal overload cycling)
- Location
- Pearland, TX 77581
- Status
- ✓ Completed
