Jenn-Air IS48PDLUDB20: Main Control Board Replaced After Lightning Strike in League City, TX
📞 Call (346) 512-3688🔧 Performed by Alex
The Problem
- •Refrigerator completely stopped cooling after a nearby lightning strike
- •No temperature drop in either the fresh food or freezer compartment
- •Unit appeared to have power but compressor and fans were not running
- •No error codes displayed on the panel despite the control board being unresponsive
🔍 Diagnosis

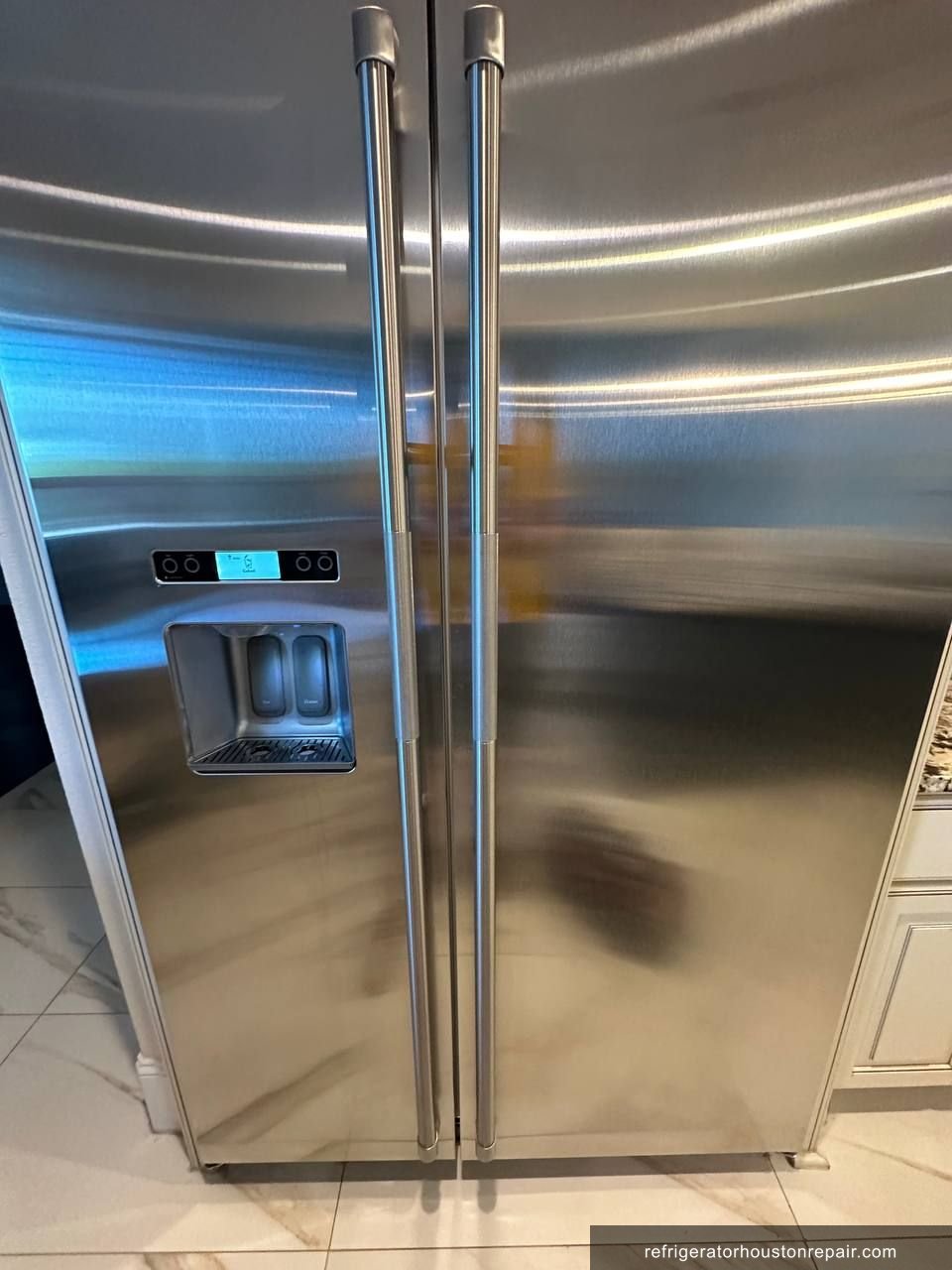

When I arrived at the home in League City, the Jenn-Air IS48PDLUDB20 had been warm since a thunderstorm the night before. The fresh food compartment was reading 68°F and the freezer had climbed to 61°F. The exterior LED panel showed power, but nothing else was responding. No compressor hum, no evaporator fan noise, nothing. That silence on a 48-inch built-in column refrigerator tells me the control board lost its ability to send commands. I pulled the unit out and disconnected the main control board from the wiring harness. On visual inspection, I found a burned trace on the board near the relay cluster, which is a clear signature of a voltage spike. I tested the compressor start relay separately with a multimeter and got a clean 12-ohm reading, confirming the compressor itself was fine. The evaporator fan motor tested at 4.2 amps with no fault. I checked incoming line voltage at the outlet: 120.3V, steady. The problem was entirely isolated to the main control board. On the IS48PDLUDB20, the main board handles all cooling logic, fan sequencing, and compressor relay switching. A surge strong enough to burn a relay trace takes out the whole board. This is a known vulnerability in Jenn-Air's built-in column line when connected without surge protection.
🔧 The Repair
- ✓Step 1: Confirmed incoming power at the wall outlet with a Klein MM400 multimeter, reading 120.3V AC, ruling out any upstream electrical fault.
- ✓Step 2: Disconnected the Jenn-Air IS48PDLUDB20 from power and carefully pulled the unit forward on its leveling feet to access the rear control board compartment.

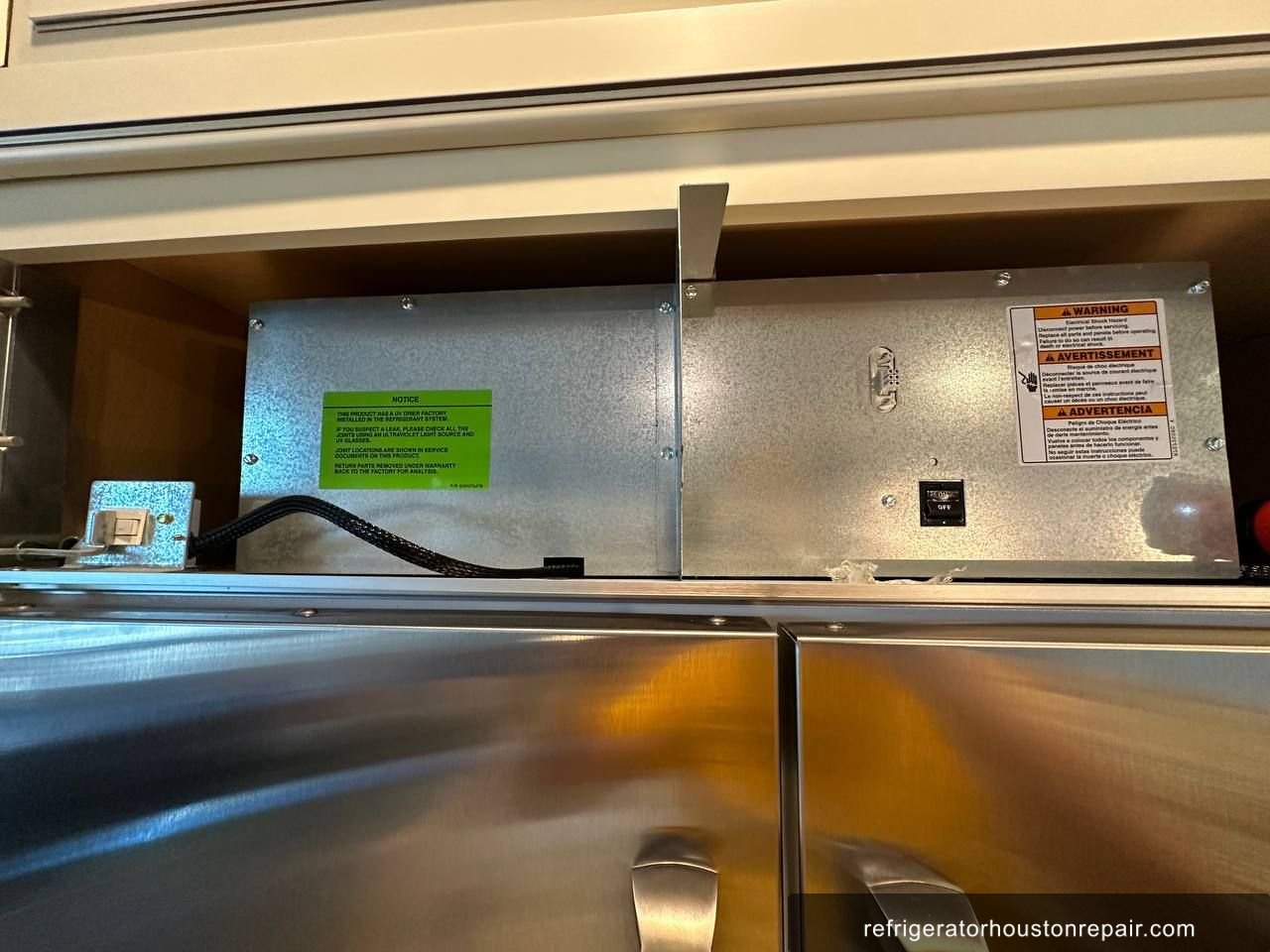

- ✓Step 3: Removed the control board access panel using a T20 Torx driver and photographed all wiring harness connections before disconnecting anything.
- ✓Step 4: Visually inspected the existing main control board and identified a burned relay trace near the compressor switching circuit, consistent with a high-voltage surge event.
- ✓Step 5: Tested the compressor windings with a multimeter: start winding read 8.1 ohms, run winding read 4.3 ohms, common to ground showed no continuity. Compressor confirmed good.
- ✓Step 6: Tested the evaporator fan motor independently by applying 120V directly and confirmed normal operation at 4.2 amps.
- ✓Step 7: Installed the replacement OEM main control board for the IS48PDLUDB20, reconnected all harness plugs in original orientation, and secured the board with factory mounting hardware.
- ✓Step 8: Restored power and monitored the unit for 30 minutes at the home, then confirmed via callback two hours later: fresh food compartment reached 37°F and freezer stabilized at 0°F.
✓ Result
Two hours after I installed the replacement control board, the IS48PDLUDB20 was back to full operation. The fresh food section settled at 37°F and the freezer held steady at 0°F. The homeowner in League City had a full refrigerator of food, and thankfully the surge happened early enough in the outage that the temperature inside had not reached a point of food loss. The customer was relieved the repair came down to one part rather than a sealed system issue. Total time on the job was under two hours.
💡 Technician Notes
Jenn-Air built-in column refrigerators like the IS48PDLUDB20 are not installed with surge protection by default, and their main control boards are expensive and sensitive to voltage spikes. If you live in League City or anywhere along the Gulf Coast where summer thunderstorms are frequent, a dedicated whole-home surge protector or at minimum a plug-in surge suppressor rated at 3,000 joules or higher is worth installing before you have a problem. The early warning sign of control board failure from a surge is a unit that has power at the display but does nothing else. No fan noise, no compressor click, nothing. If you hear that silence after a storm, do not keep resetting the breaker. Every reset attempt after a board is burned adds no benefit and delays the repair call. If the unit runs fine during normal weather but fails after any electrical event in the home, call a technician the same day. Food loss on a 48-inch built-in adds up fast.
Frequently Asked Questions
Jenn-Air refrigerator stopped cooling after lightning strike what should I check
After a lightning strike, the most common failure point on a Jenn-Air built-in like the IS48PDLUDB20 is the main control board. The board handles all cooling commands, and a voltage surge burns the relay traces. Check if the display has power but the compressor and fans are silent. That pattern almost always points to the control board, not the sealed system.
How much does it cost to replace a Jenn-Air refrigerator control board in League City TX
For a Jenn-Air IS48PDLUDB20 or similar 48-inch built-in column model, expect a total repair cost in the range of $400 to $700 depending on current OEM board pricing and labor time. The board itself is the main cost driver. Labor on this model runs one to two hours. Prices shift based on parts availability, so confirm at the time of service.
What happens if I leave my Jenn-Air refrigerator without a working control board for several days
Without a functioning control board, the Jenn-Air IS48PDLUDB20 cannot run the compressor or any fans. Temperature inside rises to ambient room temperature within 24 hours in Houston heat. Any food stored inside will be unsafe to eat after four hours above 40°F. Delaying the repair past the first day risks full food loss in a refrigerator that holds significant volume.
Is it worth repairing a Jenn-Air IS48PDLUDB20 or should I replace it after lightning damage
If the damage is limited to the main control board and the sealed system, compressor, and fans all test good, repair is the right call. Replacing a 48-inch Jenn-Air built-in column costs anywhere from $8,000 to $12,000 new. A control board replacement at a fraction of that cost makes clear financial sense, especially if the unit is under 10 years old and was working well before the surge.
Will a surge protector actually protect a Jenn-Air built-in refrigerator from lightning damage
A quality plug-in surge protector rated at 3,000 joules or higher gives the Jenn-Air IS48PDLUDB20 meaningful protection against the type of indirect surge that travels through household wiring during a storm. It will not protect against a direct lightning strike to the home, but most storm-related appliance failures are caused by line surges, not direct strikes. A whole-home surge suppressor at the panel offers the best coverage.
Repair Summary
- Brand
- Jenn-Air

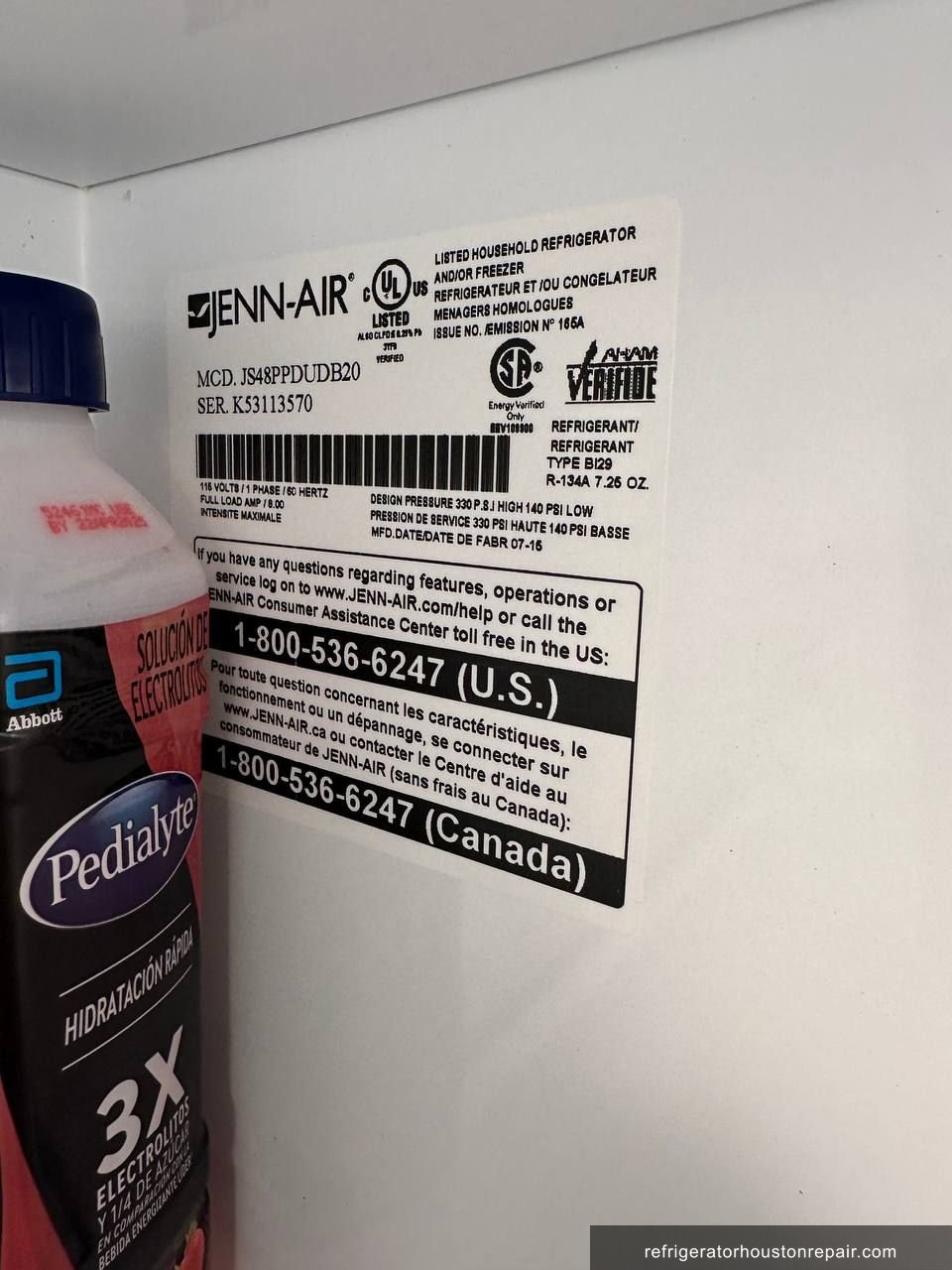

- Model
- IS48PDLUDB20
- Repair Type
- Main Control Board Replacement / Lightning Surge Damage Repair
- Refrigerant
- R-134a
- Root Cause
- Lightning-induced power surge burned out main control board
- Parts Replaced
- ✓Main control board, OEM replacement for Jenn-Air IS48PDLUDB20 built-in column refrigerator
- Location
- League City, TX 77573
- Status
- ✓ Completed
