Ice-O-Matic GEMU090: Gear Motor and Auger Failure in Memorial, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Ice maker running continuously with motor noise but producing zero ice
- •Auger (screw conveyor) inside the evaporator cylinder completely stopped rotating
- •Condenser coil packed with debris, reducing airflow and accelerating component wear
- •No ice output despite compressor and water system appearing to cycle normally
🔍 Diagnosis
On arrival at the Memorial, TX location, the Ice-O-Matic GEMU090 nugget ice maker was powered on and audibly running — the gear motor was humming at normal operating volume — but the bin was completely empty and had been for over 24 hours. The first physical check confirmed the auger (the helical screw inside the stainless evaporator cylinder that extrudes nugget ice) was completely stationary. The gear motor was receiving power and producing motor noise, but no rotational output was being transmitted to the auger shaft. This is the classic symptom of internal gear motor transmission failure: the motor windings are intact, but the reduction gearbox has mechanically separated from the output shaft — either through stripped plastic or sintered metal gears, or a sheared drive key. A clamp meter confirmed the motor was drawing current (approximately 1.8–2.1 A, within normal range for the GEMU090 gear motor), ruling out a winding burn. The failure was purely mechanical — the gearbox internals had disintegrated under load. On the GEMU090, the gear motor and transmission are a single integrated assembly; they cannot be rebuilt separately. The condenser coil was also inspected and found severely restricted with dust, pet hair, and lint — a condition that raises head pressure, forces the compressor to work harder, and elevates temperatures throughout the machine, accelerating wear on the carbon sleeve bearing and ceramic water seal. This blocked condenser was a contributing factor to the premature mechanical failure.
🔧 The Repair
- ✓Step 1: Disconnected the GEMU090 from power at the dedicated 115V/20A circuit and allowed the evaporator cylinder to warm for 15 minutes to release any ice bonding to the auger shaft.

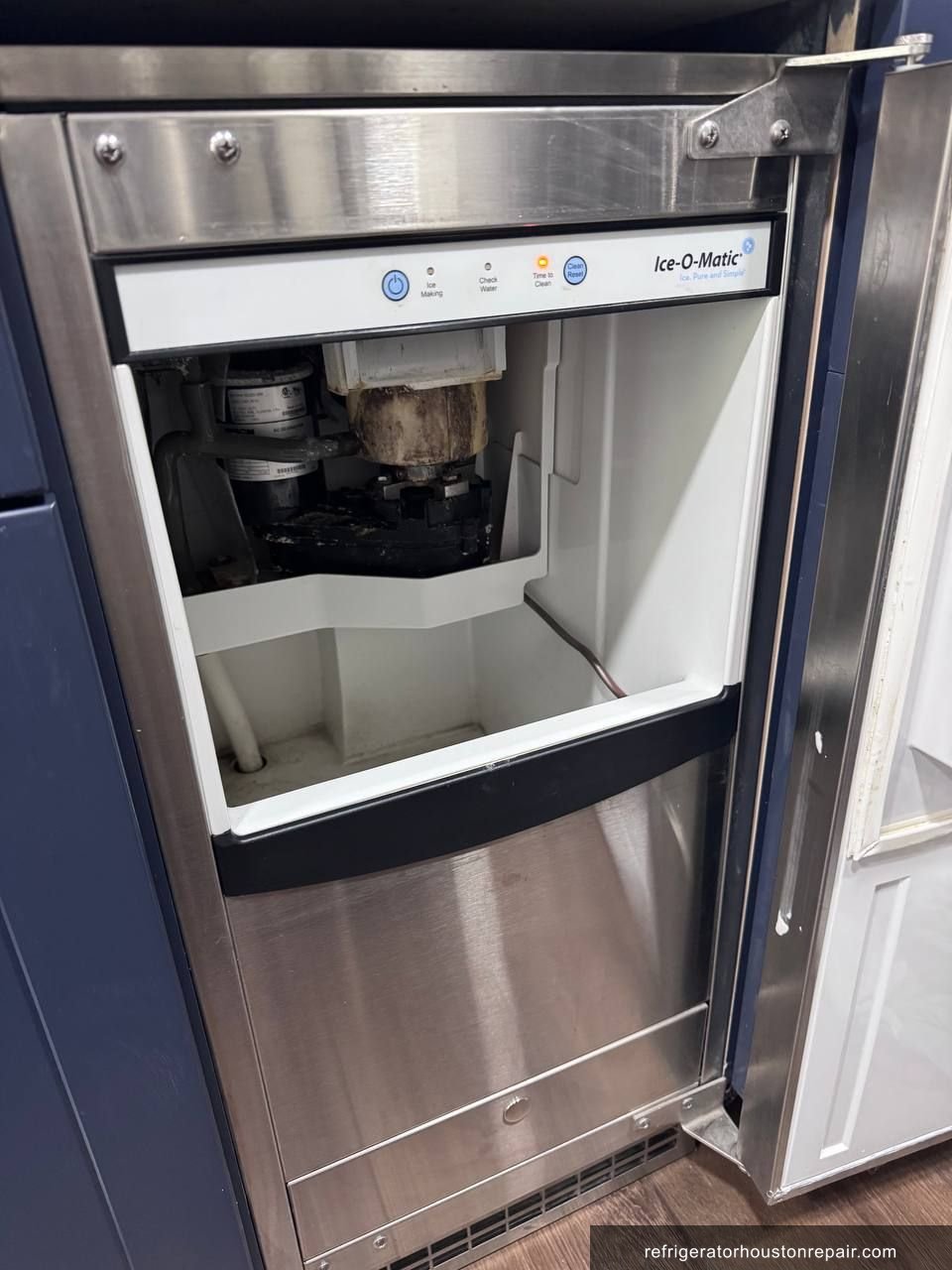

- ✓Step 2: Removed the front panel and bin assembly to access the gear motor mounting at the top of the evaporator cylinder. Photographed the condenser coil condition and gear motor label data for the service record.
- ✓Step 3: Attempted manual rotation of the auger shaft coupling at the gear motor output — confirmed zero transmission; the motor spun freely internally while the output shaft remained locked, confirming internal gearbox failure.
- ✓Step 4: Used a clamp meter on the gear motor power leads — confirmed 1.9A draw, ruling out open windings. Failure is confirmed as mechanical, not electrical.

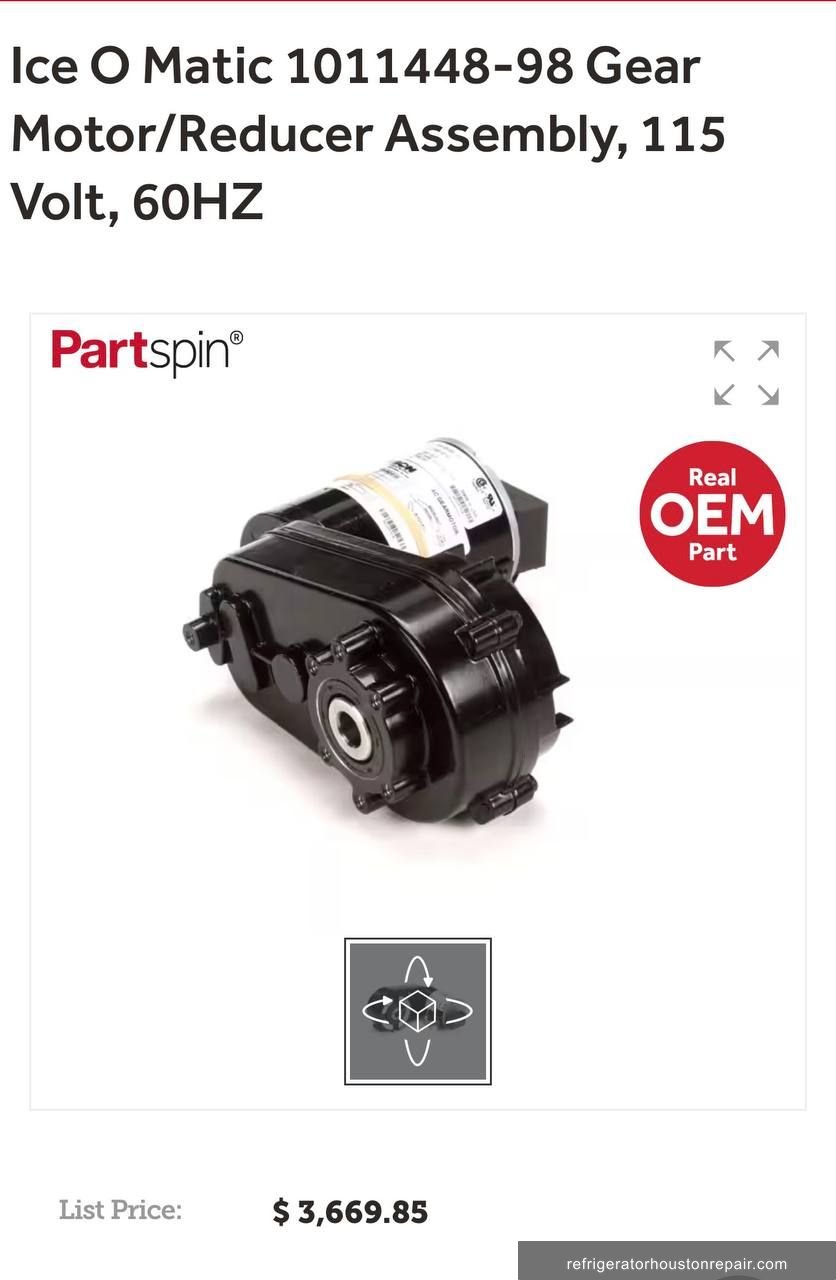

- ✓Step 5: Retrieved OEM gear motor/transmission assembly pricing (the GEMU090 uses a single integrated unit, part reference Ice-O-Matic 9161124-01 or equivalent current supersession) and presented the repair quote to the customer including labor.
- ✓Step 6: Customer reviewed the repair cost against the age of the unit and the additional deferred maintenance items required (carbon sleeve bearing replacement, ceramic water seal replacement, full evaporator descale) and made the decision to decline repair in favor of replacement.

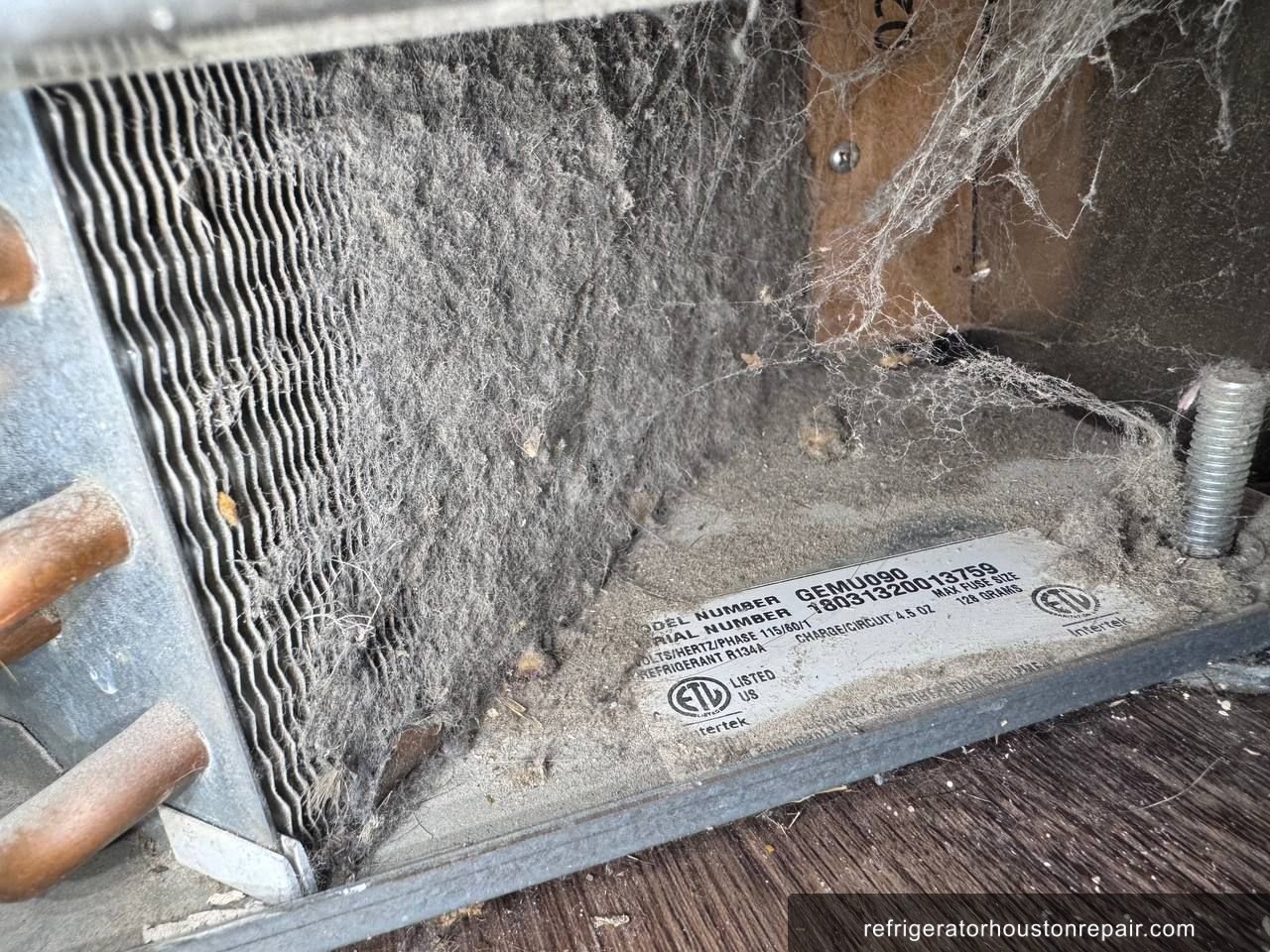

- ✓Step 7: Performed a complimentary compressed-air blowout of the condenser coil as a courtesy and documented the debris accumulation with photos for the customer's records.
- ✓Step 8: No final operational verification applicable — repair was declined. Customer was provided a written summary of all failure points and a maintenance schedule recommendation for their replacement unit.
✓ Result
The repair was not completed — after reviewing the cost of the integrated gear motor/transmission assembly plus the necessary carbon bearing and ceramic water seal replacement, the customer in the Memorial 77079 area made the financially reasonable decision to replace the unit rather than invest in a machine with years of deferred maintenance. The diagnosis was fully documented with photos of the failed gear motor and the clogged condenser coil. The customer appreciated having a clear, honest explanation of exactly what failed and why, rather than a vague quote.
💡 Technician Notes
The Ice-O-Matic GEMU090 — and virtually every nugget-style ice maker in this class, including Scotsman Prodigy units — has two consumable components that MUST be replaced on a schedule in Houston's water conditions: the carbon sleeve bearing and the ceramic water seal. Houston's hard water accelerates wear on both. If either is neglected past 3–4 years, the increased drag on the auger shaft transfers directly to the gear motor gearbox, which is not designed to compensate for a deteriorating bearing. The earliest warning sign is a faint grinding or chirping noise during auger rotation — that's the carbon bearing wearing. At that point, a bearing and seal replacement is a few hundred dollars. Once the noise stops and the auger stops, the gear motor has already been destroyed. If your nugget ice maker is more than three years old and has never had a bearing and seal service, call before it goes silent — not after.
Frequently Asked Questions
Why did my Ice-O-Matic GEMU090 stop making ice but the motor is still running?
The GEMU090 uses a gear motor with an internal reduction gearbox to turn the auger inside the evaporator. When the gearbox fails mechanically — stripped gears or a sheared drive — the motor keeps humming and drawing current, but nothing rotates. You get motor noise and zero ice. This is a distinct failure from an electrical problem and requires replacing the entire integrated gear motor assembly.
How much does it cost to fix a gear motor on an Ice-O-Matic nugget ice maker in Houston?
The integrated gear motor and transmission assembly for the GEMU090 typically runs $400–$600 for the OEM part alone. With labor in the Houston area, a full repair including the gear motor plus the recommended carbon bearing and ceramic water seal replacement can reach $700–$1,000 or more. For older machines with heavy scale buildup and a clogged condenser, many owners choose replacement instead.
What happens if I keep running my Ice-O-Matic ice maker with a failing gear motor?
If the auger has already stopped turning, continuing to run the machine doesn't cause additional damage — but it's pointless. The real risk happens in the weeks before total failure: a struggling gear motor draws higher amperage, generates excess heat, and can trip breakers or damage the control board. A grinding or squealing auger is the sign to call immediately — not after it goes completely silent.
Should I repair or replace an Ice-O-Matic GEMU090 that needs a gear motor in Memorial, TX?
It depends on age and maintenance history. If the unit is under 5 years old and has had regular bearing and seal service, a gear motor replacement makes sense. If it's 5–8+ years old, has never had a bearing service, has a scaled evaporator, and a dirty condenser, the repair cost often exceeds 60–70% of a new unit. In that case, replacement is the smarter financial decision — exactly as this Memorial customer concluded.
How often does the carbon sleeve bearing need to be replaced in Ice-O-Matic and Scotsman nugget ice makers in Houston?
In Houston specifically, every 3–4 years is the standard recommendation due to hard water mineral content accelerating wear. The carbon bearing cushions the auger shaft inside the evaporator cylinder. As it wears down, drag increases and the gear motor works harder than it was designed to. Pairing the bearing replacement with the ceramic water seal service at the same interval keeps the drive system healthy and is far cheaper than a gear motor replacement.
Repair Summary
- Brand
- Ice-O-Matic
- Model
- GEMU090
- Repair Type
- Gear Motor and Auger Drive Assembly Diagnosis
- Root Cause
- Gear motor transmission failure from deferred preventive maintenance
- Parts Replaced
- ✓No parts replaced — customer declined repair after receiving the cost estimate for the integrated gear motor and transmission assembly (Ice-O-Matic OEM unit, not field-rebuildable)
- ✓Condenser coil — blown out with compressed air as courtesy service only, not replaced
- Location
- Memorial, TX 77079
- Status
- ✓ Completed
