Gladiator GARF19XXYK01: Frozen Water Bottle on Fridge Shelf in Memorial, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •A gallon water bottle on the top refrigerator shelf froze solid
- •Freezer temperature reading approximately 20°F instead of the target 0°F
- •Fresh food section temperature swinging between 38°F and 45°F
- •Uneven cooling across refrigerator shelves, coldest at the top
🔍 Diagnosis

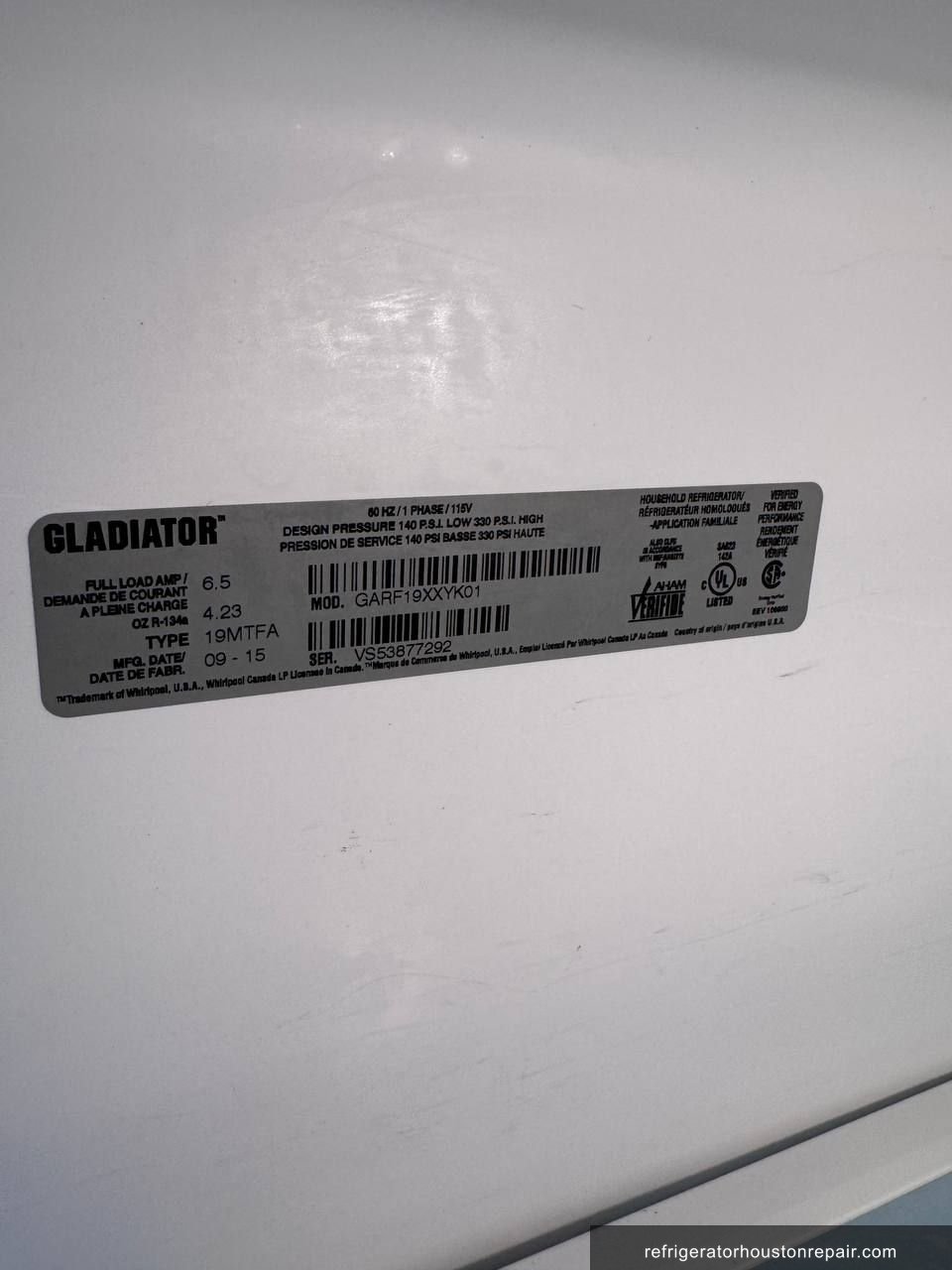

When I arrived at the Memorial home in zip 77024, the customer showed me a frozen gallon water bottle sitting on the top shelf of the fresh food section. I pulled out my digital thermometer and measured the compartments. The freezer was sitting at around 20°F and the refrigerator section was reading between 38°F and 45°F depending on shelf height. That temperature spread told me airflow was the issue before I even opened the freezer panel. I removed the interior back panel in the freezer section of the Gladiator GARF19XXYK01 and found the damper vent openings nearly completely sealed with ice. A broken water bottle at some earlier point had let water spread across the floor of the freezer and freeze over the vent ports. Only a very small opening remained. The system was forcing almost all the cold air into the fresh food section instead of distributing it correctly across both compartments. That explained the frozen bottle on the top shelf, which sits closest to the air inlet. I then ran a drain line diagnostic. The drain was completely clear with no blockage. The compressor and refrigerant system were functioning normally. The R-134a charge on this unit is 4.23 oz and pressures were within spec. This was purely a mechanical airflow restriction caused by ice accumulation at the vent openings, not a sealed system or defrost heater failure.
🔧 The Repair
- ✓Step 1: Measured freezer compartment at 20°F and fresh food section at 38-45°F using a digital probe thermometer to confirm airflow imbalance
- ✓Step 2: Removed all food items and shelving from the freezer section to gain access to the rear interior panel

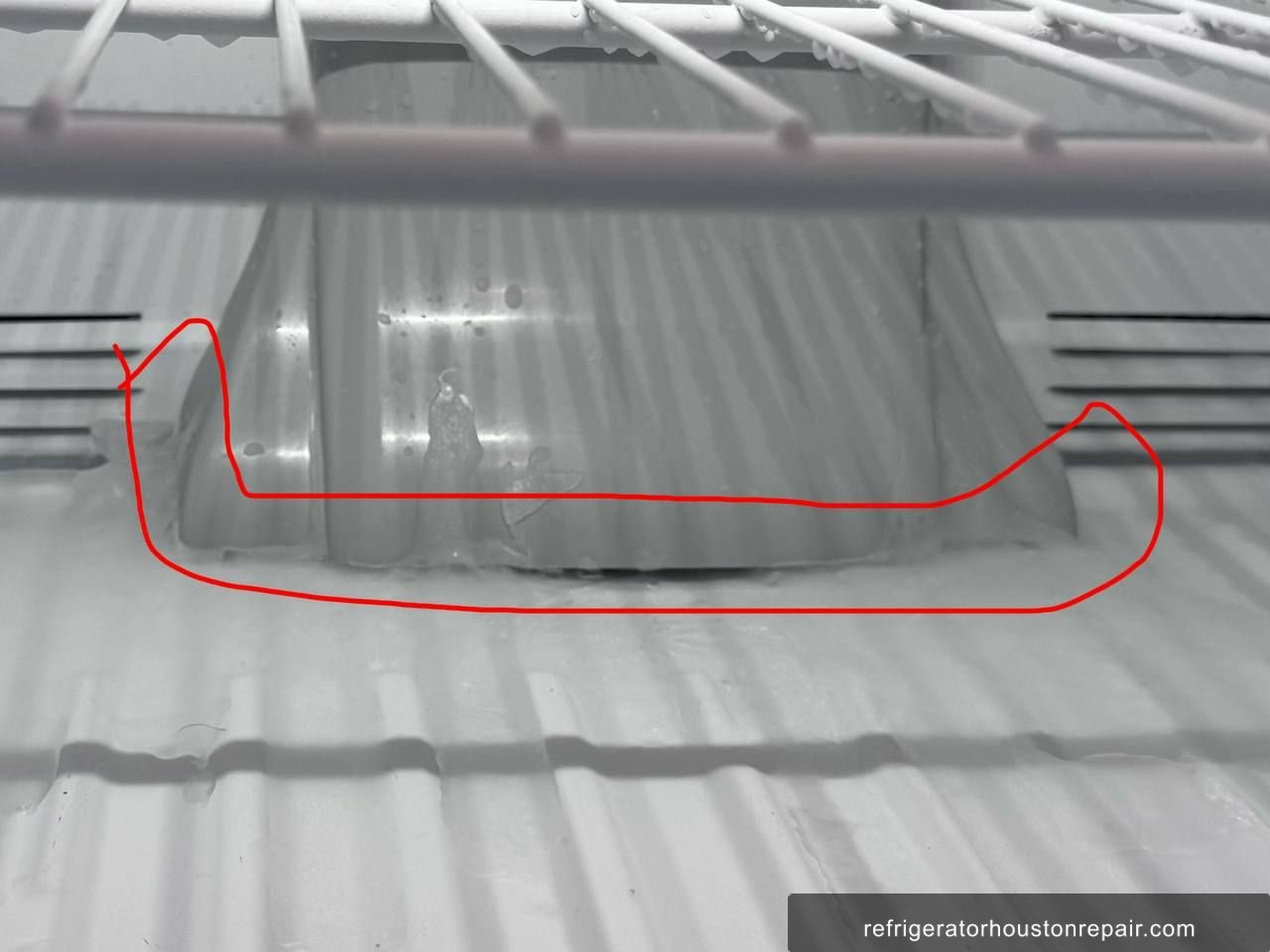

- ✓Step 3: Removed the rear evaporator cover panel inside the Gladiator GARF19XXYK01 freezer to expose the vent openings and evaporator coil area
- ✓Step 4: Identified ice blockage covering nearly all vent openings, confirmed to originate from a previously broken water bottle left unaddressed
- ✓Step 5: Inspected the drain line with a drain diagnostic tool and confirmed the condensate drain was fully clear and unobstructed
- ✓Step 6: Performed a manual forced defrost using a heat gun at a controlled low setting, carefully melting ice from all vent openings and the surrounding surfaces without damaging the liner or coil fins
- ✓Step 7: Cleared all meltwater from the drain pan area, dried surfaces, and confirmed all vent ports were fully open and unobstructed
- ✓Step 8: Reinstalled the evaporator cover panel, returned shelving, and allowed the unit to run for 2 hours. Final readings confirmed freezer at 1°F and fresh food section at 37°F, stable across all shelf levels
✓ Result
After the manual defrost and vent clearance, the Gladiator GARF19XXYK01 returned to normal operation within two hours. The freezer stabilized at 1°F and the fresh food section settled at 37°F across all shelves. No more freezing on the top shelf. The Memorial homeowner was relieved that no parts were needed and the repair was completed the same day. They mentioned they had noticed a broken bottle in the freezer months ago but did not realize it had caused the issue. They said the unit now feels like it did when it was new.
💡 Technician Notes
Gladiator garage refrigerators like the GARF19XXYK01 are used in environments where spills and accidents are more common than in a kitchen. If anything breaks inside the freezer compartment, clean it up immediately. Even a small amount of water on the freezer floor will migrate to the vent openings and freeze over them within days. The early warning sign in this failure mode is uneven cooling where the top shelf of the fresh food section gets too cold while lower shelves feel warmer than normal. That temperature gradient is the first signal that airflow is being redirected rather than split correctly. Once a year, pull the rear panel inside the freezer and check that all vent openings are clear. If you notice the freezer temperature creeping above 10°F without a recent door event, do not wait. Restricted airflow left unaddressed puts extra load on the compressor and shortens its service life significantly on R-134a systems like this one.
Frequently Asked Questions
Why did my Gladiator refrigerator freeze a water bottle on the top shelf?
On the Gladiator GARF19XXYK01, cold air enters the fresh food section from vents near the top. When those freezer vents get blocked by ice, most of the airflow diverts into the refrigerator side instead of the freezer. The top shelf takes the full blast of near-freezing air and anything sitting there, including a gallon water bottle, will freeze solid.
How much does it cost to fix a Gladiator refrigerator with blocked freezer vents in Houston?
If the repair only requires a manual defrost and vent clearance like it did on this GARF19XXYK01, the cost is relatively low since no parts are needed. Labor for a same-day service call in the Memorial area of Houston typically runs between $150 and $250 depending on access and time required. If a defrost heater or damper motor turns out to be involved, parts will add to that range.
What happens if I ignore a Gladiator freezer vent blockage for too long?
If you leave blocked freezer vents unaddressed on a Gladiator GARF19XXYK01, the compressor works harder and longer to maintain any temperature at all. Over weeks, this increases wear on the compressor and raises energy consumption. Food in the freezer section will thaw or partially thaw while the fresh food section swings through unsafe temperatures above 40°F, putting stored food at spoilage risk.
Should I repair or replace my Gladiator GARF19XXYK01 if it has cooling problems?
For an airflow issue caused by ice blockage, repair is always the right call on a Gladiator GARF19XXYK01 as long as the compressor and sealed system are healthy. This is not a sealed system failure. If the unit is under 10 years old and the compressor runs quietly without short cycling, a service call will restore full function at a fraction of replacement cost for a garage-rated refrigerator.
Will the Gladiator GARF19XXYK01 defrost itself after the vents are cleared, or do I need to do anything?
Once the vent blockage is cleared and the unit is running normally, the built-in automatic defrost cycle on the GARF19XXYK01 handles routine frost management. However, if the blockage was caused by liquid from a broken container rather than normal frost buildup, the automatic defrost system will not prevent it from happening again. You need to keep the freezer floor dry and free of standing water or spilled liquids.
Repair Summary
- Brand
- Gladiator
- Model
- GARF19XXYK01
- Repair Type
- Freezer Vent Blockage Clearance and Manual Defrost
- Refrigerant
- R-134a
- Root Cause
- Ice blockage in freezer vents redirecting cold airflow into fresh food section
- Parts Replaced
- ✓No parts replaced. Repair completed through manual defrost and vent clearance only.
- Location
- Memorial, TX 77024
- Status
- ✓ Completed
