GE Monogram ZISS480DRCS: Dispenser Not Responding When Paddle Pressed in Houston, TX
π Call (346) 512-3688π§ Performed by Serhii T.
The Problem
- β’Pressing the dispenser paddle produces zero response β no water, no ice, no sounds from the dispenser motor
- β’Dispenser completely dead whether set to water or ice mode
- β’No audible click when paddle is depressed, indicating the microswitch is not activating
π Diagnosis

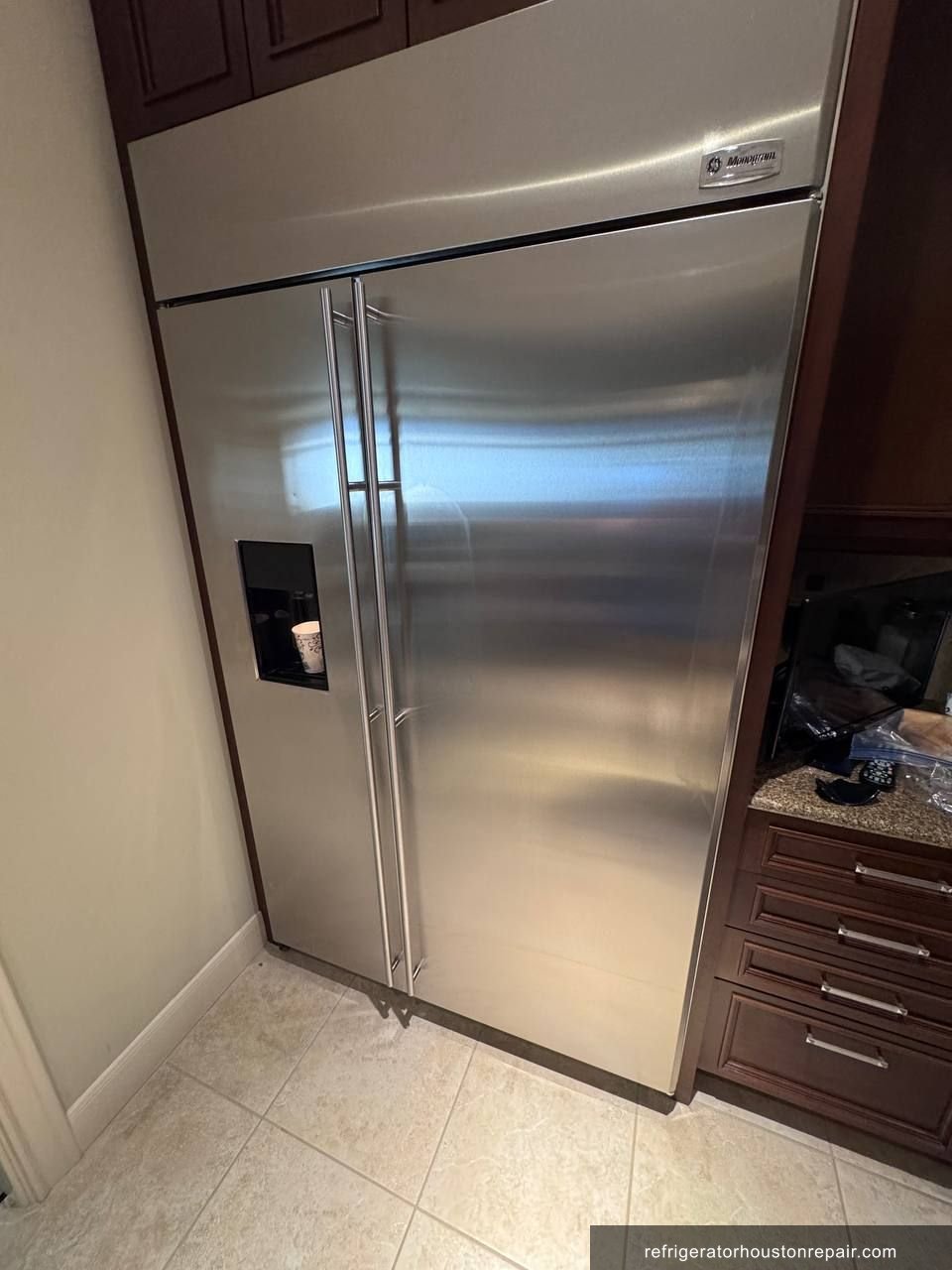

On arrival at the River Oaks-area residence, the GE Monogram ZISS480DRCS showed a fully non-responsive dispenser β pressing the paddle in either water or ice mode produced nothing: no solenoid engagement, no auger motor movement, no water flow. The control board display was live and the refrigerator itself was maintaining proper temperatures, which immediately narrowed the fault to the dispenser mechanical-electrical assembly rather than a board or power issue. A multimeter check at the dispenser wiring harness confirmed 120V supply to the assembly was intact. Testing the microswitch directly with probes across the switch terminals showed an open circuit even when the paddle was manually depressed β resistance read OL (overload/infinite), confirming the switch contacts had failed internally. On the GE Monogram ZISS480DRCS, this actuator microswitch (WR23X10006 or equivalent) is a common wear item; the paddle mechanism on built-in column refrigerators sees significant daily cycling and the internal contact spring fatigues over time. With the electrical fault confirmed at the switch level, the repair path was clear. Secondary inspection while the trim was accessible also revealed the flipper spring β the spring-loaded flap that seals the ice chute and prevents warm Houston air from entering the freezer compartment β had lost tension and was not closing fully.
π§ The Repair
- βStep 1: Powered down the ZISS480DRCS at the circuit breaker and placed towels beneath the dispenser recess to protect the floor during disassembly.

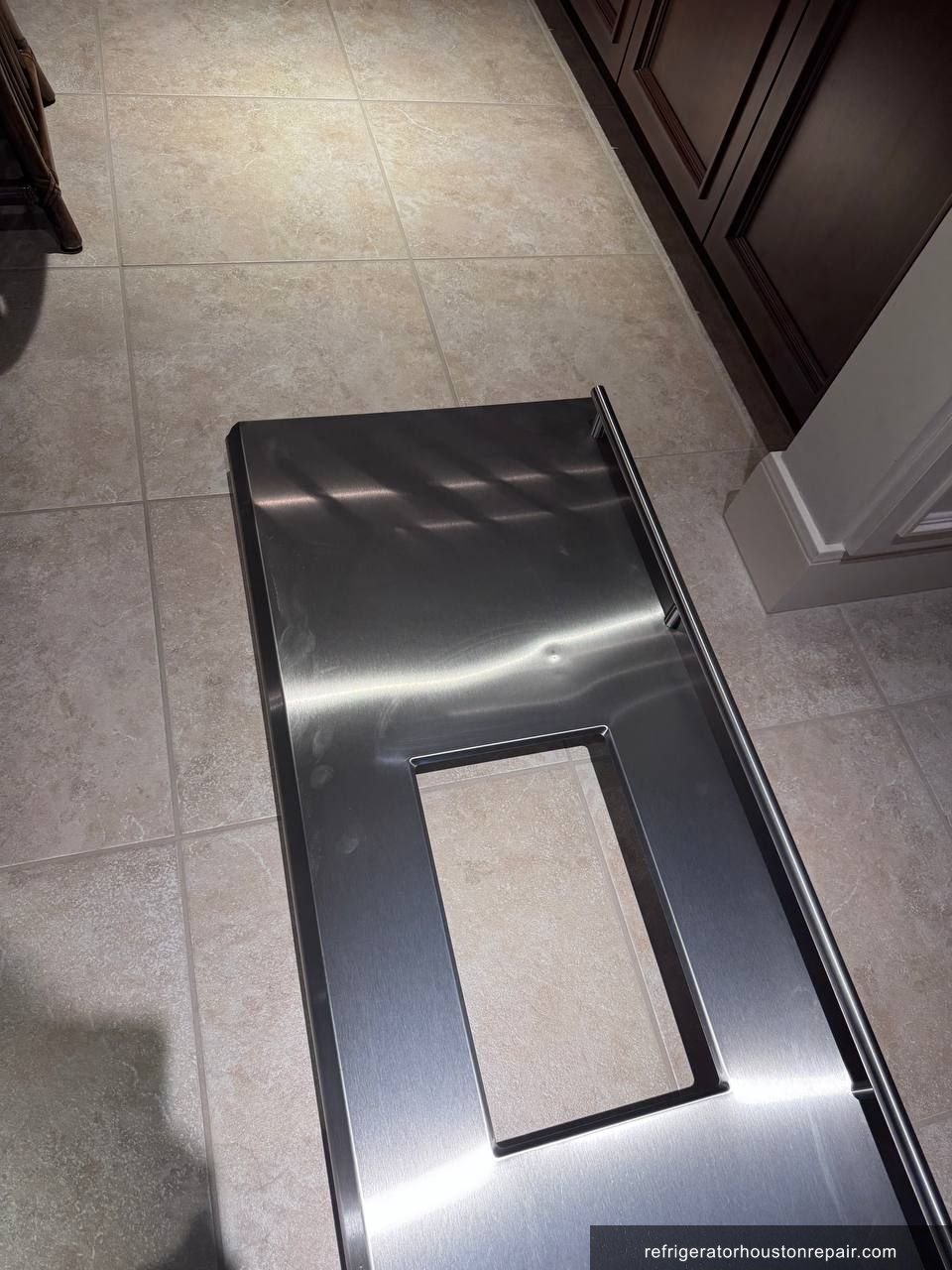

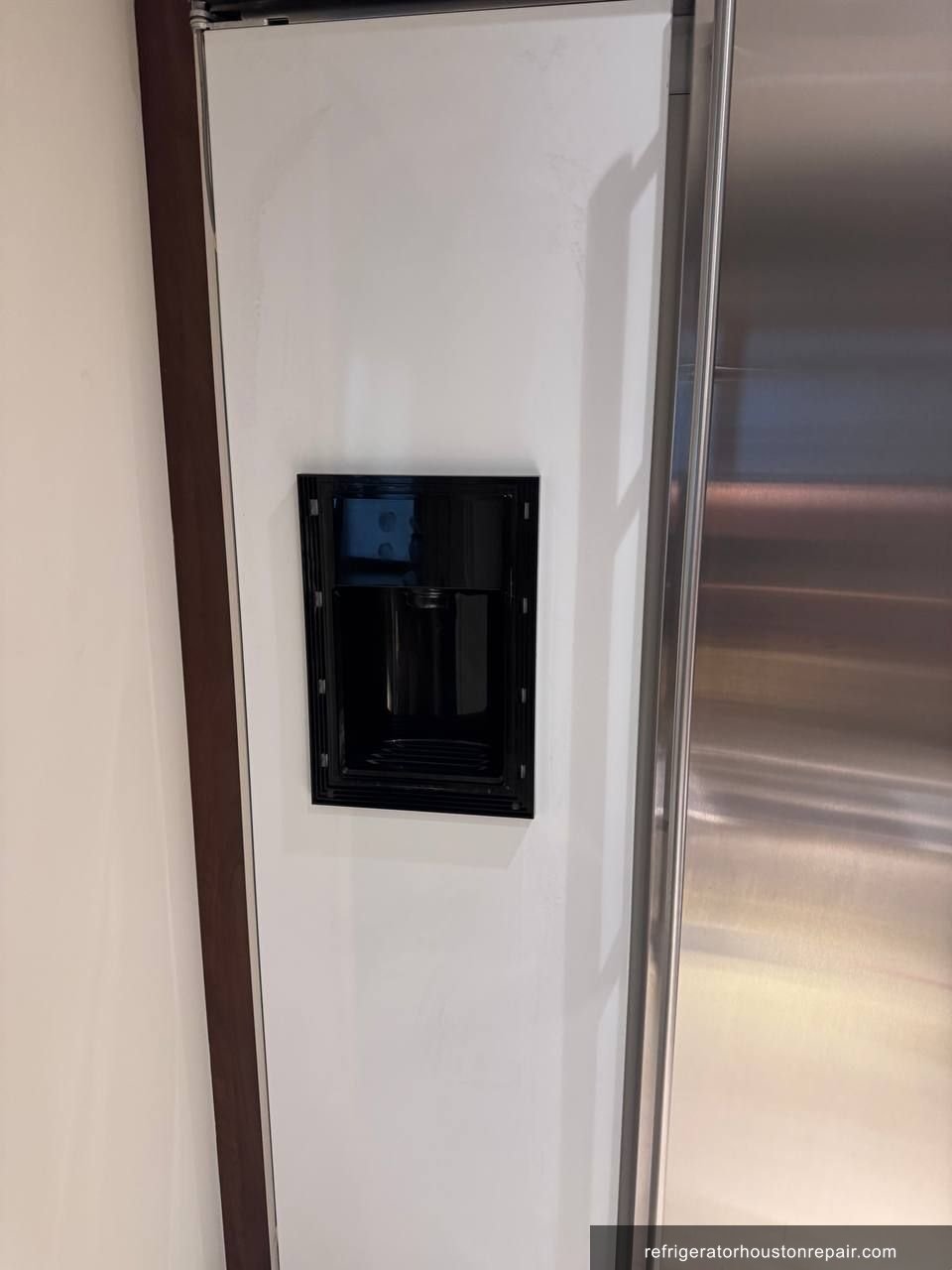

- βStep 2: Removed the dispenser housing trim panel β began with the upper clips, then addressed the lower mounting screws. Two of the four lower screws were heavily corroded and seized; both sheared off during removal. Drilled out the stainless steel screw remnants using a carbide-tipped 1/8-inch bit, working slowly to avoid damaging the panel mounting bosses.
- βStep 3: With the trim panel free, carefully displaced the water supply tubes feeding the dispenser nozzle β these are push-fit lines on the ZISS480DRCS and must be angled away without kinking before the panel clears fully.

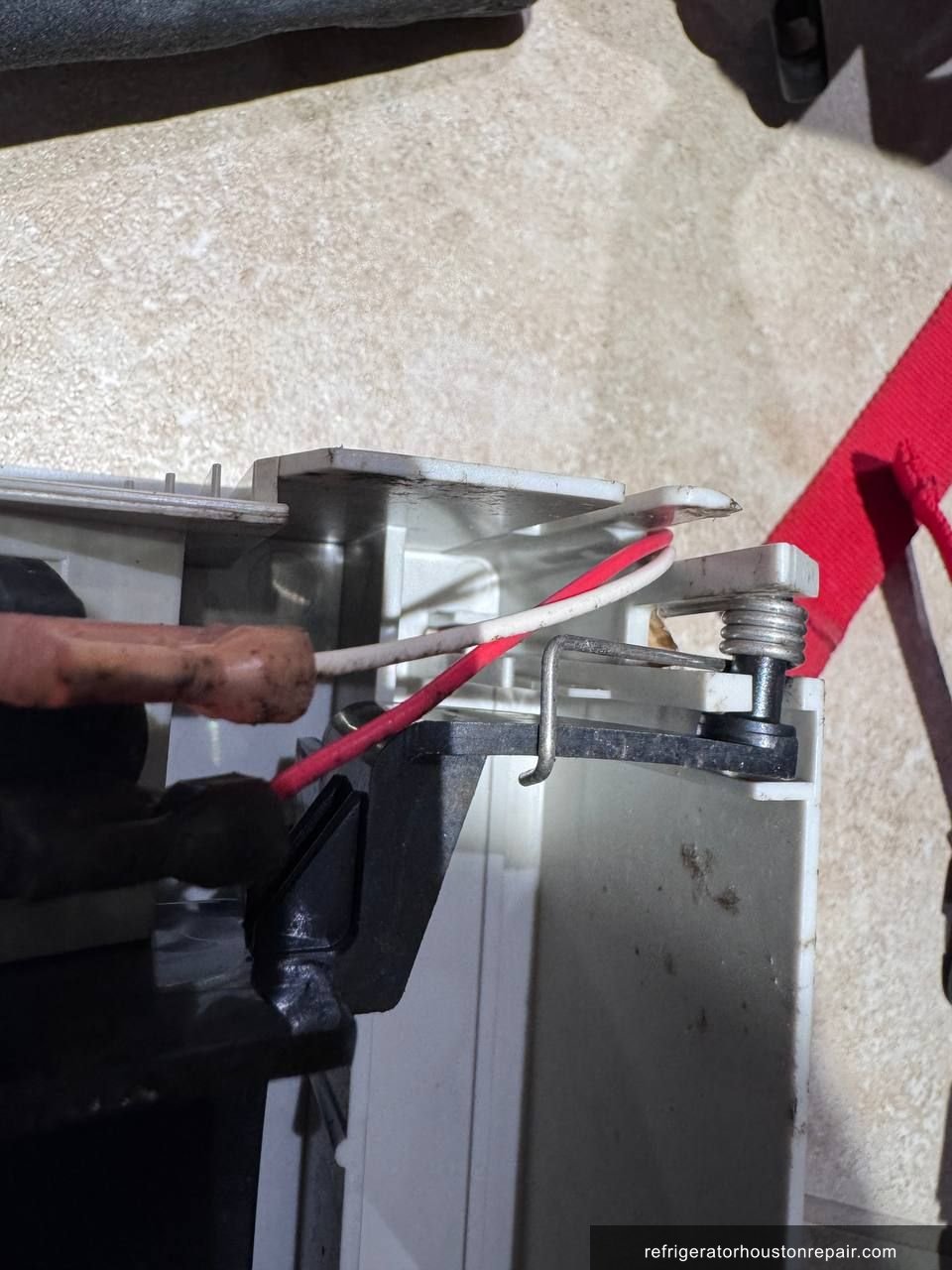

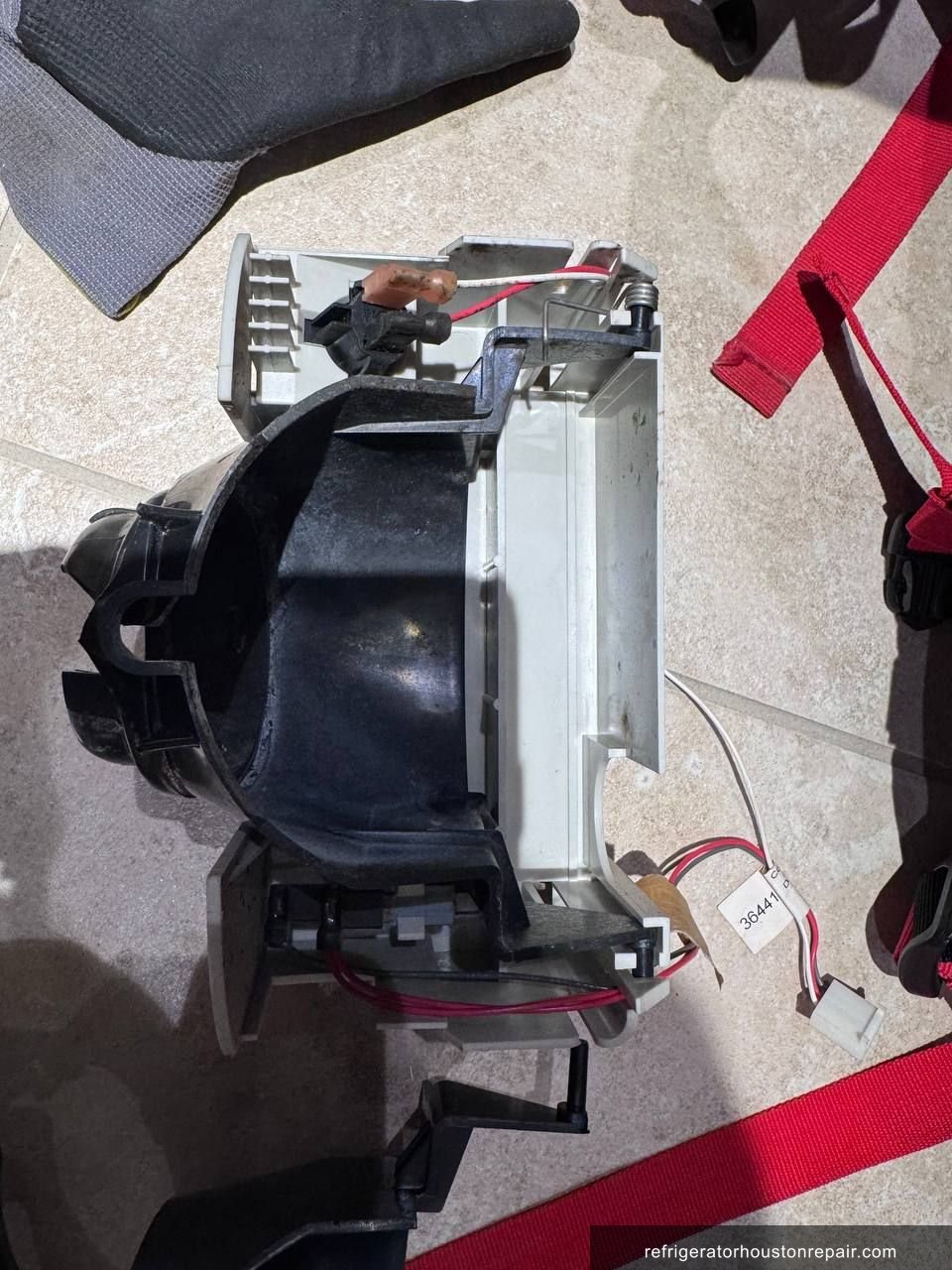

- βStep 4: Disconnected the wiring harness connector from the failed microswitch and removed the switch from its bracket mounting.
- βStep 5: Installed replacement dispenser microswitch, verified tactile click engagement and confirmed continuity across terminals with multimeter β resistance dropped to 0.3Ξ© when actuated, confirming proper contact closure.
- βStep 6: Replaced the ice chute flipper spring with a new-tension unit, restoring the positive snap-closure that keeps the chute sealed between dispense cycles β critical in Houston's humidity to prevent frost accumulation inside the chute.
- βStep 7: Reseated the water supply tubes into their push-fit ports, confirmed no kinks, and carefully repositioned the trim panel. Replaced all four lower mounting screws with new stainless steel M4 machine screws with nylon-patch thread lock to prevent future corrosion seizure.
- βStep 8: Restored power, cycled through water and ice dispense modes. Microswitch actuated cleanly on paddle press, water flow confirmed, ice auger engaged. Refrigerator compartment held 37Β°F, freezer at 0Β°F after 30-minute observation. Dispenser fully operational across all modes.
β Result
The ZISS480DRCS dispenser was fully restored in a single visit. Water and ice dispensing responded immediately on first post-repair press with no hesitation. The new flipper spring sealed the ice chute with a firm snap β a noticeable improvement over the slack closure the homeowner had likely been living with for months. The homeowner, who uses this refrigerator daily in their River Oaks home, was relieved the fix didn't require any refrigeration system work. A 90-day labor warranty was issued on the repair. The customer noted they'd assumed the whole dispenser module needed replacement and were glad to hear it was a $40 switch.
π‘ Technician Notes
On GE Monogram column refrigerators like the ZISS480DRCS, the earliest sign of a failing dispenser microswitch is an inconsistent response β the dispenser works sometimes but not others, or requires the paddle to be held at a very specific angle. Homeowners often interpret this as a water pressure issue or a control board glitch. It's the switch contacts beginning to fail intermittently before they fail completely. To slow switch wear, avoid pressing the paddle with excessive force; the GE Monogram actuator mechanism is designed for firm but not aggressive actuation. The more actionable preventive step is the flipper spring: inspect it annually by manually pressing the ice chute flap closed and releasing it β it should snap shut crisply. A weak spring that lets the chute hang partially open causes frost buildup in the chute and accelerates wear on the auger. If your dispenser goes completely dead with no response in both water and ice modes and the display is otherwise normal, call immediately β this is a straightforward repair that gets complicated only when deferred and corrosion worsens on the fasteners.
Frequently Asked Questions
GE Monogram ZISS480DRCS dispenser paddle not working at all β what's wrong?
On the GE Monogram ZISS480DRCS, a completely dead dispenser paddle β no water, no ice, no response β almost always points to a failed actuator microswitch behind the trim panel. The switch contacts wear out over time from repeated pressing. It's a straightforward repair but requires careful panel removal to avoid damaging the water supply tubes.
How much does it cost to fix a dispenser microswitch on a GE Monogram refrigerator in Houston?
Dispenser microswitch repairs on GE Monogram refrigerators in Houston typically run $180β$280 all-in, depending on access difficulty and whether secondary components like the flipper spring need replacement. The switch itself is inexpensive, but labor accounts for most of the cost due to the trim panel removal process and the risk of corroded fasteners on older units.
What happens if I ignore a broken dispenser on my GE Monogram and keep using the fridge normally?
The refrigerator will continue cooling normally β a failed dispenser microswitch doesn't affect refrigeration. However, if the ice chute flipper spring is also weakened, warm humid Houston air will enter the freezer through the open chute, causing frost buildup inside the dispenser recess and eventually ice bridging that blocks the auger. That's a more expensive repair.
Is it worth repairing the dispenser on a GE Monogram ZISS480DRCS or should I just replace the fridge?
GE Monogram column refrigerators are built to last 15β20 years, and a dispenser microswitch failure has no bearing on the sealed refrigeration system. Unless your unit has compressor issues or multiple simultaneous failures, a dispenser repair at $200β$280 is clearly worth it on a refrigerator that costs $6,000β$9,000 new. Repair without hesitation.
Why did the screws on my GE Monogram dispenser panel break off when the technician tried to remove them?
The lower dispenser trim panel screws on GE Monogram refrigerators are exposed to moisture from condensation and ice melt. Over time, even stainless fasteners corrode at the threads due to galvanic interaction with the panel bracket. Once seized, they shear under torque. This is a known nuisance on units over 5β7 years old in humid climates like Houston, and an experienced technician will have carbide drill bits on hand to address it.
Repair Summary
- Brand
- GE
- Model
- ZISS480DRCS
- Repair Type
- Dispenser Microswitch Replacement with Flipper Spring and Trim Panel Service
- Refrigerant

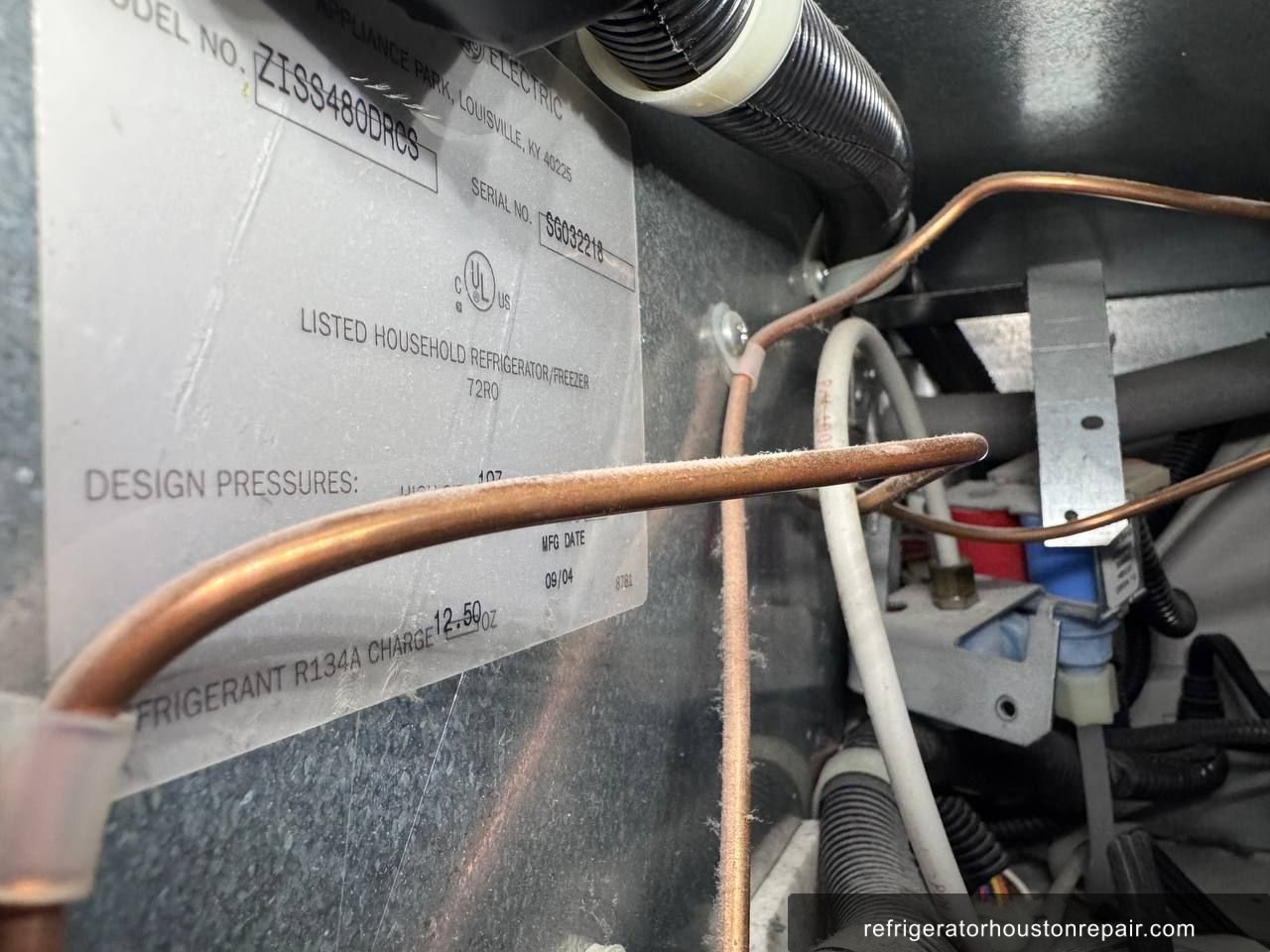

- R-134a
- Root Cause
- Failed dispenser paddle microswitch behind corroded trim panel
- Parts Replaced
- βDispenser actuator microswitch (GE OEM-equivalent WR23X10006) β primary failed component
- βIce chute flipper closure spring β replaced due to lost tension found during panel-off inspection
- βLower trim panel mounting screws (4x) β stainless M4 with nylon patch, replacing corroded originals
- Location
- Houston, TX 77027
- Status
- β Completed
