GE Monogram ZIS540DBSS: Compressor Failure & Sealed System Overhaul in League City, TX
📞 Call (346) 512-3688🔧 Performed by Alex
The Problem
- •Refrigerator compartment holding 58°F despite thermostat set to 37°F — no cooling response
- •Compressor running continuously but low-side pressure reading near 0 PSI — no refrigerant circulation
- •Oily residue visible at service ports indicating internal compressor seal failure and oil migration into the refrigerant loop
- •No audible cycling — compressor locked in a constant hum without the normal pressure-building sound of refrigerant flow
🔍 Diagnosis
On arrival at the League City residence, the GE Monogram ZIS540DBSS refrigerator compartment was reading 57°F and the freezer was at 28°F — far outside the design targets of 37°F and 0°F respectively. The compressor was running without interruption, which on the ZIS540DBSS typically signals either a refrigerant loss or a mechanical compressor failure rather than a controls issue. A manifold gauge set was connected to the low-side port. With the system charged to a nominal 110 PSI low-side specification (as confirmed on the appliance label for R-134a), the actual low-side reading was 8 PSI — critically below operating range, indicating the system was not building pressure. A clamp meter on the compressor circuit showed 9.6 amps draw, close to the labeled 10.0A maximum, confirming the compressor motor was working hard under mechanical resistance rather than pumping efficiently. A UV leak detection sweep found no external refrigerant leak points. The diagnosis shifted to internal compressor failure — specifically, the compressor's piston assembly had degraded, allowing compressor oil to bypass into the refrigerant loop. This is a known failure pattern in high-end built-in refrigerators using R-134a when operating in Houston's high ambient temperatures over several years. The oil contamination coats the evaporator tubing and restricts heat exchange, compounding the cooling loss even before full compressor seizure occurs.
🔧 The Repair
- ✓Step 1: Safely recovered residual R-134a refrigerant from the ZIS540DBSS using a certified recovery machine, following EPA 608 protocol.

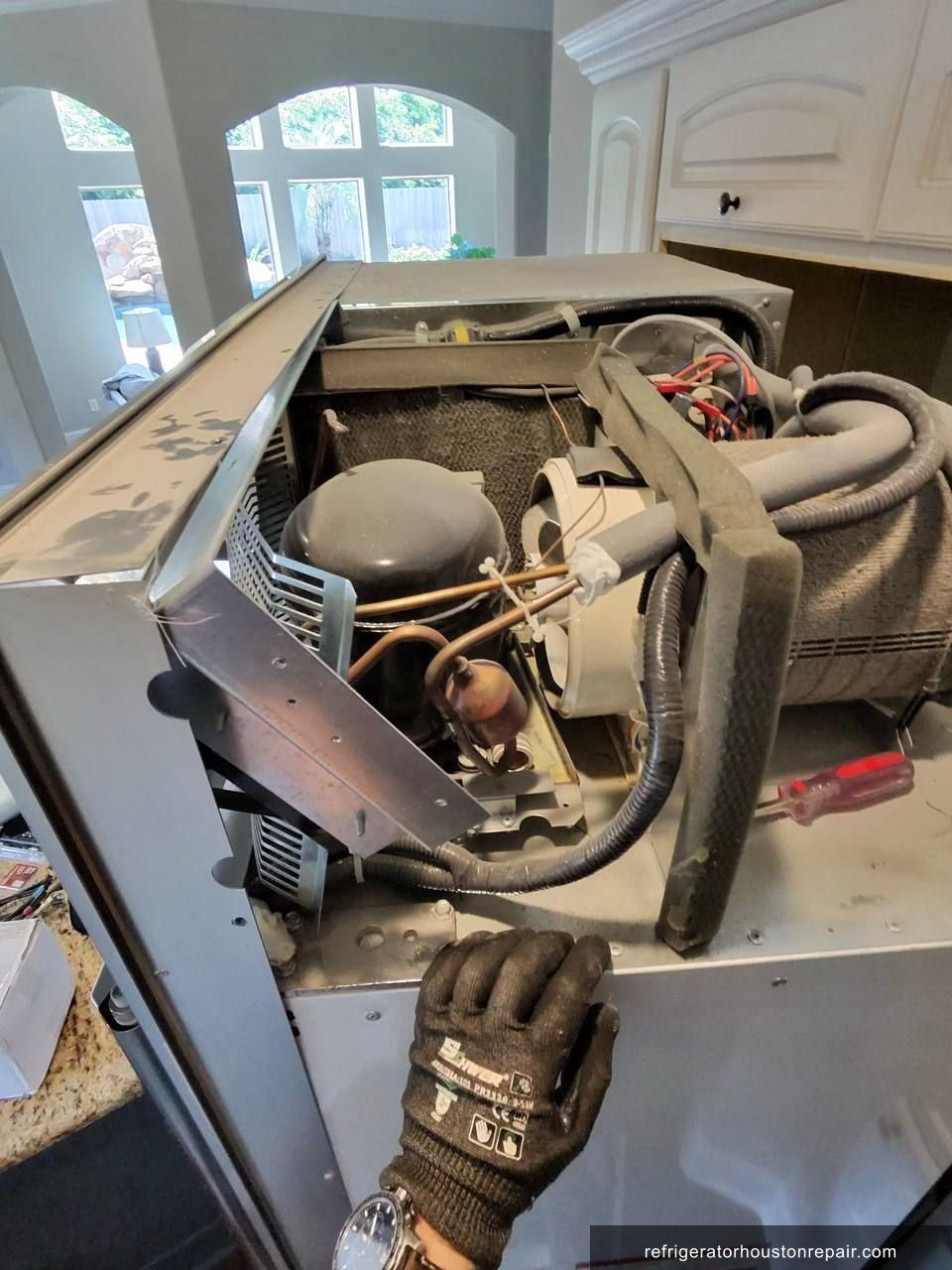

- ✓Step 2: Disconnected and removed the failed compressor from the sealed system. Upon removal, confirmed internal oil degradation — the discharge line showed dark, viscous oil contamination consistent with piston wear and overheating.
- ✓Step 3: Flushed the entire refrigerant circuit — including the condenser coil, capillary tube, and evaporator — using dry nitrogen (N2) purge at controlled pressure to drive out the contaminated compressor oil that had migrated throughout the system. Multiple N2 passes were performed until discharge ran clear.

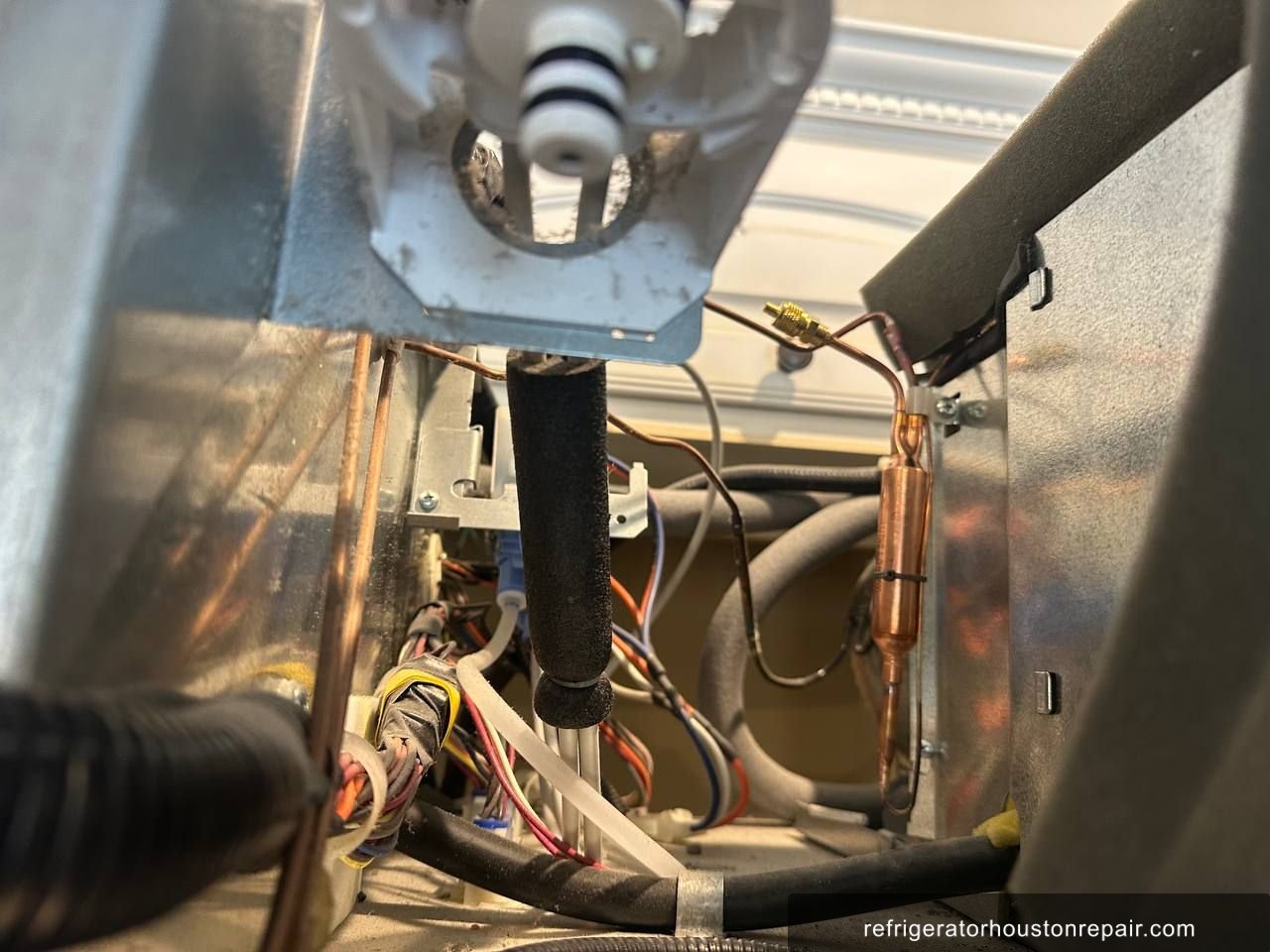

- ✓Step 4: Replaced the inline filter drier with a new OEM-spec drier rated for R-134a systems. The old drier was fully saturated and would have continued to restrict flow and trap moisture had it been reused.

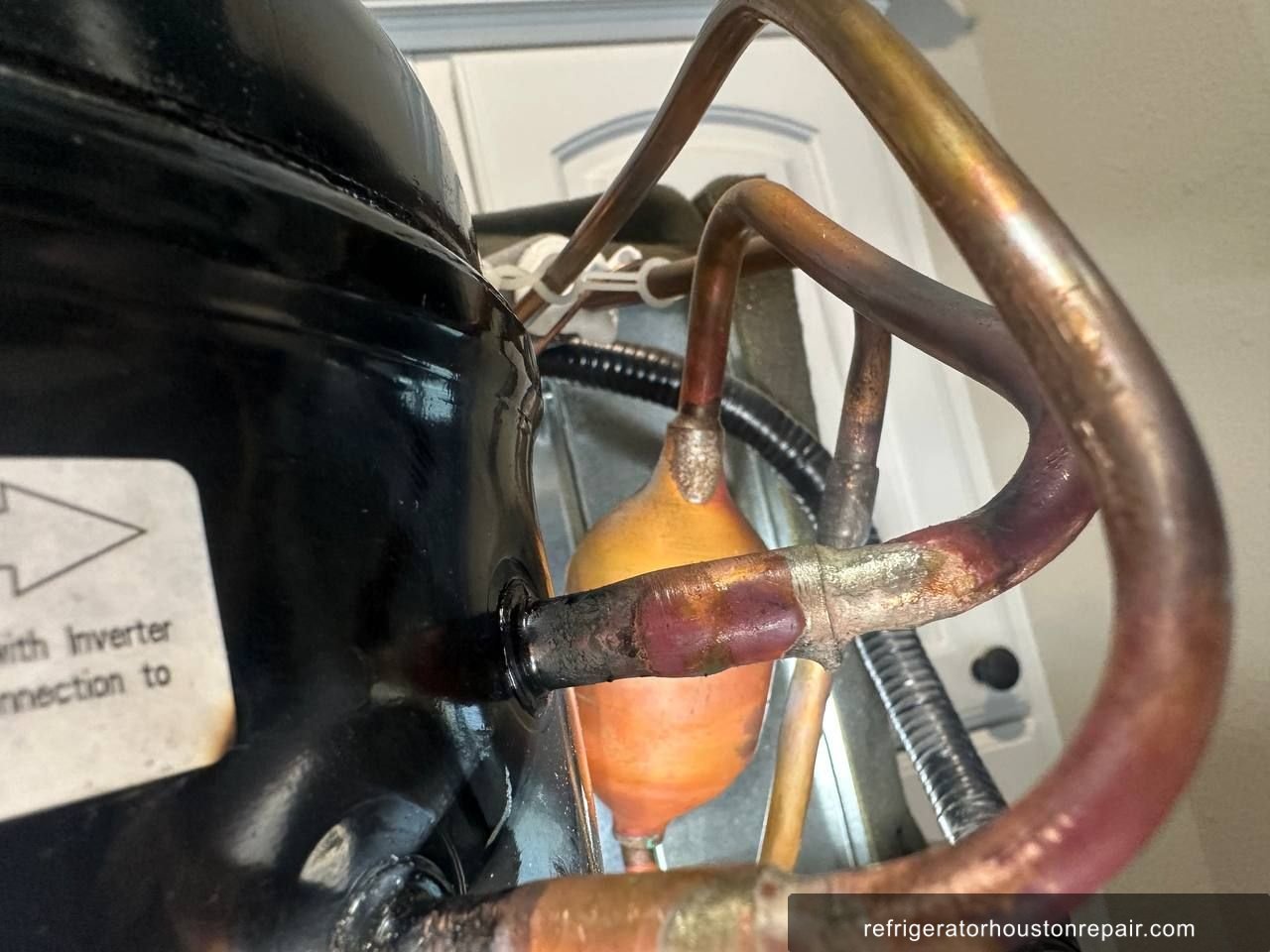

- ✓Step 5: Installed a direct replacement compressor compatible with the ZIS540DBSS sealed system and R-134a refrigerant — brazed all copper connections using a nitrogen blanket purge during brazing to prevent oxidation scale inside the tubing.
- ✓Step 6: Pressure-tested the repaired sealed system with dry nitrogen to 150 PSI and held for 30 minutes. Zero pressure drop confirmed all brazed joints were leak-free.
- ✓Step 7: Drew the system down to a deep vacuum using a two-stage vacuum pump — achieved and held 200 microns for 20 minutes to confirm the system was moisture-free before refrigerant introduction.
- ✓Step 8: Charged the system with R-134a to the label specification of 110 PSI low-side. After a 2-hour runtime, fresh food compartment measured 37°F and freezer measured -1°F — both within GE Monogram design targets. Compressor amp draw settled at 6.8 amps under normal cycling load.
✓ Result
After the sealed system overhaul, the ZIS540DBSS reached target temperatures within two hours of restart — 37°F in the fresh food section and -1°F in the freezer. The compressor cycled normally at 6.8 amps, well within the 10.0A label rating. A 90-day labor warranty was provided on the sealed system repair. The homeowner, located near the South Shore Harbour area of League City, had been without proper cooling for nearly a week and was relieved to recover a full load of groceries and wine stored in the unit.
💡 Technician Notes
GE Monogram ZIS540DBSS owners should know that sealed system repairs require EPA 608 certified technicians with proper refrigerant recovery and brazing equipment — not every appliance tech is equipped to work on these systems. The earliest warning sign specific to this compressor failure mode is the compressor running non-stop without the refrigerator ever reaching setpoint — if your Monogram runs for more than 90 minutes continuously without cycling off, that's not normal operation and warrants a service call before the oil contamination spreads further into the evaporator. To reduce compressor stress in Houston's climate, keep the condenser coils — located at the rear base of the ZIS540DBSS — vacuumed every 6 months. Dust-loaded condensers force the compressor to run hotter and longer, accelerating internal wear. If you notice the compressor running longer cycles gradually over weeks, don't wait — oil contamination repair costs significantly more after the evaporator is fully coated.
Frequently Asked Questions
Why did my GE Monogram ZIS540DBSS stop cooling even though the compressor is still running?
On the ZIS540DBSS, a compressor that runs constantly but produces no cooling almost always means either refrigerant loss or internal compressor failure. In this case, the compressor's internal seals failed, pushing oil into the sealed R-134a refrigerant loop and blocking circulation. The compressor motor keeps running, but refrigerant stops moving — so no heat exchange happens and temperatures rise.
How much does a compressor replacement cost on a GE Monogram built-in refrigerator in League City TX?
A full compressor replacement on a GE Monogram ZIS540DBSS, including system flush, new filter drier, and R-134a recharge, typically runs between $900 and $1,400 depending on oil contamination severity. If the evaporator requires cleaning or replacement due to oil fouling, costs can increase. Given the $6,000–$8,000 replacement cost of the unit, repair is almost always the right call on a well-maintained Monogram.
What happens if I ignore a GE Monogram refrigerator that stopped cooling and the compressor keeps running?
Delaying repair on a ZIS540DBSS with a failing compressor accelerates oil migration throughout the entire sealed system — coating the evaporator tubing and capillary tube. What starts as a compressor replacement can become a full system replacement if the evaporator is heavily fouled. Beyond the mechanical damage, a seized compressor running continuously draws near-maximum amperage, which risks tripping breakers or damaging the inverter board.
Should I repair or replace my GE Monogram ZIS540DBSS if the compressor failed?
Repair is strongly recommended on the ZIS540DBSS unless the unit is over 15 years old and has had multiple sealed system failures. This is a $7,000+ built-in refrigerator — a compressor overhaul at $900–$1,400 is a fraction of replacement cost. GE Monogram sealed systems, once properly flushed and recharged, typically deliver another 8–12 years of reliable service. Age and condition of the evaporator are the deciding factors.
Why is the R-134a charge weight so precise on the GE Monogram ZIS540DBSS?
The ZIS540DBSS label specifies an exact R-134a charge to 110 PSI low-side because the system is calibrated to that precise refrigerant mass. Overcharging raises head pressure and forces the compressor to work harder — shortening its lifespan. Undercharging leaves the evaporator starved, which causes the compressor to run continuously without reaching setpoint. Both conditions accelerate wear. Always charge to the label specification confirmed with a calibrated manifold gauge, not by estimate.
Repair Summary
- Brand
- General Electric
- Model
- ZIS540DBSS
- Repair Type
- Sealed System Overhaul / Compressor Replacement / Filter Drier Replacement
- Refrigerant
- R-134a
- Root Cause
- Failed compressor pushing oil into sealed refrigerant system
- Parts Replaced
- ✓Replacement compressor — R-134a-rated, compatible with GE Monogram ZIS540DBSS sealed system specifications
- ✓Filter drier — R-134a-compatible inline drier, OEM-spec replacement for built-in Monogram refrigerator sealed systems
- ✓Refrigerant charge — R-134a refrigerant, recharged to label specification
- Location
- League City, TX 77573
- Status
- ✓ Completed
Same Problem?
We fix General Electric refrigerators in League City and all Houston area.
Call (346) 512-3688Service Area
We provide refrigerator repair service in League City and surrounding areas.
View League City Service Area →📸 Repair Photos

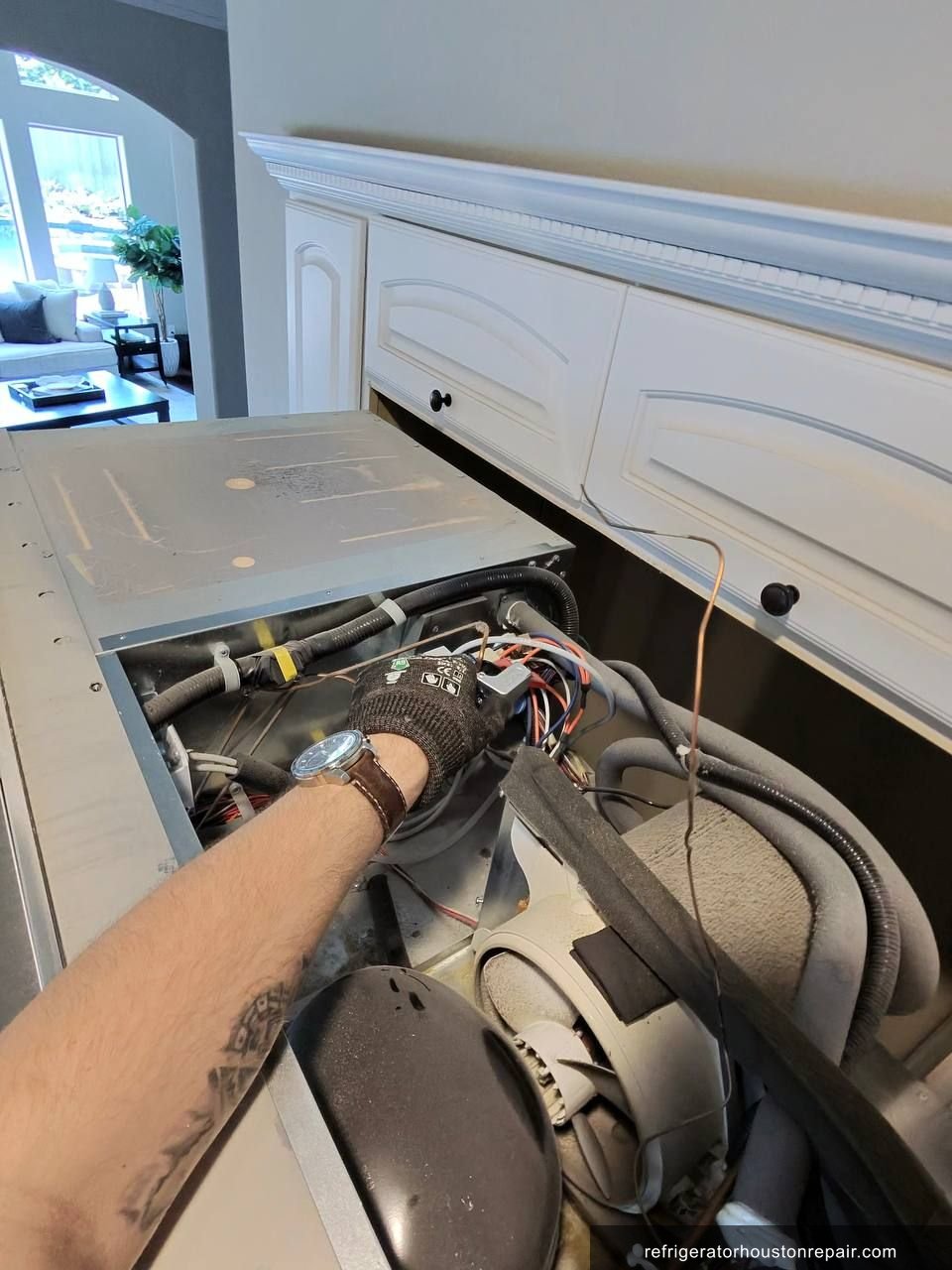

General Electric ZIS540DBSS repair in League City, TX — photo 3

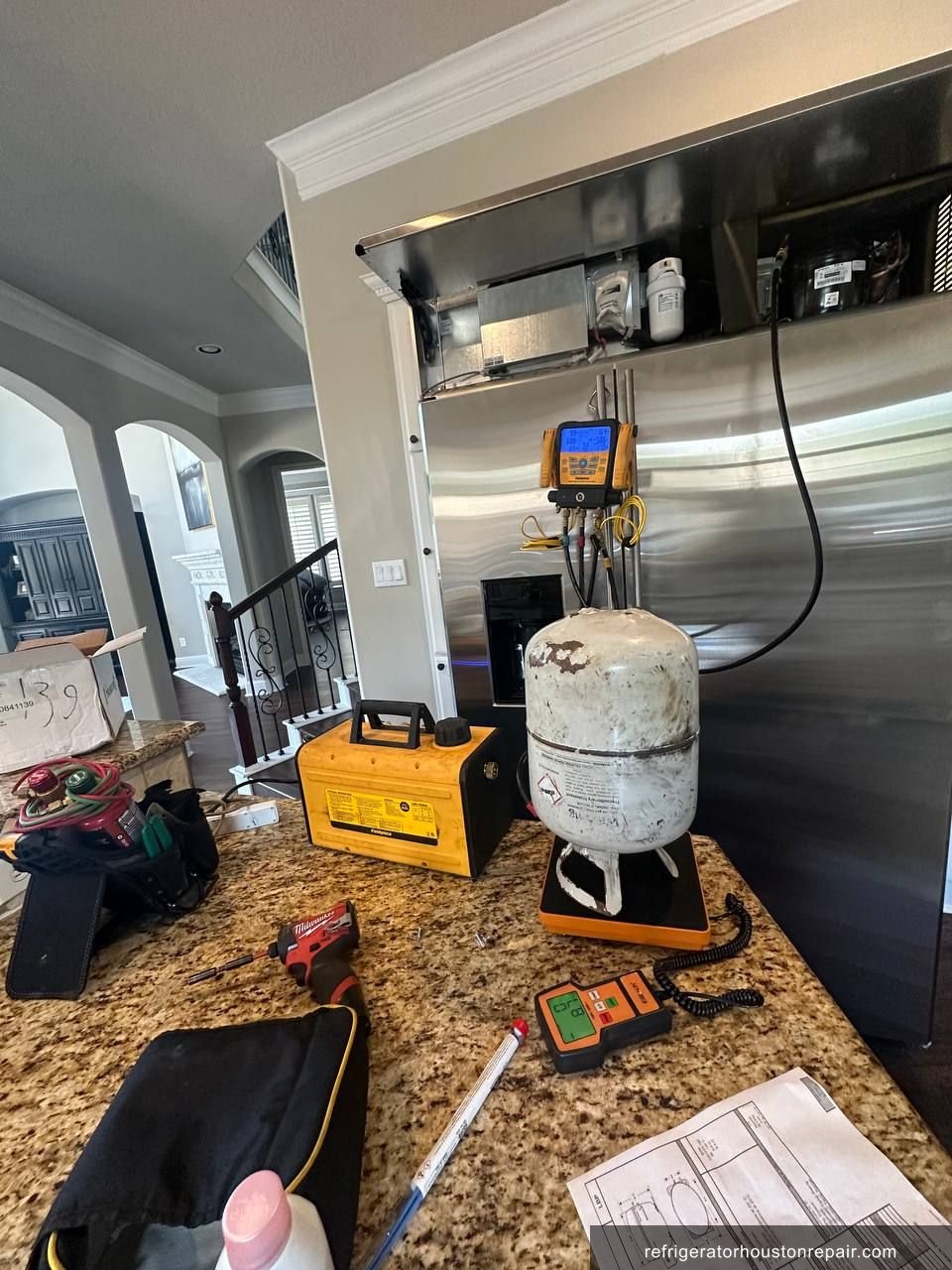

General Electric ZIS540DBSS repair in League City, TX — photo 4
