The Problem
- •Freezer section gradually losing cooling capacity over several weeks despite compressor running continuously

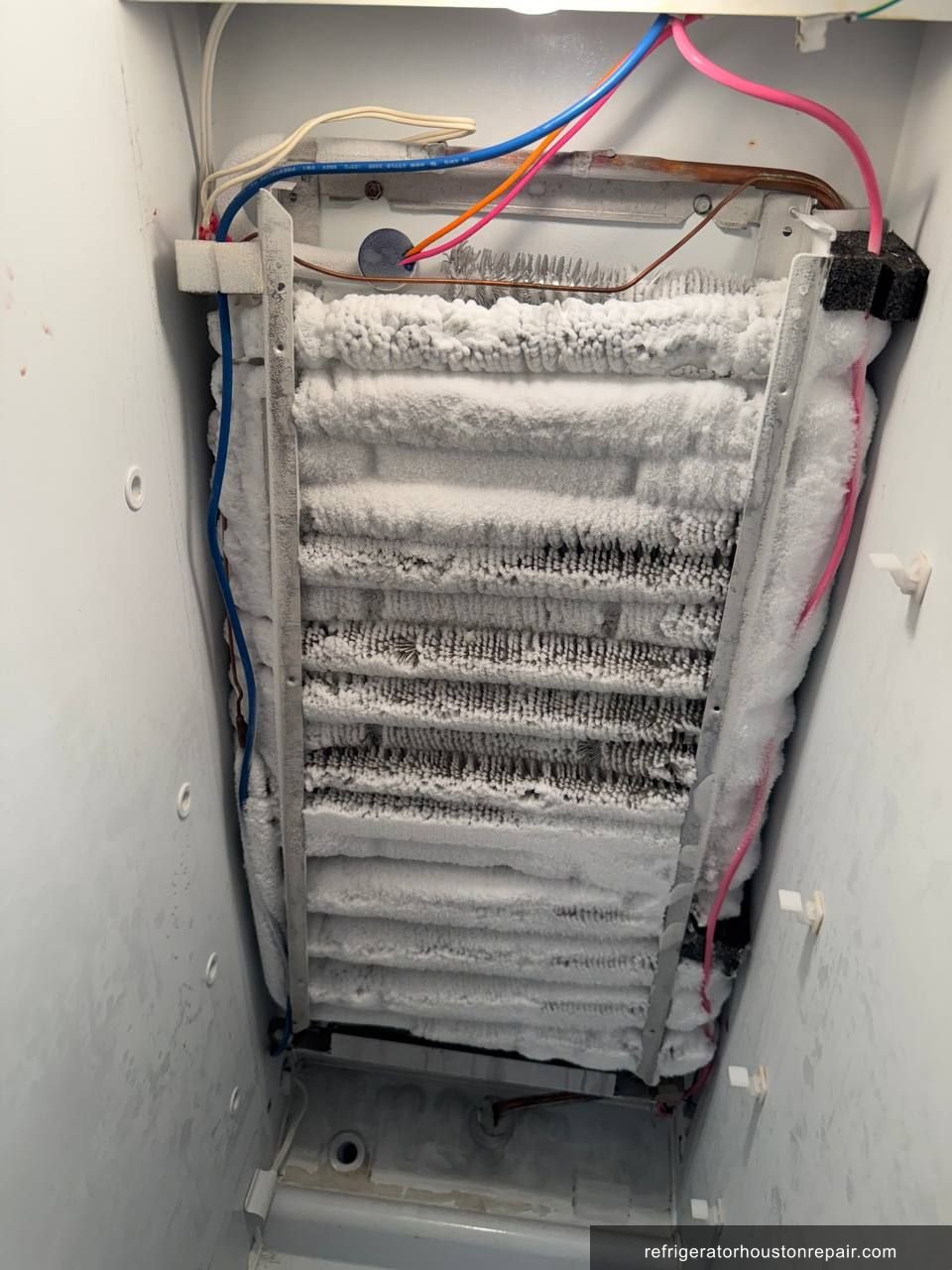

- •Heavy frost visible coating the entire back wall of the freezer compartment — visible when liner panel was removed
- •Fresh food section warming above safe temperatures (above 45°F) while freezer appeared superficially cold
- •Unusually long compressor run cycles with no defrost cycling audible over a 24-hour period
🔍 Diagnosis

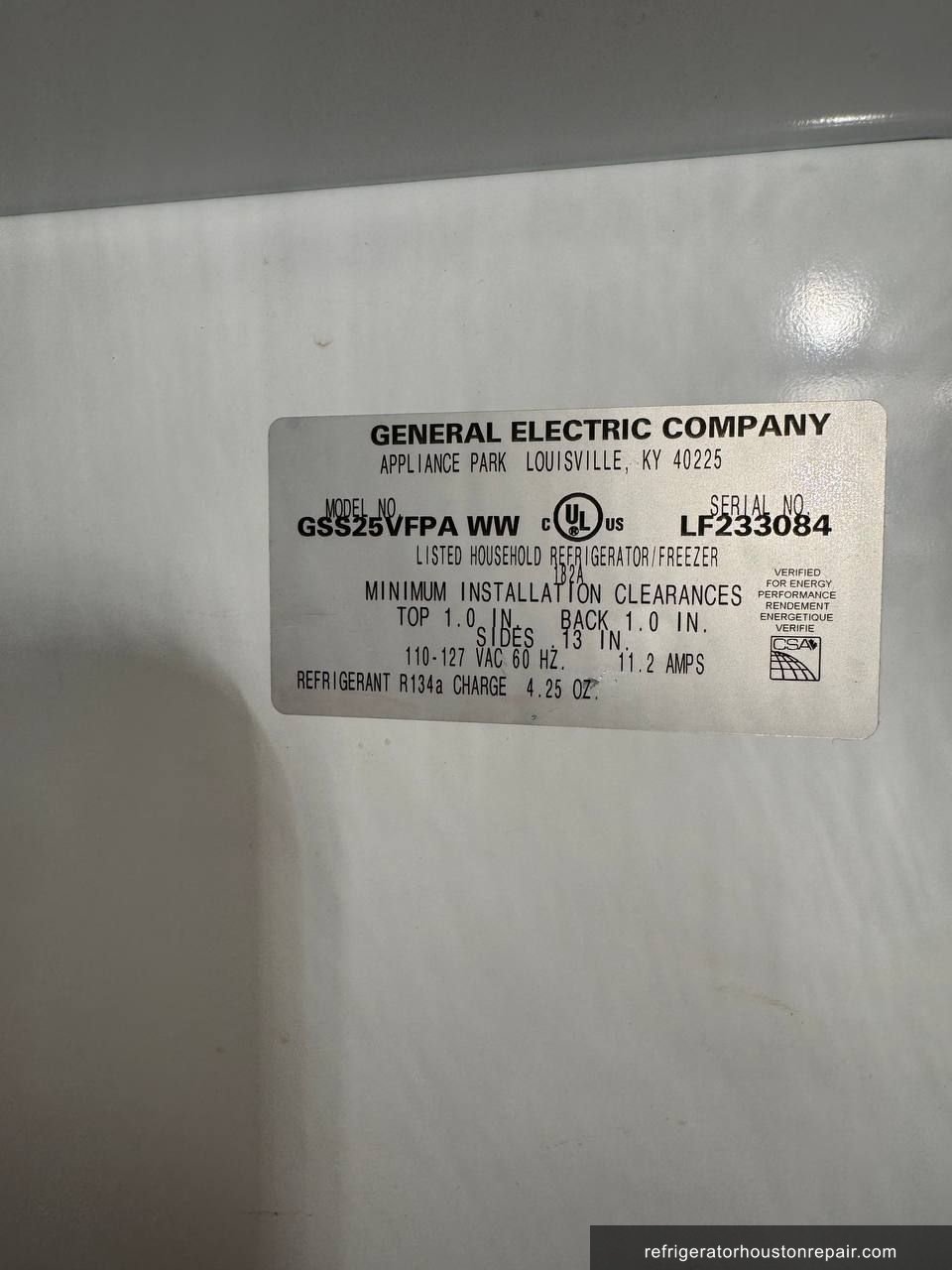

On arrival at the Memorial, TX residence, the GE GSS25VFPA WW — approximately 20 years old — showed a freezer compartment packed with thick frost accumulation across the entire evaporator coil surface. The compressor was running but airflow through the evaporator was almost completely blocked by ice. Fresh food section temperature was measured at 52°F; freezer was reading 18°F at the air duct but significantly colder at the ice-choked evaporator face. A manual defrost was initiated by unplugging the unit and allowing a full melt cycle, which confirmed the evaporator coil itself was intact and the refrigerant circuit — charged with 4.25 oz of R-134a per the label — was holding pressure correctly. Manifold gauge readings after manual defrost showed suction pressure at approximately 2 psi and discharge near 130 psi, consistent with normal R-134a operation in a properly functioning sealed system. Continuity testing on the defrost heater (WR51X10055) showed an open circuit — the heating element had burned out completely. The defrost thermostat (WR50X10015) was also tested and failed to close at the expected temperature threshold near 47°F, confirming a dual component failure. On a 20-year-old GE side-by-side, simultaneous failure of both the heater element and the bimetal defrost thermostat is a known end-of-life failure pattern — heat cycling over two decades degrades both components together. The defrost control timer itself was verified functional.
🔧 The Repair
- ✓Step 1: Performed manual defrost by disconnecting power and allowing full ice melt from evaporator — approximately 2 hours — to enable safe access to components without damaging the evaporator coil fins.
- ✓Step 2: Removed freezer interior liner panel by extracting all retaining screws and disconnecting the evaporator fan wiring harness to expose the evaporator assembly on the GE GSS25VFPA WW.
- ✓Step 3: Disconnected and removed the failed defrost heater and bracket assembly (PN: WR51X10055) — verified open circuit with multimeter before removal, resistance reading was OL (infinite).
- ✓Step 4: Removed the failed defrost thermostat (bimetal type, PN: WR50X10015) clipped to the evaporator coil outlet — confirmed failure by testing continuity at room temperature, which should show closed circuit but read open.
- ✓Step 5: Installed new OEM defrost heater and bracket assembly (PN: WR51X10055), routing wiring harness through original clips and confirming secure mechanical attachment to evaporator bracket.
- ✓Step 6: Installed new defrost thermostat (PN: WR50X10015) onto the evaporator coil outlet tubing using original clip mount, verified orientation matches original installation for accurate thermal sensing.
- ✓Step 7: Reassembled the freezer liner panel, reconnected evaporator fan harness, and restored power to the unit — manually advanced the defrost timer to confirm new heater energized correctly and thermostat opened circuit at approximately 47°F during a controlled test cycle.
- ✓Step 8: Monitored unit for a full 2-hour runtime post-repair. Final temperature readings confirmed: fresh food compartment at 37°F, freezer at 0°F — both within GE factory spec for this model.
✓ Result
The GE GSS25VFPA WW was back to full operation the same day the technician arrived in the Memorial 77043 area. Fresh food section stabilized at 37°F and the freezer reached 0°F within two hours of completing the repair. Total cost was $387, covering both parts and labor. The customer — who had owned this refrigerator for roughly 20 years — was relieved to avoid replacing the entire unit and mentioned she had been nursing the cooling issue for several weeks before calling. All perishables in the freezer were preserved.
💡 Technician Notes
On GE side-by-side models like the GSS25VFPA WW, the earliest warning sign of a failing defrost heater isn't ice on the outside — it's a faint musty or stale smell coming from the freezer vents as frost slowly restricts airflow and traps moisture. If you notice that smell paired with the fan running louder than usual (it's working harder against ice resistance), a defrost failure is likely already underway. To extend the life of the defrost system on aging GE side-by-sides, avoid packing the freezer so tightly that airflow around the back liner is blocked — restricted circulation accelerates frost buildup between defrost cycles and stresses the heater. If your GE refrigerator is over 15 years old and the freezer starts losing temperature while the compressor runs non-stop, don't wait more than 48 hours to call — a fully iced evaporator can strain the compressor and turn a $387 defrost repair into a sealed system job costing two to three times more.
Frequently Asked Questions
Why does my GE side-by-side refrigerator keep frosting up in the freezer even though it's running?
On GE GSS-series side-by-sides, continuous frost buildup almost always points to a failed defrost heater or bimetal thermostat. The compressor keeps running because the fridge is trying to compensate for the blocked evaporator. Without a working defrost cycle, ice accumulates until airflow stops completely. This is one of the most common failure modes on GE side-by-sides that are 10 or more years old.
How much does it cost to fix a GE refrigerator defrost heater in Houston TX?
Replacing a defrost heater and thermostat on a GE side-by-side like the GSS25VFPA WW typically runs $320–$420 in the Houston area, depending on whether one or both components need replacement. This job on a Memorial, TX unit came to $387 including parts (WR51X10055 and WR50X10015) and same-day labor. Costs go higher if the evaporator coil is damaged from prolonged ice buildup.
What happens if I ignore the frost buildup in my GE freezer and don't fix the defrost heater?
Left unrepaired, the ice will fully block the evaporator coil and suffocate airflow to both the freezer and fresh food compartments. At that point the compressor runs continuously under load, raising the risk of compressor failure. What starts as a $350–$400 defrost heater repair can escalate to a sealed system overhaul costing $800–$1,200 or require full unit replacement — especially on older GE models.
Is it worth repairing a 20-year-old GE refrigerator with a defrost problem or should I just replace it?
If the sealed system — compressor, condenser, evaporator coil, and refrigerant charge — is intact, a defrost heater and thermostat repair on a 20-year-old GE side-by-side is almost always worth doing. These are inexpensive OEM parts and a straightforward repair. GE GSS-series units are mechanically robust; the defrost components are wear items, not structural failures. A $387 repair on a fridge that otherwise runs well is far better economics than a $1,500+ replacement.
How does the defrost thermostat on a GE GSS25VFPA actually work and why does it fail?
The defrost thermostat (WR50X10015) is a bimetal switch clipped to the evaporator outlet tube. It closes the circuit to allow the heater to run during defrost, then opens at roughly 47°F to cut power before the coil overheats. Over years of thermal cycling, the bimetal strip fatigues and loses its ability to close reliably — so the heater never energizes and frost accumulates unchecked. It's a mechanical wear-out failure, not a defect.
Repair Summary
- Brand
- General Electric
- Model
- GSS25VFPA WW
- Repair Type
- Defrost Heater and Defrost Thermostat Replacement
- Refrigerant
- R-134a
- Root Cause
- Failed defrost heater and thermostat causing total frost lockup on evaporator
- Parts Replaced
- ✓Defrost Heater & Bracket Assembly — OEM GE part PN: WR51X10055 (aluminum sheath heater rated for GSS-series evaporator configuration)
- ✓Defrost Thermostat (Bimetal) — OEM GE part PN: WR50X10015 (opens at approximately 47°F to prevent evaporator overheating during defrost cycle)
- Location
- Memorial, TX 77043
- Status
- ✓ Completed
