GE GSS25GSHGCSS: Evaporator Fan Not Cooling Refrigerator in Fulshear, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem

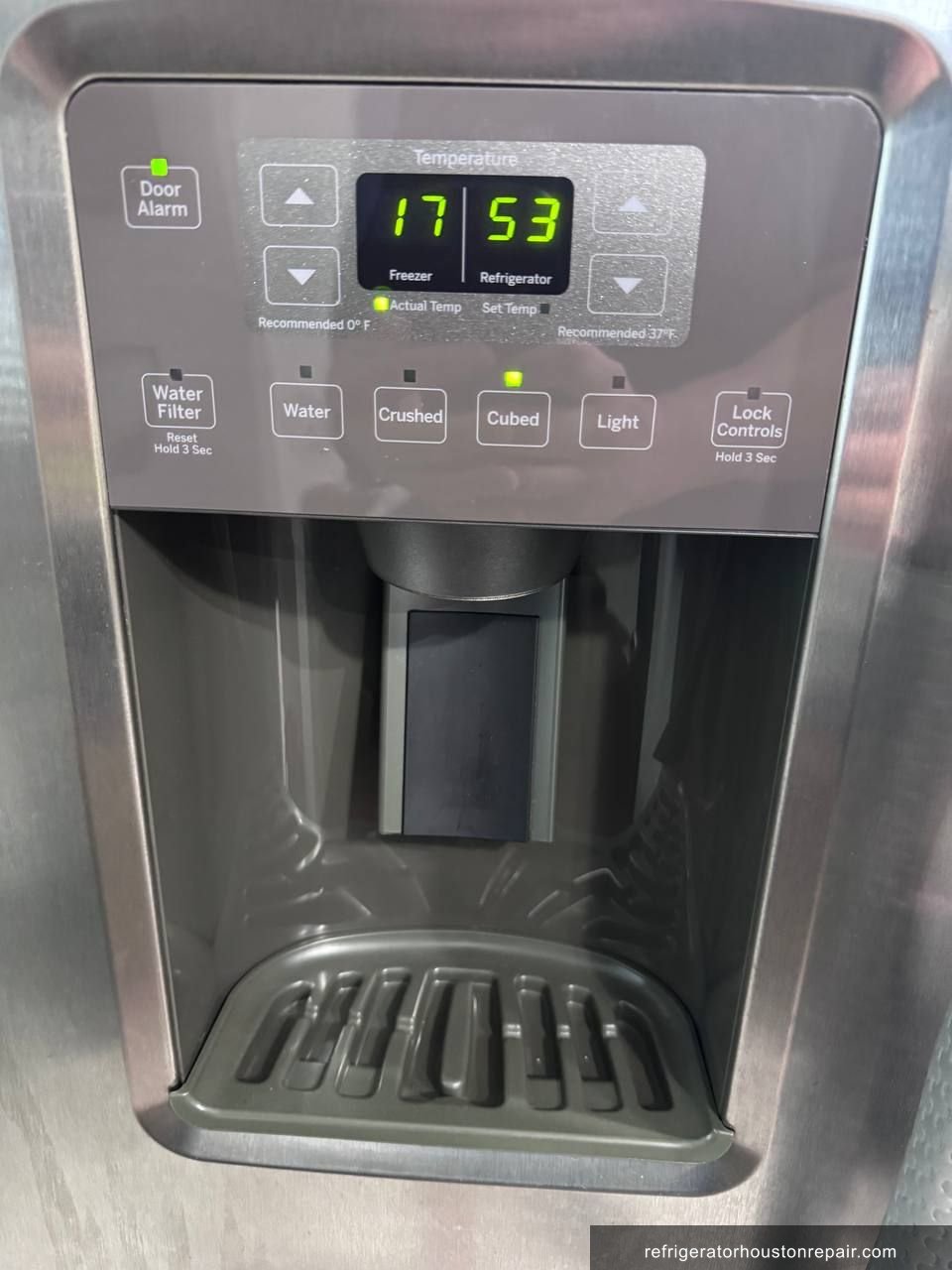

- •Fresh food compartment holding between 53°F and 60°F instead of 37°F
- •Upper and middle freezer sections reading 12°F to 20°F, well above safe storage temperature
- •Bottom of the freezer staying at 0°F to -1°F while the rest of the unit ran warm
- •No airflow detected inside the freezer cavity when door was opened
🔍 Diagnosis
When I arrived at the customer's home in Fulshear, the temperature readings told a very specific story. The fresh food section was sitting between 53°F and 60°F, which puts perishables at serious risk. The upper and middle portions of the freezer were reading 12°F to 20°F. But at the very bottom of the freezer, the temperature was 0°F to -1°F. That bottom-cold, top-warm pattern points directly at one component: the evaporator fan motor. The evaporator coil on the GE GSS25GSHGCSS sits at the back of the freezer compartment. The fan pulls air across the coil and pushes cold air through ducts into both the freezer and the fresh food section. When that fan stops spinning, cold air pools at the bottom near the coil outlet but never circulates upward or into the fresh food section. I confirmed the fan was not running by removing the evaporator cover and observing the motor directly. No rotation, no audible hum from the motor windings. I checked voltage at the fan motor connector and found 12V DC present, which ruled out a control board issue. The motor itself had failed. On this GE model, the replacement evaporator fan assembly includes an integrated evaporator temperature sensor mounted on the same bracket, so both components are replaced together as one assembly.
🔧 The Repair
- ✓Step 1: Unplugged the GE GSS25GSHGCSS and pulled it away from the wall to allow full access to the freezer interior.
- ✓Step 2: Removed the ice bin from the freezer floor to expose the auger motor mounting hardware.
- ✓Step 3: Disconnected and removed the auger motor, setting it aside without fully detaching the wiring harness.
- ✓Step 4: Detached the ice maker assembly from the freezer wall and repositioned it out of the work area.
- ✓Step 5: Removed the freezer interior light bulb to avoid breakage during panel removal.
- ✓Step 6: Unscrewed and removed the evaporator cover panel, which spans the full rear wall of the GE GSS25GSHGCSS freezer section.
- ✓Step 7: Removed the air duct shroud that channels airflow from the evaporator fan toward the freezer and fresh food vents.
- ✓Step 8: Unscrewed the plastic mounting rail that holds the evaporator fan motor bracket, then disconnected the fan motor wiring harness and detached the evaporator temperature sensor from the coil.
- ✓Step 9: Installed the new evaporator fan and sensor assembly, which ships pre-assembled for this GE model. Secured the mounting rail, reconnected the wiring harness, and clipped the new sensor onto the evaporator coil in its original position.
- ✓Step 10: Reassembled in reverse order: air duct shroud, evaporator cover panel, light bulb, ice maker, auger motor, and ice bin. Plugged the unit in and confirmed the fan was spinning within seconds of startup.
- ✓Step 11: Monitored temperatures over a two-hour runtime. Fresh food section reached 37°F. Freezer settled at -2°F top to bottom, confirming uniform air circulation was restored.
✓ Result
Two hours after completing the repair, the GE GSS25GSHGCSS was holding 37°F in the fresh food section and -2°F throughout the freezer from top to bottom. The temperature was consistent at every level, which confirmed full air circulation was restored. The customer in Fulshear was relieved because most of the food in the refrigerator was still salvageable. Total repair cost came to $381 covering both the part and labor. I consider that a fair price given the amount of disassembly this repair requires on this specific GE model.
💡 Technician Notes
GE side-by-side models like the GSS25GSHGCSS have a specific early warning sign for evaporator fan failure that most owners miss: the back wall of the freezer near the top starts feeling noticeably warmer than the bottom when you reach inside. If you notice ice cream at the top of the freezer getting soft while items on the floor stay frozen solid, that temperature split is the fan starting to fail, not the compressor. One maintenance step that helps extend fan motor life on GE refrigerators is keeping the freezer from being overpacked. Blocking the vents near the top of the freezer forces the motor to work harder and overheat over time. If you see that warm-top pattern developing, do not wait. A failed fan motor leads to a fully frosted evaporator within days, and at that point the repair becomes more involved. Call a technician as soon as you notice uneven temperatures inside the freezer.
Frequently Asked Questions
Why is my GE GSS25GSHGCSS freezer cold at the bottom but warm at the top?
That pattern almost always means the evaporator fan motor has stopped working. On the GE GSS25GSHGCSS, the fan circulates cold air from the evaporator coil throughout the entire freezer and into the fresh food section. Without it, cold air pools near the bottom of the freezer where the coil sits but never reaches the upper sections or the refrigerator compartment.
How much does it cost to replace the evaporator fan on a GE side-by-side refrigerator in Fulshear TX?
On a GE GSS25GSHGCSS, this repair ran $381 total including the OEM fan and sensor assembly and all labor. The cost reflects real disassembly time: the ice bin, auger motor, ice maker, evaporator cover, and duct shroud all need to come out before you reach the fan. Labor on this model runs higher than a standard fan replacement because of those extra steps.
What happens if I keep running my GE refrigerator with a broken evaporator fan?
If you continue running the GE GSS25GSHGCSS with a failed evaporator fan, the evaporator coil will frost over completely within a day or two. Once fully frosted, the coil becomes an insulating block of ice and the compressor runs continuously without producing any cooling. That adds compressor wear and can push the repair cost significantly higher. Food safety becomes a risk within hours once the fresh food section hits 50°F.
Is it worth repairing a GE GSS25GSHGCSS or should I replace it?
An evaporator fan failure on a GE GSS25GSHGCSS is one of the better repairs to make. The sealed system is intact, the compressor is unaffected, and a $381 repair extends the life of a unit that otherwise has no major issues. GE side-by-side refrigerators from this series regularly run 15 to 18 years with normal maintenance. If the compressor or sealed system were involved, the math would shift toward replacement.
Why does the replacement evaporator fan for my GE refrigerator come with a temperature sensor attached?
On the GE GSS25GSHGCSS, the evaporator temperature sensor is mounted on the same bracket as the fan motor. GE supplies these as a single assembly because the sensor position relative to the coil is factory-set. Replacing them together ensures the defrost control board gets accurate coil temperature readings, which prevents both under-defrosting and over-defrosting after the repair.
Repair Summary

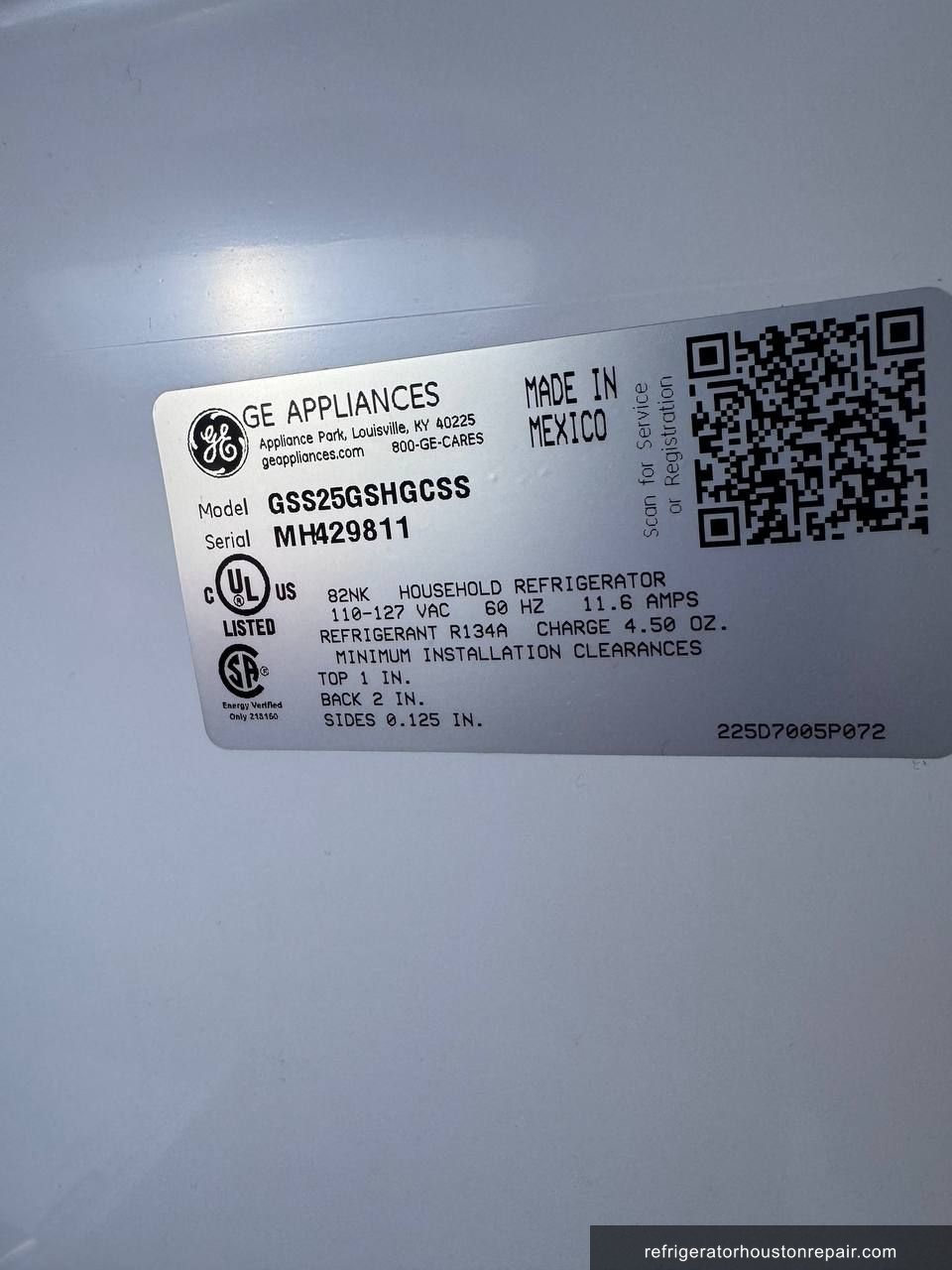

- Brand
- GE
- Model
- GSS25GSHGCSS
- Repair Type
- Evaporator Fan Motor and Temperature Sensor Replacement
- Refrigerant
- R-134a
- Root Cause
- Failed evaporator fan motor blocking cold air circulation throughout refrigerator
- Parts Replaced

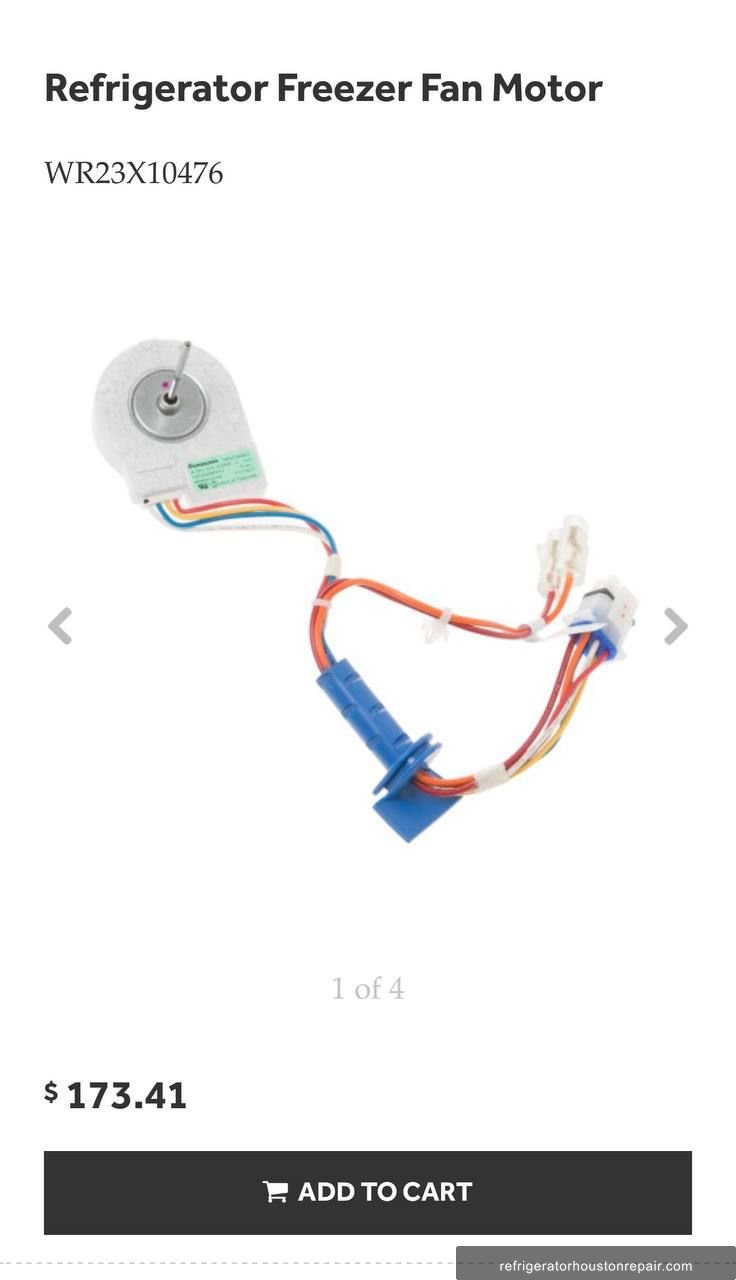

- ✓Evaporator fan motor and temperature sensor assembly (GE OEM replacement, pre-assembled unit specific to GSS25GSHGCSS configuration)
- Location
- Fulshear, TX 77441
- Status
- ✓ Completed
