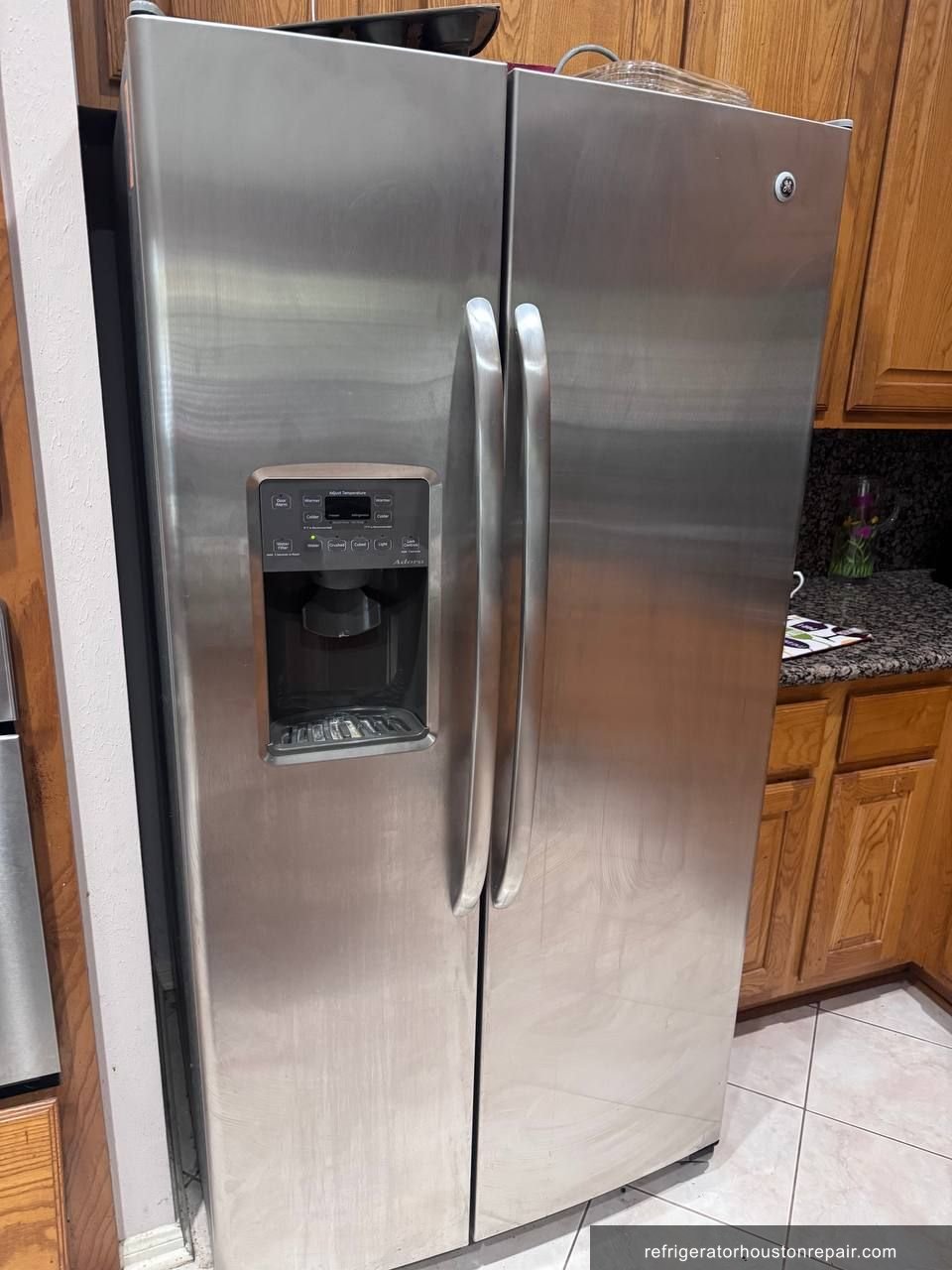

GE GSHS6VGBBCSS: Dispenser and Interior Lights Failure in Sugar Land, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Water dispenser works intermittently, sometimes dispensing water and sometimes producing nothing
- •Ice maker completely stopped producing or dispensing ice
- •Interior cabinet lights flicker randomly or do not come on at all
- •All dispenser functions unreliable, including ice, water, and light commands
🔍 Diagnosis
The customer found me through Nextdoor and reached out asking what could be wrong with her GE GSHS6VGBBCSS. She described the dispenser as inconsistent, sometimes giving water and sometimes not. The ice maker had stopped entirely. The interior lights were either completely out or flickering randomly. Before the visit I had a preliminary conversation with her and suspected a few possible causes, so I brought several parts with me. When I arrived and opened the unit, I went straight to the main control board. I pulled the board and inspected the switching power supply section under a magnifying loupe. That is where I found the problem. Several electrolytic capacitors in the SMPS circuit were visibly bulging at the tops, a classic sign of thermal stress and age-related capacitor failure in this GE side-by-side platform. The switching power supply on this board is responsible for converting incoming AC to regulated DC voltages that feed every component downstream, including the water inlet valve, the dispenser solenoid, and the door light circuit. Every time the dispenser board sent a command to trigger any action, the demand spiked the load on the already-weak power supply. Voltage sagged under that load and no actuator had enough power to complete its cycle. The water valve would not open. The dispenser solenoid would not fire. The lights would drop out. That explained every symptom the customer described. The parts I had pre-staged turned out to be unnecessary once the actual root cause was clear.
🔧 The Repair
- ✓Step 1: Disconnected the GE GSHS6VGBBCSS from the wall outlet and confirmed zero voltage at the board terminals with a Fluke 117 multimeter before handling any components.
- ✓Step 2: Removed the rear access panel to expose the main control board mounted at the back lower section of the cabinet.
- ✓Step 3: Photographed all wiring harness connections and connector positions before disconnecting anything to ensure accurate reassembly.
- ✓Step 4: Disconnected all wiring harnesses from the main board and unclipped the board from its mounting bracket.

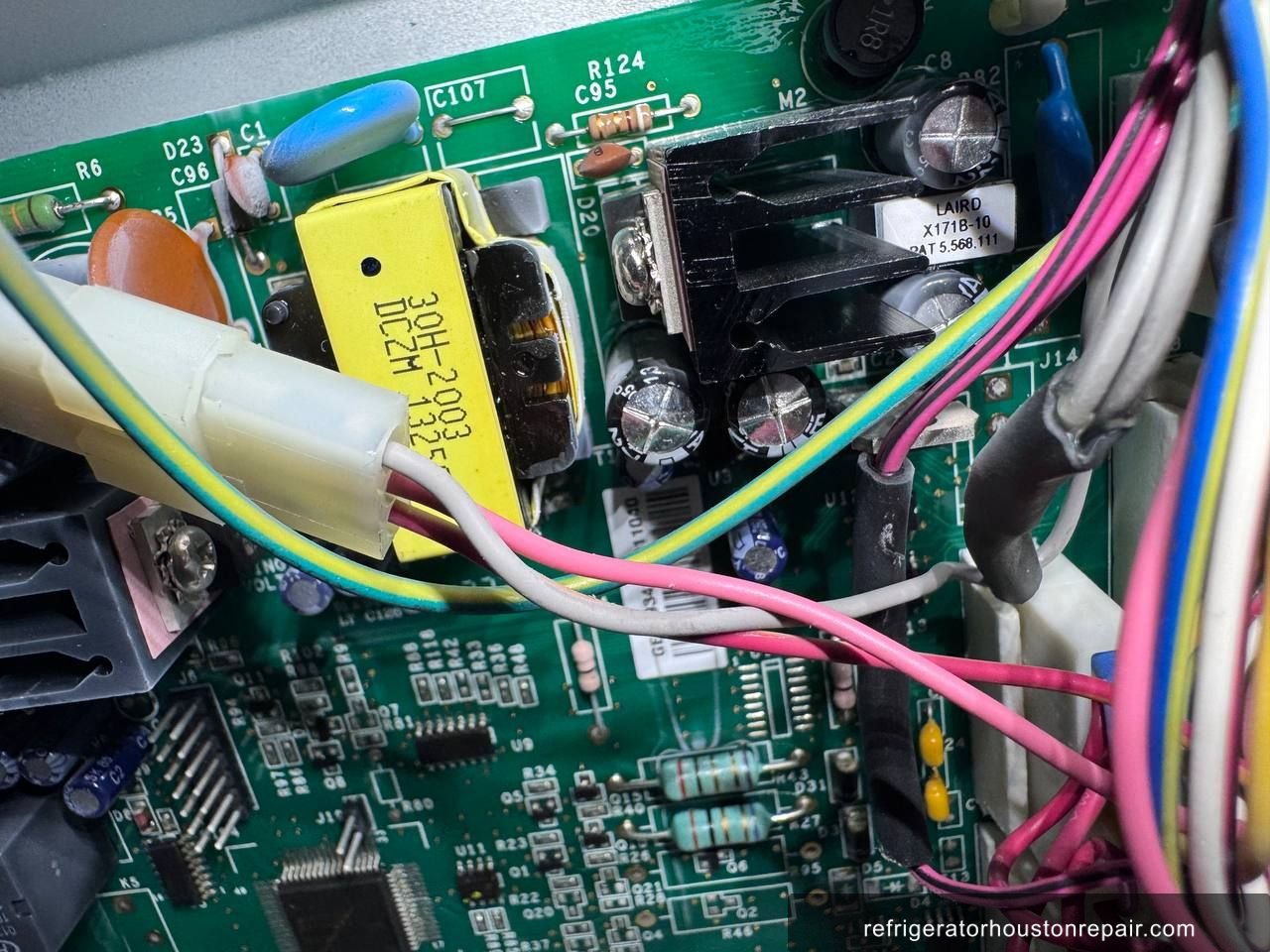

- ✓Step 5: Inspected the removed board under magnification and confirmed multiple bulged electrolytic capacitors in the switching power supply section. Documented findings with photos.
- ✓Step 6: Installed the correct OEM-spec replacement main control board for the GE GSHS6VGBBCSS, reconnected all harnesses in sequence, and confirmed each connector seated with an audible click.
- ✓Step 7: Remounted the rear access panel, reconnected the unit to power, and cycled the dispenser commands from the door panel to verify water valve response, ice dispenser solenoid engagement, and interior light operation.
- ✓Step 8: Confirmed full function after a 90-minute runtime. Water dispensed immediately on command. Ice maker entered its fill cycle. Interior lights held steady at full brightness. Dispenser display and all panel functions responded correctly.
✓ Result
After the board swap, every symptom the customer had been dealing with was gone. Water dispensed on demand, the ice maker started its cycle, and the interior lights stayed on without flickering. The customer was genuinely relieved because she had been living with these issues for weeks and was starting to think the whole refrigerator needed to go. I told her the rest of the unit was in good shape. She mentioned that she wished she had called sooner. The repair was completed in a single visit in Sugar Land, 77479, and the new board carries a standard warranty on the part.
💡 Technician Notes
On GE side-by-side models like the GSHS6VGBBCSS, the switching power supply section of the main board is a known weak point as the unit gets older. The capacitors in that circuit degrade from repeated heat cycling, and they usually fail slowly rather than all at once. The earliest sign is intermittent dispenser behavior, specifically commands that work sometimes and fail other times under the same conditions. If you notice that pattern, do not wait for the lights to start flickering. By the time the lights are affected, the capacitors are already significantly degraded and other components may start seeing irregular voltage. There is no DIY maintenance that prevents this specific failure on the GSHS6VGBBCSS, but keeping the condenser coils clean reduces the overall thermal load on the electronics, which slows the aging of board components. If your dispenser starts behaving inconsistently, that is the moment to call a technician, not when the unit goes completely dark.
Frequently Asked Questions
Why does my GE GSHS6VGBBCSS dispenser sometimes give water and sometimes not?
Intermittent dispenser output on the GE GSHS6VGBBCSS is often caused by failing capacitors in the main board's switching power supply. When the power supply is weak, it cannot hold voltage under the load of a dispenser command. The water inlet valve or dispenser solenoid gets insufficient power and does not open. Replacing the main control board resolves the issue.
How much does it cost to replace the main control board on a GE side-by-side refrigerator in Sugar Land, TX?
Main control board replacement on a GE side-by-side like the GSHS6VGBBCSS in the Sugar Land area typically runs between 280 and 420 dollars including parts and labor. The board itself is the primary cost. Diagnosis takes about 30 to 45 minutes and the full repair is usually completed in a single visit.
What happens if I ignore a flickering light or intermittent dispenser on my GE refrigerator?
On the GE GSHS6VGBBCSS, ignoring those symptoms means continuing to run the refrigerator on a failing power supply. Over time, the voltage sag can affect the main controller logic itself, not just the actuators. What starts as an inconvenient dispenser becomes a refrigerator that cannot maintain temperature or respond to controls at all. Early board replacement avoids a much larger repair.
Is it worth repairing a GE GSHS6VGBBCSS with a failed main board, or should I replace the refrigerator?
If the sealed system is sound and the compressor is running normally, a main board replacement on the GSHS6VGBBCSS is absolutely worth doing. The sealed system on these GE side-by-sides is durable. A board swap costs a fraction of a new refrigerator. If the compressor were also failing, the math would change, but a board-only failure on an otherwise working unit is a straightforward repair.
Can a bad capacitor on the GE refrigerator main board affect the ice maker and lights at the same time?
Yes, and that is exactly what happened on this GSHS6VGBBCSS. The switching power supply feeds regulated voltage to all downstream components including the ice maker circuit, the dispenser solenoid, the water inlet valve, and the door light circuit. When capacitors in that supply bulge and lose capacitance, every one of those systems sees unstable voltage simultaneously, which explains multiple unrelated-looking symptoms from a single board failure.
Repair Summary
- Brand
- GE
- Model
- GSHS6VGBBCSS
- Repair Type
- Main Control Board Replacement
- Refrigerant
- R-134a
- Root Cause
- Blown capacitors in main board switching power supply
- Parts Replaced
- ✓GE main control board for GSHS6VGBBCSS (OEM-compatible replacement, switching power supply section intact)
- Location
- Sugar Land, TX 77479
- Status
- ✓ Completed
