GE GFE28GYNGFS: Dispenser, Ice Maker, and Freezer Light Failed in Houston, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Water dispenser produces nothing when paddle is pressed
- •In-door ice maker stopped producing and dispensing ice
- •Freezer interior light completely out
- •All door-mounted functions unresponsive simultaneously
🔍 Diagnosis
When I arrived at the customer's home in the 77494 area, the complaint was clear: the water dispenser was not outputting water, the in-door ice maker had stopped working entirely, and the freezer compartment light was out. All three failures pointed to a single zone of the refrigerator, which told me a lot before I even opened a panel. The GFE28GYNGFS is one of GE's more complex French door platforms. It runs four separate control boards, and pinpointing which board is responsible for which function is not guesswork. I connected the SmartHQ diagnostic tool, which is the professional-grade interface GE provides for technicians to read fault history and manually trigger actuators. This is the right tool for this model and it saved significant diagnostic time. I ran through the actuator activation sequence for every component mounted in the door: the dispenser solenoid, the ice maker assembly, the door light circuit, and the dispenser control module. None of them responded to manual commands. That is a definitive pattern. When multiple actuators in the same zone all fail to respond to triggered commands, the control board serving that zone is the failed component, not the individual actuators themselves. The door control board on the GFE28GYNGFS governs power and signal distribution to everything mounted in the freezer door. The board had failed and was not sending any output. I confirmed no voltage leaving the board on the relevant output circuits. Root cause: door control board failure.
🔧 The Repair

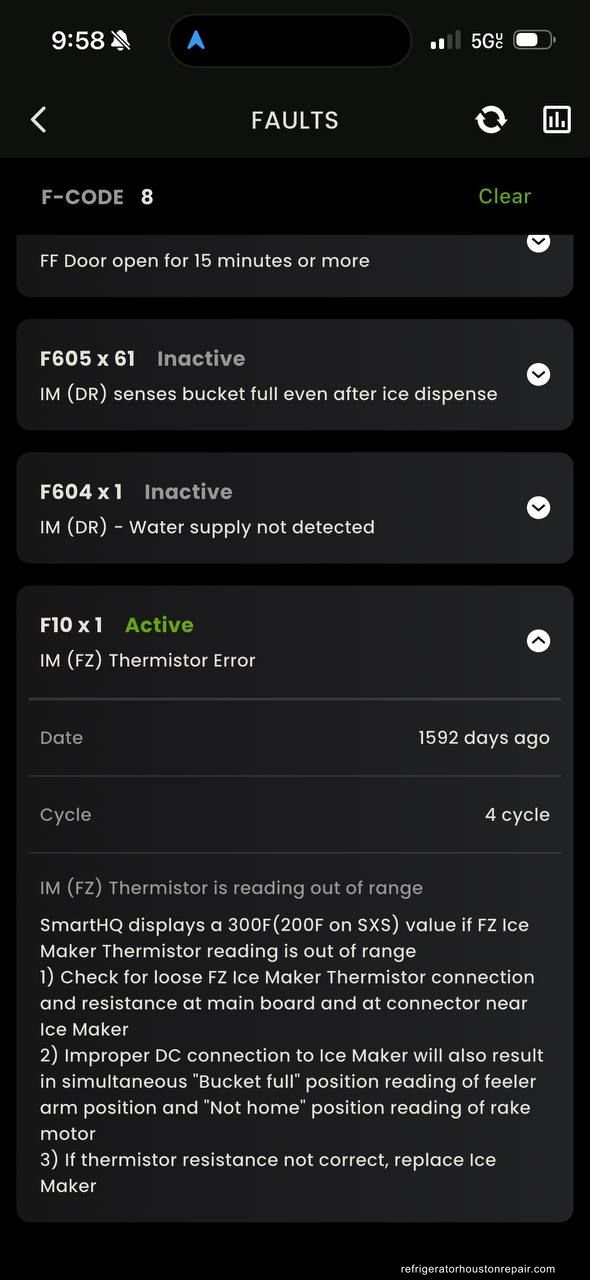

- ✓Step 1: Connected SmartHQ diagnostic interface to the GFE28GYNGFS and pulled full fault code history from all four boards.
- ✓Step 2: Ran manual actuator activation tests through SmartHQ for all door-mounted components including the dispenser water valve, dispenser auger motor, in-door ice maker, and freezer door light circuit.
- ✓Step 3: Confirmed zero response from all door-side actuators during commanded activation, ruling out individual component failures.
- ✓Step 4: Measured output voltage on the door control board connector pins. Found no voltage present on dispenser, ice maker, and lighting output circuits, confirming board failure.
- ✓Step 5: Discharged the door control board safely, then removed the freezer door inner panel to access the board mounting location.
- ✓Step 6: Disconnected all wire harness connectors from the failed door control board, noting connector orientation and labeling before removal.

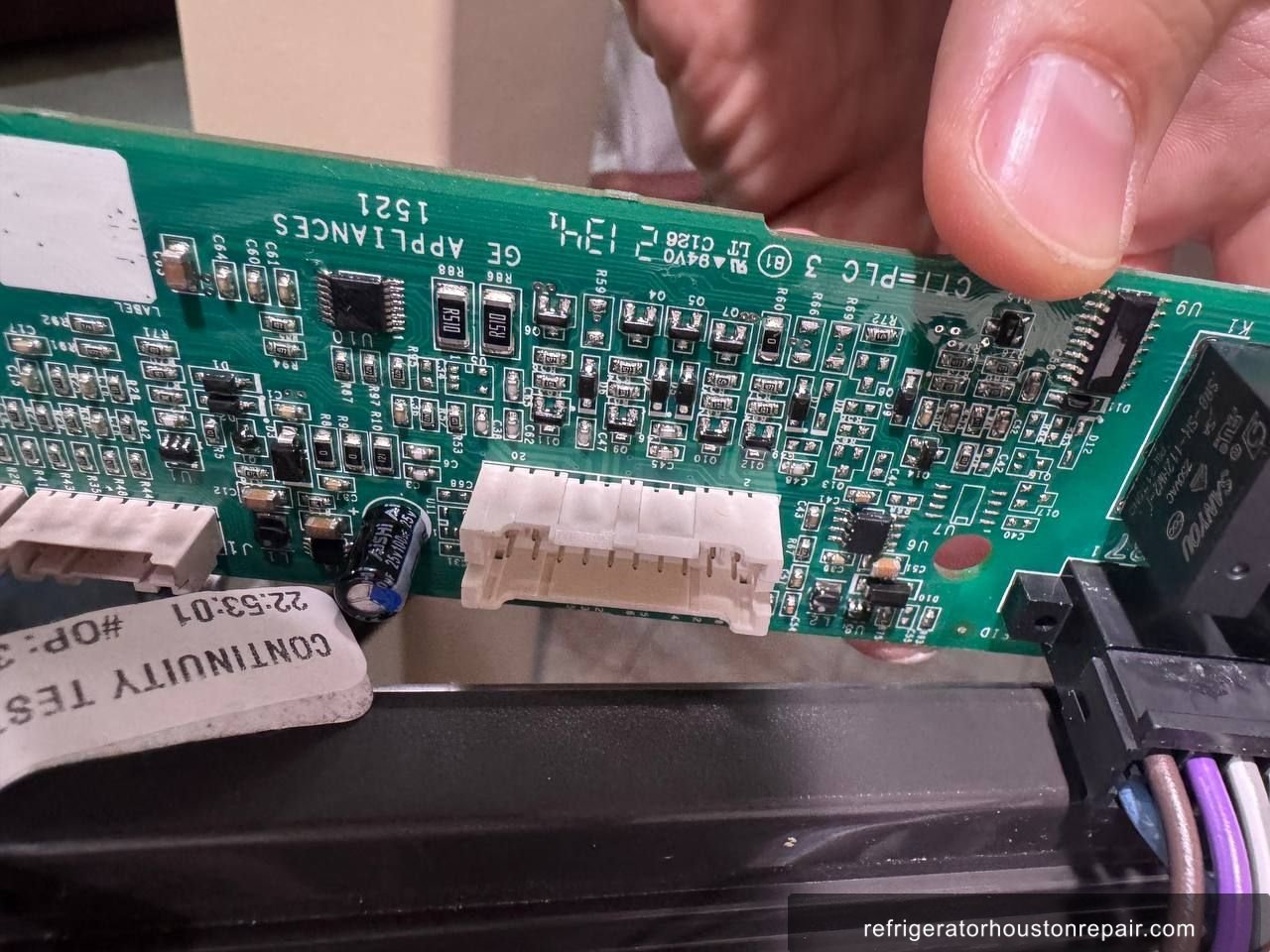

- ✓Step 7: Installed the replacement GE door control board, reconnected all harness connectors, and secured the board to its mounting bracket.
- ✓Step 8: Reconnected SmartHQ and ran the full actuator test sequence again. All door components responded correctly. Dispenser delivered water, ice maker resumed operation, and freezer door light activated. Verified normal operation across a 30-minute post-repair runtime.
✓ Result
After installing the replacement door control board, all three failed systems came back online immediately. The water dispenser delivered water at normal flow, the in-door ice maker resumed its cycle, and the freezer light came on as expected. The customer in the 77494 area was relieved that a single board replacement resolved what looked like three separate problems. He appreciated the SmartHQ diagnostic approach and mentioned that he had even consulted an AI tool beforehand, which confirmed the diagnostic method looked professional and correct. The repair was completed in a single visit.
💡 Technician Notes
GE French door models like the GFE28GYNGFS use a distributed board architecture, meaning four separate control boards each handle specific zones. This is not how older GE refrigerators were built, and it changes how you approach a multi-symptom failure. If you own this model and suddenly lose all door-side functions at once, including the dispenser, ice maker, and door light, do not assume you need three separate repairs. That pattern almost always points to one board. The early warning sign with door board failures on this platform is intermittent dispenser behavior before total failure. If your dispenser starts requiring multiple presses or the ice maker output becomes inconsistent, pay attention. That inconsistency often precedes a complete board shutdown. Do not attempt to run diagnostics on this model without SmartHQ or an equivalent GE-compatible service tool. Standard voltage checks alone are not enough to distinguish a failed board from a failed actuator on this architecture. If you see this symptom cluster, call a technician equipped with the right interface.
Frequently Asked Questions
Why did my GE GFE28GYNGFS water dispenser, ice maker, and freezer light all stop working at the same time?
On the GFE28GYNGFS, all three of those components are controlled by the door control board. When that board fails, everything it powers stops at once. This is one of the diagnostic patterns I look for specifically on GE French door models with four-board architecture. A single board replacement restores all three functions simultaneously.
How much does it cost to replace the door control board on a GE French door refrigerator in Houston?
In the Houston area, door control board replacement on a GE GFE28GYNGFS typically runs between $280 and $420 depending on parts availability and labor time. The GE OEM board for this model is not inexpensive, but the repair is straightforward for a technician with SmartHQ access. Expect a single-visit repair in most cases.
What happens if I ignore a failed door control board on my GE GFE28GYNGFS?
The refrigerator will continue cooling because the door board does not control the sealed system. But you lose water dispensing, ice production, and interior door lighting indefinitely. On this model, a failed door board does not cascade into compressor or cooling failures, but the longer the board sits failed, the more the ice maker components can degrade from disuse in a warm-cycle state.
Is it worth repairing a GE GFE28GYNGFS or should I replace it?
A door control board failure on the GFE28GYNGFS is one of the better repair scenarios on this platform. The refrigeration system is intact, the sealed system with R-600a is not involved, and the fix is a single board swap. If the unit is under ten years old and the compressor and evaporator are healthy, repair is the right call. Replacing a functional refrigerator over a board failure is not cost-effective.
What is SmartHQ and why did the technician use it instead of just checking voltages on my GE refrigerator?
SmartHQ is GE's professional diagnostic platform for their connected appliances. On the GFE28GYNGFS, it lets a technician read stored fault codes across all four control boards and manually activate individual actuators by command. That direct command-and-response method is far more accurate than passive voltage checks alone, because it confirms whether the board is actually sending output signals, not just receiving power.
Repair Summary
- Brand
- GE Appliances
- Model
- GFE28GYNGFS
- Repair Type
- Door Control Board Replacement
- Refrigerant
- R-600a
- Root Cause
- Failed door control board disabling all door-mounted components
- Parts Replaced
- ✓GE door control board (OEM replacement for GFE28GYNGFS freezer door assembly)
- Location
- Houston, TX 77494
- Status
- ✓ Completed
