GE GFD28GELEDS: Evaporator Fan Failure Causing Warm Fresh Food & Frozen Water Dispenser in Houston, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Fresh food compartment temperature ranging between 61–65°F — food spoiling within days
- •Lower section of fresh food compartment dropping to an abnormally cold 21°F while upper section stayed at 59–62°F — no air circulation
- •Water dispenser completely stopped dispensing — no flow at all
- •Visible temperature stratification inside the French door compartment — cold at the bottom, warm at the top
🔍 Diagnosis
On arrival, the GE GFD28GELEDS French door refrigerator showed a sharp thermal split inside the fresh food section: the lower zone near the evaporator measured approximately 21°F while the upper zone climbed to 59–62°F. This pattern is a textbook indicator of total evaporator fan failure — without the fan circulating air across the evaporator coil, cold air pools at the bottom while the upper cabinet receives almost no cooling. Technician Nikolay confirmed the WR60X26866 evaporator fan motor in the fresh food section was completely non-operational — no rotation, no audible hum. A clamp meter check of the motor winding confirmed it was open-circuit, meaning the motor had burned out internally. The R-134a sealed system showed normal operating pressures for the ambient Houston temperature conditions, ruling out a refrigerant or compressor issue. The secondary failure — the frozen water dispenser — was a direct consequence of the fan failure. On the GFD28GELEDS, the water inlet valves and internal water reservoir are located in the lower door section, which sits directly adjacent to the abnormally cold lower fresh food zone. With the fan dead and that zone holding 21°F for an extended period, the water supply lines and reservoir froze solid, blocking dispenser output entirely. No sealed system work was required. Both failures traced back to a single failed fan motor.
🔧 The Repair

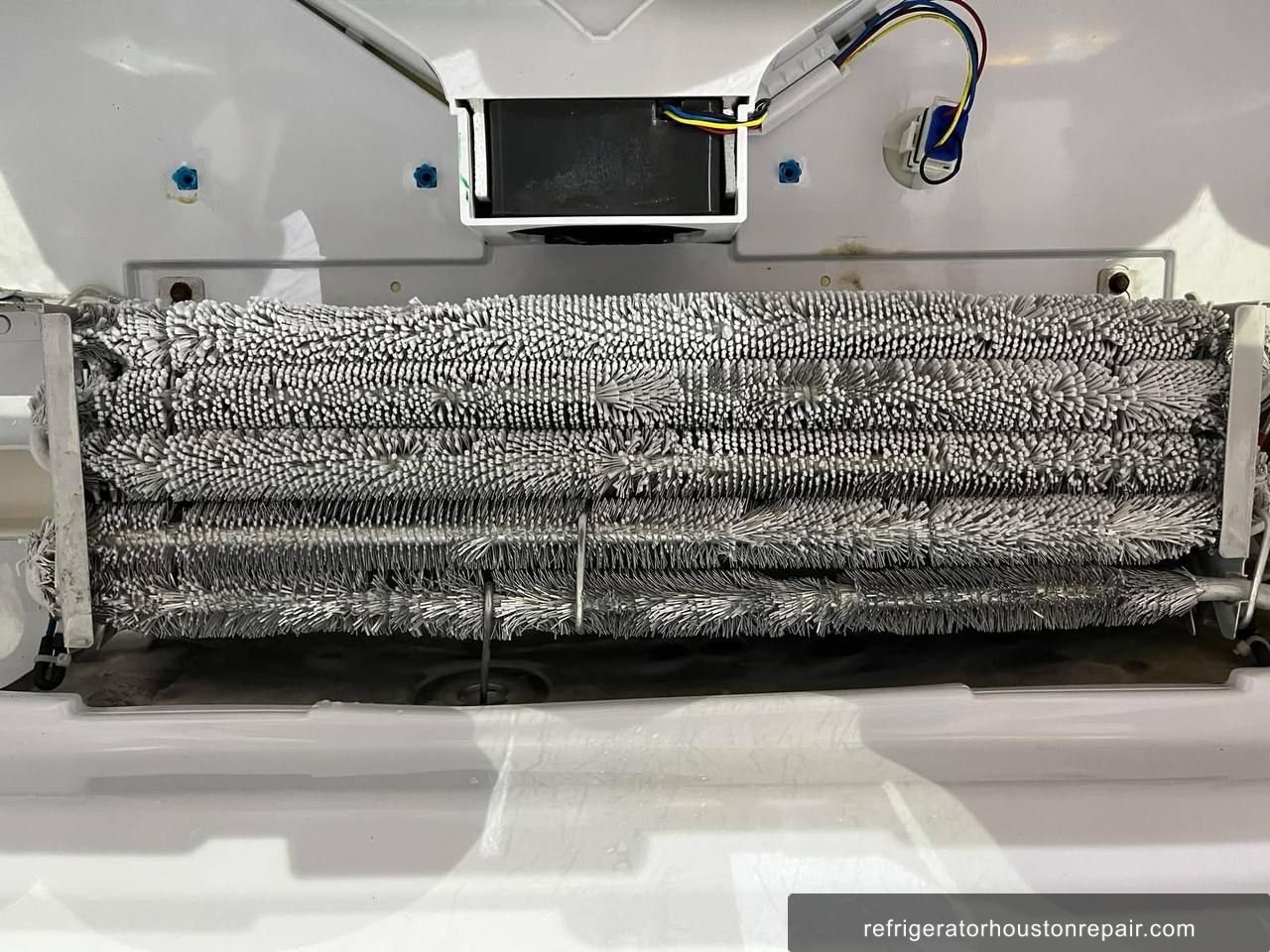

- ✓Step 1: Disconnected the GFD28GELEDS from power and removed all fresh food compartment shelving and the rear evaporator cover panel to access the evaporator fan assembly.

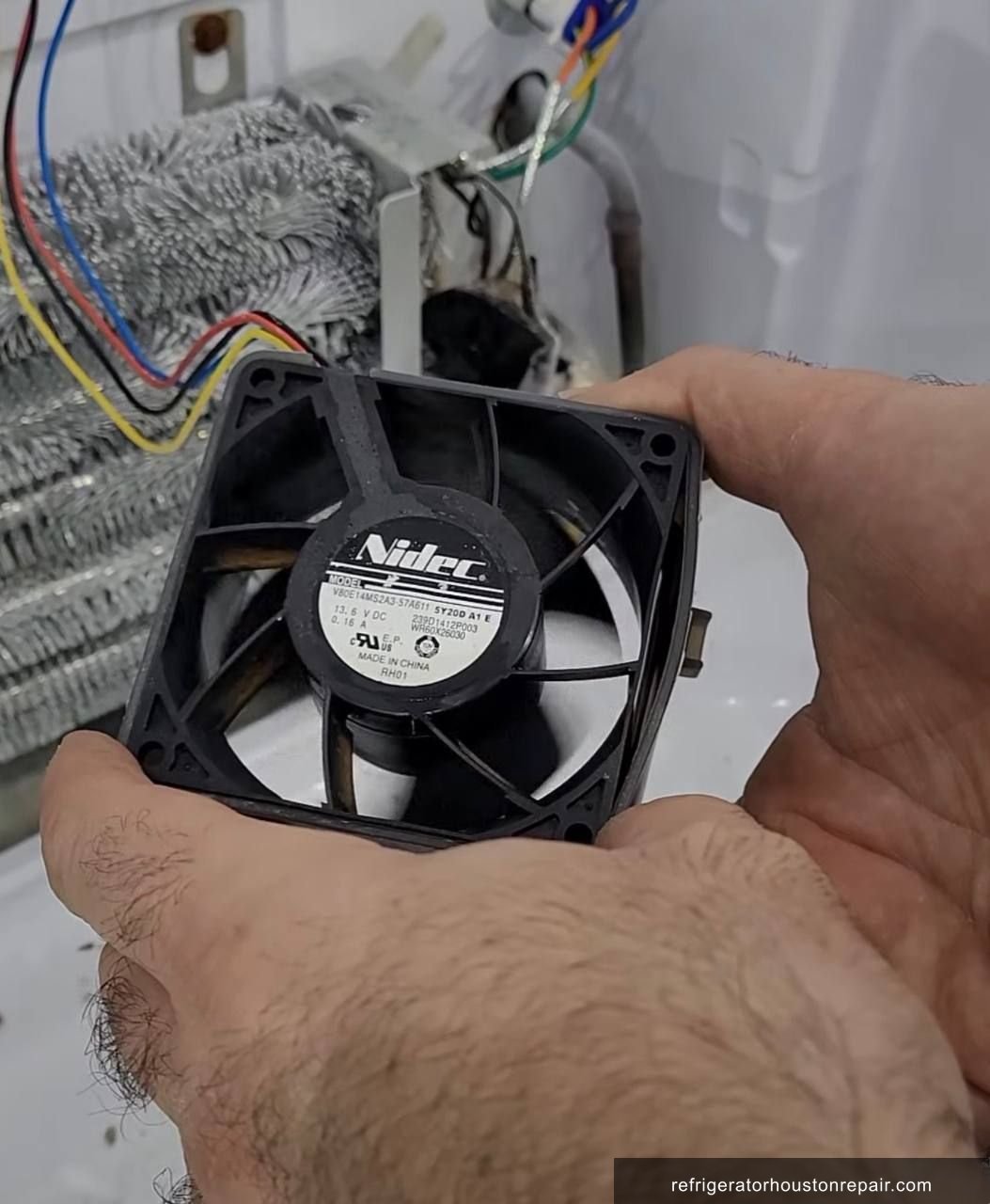

- ✓Step 2: Confirmed evaporator fan motor WR60X26866 was non-operational — motor shaft would not rotate manually and clamp meter showed an open winding, confirming internal motor failure.
- ✓Step 3: Disconnected the fan motor wiring harness and removed the failed WR60X26866 motor from its bracket, noting the original mounting orientation for correct reinstallation.

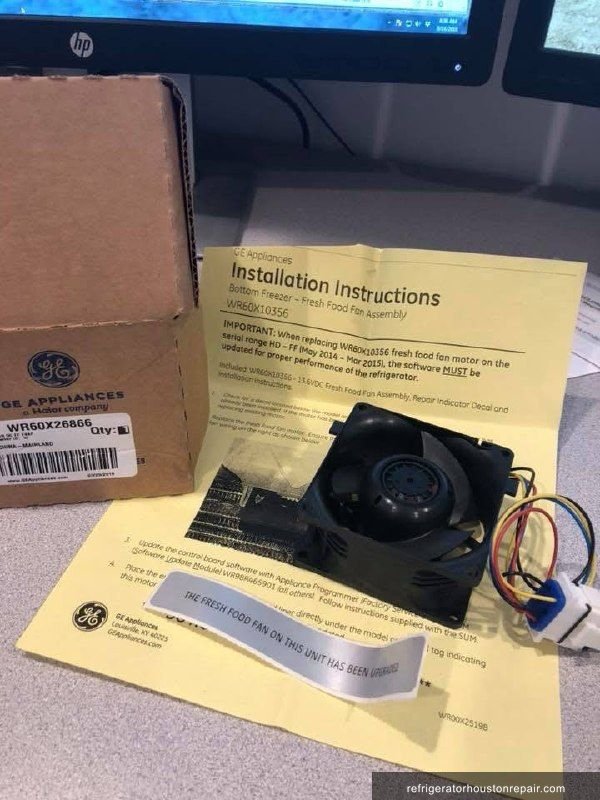

- ✓Step 4: Installed OEM replacement evaporator fan motor WR60X26866 onto the bracket, secured mounting screws, and reconnected the wiring harness — verifying connector lock engagement.
- ✓Step 5: Performed manual defrost of the frozen water supply lines and internal water reservoir located in the lower fresh food door section using a heat gun on low setting, carefully thawing the lines without damaging the plastic tubing or valve bodies.
- ✓Step 6: Checked both water inlet valves for continuity and verified solenoid coil resistance was within spec (approximately 200–500 ohms) to confirm no secondary valve damage occurred from the freeze event.
- ✓Step 7: Reassembled the rear evaporator panel and all interior shelving, restored power to the unit, and confirmed the new fan motor spun immediately at full speed with proper airflow felt throughout the fresh food compartment.
- ✓Step 8: Monitored the unit for 90 minutes post-repair — fresh food upper section settled to 37°F, lower section stabilized at 38°F, and water dispenser resumed full flow once the lines thawed completely. Temperatures confirmed uniform and within GE factory spec.
✓ Result
After the fan motor swap and water line thaw, the GFD28GELEDS reached stable operating temperatures across both fresh food zones within 90 minutes — 37–38°F top to bottom, no more stratification. The water dispenser flowed normally once the lines cleared. Total repair cost was $487 with a 3-month parts and labor warranty. The customer in the 77040 area was relieved that food still in the fridge was salvageable, and left a positive review on the spot. A single failed fan motor had created two separate problems — catching it sooner would have prevented the frozen dispenser entirely.
💡 Technician Notes
GE French door models like the GFD28GELEDS use a dedicated evaporator fan in the fresh food section that's separate from the freezer fan — this is different from older single-evaporator GE designs, and it's a failure point many owners don't expect. The early warning sign specific to this failure is temperature stratification: if the top of your fresh food section feels noticeably warmer than the bottom, the fan is likely struggling or already dead — don't wait for food to spoil before calling. To reduce fan motor wear on this model, keep the condenser coils at the back or base of the unit clean every 6–12 months; a dirty condenser forces longer compressor run cycles that increase thermal stress on the fan motor. One important GE-specific note: on the GFD28GELEDS, the water system components share the lower fresh food thermal zone — if your dispenser suddenly stops in winter or after a cooling failure, suspect a frozen line before assuming a valve failure. Call for service the moment you notice uneven temperatures inside the fresh food section.
Frequently Asked Questions
Why is the top of my GE French door refrigerator warm but the bottom is freezing cold?
That exact pattern — cold at the bottom, warm at the top of the fresh food section — almost always means the evaporator fan in the fresh food compartment has failed. On the GE GFD28GELEDS, this fan is what circulates cold air throughout the compartment. Without it, cold air sinks and the upper section gets no cooling at all. This is a confirmed repair, not a temporary fix.
How much does it cost to replace an evaporator fan motor on a GE French door refrigerator in Houston?
For a GE French door model like the GFD28GELEDS, evaporator fan motor replacement in Houston typically runs $380–$520 depending on whether secondary issues like frozen water lines are also involved. This repair was completed for $487 including parts, labor, and a 3-month warranty. The OEM fan motor alone (WR60X26866) is the primary cost driver.
What happens if I ignore a warm fresh food section on my GE GFD28GELEDS and don't get it repaired?
Delaying the repair creates cascading problems. First, all fresh food spoils within 24–48 hours once temps climb above 50°F. Second, as the lower section overcools, water lines and dispenser valves in the door can freeze solid — which is exactly what happened here. That turns a one-part repair into a fan replacement plus a water line defrost, adding time and cost.
Is it worth repairing a GE GFD28GELEDS with an evaporator fan failure or should I replace the refrigerator?
An evaporator fan failure on the GFD28GELEDS is absolutely worth repairing. The sealed system — compressor, condenser, evaporator coil, R-134a charge — is fully intact. You're replacing a single motor, not the refrigerator's core systems. Unless the unit is over 12–15 years old and has multiple compounding failures, a $400–$500 repair on a GE French door this size is a strong value compared to a $2,000+ replacement.
Why did my GE refrigerator's water dispenser stop working at the same time the fridge got warm?
On the GFD28GELEDS, the water inlet valves and internal water supply line are positioned in the lower fresh food door area. When the evaporator fan fails, the lower compartment can drop below freezing — sometimes as low as 21°F — and freeze the water lines solid. The two failures look unrelated but share one root cause: the dead fan motor. Replacing the fan and manually thawing the lines restores dispenser function without touching the water valve itself.
Repair Summary

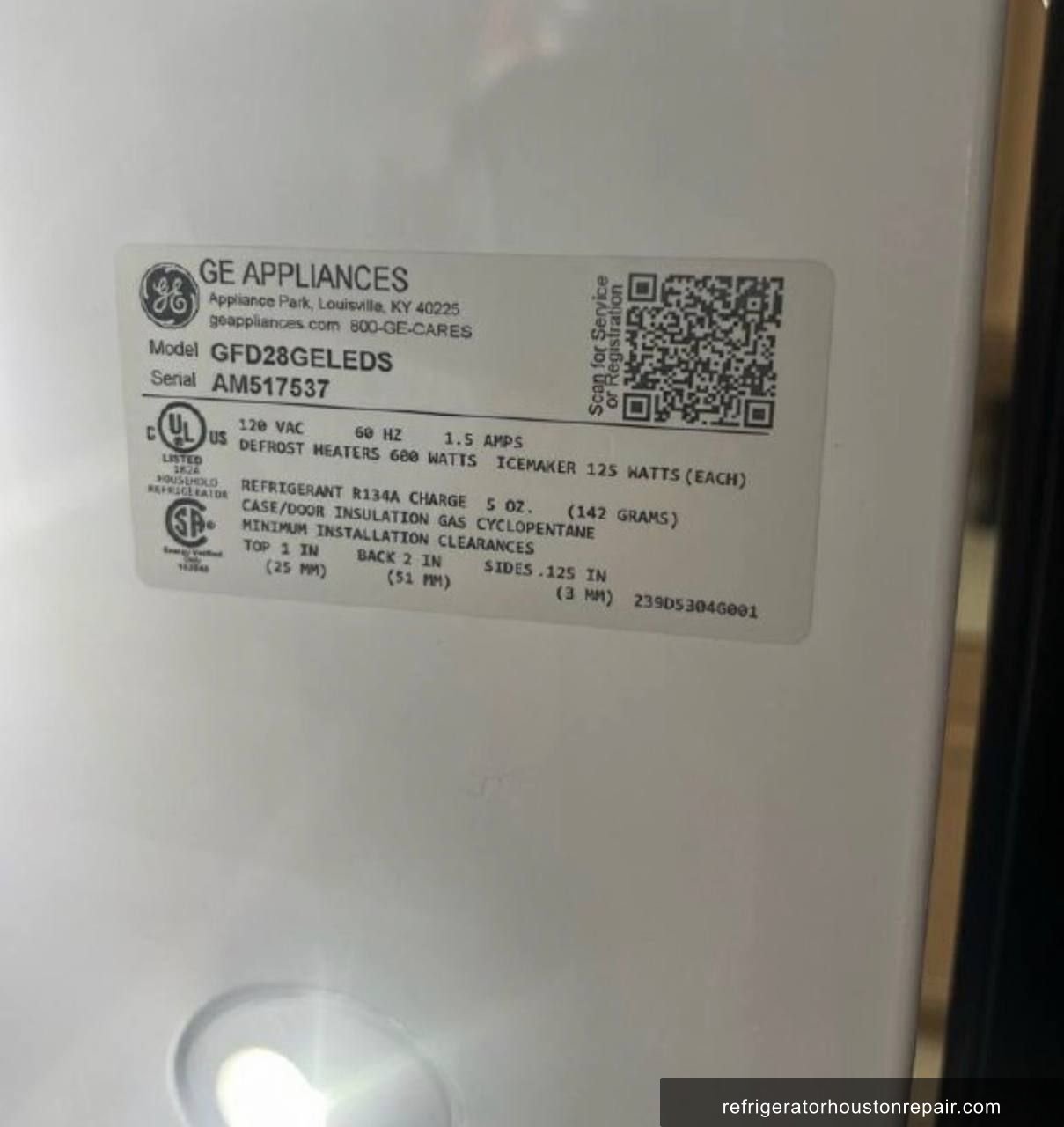

- Brand
- GE Appliances
- Model
- GFD28GELEDS
- Repair Type
- Evaporator Fan Motor Replacement & Water Line Manual Defrost
- Refrigerant
- R-134a
- Root Cause
- Failed evaporator fan motor causing complete loss of airflow in fresh food section
- Parts Replaced
- ✓Evaporator fan motor — GE OEM part WR60X26866 (fresh food section, specific to GFD28GELEDS French door configuration)
- Location
- Houston, TX 77040
- Status
- ✓ Completed
