EuroCave VIEILLITHEQUE 259: Compressor Failure and No Cooling in The Woodlands, TX
📞 Call (346) 512-3688🔧 Performed by Alex Z.
The Problem
- •Wine cooler interior sitting at 74°F, far above the target storage range of 54-58°F
- •Compressor running hot to the touch but producing no cooling effect
- •Condenser fan completely stopped spinning, no airflow over the condenser coil
- •Unit running continuously without cycling off, drawing excess current
🔍 Diagnosis

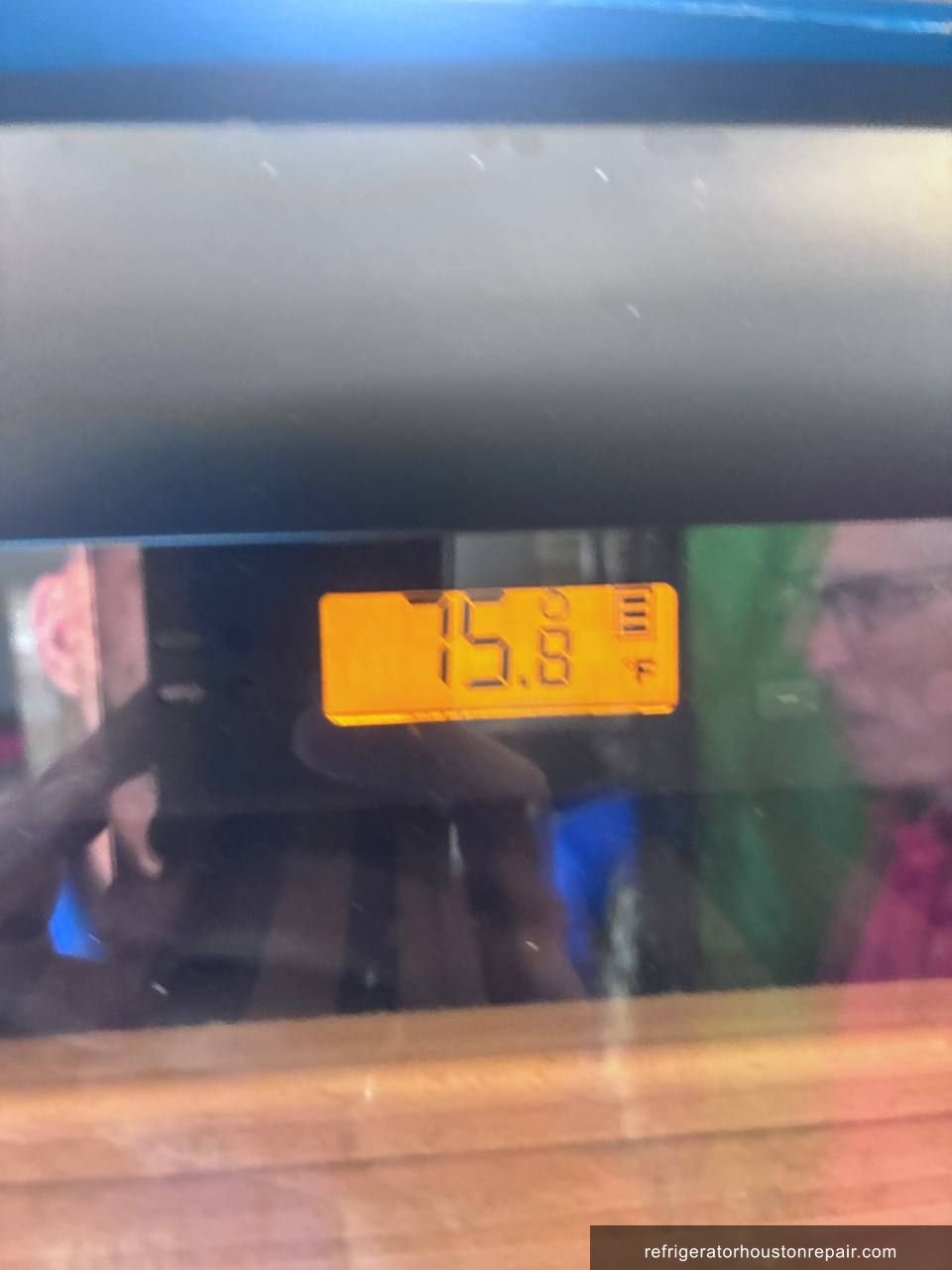

I arrived at a home in The Woodlands zip 77382 and pulled open the EuroCave VIEILLITHEQUE 259. The interior thermometer read 74°F. For a wine cooler designed to hold bottles between 54°F and 58°F, that temperature puts the collection at real risk. The unit was running, but there was no cold air moving inside the cabinet. I pulled the rear access panel and immediately felt the heat radiating off the compressor housing. Using a clamp meter, I measured the compressor draw at 4.1 amps against a rated value closer to 2.3 amps, a clear sign it had been working far beyond normal load. I connected my manifold gauges and found high-side pressure reading 320 psi and low-side at 0 psi. The sealed system had no active refrigerant pressure on the suction side. The compressor had seized. The root cause traced back to the condenser fan motor. It had failed completely, no rotation, no airflow. Without that fan pulling air across the condenser coil, heat built up with nowhere to go. The compressor absorbed all of it over an extended period. EuroCave units use compact, undersized condenser compartments by design to fit their slim cabinet profiles, which makes fan failure on the VIEILLITHEQUE 259 especially damaging. The compressor thermal overload tripped repeatedly until the windings finally burned. The refrigerant charge had also migrated through a compromised valve, leaving the low side empty.
🔧 The Repair
- ✓Step 1: Recovered residual R-134a refrigerant from the sealed system using a Fieldpiece MR45 recovery machine, capturing 38g of degraded charge per EPA 608 protocol before opening the system.

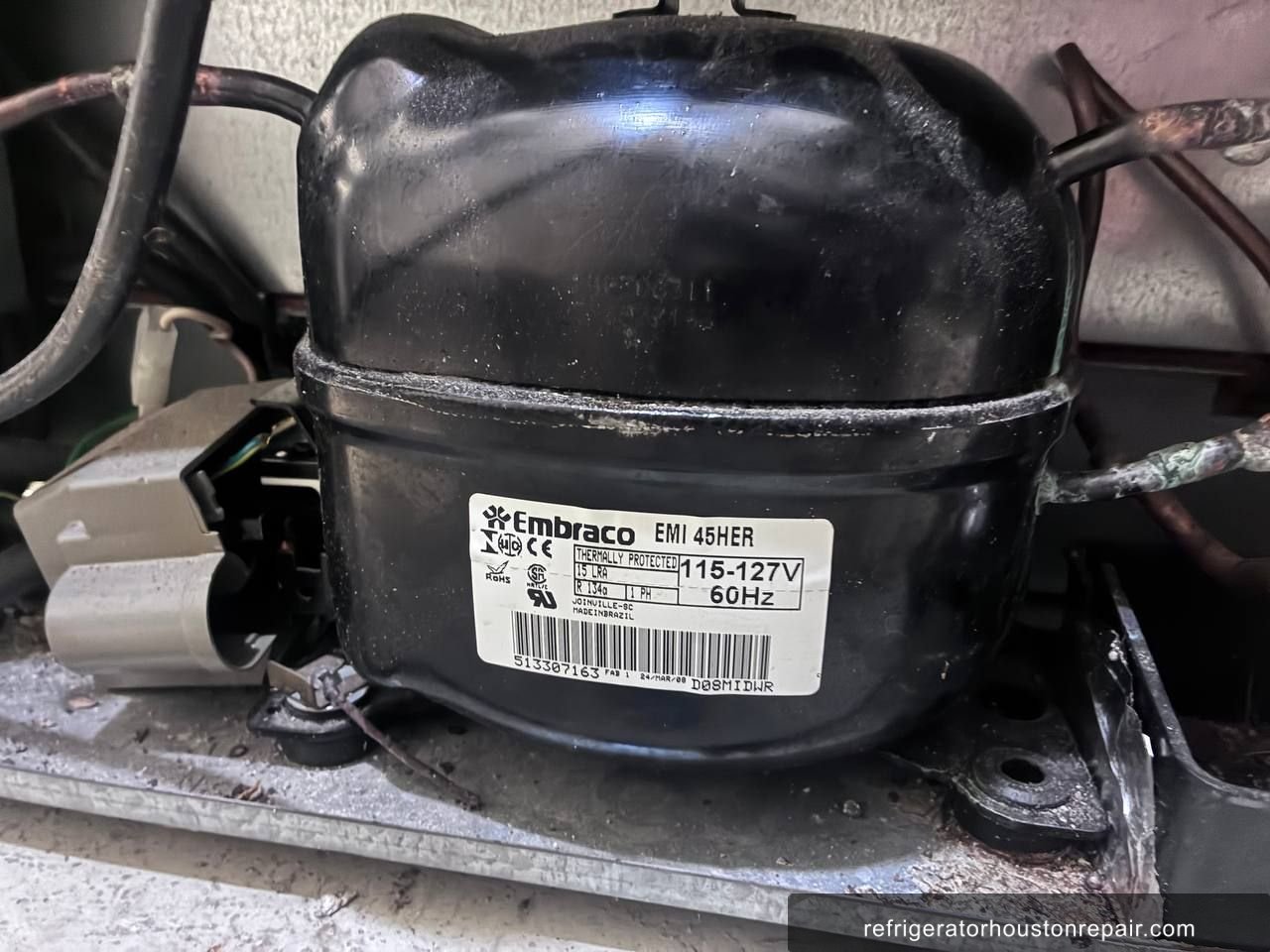

- ✓Step 2: Removed the failed compressor, a compact 1/10 HP unit specific to the VIEILLITHEQUE 259 sealed system, cutting the copper lines cleanly at the service points and capping immediately to prevent moisture intrusion.

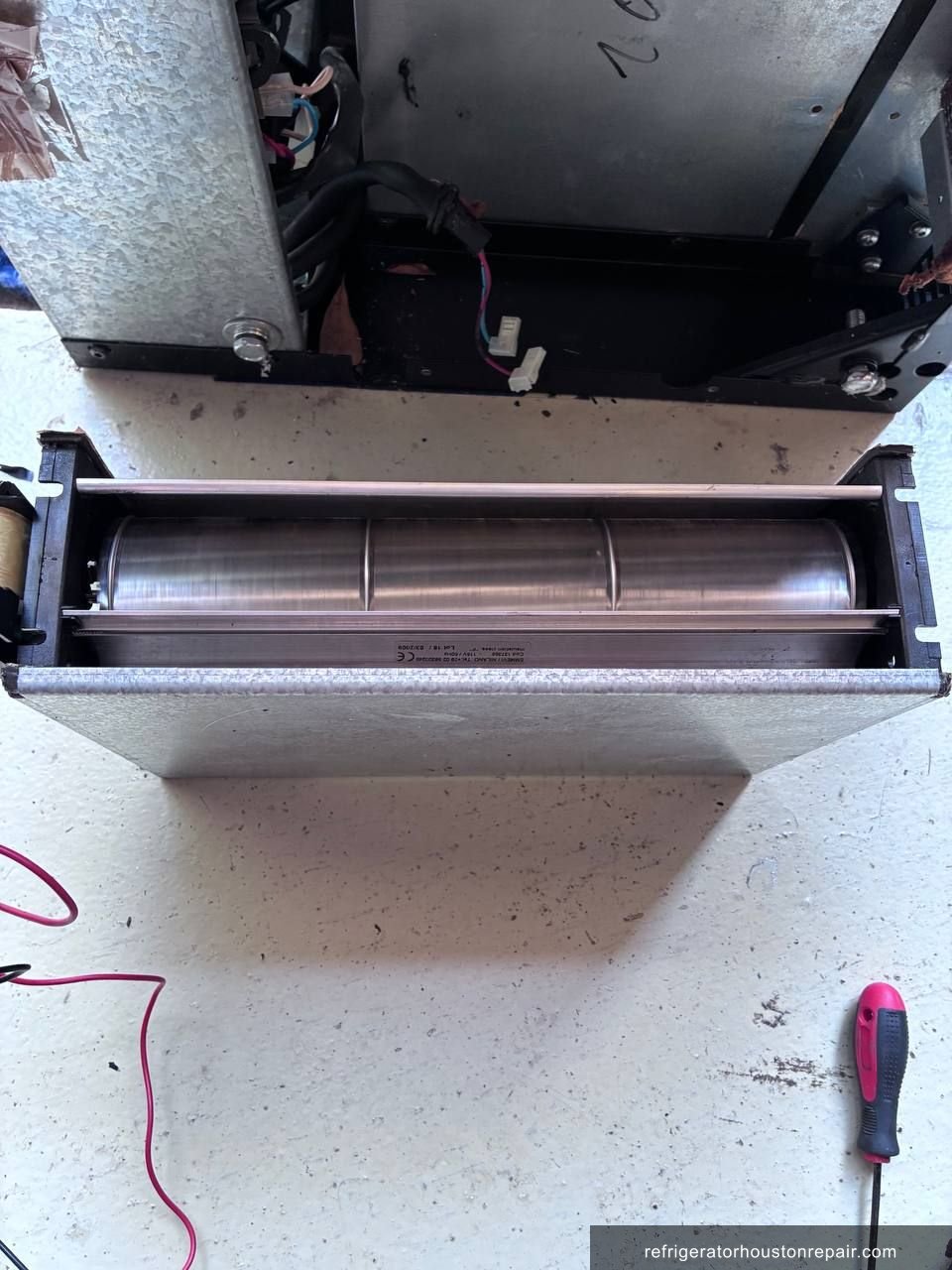

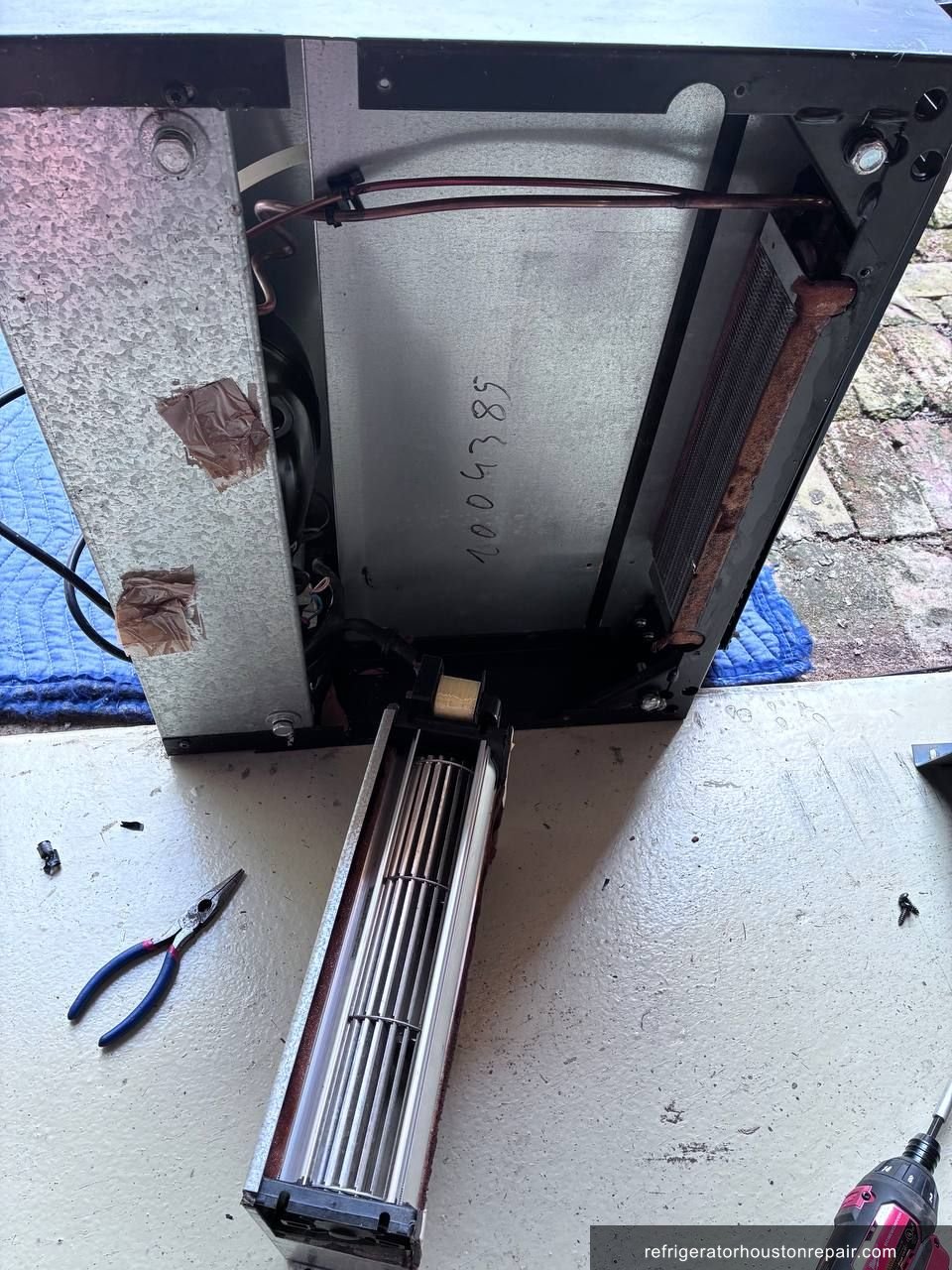

- ✓Step 3: Replaced the condenser fan motor with a direct-replacement unit matching the original RPM and blade pitch specifications for the EuroCave VIEILLITHEQUE 259 condenser compartment.
- ✓Step 4: Installed a Schrader service valve set on both the high and low side lines to allow proper gauge access for this sealed EuroCave system, which does not ship with factory service ports.
- ✓Step 5: Installed a new bi-flow filter drier in the liquid line to absorb any residual moisture introduced during the compressor replacement and line cutting.
- ✓Step 6: Brazed all copper connections with nitrogen flowing through the system at 2 CFH to prevent oxidation scale inside the tubing, then pressure-tested the sealed system at 150 psi with dry nitrogen for 30 minutes with no pressure drop.
- ✓Step 7: Pulled a deep vacuum to 250 microns using a two-stage vacuum pump, held vacuum for 20 minutes, and confirmed the reading held before breaking vacuum with R-134a.

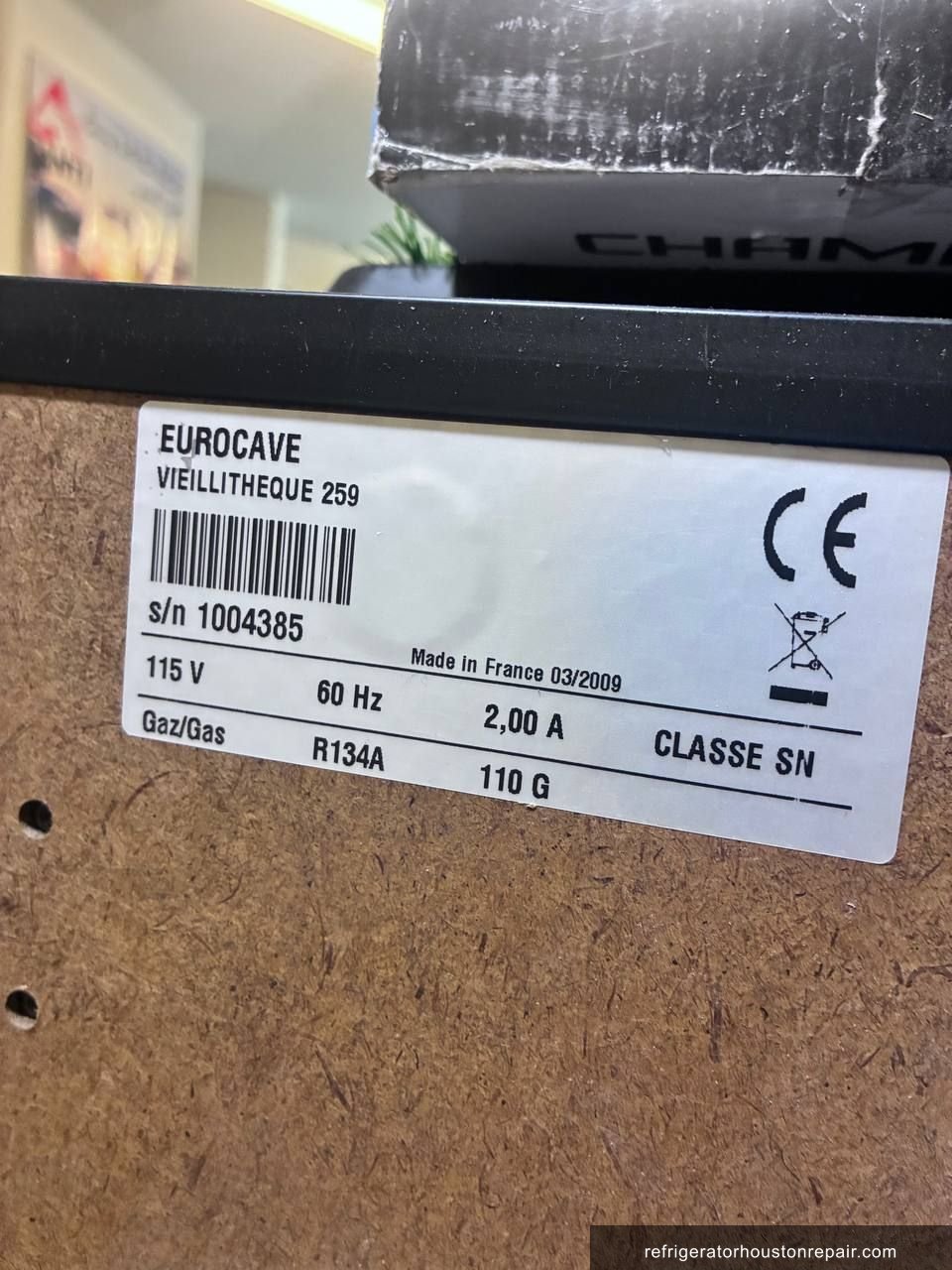

- ✓Step 8: Charged the system with 110g of R-134a refrigerant per the label specification. After a 2-hour runtime, the interior cabinet temperature stabilized at 56°F, condenser fan confirmed spinning at full speed, compressor amperage reading 2.2 amps within normal range.
✓ Result
After a 2-hour runtime the VIEILLITHEQUE 259 settled at 56°F inside the cabinet, right in the middle of the ideal wine storage range. The compressor was drawing 2.2 amps and cycling normally. The condenser fan was moving air consistently across the coil. The repair was completed the same day at the home in The Woodlands 77382. The homeowner had a collection of about 80 bottles that had been sitting at room temperature for several days. Once the cabinet hit temperature, they said they could finally stop worrying about the wine.
💡 Technician Notes
EuroCave wine coolers, including the VIEILLITHEQUE 259, use tightly enclosed rear condenser compartments. Dust and pet hair accumulate in that space faster than most owners expect, and even partial airflow restriction puts real strain on the compressor. The early warning sign for this exact failure is the compressor running for unusually long cycles without the cabinet temperature dropping. If your EuroCave is running constantly and barely holding temperature, the fan is likely struggling before it quits entirely. Vacuum the rear vent grille and condenser compartment every six months. A soft brush and a vacuum with a narrow nozzle reach the fins without damaging them. If the interior temperature climbs above 65°F and the compressor feels hot through the cabinet back, call for service the same day. Do not wait. Thermal damage to an EuroCave compressor compounds quickly because the cabinet insulation is designed for quiet operation, not heat dissipation, and the sealed compartment traps heat around the compressor once the fan stops.
Frequently Asked Questions
Why did my EuroCave VIEILLITHEQUE 259 stop cooling completely?
On the VIEILLITHEQUE 259, a failed condenser fan is the most common reason the unit stops cooling entirely. When that fan quits, heat has nowhere to go in the compact rear compartment. The compressor overheats, the thermal overload trips repeatedly, and eventually the compressor windings burn out. At that point the sealed system loses its ability to move refrigerant and the cabinet climbs to room temperature.
How much does it cost to replace the compressor on an EuroCave wine cooler in The Woodlands TX?
A full sealed system overhaul on an EuroCave unit in the Houston area, including compressor replacement, condenser fan, filter drier, service valve installation, and R-134a recharge, typically runs between $550 and $850 depending on parts availability and system condition. The VIEILLITHEQUE 259 requires sourcing a specific compact compressor, which affects parts lead time and cost.
What happens if I wait to repair my EuroCave wine cooler that is not cooling?
Wine stored above 65°F for more than a few days starts to age prematurely. Corks dry out, sediment shifts, and delicate whites and rosés are often damaged within a week. Beyond the wine, running an EuroCave with a failed fan and overheating compressor accelerates wear on every electrical component in the unit. A problem that is one fan motor today becomes a compressor replacement tomorrow.
Is it worth repairing an EuroCave VIEILLITHEQUE 259 or should I replace it?
EuroCave units are built to last 15 to 20 years with proper maintenance. If the cabinet seals are intact, the interior is in good condition, and the failure is isolated to the sealed system components, repair is almost always the better financial decision. A new VIEILLITHEQUE 259 retails above $1,500. A full compressor overhaul costing $600 to $800 on a unit that is otherwise sound makes clear sense.
Why did the EuroCave need a service valve installed during the repair if it is a new compressor?
EuroCave factory seals its refrigeration systems without Schrader service ports, which means there is no access point for manifold gauges on the original unit. When I replace the compressor and open the system, I install service valves on both the high and low side lines. This gives proper gauge access for the R-134a recharge and makes any future sealed system service on the VIEILLITHEQUE 259 significantly easier and more accurate.
Repair Summary
- Brand
- EuroCave
- Model
- VIEILLITHEQUE 259
- Repair Type
- Sealed System Overhaul with Compressor and Condenser Fan Replacement
- Refrigerant
- R-134a
- Root Cause
- Failed condenser fan caused compressor to overheat and seize
- Parts Replaced
- ✓Replacement compressor, 1/10 HP sealed unit compatible with EuroCave VIEILLITHEQUE 259
- ✓Condenser fan motor, direct replacement matching original blade pitch and RPM for the VIEILLITHEQUE 259 rear compartment
- ✓Bi-flow filter drier, liquid line installation
- ✓Schrader service valve set, high and low side
- ✓R-134a refrigerant, 110g per label specification
- Location
- The Woodlands, TX 77382
- Status
- ✓ Completed
Same Problem?
We fix EuroCave refrigerators in The Woodlands and all Houston area.
Call (346) 512-3688Service Area
We provide refrigerator repair service in The Woodlands and surrounding areas.
View The Woodlands Service Area →📸 Repair Photos

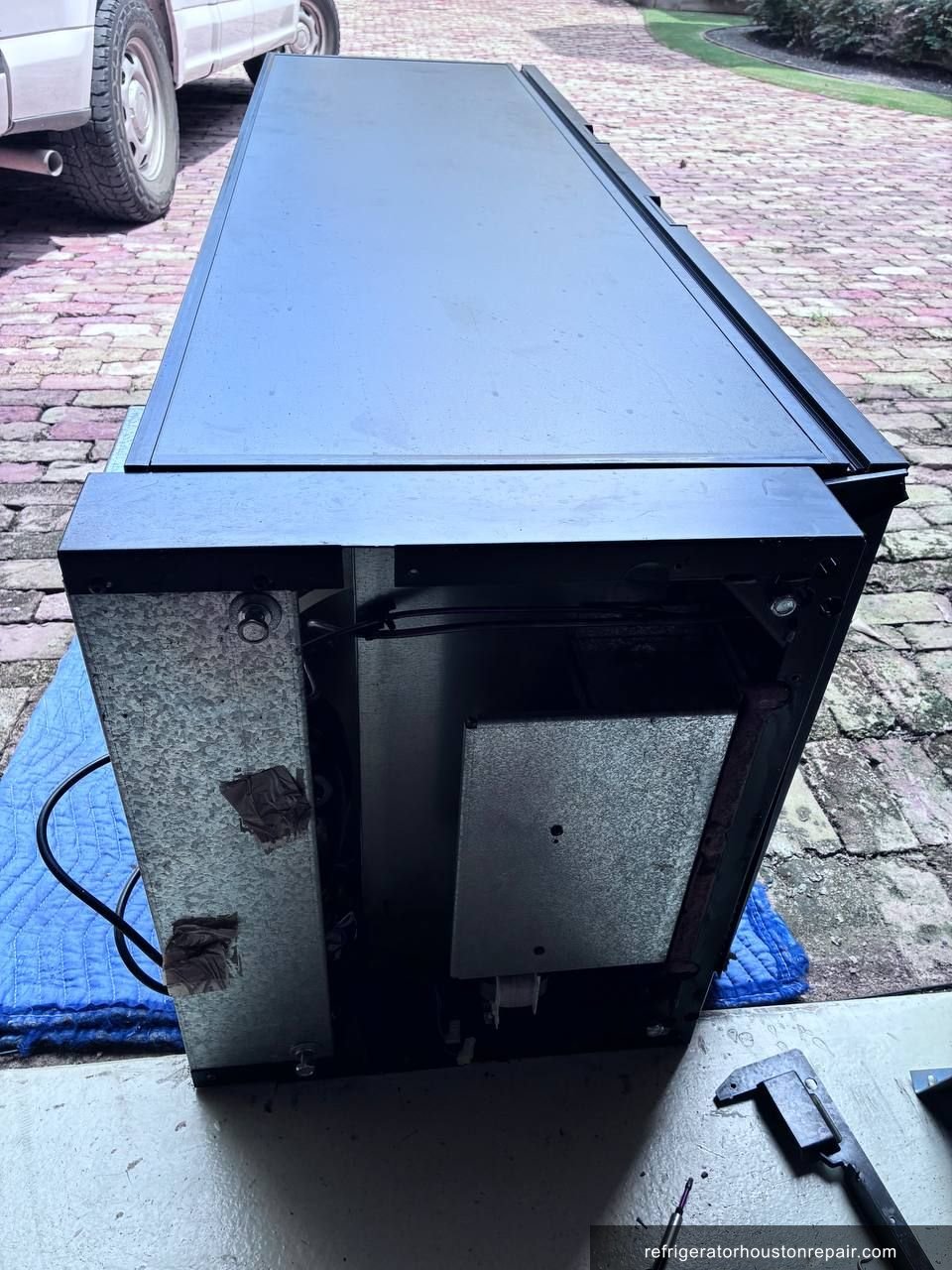

EuroCave VIEILLITHEQUE 259 repair in The Woodlands, TX — photo 3
