Electrolux PLHS267ZDB7: Adaptive Defrost Control Board Failure in Richmond, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Fresh food section warming up, holding around 55-58°F instead of the normal 37°F
- •Freezer section appearing to maintain acceptable temperature while refrigerator side got warm
- •Evaporator fan in the refrigerator compartment completely silent, not spinning at all
- •No voltage reaching the evaporator fan motor despite compressor running
🔍 Diagnosis
When I arrived at the Richmond home, the customer explained the refrigerator compartment had been gradually warming over several weeks. The freezer felt cold to the touch, but the fresh food side was clearly not cooling. I pulled out my clamp meter and confirmed zero voltage at the evaporator fan motor terminals in the refrigerator section. The fan itself tested fine at 12 ohms resistance, so I knew the motor was not the problem. I traced the signal back to the adaptive defrost control board, which on the PLHS267ZDB7 is a compact board mounted near the compressor area. This board handles compressor cycling and evaporator fan operation together. On a 20-year-old unit, this board is a known failure point. When I removed and inspected it visually, I could see two electrolytic capacitors that had visibly domed tops, a clear sign of internal pressure buildup and electrolyte failure. These capacitors are part of the relay drive circuit. Once they degrade, the board loses its ability to properly energize the power relay that sends voltage to the evaporator fan. The compressor relay was still functioning intermittently, which is why the freezer held temperature while the refrigerator side starved for airflow. The refrigerant charge and sealed system showed no issues on the gauges.
🔧 The Repair
- ✓Step 1: Disconnected power to the Electrolux PLHS267ZDB7 and pulled the unit away from the wall to access the compressor compartment and control board location.
- ✓Step 2: Confirmed evaporator fan motor resistance at 12 ohms using a Fluke 117 multimeter, ruling out motor failure as the root cause.
- ✓Step 3: Measured voltage at the fan motor connector with power restored. Clamp meter read 0V AC at the fan terminals despite the compressor running normally.

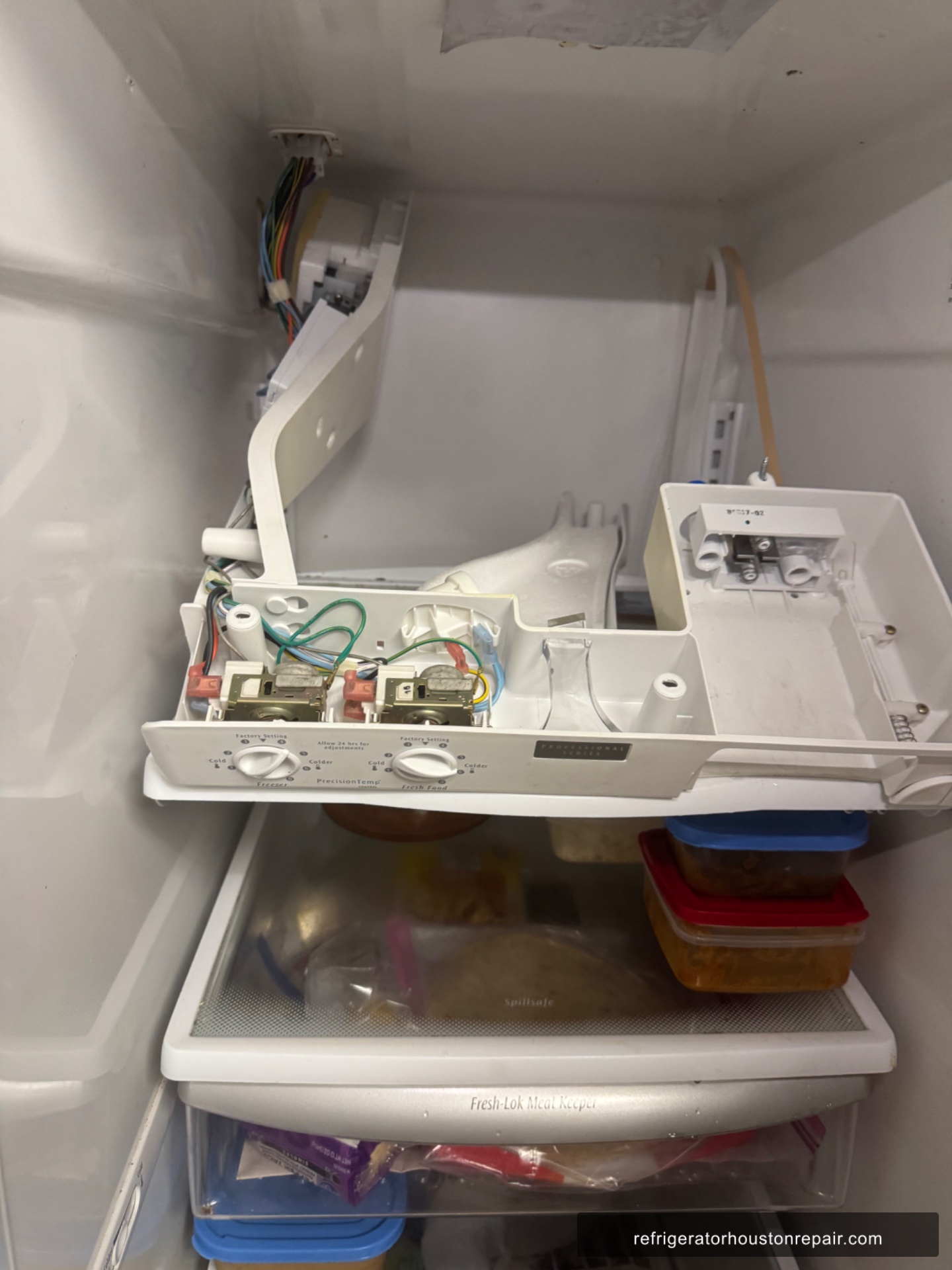

- ✓Step 4: Located the adaptive defrost control board on this model and removed the mounting screws and wire harness connectors, photographing all connections before disconnection.

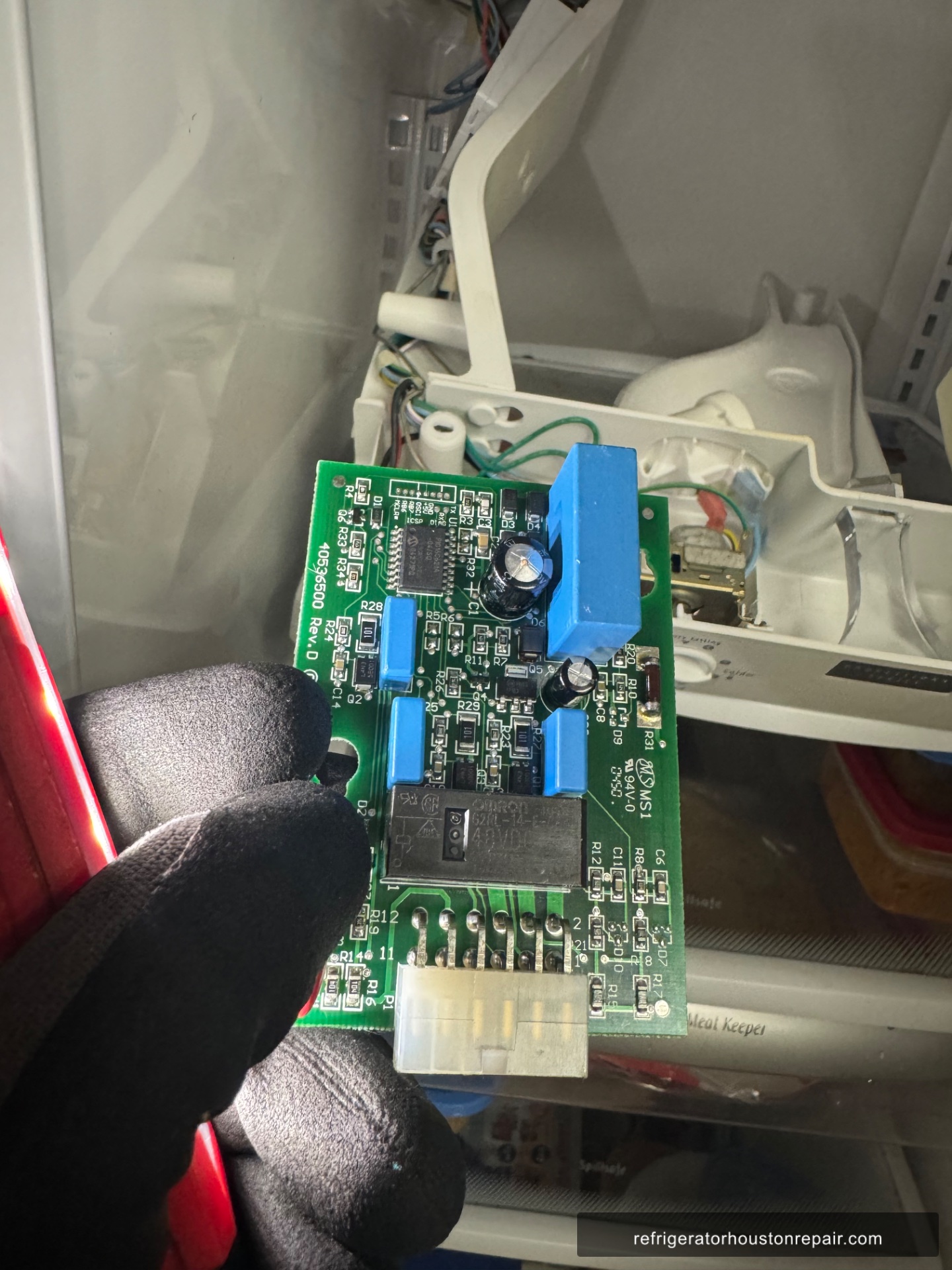

- ✓Step 5: Inspected the board under a work light. Identified two swollen electrolytic capacitors in the relay drive section, visibly domed and discolored at the top.
- ✓Step 6: Sourced and installed a replacement adaptive defrost control board compatible with the PLHS267ZDB7. Reconnected all harness plugs in the correct orientation.
- ✓Step 7: Restored power and immediately verified voltage at the evaporator fan connector. Clamp meter read 120V AC. Fan motor spun up within seconds.
- ✓Step 8: Allowed the unit to run for two hours and verified final temperatures: fresh food section at 37°F, freezer section at 2°F. Refrigerant pressure on the low side held steady at 28 psi, consistent with R-134a operation at ambient.
✓ Result
The refrigerator was fully operational within two hours of my arrival at the Richmond address. Fresh food section dropped to 37°F and the freezer settled at 2°F, both right where they need to be. The total repair came to $385. The customer was relieved, considering the unit is 20 years old and they were worried it was done for good. They said they had groceries they were about to throw out and were glad they called before doing so.
💡 Technician Notes
If you own an Electrolux or Frigidaire side-by-side from the early 2000s, pay attention to the adaptive defrost control board. The first warning sign of this specific failure is usually a gradual warming of the refrigerator compartment over days or weeks while the freezer still feels acceptable. Many owners assume the compressor is weak and wait too long. The board on the PLHS267ZDB7 is small and tucked near the compressor, and its electrolytic capacitors have a finite lifespan. At 15 to 20 years, they are on borrowed time. There is no real maintenance action that extends the life of these capacitors once they start to bulge. If your refrigerator side is warming but the freezer is still holding and the fan in the fridge section is silent, do not wait. A failed board that is also failing to cycle the compressor correctly will eventually put strain on the sealed system.
Frequently Asked Questions
Why is my Frigidaire PLHS267ZDB7 refrigerator warm but the freezer still cold?
On the PLHS267ZDB7, the adaptive defrost control board manages both the compressor relay and the evaporator fan in the refrigerator section separately. When the board fails, the fan circuit often dies first while the freezer stays cold. The result is a warm fridge and a cold freezer. Replacing the control board restores normal fan operation and fixes the temperature difference.
How much does it cost to replace the adaptive defrost control board on an Electrolux or Frigidaire side-by-side?
For a PLHS267ZDB7 in the Houston area, expect to pay between $300 and $420 for parts and labor combined. The board itself is not expensive, but diagnosing the exact failure point takes time. This repair was completed for $385 total. Prices vary depending on parts availability and the scope of diagnosis needed before confirming the board is the root cause.
What happens if I ignore a warm refrigerator compartment on my old Electrolux side-by-side?
If the evaporator fan stops running due to a failed control board, the refrigerator section loses all active cooling. Food spoilage starts within hours at temperatures above 40°F. Longer term, the compressor works harder trying to compensate, which accelerates wear on the sealed system. On a 20-year-old unit, added compressor stress shortens the remaining service life significantly.
Is it worth repairing a 20-year-old Electrolux or Frigidaire refrigerator, or should I replace it?
A control board replacement on a unit this age is worth doing if the sealed system is intact and the compressor is healthy. This repair cost $385 and the customer got a fully functional refrigerator back. A new comparable side-by-side runs $1,200 to $2,000. If the compressor or sealed system were also failing, the math would shift toward replacement. Board-only repairs on otherwise sound units are a reasonable investment.
What is an adaptive defrost control board and why does it control the evaporator fan on the PLHS267ZDB7?
The adaptive defrost board on this Electrolux model is a compact circuit board that replaces traditional mechanical timers. It tracks compressor run time and door openings to determine when to run a defrost cycle. It also controls the evaporator fan relay directly. When capacitors on the board fail, the relay drive voltage drops and the fan stops receiving power, even though the board itself appears to function in other ways.
Repair Summary
- Brand
- Electrolux
- Model
- PLHS267ZDB7
- Repair Type
- Adaptive Defrost Control Board Replacement
- Refrigerant
- R-134a
- Root Cause
- Swollen capacitors on adaptive defrost board cut evaporator fan voltage
- Parts Replaced
- ✓Adaptive defrost control board for Electrolux/Frigidaire PLHS267ZDB7 (OEM-compatible replacement, controls compressor relay and evaporator fan circuit)
- Location
- Richmond, TX 77407
- Status
- ✓ Completed
