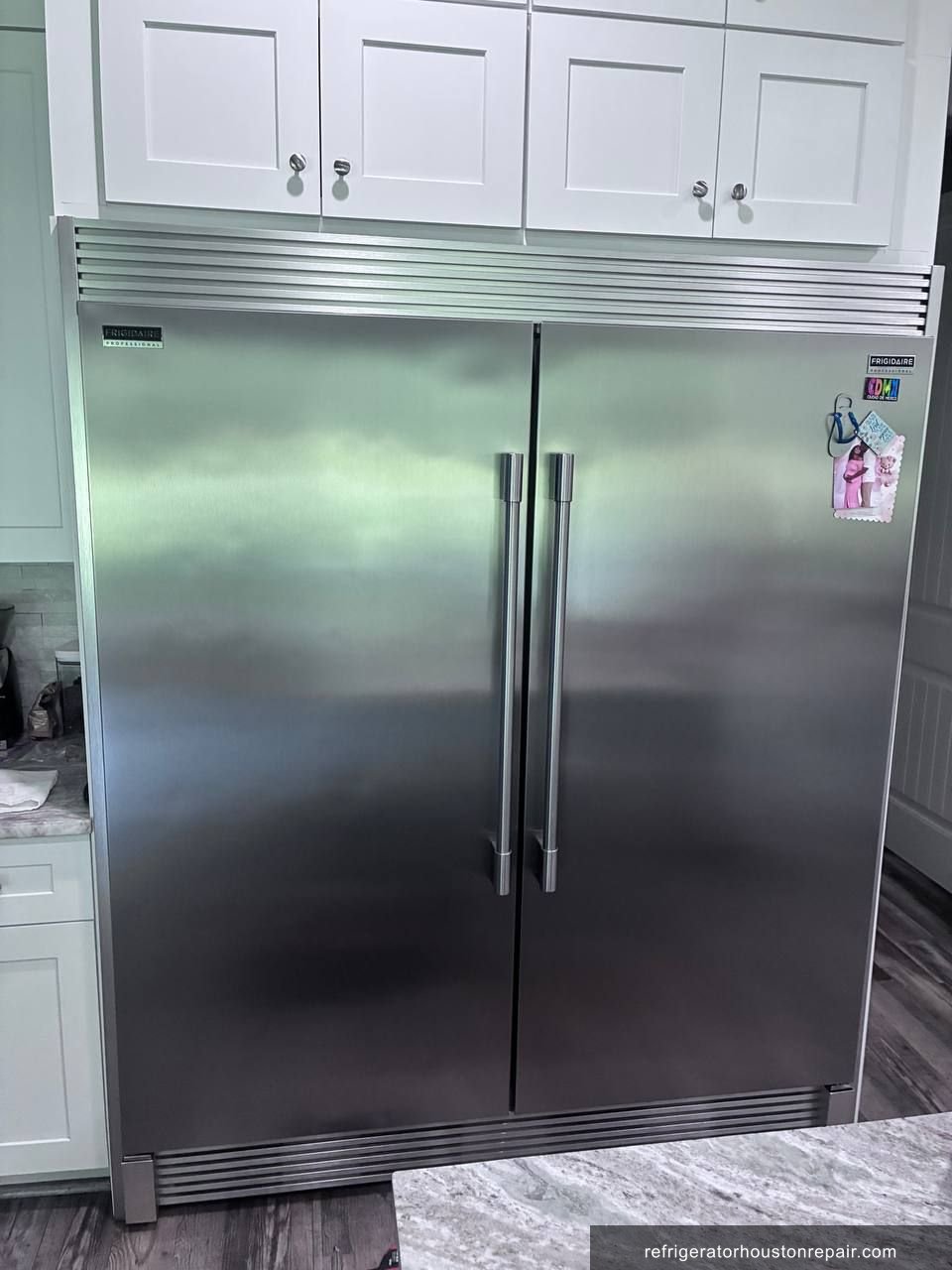

Electrolux FPRU19F8RFF: Refrigerant Leak from Evaporator Coil in Magnolia, TX
📞 Call (346) 512-3688🔧 Performed by Alex Z.
The Problem
- •Fresh food compartment warming to 58–62°F despite compressor running continuously
- •No frost visible on evaporator coil during inspection — classic sign of complete refrigerant loss
- •Compressor running hot and cycling longer than normal without reaching setpoint temperature
- •Interior walls felt warm to the touch even after 12+ hours of operation
🔍 Diagnosis
On arrival, the Electrolux FPRU19F8RFF showed a fresh food compartment temperature of 61°F with the freezer sitting at 42°F — both sections had fully lost cooling capacity. The compressor was running continuously but producing almost no suction pressure, immediately suggesting a near-total refrigerant loss rather than a compressor failure. Using a Fieldpiece manifold gauge set, suction side pressure read 0 psi (should be approximately 18–22 psi for R-134a at ambient), confirming the sealed system was empty. An electronic leak detector sweep across the evaporator coil assembly identified a micro-fracture leak point in the evaporator coil — a known weak point in this Frigidaire Professional / Electrolux FPRU19F8RFF platform, where vibration stress over time causes hairline cracks at the coil bends. The heat exchanger tube connections also showed oil staining, indicating the leak had been developing gradually. Because the system had run dry for an extended period, the compressor oil had partially migrated and the dryer filter was saturated with contaminants, requiring full sealed system service rather than a simple recharge. The technician documented the failure and returned the following day with all OEM-compatible replacement components to perform a complete sealed system overhaul.
🔧 The Repair
- ✓Step 1: Recovered residual refrigerant from the sealed system using a Fieldpiece MR45 recovery machine per EPA Section 608 protocol — system yielded less than 0.5 oz, confirming near-complete R-134a loss from the evaporator leak.

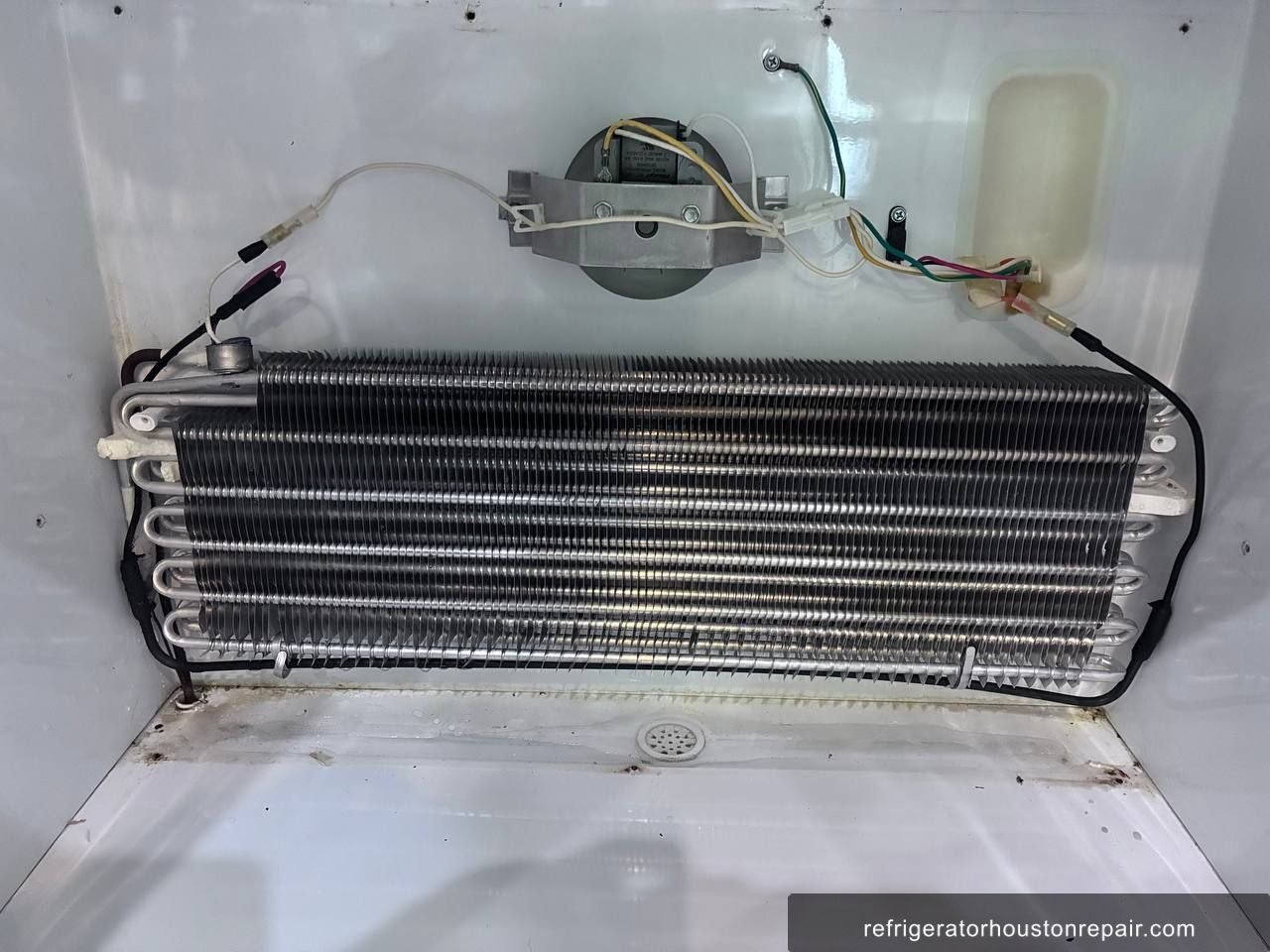

- ✓Step 2: Removed the rear interior panel and evaporator cover assembly to access the failed evaporator coil. Documented the fracture point at a lower coil bend with visible oil residue and surface oxidation.
- ✓Step 3: Installed a Schrader-type service valve on the process tube to allow precision manifold gauge access for charging and future serviceability.
- ✓Step 4: Cut out and replaced the saturated bi-flow dryer filter with a new OEM-compatible unit rated for R-134a systems — the old filter showed dark discoloration indicating acid and moisture contamination.
- ✓Step 5: Replaced the heat exchanger kit, resealing all brazed connection points with a nitrogen purge active during brazing to prevent internal oxidation scale formation.

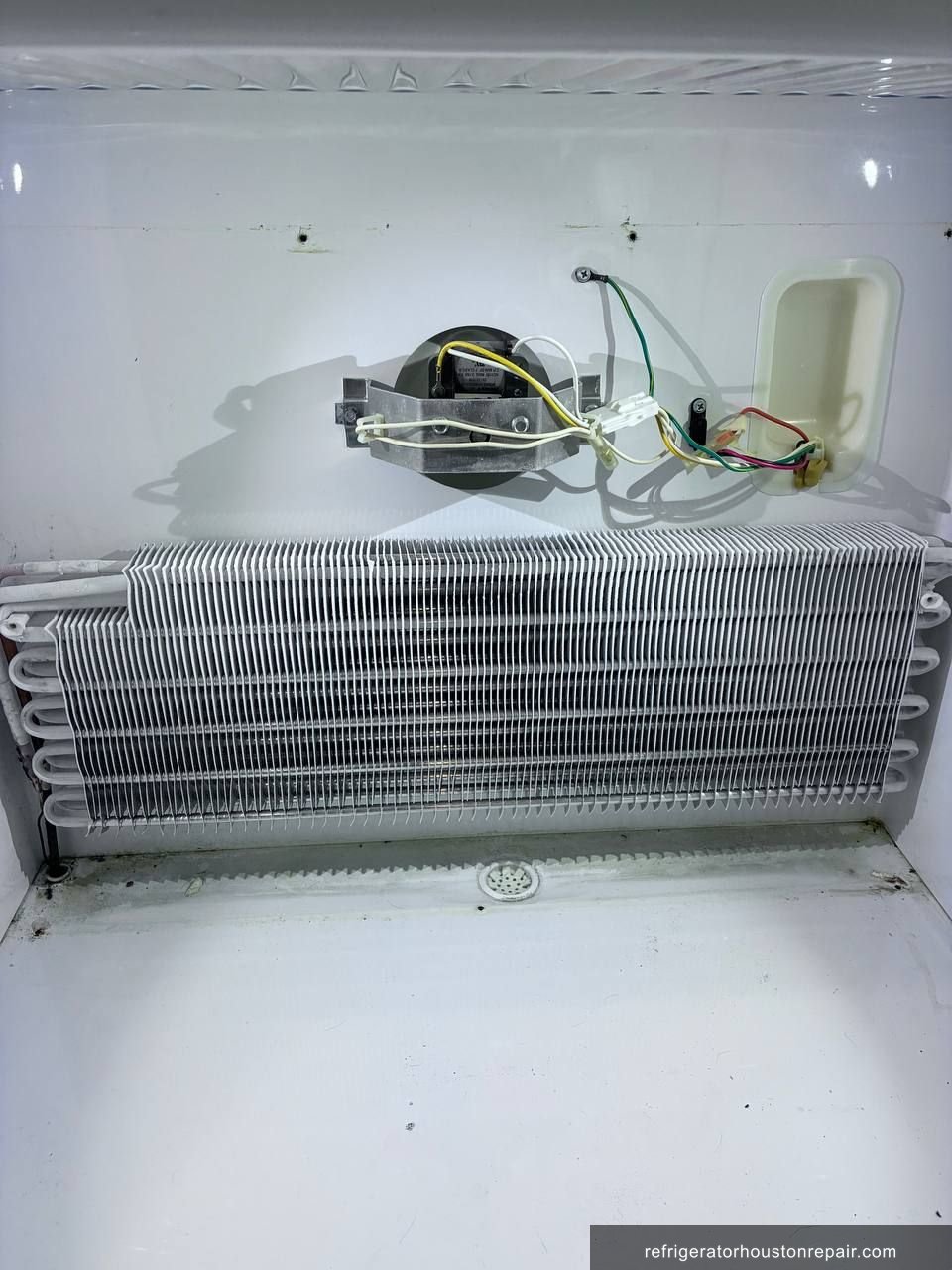

- ✓Step 6: Installed the replacement evaporator coil, ensuring all brazed joints were leak-tested with nitrogen pressure hold at 150 psi for 30 minutes — zero pressure drop confirmed tight seals.
- ✓Step 7: Purged the entire sealed system with dry nitrogen three times, then connected a two-stage vacuum pump and pulled the system down to 200 microns, holding for 20 minutes to confirm no residual moisture or leaks before charging.

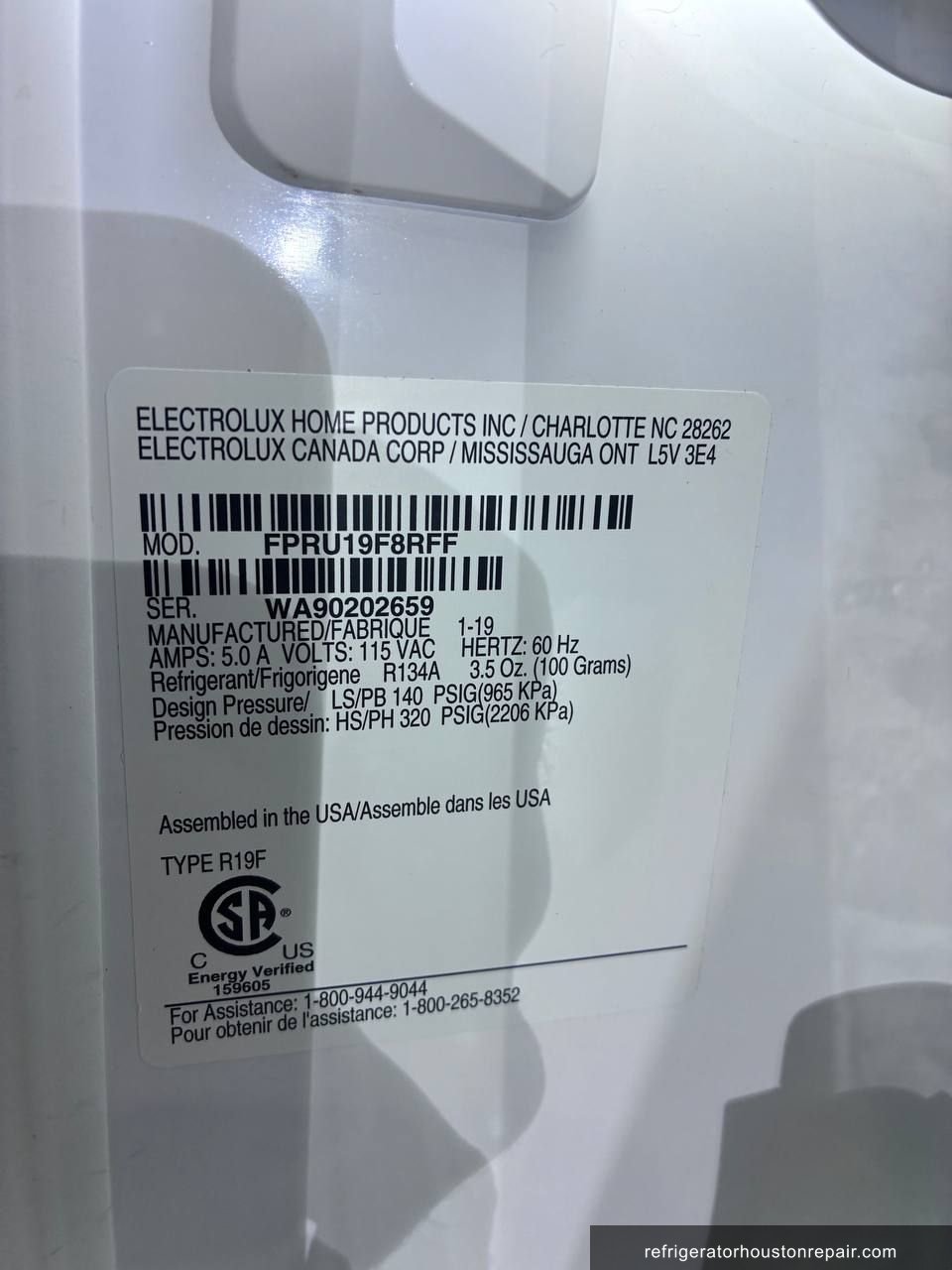

- ✓Step 8: Charged the system with exactly 3.5 oz (100 grams) of R-134a per the Electrolux FPRU19F8RFF label specification using a calibrated digital refrigerant scale. After a 2-hour runtime, confirmed fresh food compartment at 37°F and freezer at 1°F — both within factory spec.
✓ Result
After the full sealed system overhaul, the Electrolux FPRU19F8RFF reached operating temperature within approximately 90 minutes of restart — fresh food section stabilized at 37°F and the freezer held 1°F. The homeowner in Magnolia's 77354 zip had kept the unit running for days hoping it would recover on its own, so most of the food had already been moved to a backup cooler. Once temps confirmed stable, everything went back in. A 90-day labor warranty was provided on the sealed system repair. The customer was relieved the compressor itself was still sound — replacing the coil rather than the whole unit saved a significant amount.
💡 Technician Notes
Electrolux and Frigidaire Professional counter-depth refrigerators on the FPRU19F8RFF platform share the same evaporator coil assembly, and micro-fracture leaks at the lower coil bends are a documented failure mode — typically showing up between 5 and 9 years of service. The earliest warning sign most owners miss is a subtle, gradual rise in fresh food temperatures over several weeks before complete cooling loss. If your unit starts running 4–6°F warmer than your setpoint and the compressor seems to run non-stop, that's the window to call — catching it before all refrigerant escapes means the compressor survives and repair costs stay lower. For prevention, keep the condenser coils on this model vacuumed every 6 months; restricted airflow forces the compressor to work harder and increases vibration stress on the evaporator coil connections. Don't wait more than 48 hours after noticing warm temperatures — a compressor that runs dry on refrigerant will fail within days.
Frequently Asked Questions
Why did my Electrolux FPRU19F8RFF stop cooling completely even though the compressor is still running?
When the Electrolux FPRU19F8RFF compressor runs but produces no cooling, a refrigerant leak is the most likely cause. The compressor circulates refrigerant, so if R-134a has escaped through a cracked evaporator coil, there's nothing left to absorb heat. The compressor runs endlessly because it never reaches the setpoint — it's not a compressor failure, it's an empty sealed system.
How much does it cost to fix a Freon leak on an Electrolux refrigerator in Magnolia TX?
A full sealed system repair on an Electrolux FPRU19F8RFF in the Magnolia, TX area — including evaporator coil replacement, dryer filter, heat exchanger, nitrogen flush, vacuuming, and R-134a recharge — typically runs between $550 and $850 depending on parts availability. The job requires EPA 608 certification and specialized brazing equipment, so it's not a repair any general handyman can complete. Budget 3 to 4 hours of labor.
What happens if I keep running my Electrolux fridge with a refrigerant leak and don't get it fixed?
Running the Electrolux FPRU19F8RFF with a refrigerant leak accelerates compressor failure. The compressor relies on refrigerant vapor returning through the suction line to stay cool and lubricated. Without refrigerant, it overheats and the oil breaks down within days. What starts as a $600–$800 coil repair can turn into a $1,200+ compressor replacement — or make the unit not worth fixing at all.
Is it worth repairing a refrigerant leak on an Electrolux FPRU19F8RFF or should I just replace it?
If the compressor is still functional and the unit is under 10 years old, repair is almost always worth it on the FPRU19F8RFF. This is a 19 cu. ft. counter-depth built-in style unit that retails for $2,000–$2,500 new. A sealed system repair at $600–$850 is a strong value compared to replacement, especially if the rest of the unit — shelving, ice maker, controls — is in good condition.
How long does an R-134a recharge last after an evaporator coil replacement on an Electrolux refrigerator?
When the leak is properly repaired — not just recharged over an existing leak — R-134a charges on an Electrolux FPRU19F8RFF last the remaining life of the appliance. Refrigerant doesn't deplete with normal operation; it only escapes through leaks. If a technician just adds refrigerant without replacing the damaged coil, expect the system to be empty again within weeks or months. The coil replacement is what makes the repair permanent.
Repair Summary
- Brand
- Electrolux
- Model
- FPRU19F8RFF
- Repair Type
- Sealed System Overhaul / Evaporator Coil Replacement / R-134a Recharge
- Refrigerant
- R-134a
- Root Cause
- Evaporator coil refrigerant leak causing complete R-134a loss
- Parts Replaced
- ✓Evaporator coil assembly (OEM-compatible replacement for Electrolux/Frigidaire Professional FPRU19F8RFF platform)
- ✓Heat exchanger kit with pre-formed copper tube connections
- ✓Bi-flow dryer filter (R-134a rated, OEM-compatible)
- ✓Schrader-type service valve for process tube access
- ✓R-134a refrigerant — 3.5 oz / 100 grams per label specification
- Location
- Magnolia, TX 77354
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Magnolia and surrounding areas.
View Magnolia Service Area →📸 Repair Photos

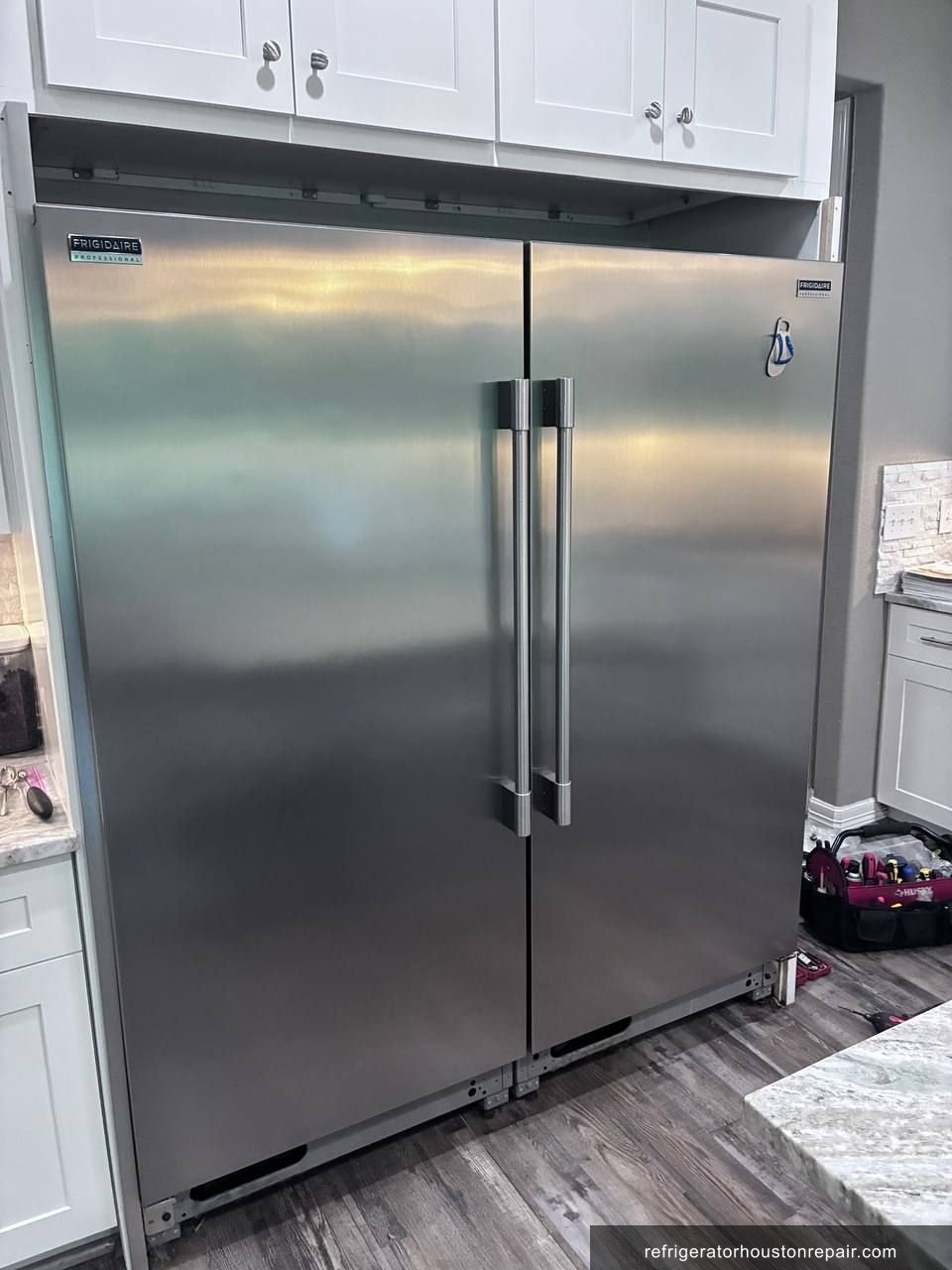

Electrolux FPRU19F8RFF repair in Magnolia, TX — photo 3

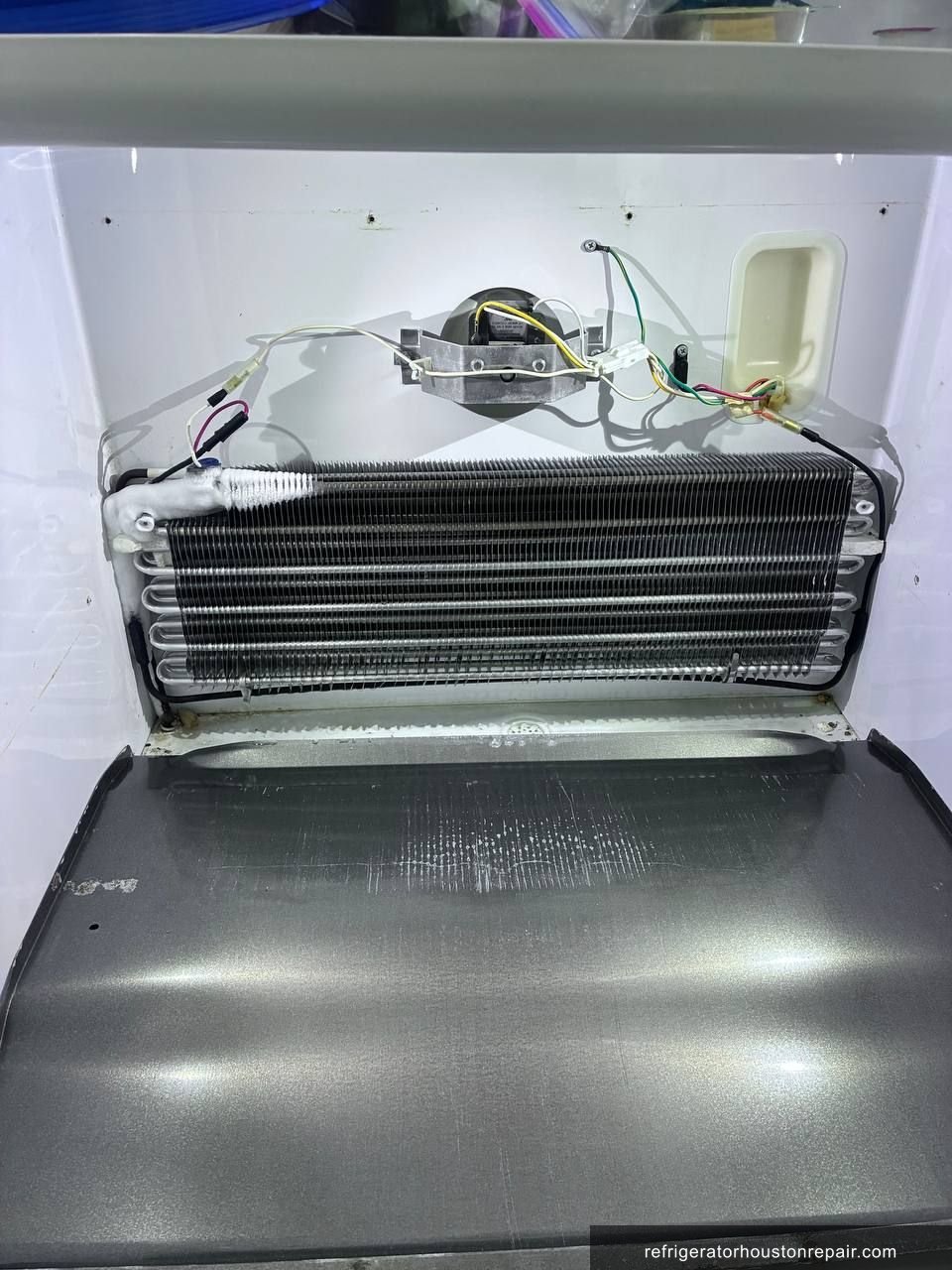

Electrolux FPRU19F8RFF repair in Magnolia, TX — photo 4
