Electrolux FPRH19DZ1E1 Evaporator Replacement — Refrigerant Leak
📞 Call (346) 512-3688🔧 Performed by Alex
The Problem
- •Refrigerator completely stopped cooling — both fresh food and freezer compartments warm
- •No frost buildup visible on evaporator coils during inspection
- •Unit running continuously but never reaching set temperature
- •No audible ice-making activity and interior fan running with no cold air output
🔍 Diagnosis

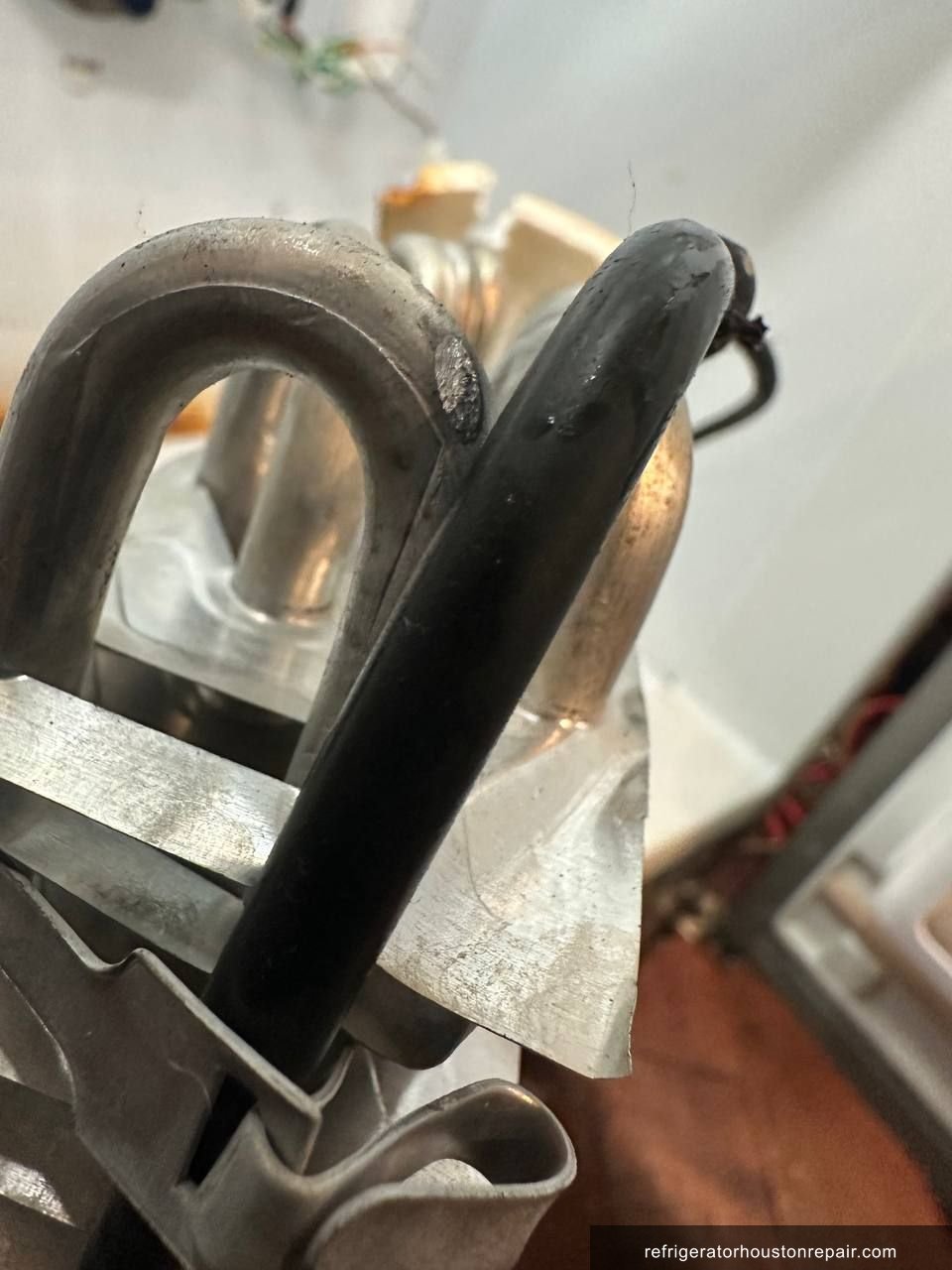

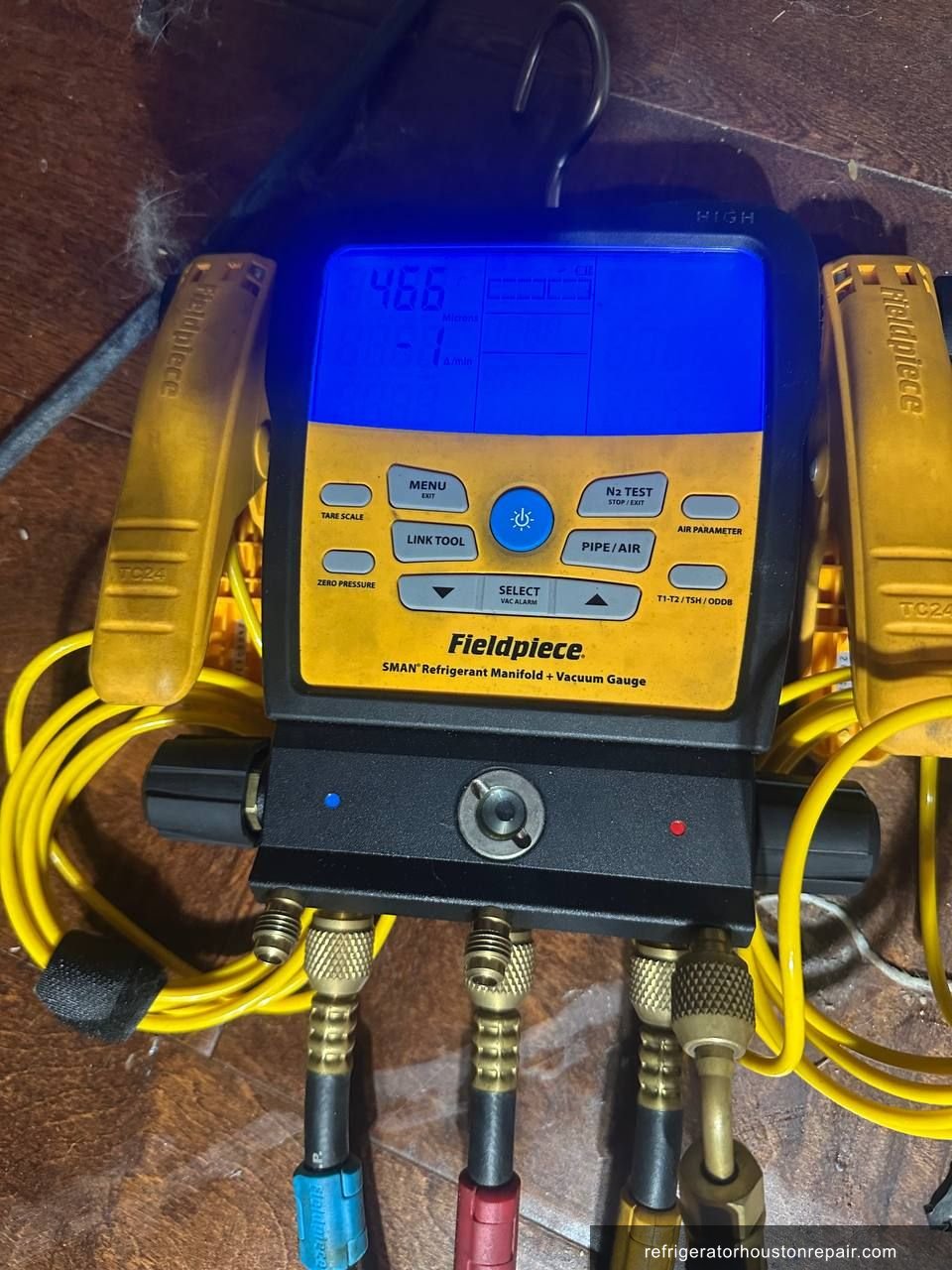

Upon arrival at the Pearland, TX 77584 residence, the technician performed a systematic inspection of the Electrolux FPRH19DZ1E1 (serial WA31500819, manufactured 2013). The unit was running — compressor and evaporator fan were both operational — yet neither compartment was cooling. This pattern immediately suggested a complete loss of refrigerant rather than a compressor or electrical fault. The technician accessed the evaporator compartment by removing the rear panel in the freezer section. Visual inspection of the evaporator coil revealed a visible burn-through hole in one of the aluminum evaporator tubes, located directly adjacent to the defrost heater element. The defrost heater had, over years of cycling, made sustained contact with the evaporator tube wall and thermally eroded through it, creating a complete breach in the sealed system. To confirm, a Fieldpiece electronic refrigerant leak detector was passed over the coil and surrounding insulation — no residual refrigerant was detected, confirming total R-134a loss. Manifold gauges were connected via a saddle-valve tap on the process tube and confirmed zero system pressure on both high and low sides, consistent with a fully evacuated sealed system. The Embraco EGZS 60HLP compressor on this model has no factory service port, requiring installation of an access valve to properly service the refrigerant circuit. Electrical continuity checks on the defrost heater and defrost thermostat were also performed to determine whether the heater had been operating outside its designed duty cycle, which was noted as a contributing factor in the coil damage.
🔧 The Repair
- ✓Disconnected the unit from power and allowed all residual system pressure to equalize before opening any refrigerant lines.
- ✓Removed freezer interior panels, shelving, and ice maker assembly to gain full access to the evaporator coil compartment.

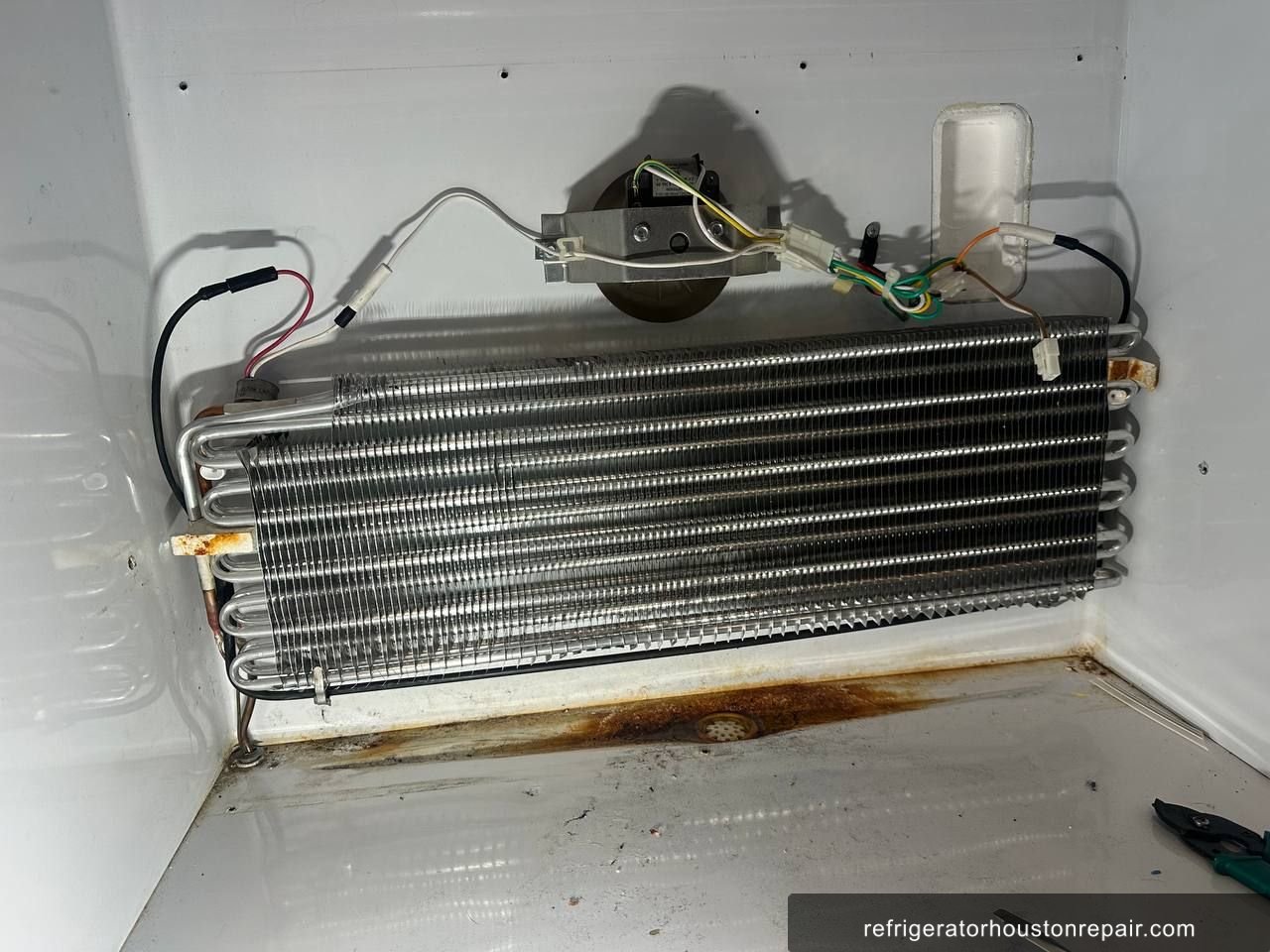

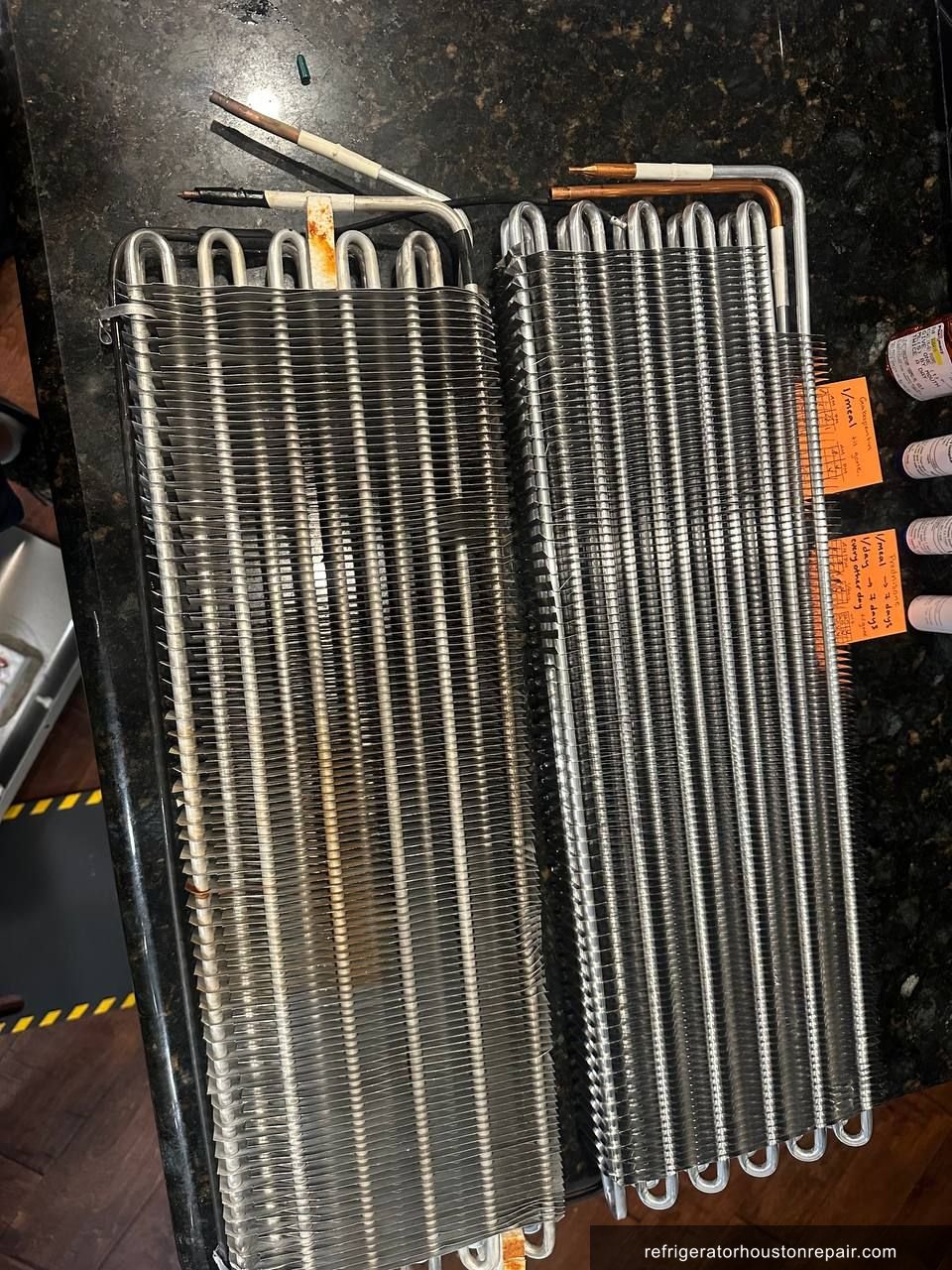

- ✓Photographed the damaged evaporator coil in place — the burn-through perforation from the defrost heater was clearly documented for the service record.

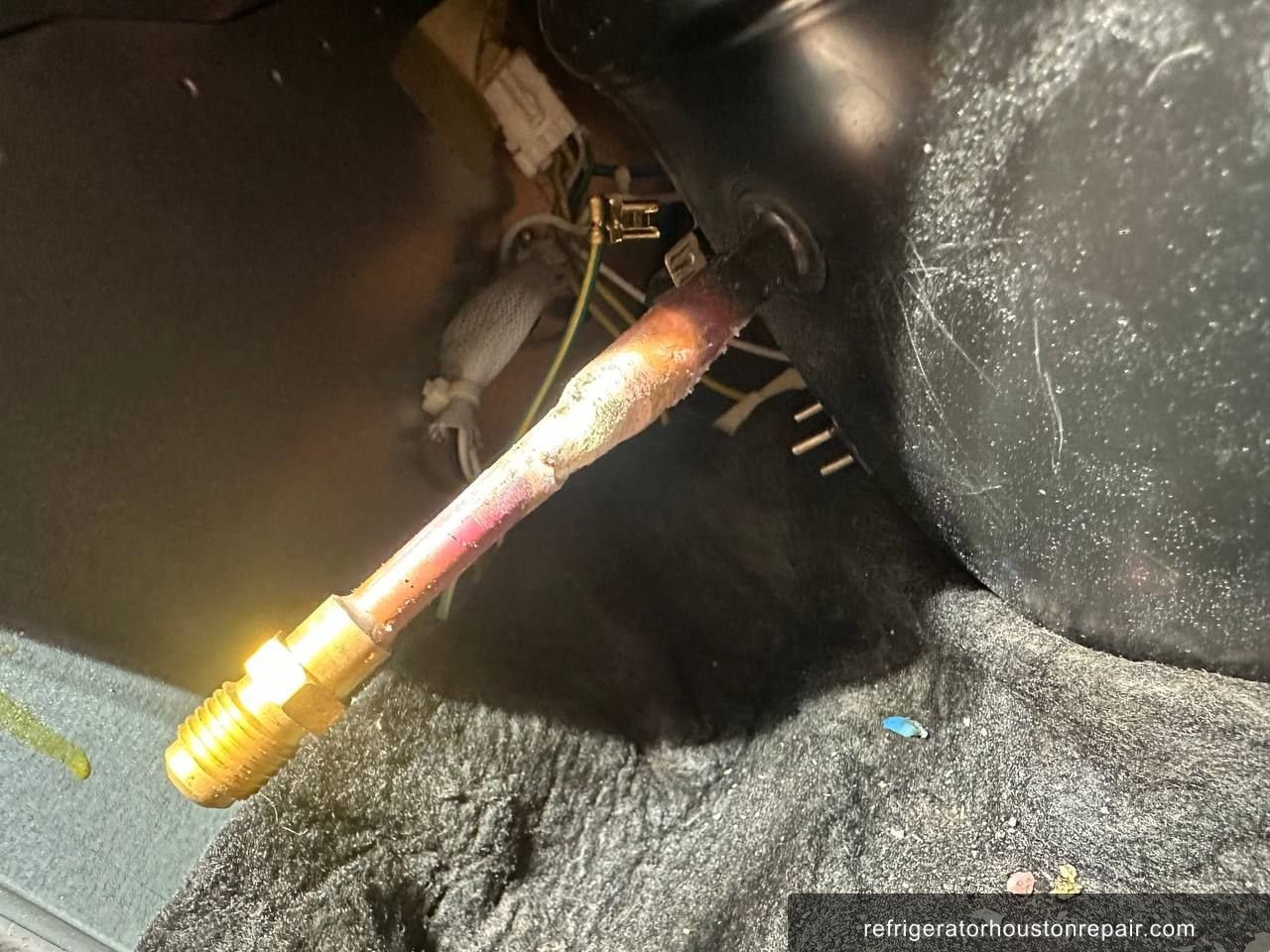

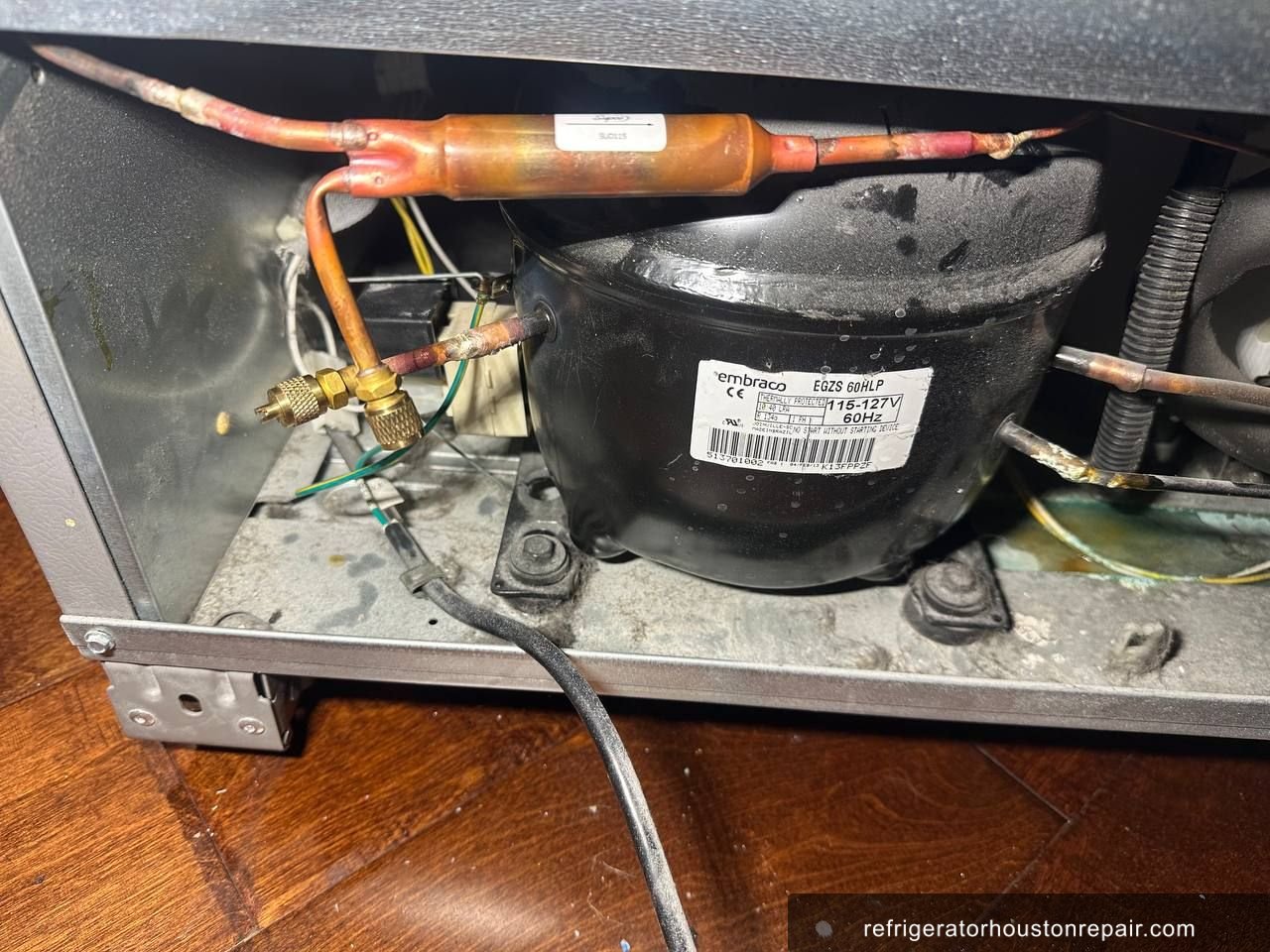

- ✓Brazed an Appion/Fieldpiece-compatible access valve (Schrader-type service valve) into the process tube on the Embraco EGZS 60HLP compressor low-side line, as this model has no factory service port.
- ✓Disconnected evaporator inlet and outlet lines using a tubing cutter, capped the lines temporarily, and removed the damaged aluminum evaporator coil assembly.
- ✓Installed the new OEM-specification replacement evaporator coil, positioning it correctly on the mounting brackets and ensuring clearance from the defrost heater element to prevent recurrence.
- ✓Replaced the inline filter-drier with a new unit appropriate for R-134a systems, as the original desiccant had been exposed to atmosphere during the coil replacement and was considered saturated.

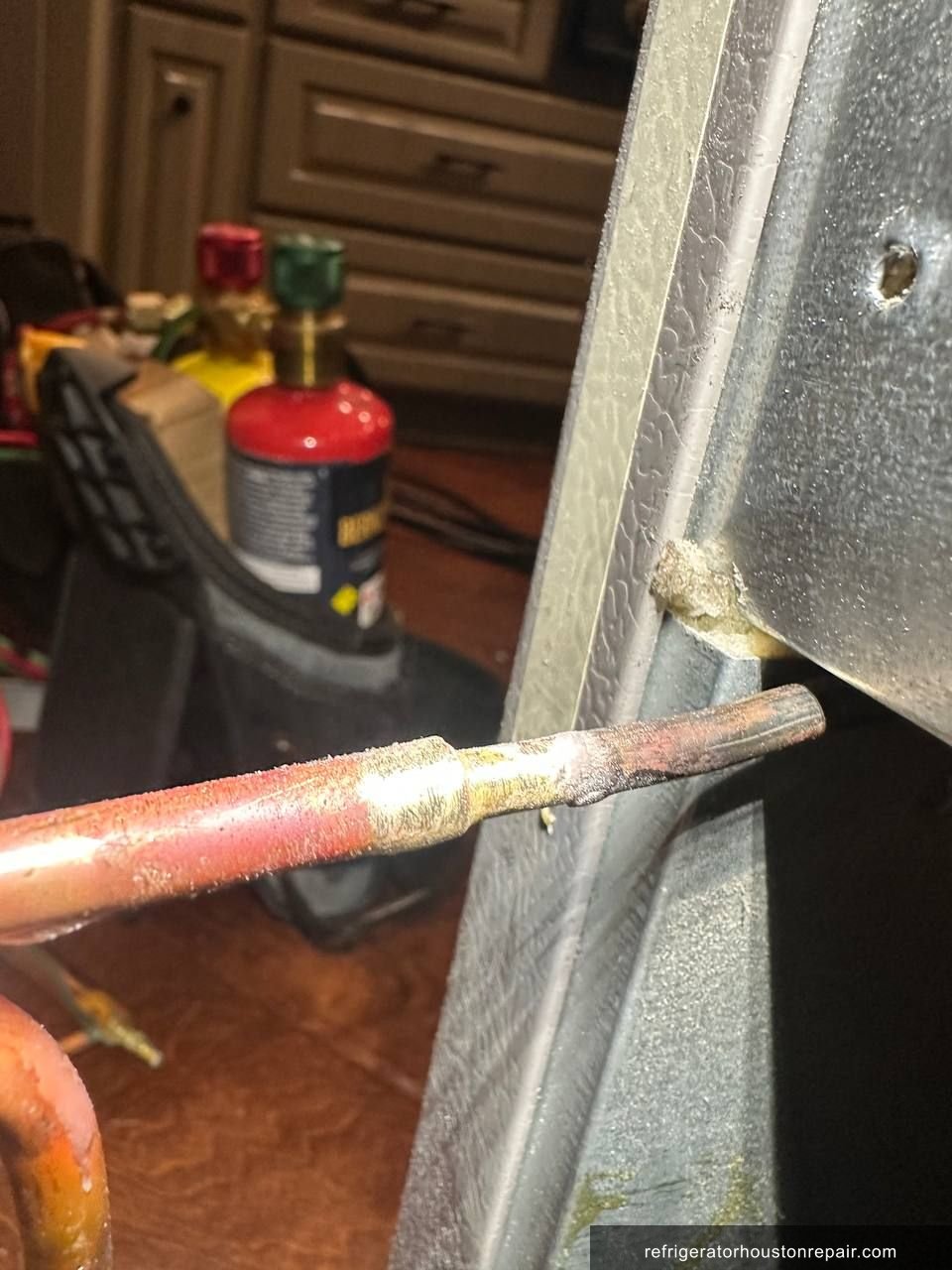

- ✓Brazed all refrigerant line connections using nitrogen purge brazing technique — dry nitrogen was flowing through the system during all torch work to prevent internal oxidation scale.

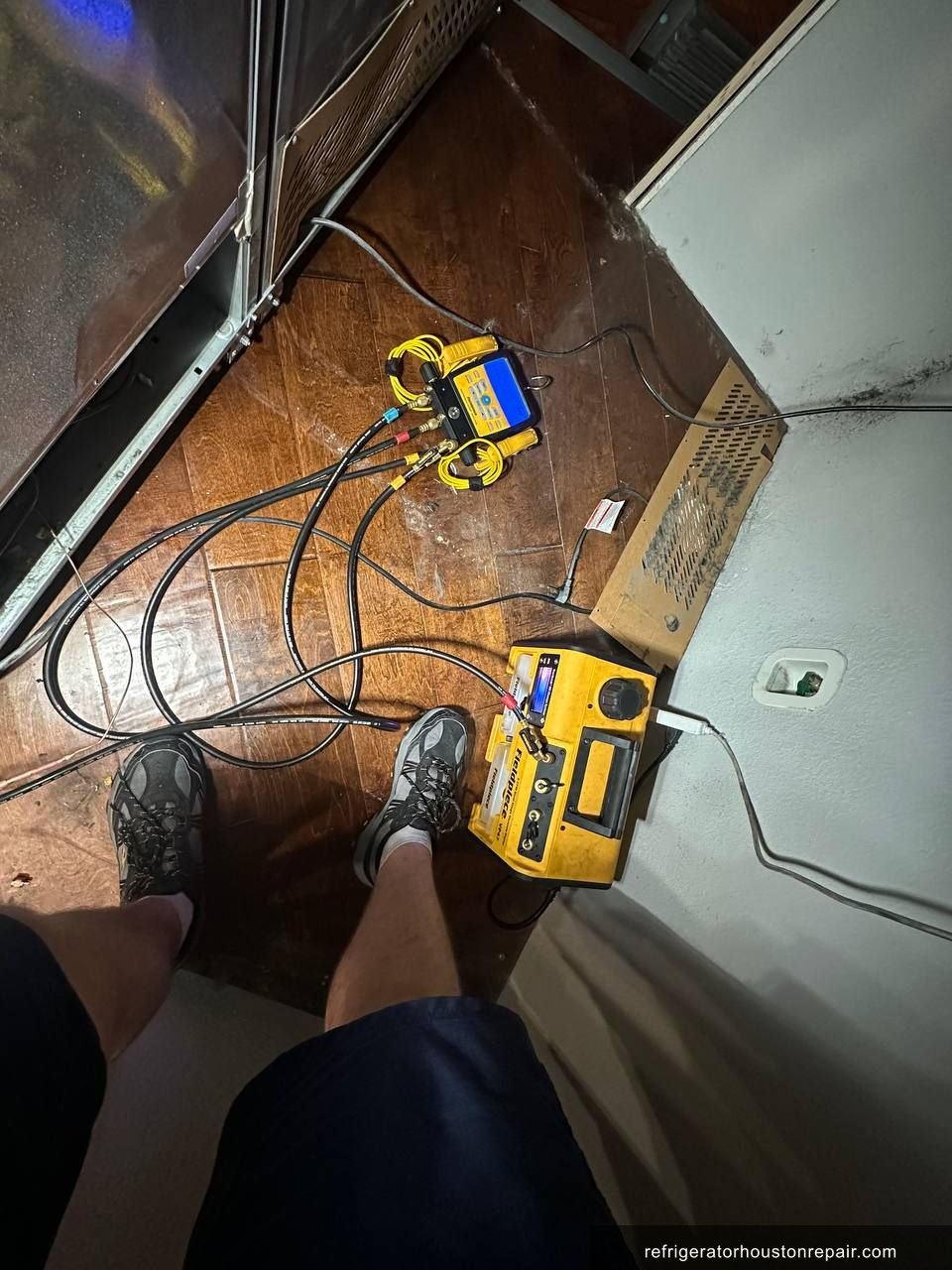

- ✓Connected the Fieldpiece vacuum pump to the installed access valve and pulled the system down to below 300 microns, holding vacuum for 30 minutes to confirm zero leak-up and complete moisture removal.
- ✓Performed a standing vacuum decay test — system held at 285 microns with no rise over the monitoring period, confirming a leak-free sealed system.

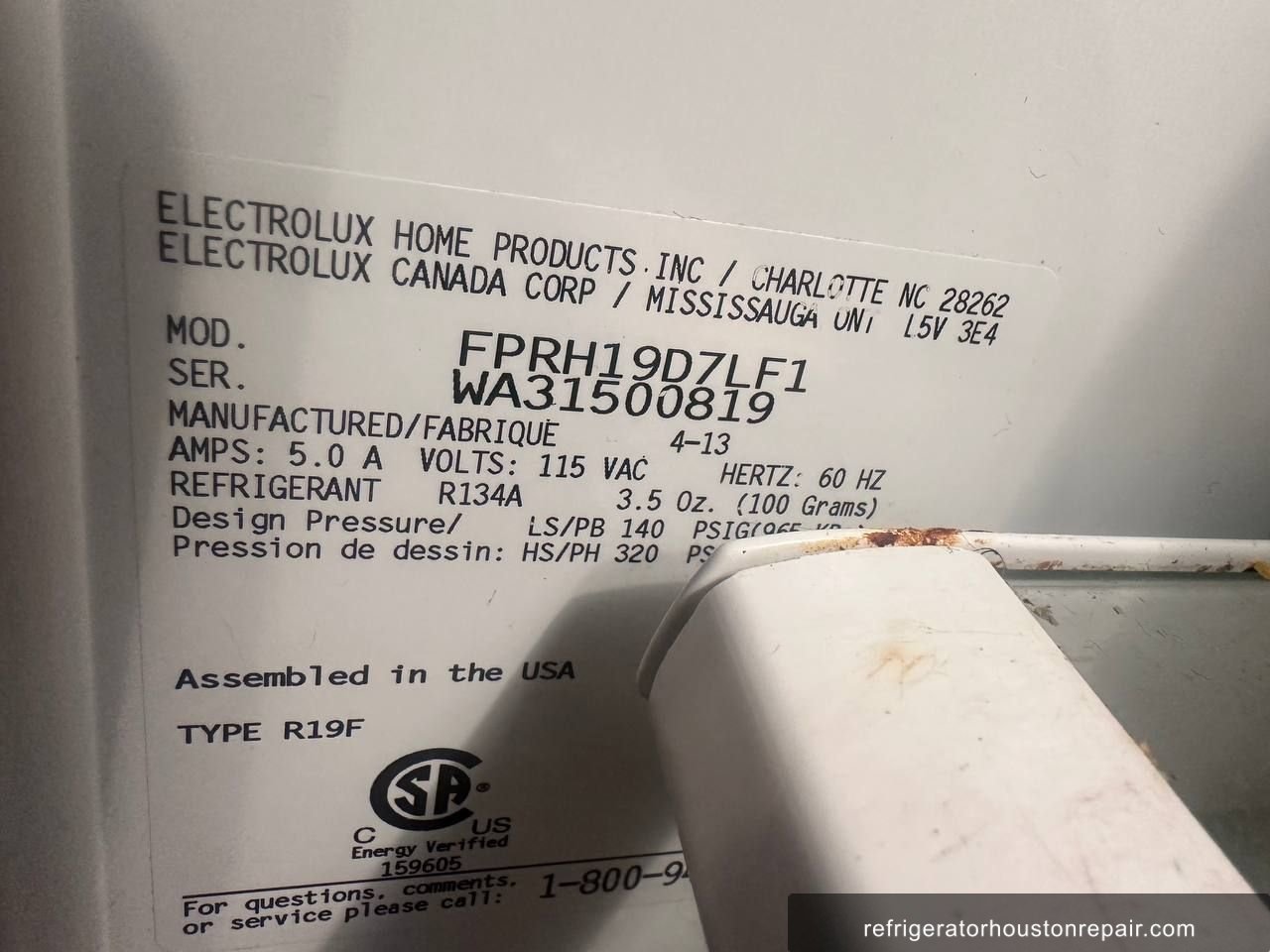

- ✓Charged the system by weight using a calibrated refrigerant scale, introducing exactly 3.5 oz (100 grams) of R-134a per the confirmed nameplate specification on the Electrolux FPRH19DZ1E1 label.
- ✓Restored all interior panels, reconnected the ice maker assembly, powered the unit on, and monitored compressor amperage draw and suction-side pressure to confirm normal operating parameters. Verified freezer and fresh food compartment temperatures reached target range within the expected pull-down window.
✓ Result
Following the complete evaporator replacement, filter-drier swap, access valve installation, deep evacuation, and precision R-134a recharge to the nameplate specification of 3.5 oz, the Electrolux FPRH19DZ1E1 was restored to full operation. The freezer compartment reached 0°F and the fresh food section stabilized at 37°F within approximately four hours of startup. Compressor amp draw was within the normal operating range for the Embraco EGZS 60HLP. The homeowner in Pearland, TX was relieved to have their refrigerator back without the cost of replacement. A 90-day labor warranty was provided on the sealed system repair.
💡 Technician Notes
On Electrolux and Frigidaire-platform refrigerators from this era, the defrost heater is mounted in very close proximity to the lower evaporator tubes. Over years of thermal cycling, the heater can sag or shift slightly and make intermittent contact with the aluminum tubing. Aluminum is highly susceptible to thermal erosion, and once contact is established, a perforation can develop over months — often with no obvious warning until refrigerant is completely gone. Owners should watch for gradually worsening cooling performance, unusually long or frequent defrost cycles, or a faint chemical odor near the back of the freezer. Annual inspection of the evaporator compartment — particularly checking that the defrost heater is properly positioned and not resting against the coil — can prevent this failure entirely. If your Electrolux refrigerator stops cooling suddenly after years of normal operation, a sealed system leak is a primary suspect and should be assessed promptly.
Frequently Asked Questions
Why did the defrost heater burn a hole in my Electrolux refrigerator evaporator coil?
On Electrolux FPRH19DZ1E1 and similar Frigidaire-platform models, the defrost heater sits very close to the aluminum evaporator tubes. Over time, the heater element can sag and make contact with the tubing. Sustained heat from repeated defrost cycles gradually erodes the soft aluminum until a pinhole breach forms, releasing all refrigerant and stopping cooling completely.
How much does it cost to replace an evaporator coil on an Electrolux refrigerator and recharge R134a?
An evaporator replacement on an Electrolux FPRH19DZ1E1 including parts, labor, filter-drier, access valve installation, evacuation, and R-134a recharge typically ranges from $450 to $750 depending on parts availability and labor rates in Pearland, TX. This is significantly less than replacing a comparable refrigerator, making repair the sensible choice for a unit in otherwise good condition.
What are the warning signs that my Electrolux refrigerator evaporator coil is developing a refrigerant leak?
Early warning signs include gradually rising temperatures that the unit struggles to recover, more frequent or longer-running compressor cycles, reduced or no frost on the evaporator coil, and occasionally a faint chemical smell near the freezer. On Electrolux models with Embraco compressors, a sudden and complete loss of cooling — with the compressor still running — is a strong indicator of a sealed system breach.
Is it worth repairing an Electrolux FPRH19DZ1E1 refrigerator from 2013 with an evaporator leak?
Yes, in most cases. If the compressor is functioning normally — as with this Embraco EGZS 60HLP unit — and the failure is isolated to the evaporator coil, a sealed system repair is cost-effective. A 2013 Electrolux counter-depth French door model in good cosmetic condition has significant remaining useful life. The repair cost is typically 30–50% of replacement cost for a comparable unit.
Does the Embraco EGZS 60HLP compressor in my Electrolux refrigerator have a service port for refrigerant charging?
No. The Embraco EGZS 60HLP compressor used in the Electrolux FPRH19DZ1E1 does not have a factory service port. To properly service the refrigerant system, a technician must braze a Schrader-type access valve into the process tube on the suction side. This is a standard procedure for sealed-system repairs on this platform and allows for proper evacuation and weighed refrigerant charging.
Repair Summary
- Brand
- Electrolux
- Model
- FPRH19DZ1E1
- Repair Type
- Sealed System Repair — Evaporator Replacement & Refrigerant Recharge
- Refrigerant
- R-134a
- Root Cause
- Defrost heater burned through aluminum evaporator tubing
- Parts Replaced
- ✓Evaporator coil assembly — aluminum fin-and-tube type, OEM-specification replacement compatible with Electrolux FPRH19DZ1E1
- ✓Filter-drier — inline biflow/unidirectional drier rated for R-134a systems, replaced due to atmospheric exposure
- ✓Schrader-type access valve (service valve) — brazed into Embraco EGZS 60HLP low-side process tube, required for sealed system access on this compressor
- ✓R-134a refrigerant — 3.5 oz / 100 grams, weighed charge per nameplate specification
- Location
- Pearland, TX 77584
- Status
- ✓ Completed
