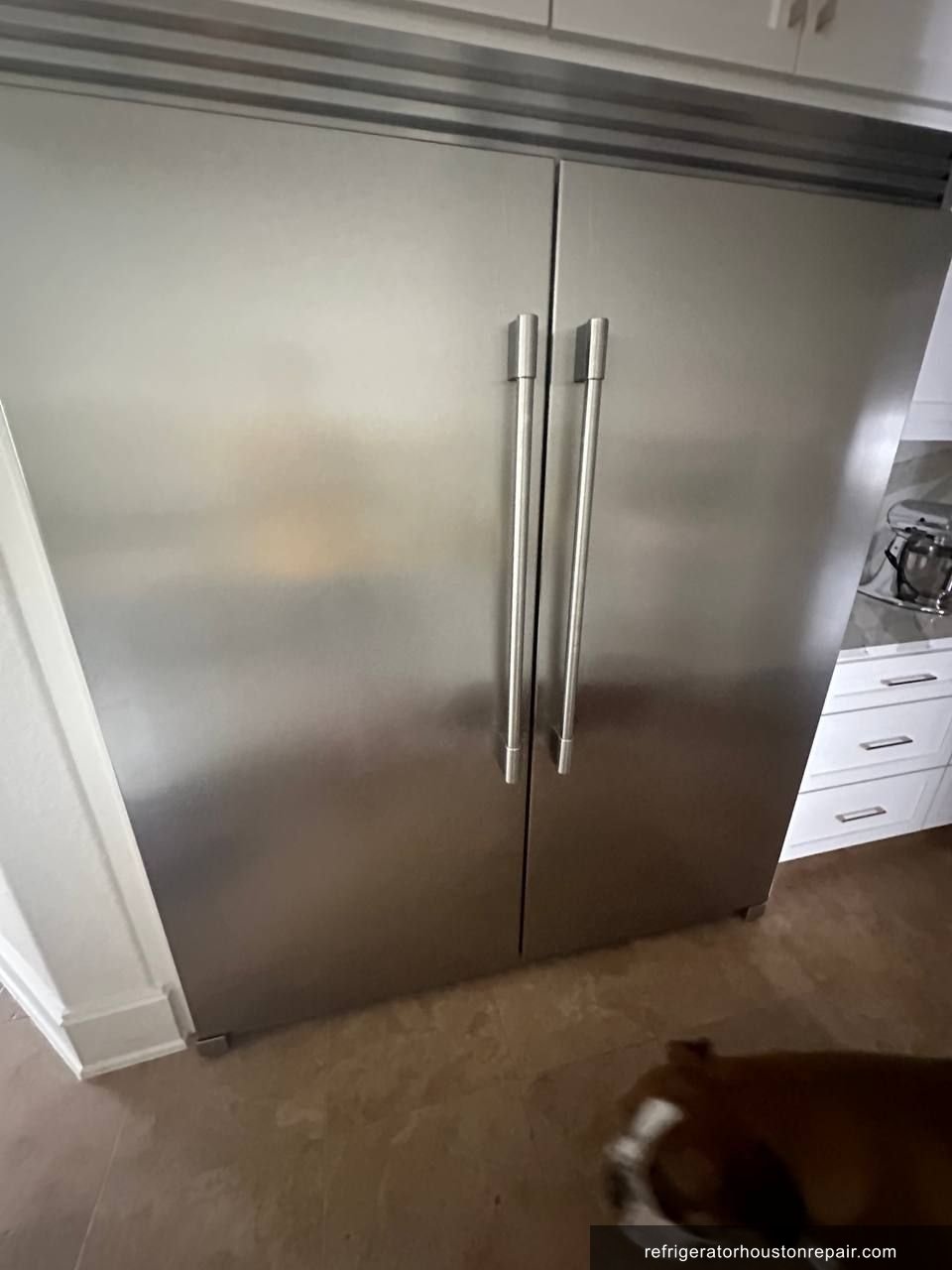

Electrolux FPFU19F8WF2: Defrost Failure and Unresponsive Control Panel in Friendswood, TX
📞 Call (346) 512-3688🔧 Performed by Alex
The Problem
- •Frost building up heavily along the back wall of the freezer compartment over several days

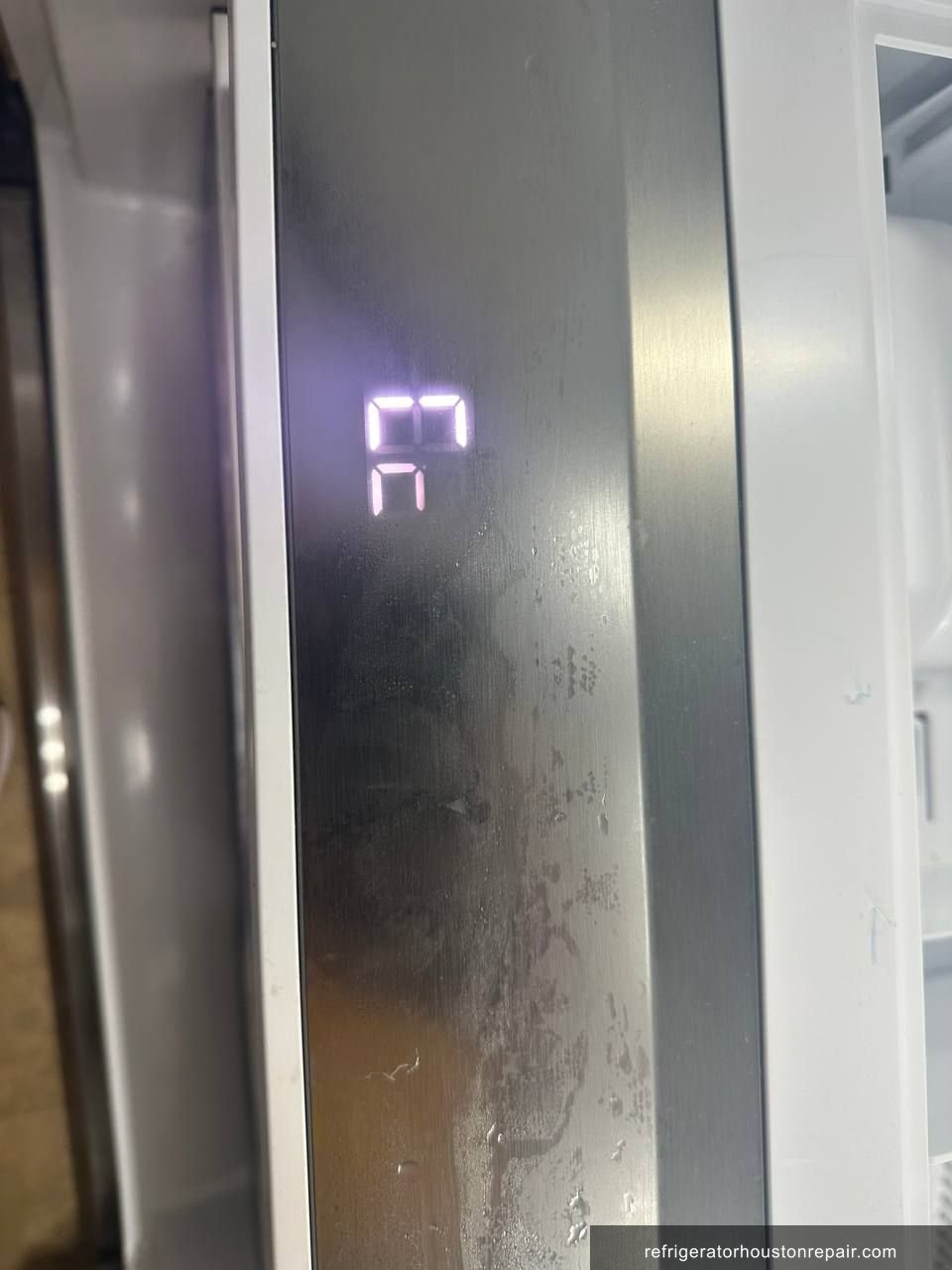

- •Display panel buttons not responding to touch input, leaving the unit stuck on last-set settings
- •Freezer temperature drifting warmer as frost blocked airflow across the evaporator coils
- •No defrost cycle initiating, confirmed by checking the defrost timer log stored in the board memory
🔍 Diagnosis

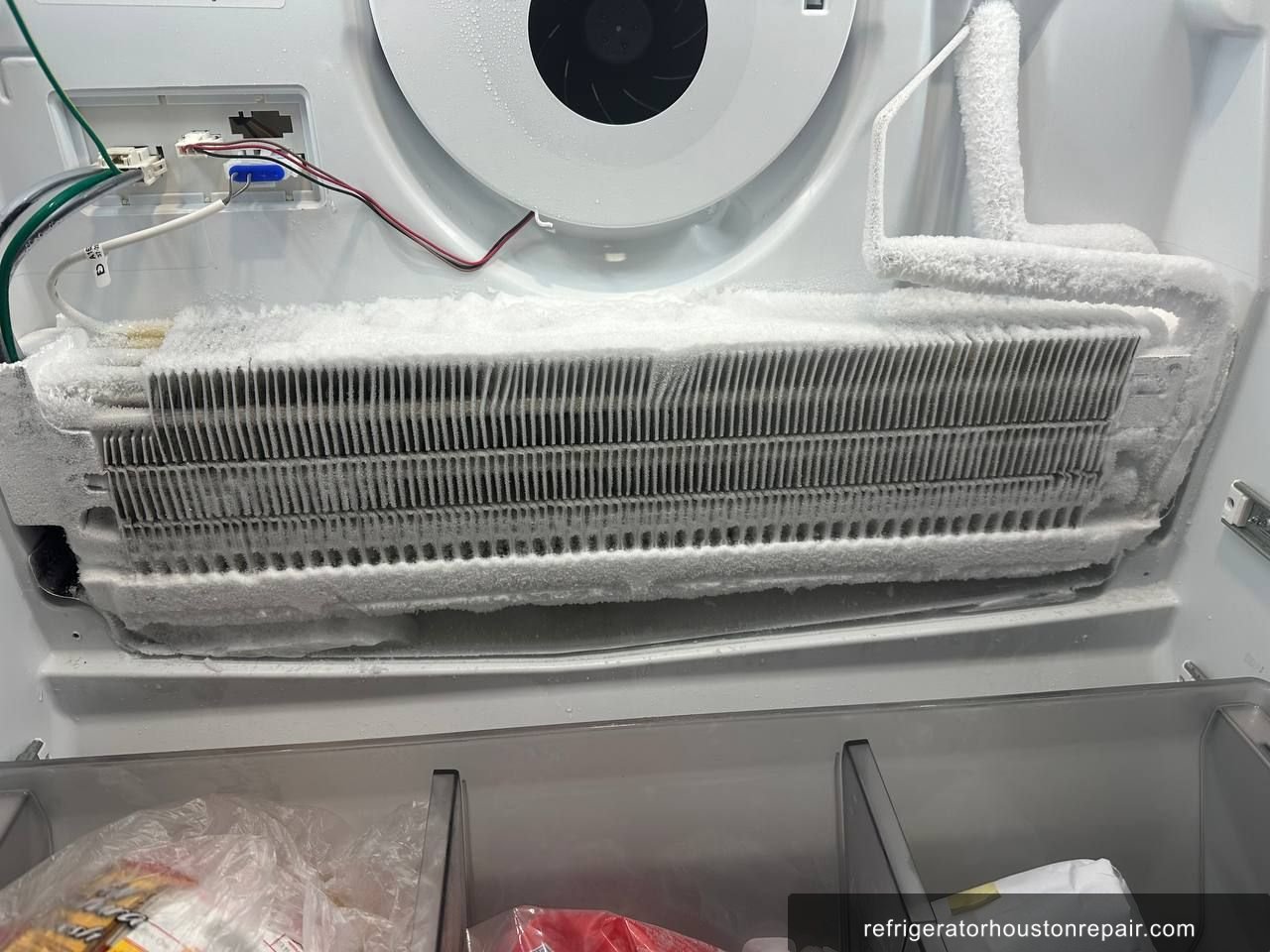

When I arrived at the Friendswood home, the Electrolux FPFU19F8WF2 had a thick frost slab across the entire rear evaporator wall, roughly half an inch deep. The freezer was reading 18°F instead of the target 0°F, and the fresh food section had climbed to 44°F because airflow was restricted by the frost accumulation. The control panel was completely unresponsive. Pressing any button produced no feedback, no beep, no screen change. I pulled the diagnostic readout from the board and found the defrost cycle had not fired in over 96 hours. On the Electrolux FPFU19F8WF2, the main control board manages both the defrost timing sequence and the interface communication to the touch panel. When this board begins to fail, it often loses both functions simultaneously because the panel draws its logic signal from the same board processor. I tested the panel ribbon connector with a multimeter and got inconsistent continuity readings, between 0.3 and 1.8 ohms where it should be a stable near-zero reading. I then inspected the connector pins on the panel harness and found visible green oxidation on four of the eight pins. The board itself showed a burned trace near the defrost relay output. That confirmed the board failure was primary, and the oxidized contacts on the panel were a contributing secondary issue worsened by Houston-area humidity cycling.
🔧 The Repair
- ✓Step 1: Unplugged the unit and removed the interior rear freezer panel to access the evaporator coils and confirm frost accumulation depth, measured at approximately 0.5 inches across the evaporator face.
- ✓Step 2: Used a heat gun on low setting to manually defrost the evaporator coils, removing ice buildup completely before beginning any electrical work, then dried the compartment with clean shop towels.
- ✓Step 3: Accessed the main control board housing at the top rear of the unit, disconnected all wiring harnesses, and photographed connector positions before removal.
- ✓Step 4: Confirmed board failure by identifying a burned trace at the defrost relay output and cross-referencing with the 96-hour defrost gap logged in the board memory.
- ✓Step 5: Installed the OEM replacement main control board compatible with the FPFU19F8WF2, seated all harness connectors in sequence, and secured the board housing.
- ✓Step 6: Inspected all eight pins on the control panel ribbon connector, found green oxidation on four pins, and cleaned each pin individually using an electrical contact cleaner and a fine non-abrasive pick.
- ✓Step 7: Applied an anti-oxidation dielectric compound specifically rated for low-voltage signal connectors to all eight panel pins and the corresponding board-side contacts, then reseated the ribbon connector and secured it with its locking tab.
- ✓Step 8: Powered the unit, confirmed the display panel responded immediately to all button inputs, initiated a manual defrost cycle to verify the board triggered the defrost heater correctly, then allowed a 2-hour runtime. Final readings: freezer at 1°F, fresh food section at 37°F.
✓ Result
After the 2-hour runtime, the FPFU19F8WF2 was holding 1°F in the freezer and 37°F in the fresh food section. The defrost cycle fired on schedule at the expected interval, and every button on the control panel responded cleanly. The homeowner in Friendswood confirmed the unit had been struggling for about two weeks before calling. The food inside was still safe. They were relieved the repair did not require a refrigerant system repair, given the R-600a charge on this model. A 90-day labor warranty was issued on the board replacement and contact treatment.
💡 Technician Notes
Electrolux French door and upright freezer models that run on R-600a, including the FPFU19F8WF2, are sensitive to Houston's humidity swings. The combination of warm humid air and frequent door opening accelerates oxidation on the low-voltage signal connectors behind the control panel. If you notice your Electrolux panel becoming intermittently slow to respond, that is the earliest sign of oxidation building on those pins, and it often shows up months before a full board failure. Cleaning those contacts early, before the board trace burns, saves the cost of a full board replacement. Do not wait for a complete panel freeze-up. If the display stops responding entirely and frost is visible through the freezer door gasket area, call for service the same day. Letting frost accumulate past 48 hours puts stress on the compressor as it works against restricted airflow, and on an R-600a system, compressor damage is expensive to address.
Frequently Asked Questions
Why did my Electrolux FPFU19F8WF2 stop defrosting and the control panel stopped working at the same time?
On the FPFU19F8WF2, the main control board runs both the defrost timing cycle and the logic signal to the touch panel. When the defrost relay output on the board burns out, it often kills the panel communication at the same time. I see this failure pattern on Electrolux upright freezers in Houston specifically because humidity accelerates oxidation on the panel connector pins, which puts extra load on the board over time.
How much does it cost to replace the control board on an Electrolux FPFU19F8WF2 in Friendswood TX?
Board replacement on the FPFU19F8WF2 in the Houston area typically runs between $280 and $420 depending on parts availability and whether additional work like contact cleaning is needed. The job takes 1.5 to 2.5 hours on site. If the defrost heater or sensor also failed alongside the board, expect the total to be higher. Getting a diagnostic first gives you an accurate number before committing.
What happens if I ignore frost buildup in my Electrolux freezer and don't fix the defrost problem?
Frost blocks airflow across the evaporator coils, forcing the compressor to run longer and harder to maintain temperature. On an R-600a unit like the FPFU19F8WF2, prolonged compressor overwork raises the risk of sealed system damage. Within a week of full defrost failure, freezer temps start climbing above safe range. Food spoilage follows quickly, and compressor repair on R-600a systems costs significantly more than a control board replacement.
Is it worth repairing an Electrolux FPFU19F8WF2 with a failed control board or should I replace the unit?
The FPFU19F8WF2 is a well-built upright freezer and a control board failure is a contained repair. If the sealed system is intact and the compressor is running, replacing the board makes sense financially. A new comparable Electrolux upright freezer runs $1,200 or more. A board replacement at $300 to $420 is a straightforward value decision. I recommend repair unless the unit has multiple simultaneous failures or is over 12 years old.
What is the anti-oxidation compound used on the Electrolux control panel connector and does it really help?
The compound I applied is a dielectric anti-oxidation treatment rated for low-voltage signal connectors. It forms a barrier that prevents moisture from reaching the metal pin surfaces. In Houston's humidity, bare connector pins on Electrolux panel harnesses oxidize within a year or two. The compound extends the life of the repair significantly. It is not a conductivity enhancer. The pins must be cleaned first, then the compound is applied to the clean metal surface.
Repair Summary
- Brand
- Electrolux
- Model
- FPFU19F8WF2
- Repair Type
- Control Board Replacement and Oxidized Contact Restoration
- Refrigerant
- R-600a
- Root Cause
- Failed control board and oxidized panel contacts disrupting defrost cycle
- Parts Replaced
- ✓Main control board, OEM replacement for Electrolux FPFU19F8WF2 (manages defrost sequencing and panel communication logic)
- ✓Anti-oxidation dielectric compound applied to control panel ribbon connector pins (non-part replacement, chemical treatment)
- Location
- Friendswood, TX 77546
- Status
- ✓ Completed
