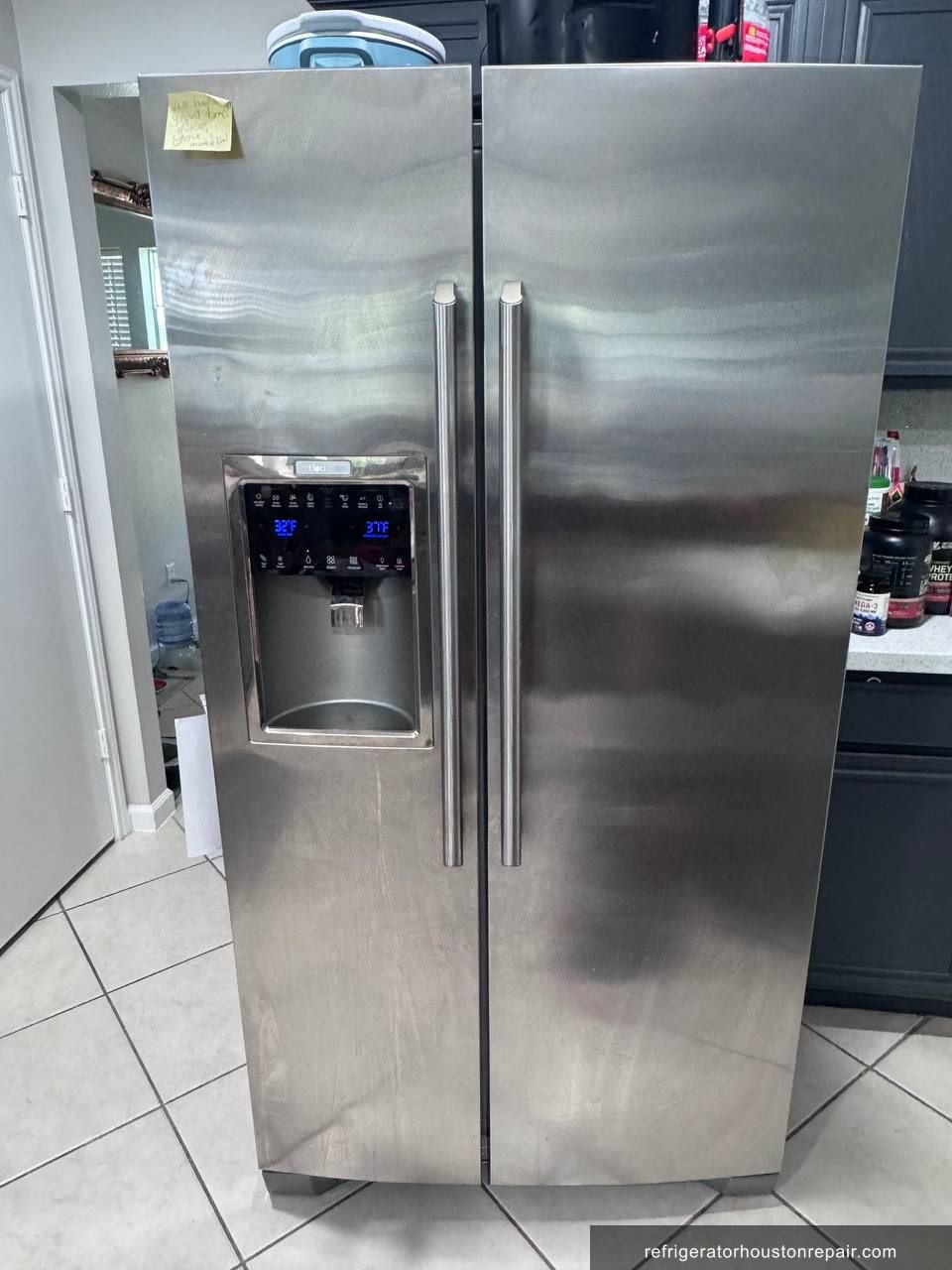

Electrolux EI26SS30JS6A: Refrigerant Leak from Damaged Evaporator Coil in Katy, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Freezer holding 35 to 37°F instead of the set temperature of 0°F, ongoing since March 2026
- •Heavy frost and snow buildup visible on the rear wall of the freezer compartment, with ice pushing outward past the back panel
- •Evaporator coil frosted only halfway across its surface instead of uniformly end to end
- •Multiple DIY part replacements attempted: defrost thermostat, heating element, and main control board, with no improvement
🔍 Diagnosis
When I arrived at the home in Katy 77449, the freezer on this Electrolux EI26SS30JS6A had been running at 35 to 37°F for roughly four months. The customer had already replaced the defrost thermostat, the heating element, and the main control board on his own based on advice from family members who work in electrical and mechanical trades. None of it fixed the problem. When I pulled the rear freezer panel, the picture became clear. The evaporator coil was frosted on only about half of its surface. On a properly charged R-600a system, the entire coil should be uniformly coated. Partial frosting like this is a textbook indicator of refrigerant loss. I connected my manifold gauges and confirmed the system was running significantly below the operating pressure range for R-600a. The electronic leak detector picked up a trace signal near the lower section of the aluminum evaporator coil. Based on the service history the customer described, I believe the micro-leak opened during the DIY heating element swap. The heating element on the EI26SS30JS6A runs very close to the aluminum evaporator fins. Removing it without first inspecting clearance and contact points risks nicking or stressing the tubing. A micro-leak in an aluminum evaporator on an R-600a system is not repairable in place. The only path forward is a full sealed system overhaul: evacuate, replace the evaporator, recharge with the OEM-specified 42g of R-600a, and pressure test.
🔧 The Repair
- ✓Step 1: Removed the freezer rear panel and inner liner to expose the evaporator coil assembly on the Electrolux EI26SS30JS6A.
- ✓Step 2: Connected manifold gauges to the process port and recorded system pressure well below the normal low-side operating range for R-600a, confirming refrigerant loss.
- ✓Step 3: Used an electronic refrigerant leak detector to pinpoint the leak source at the lower aluminum evaporator coil, consistent with physical contact damage during the previous DIY heating element removal.

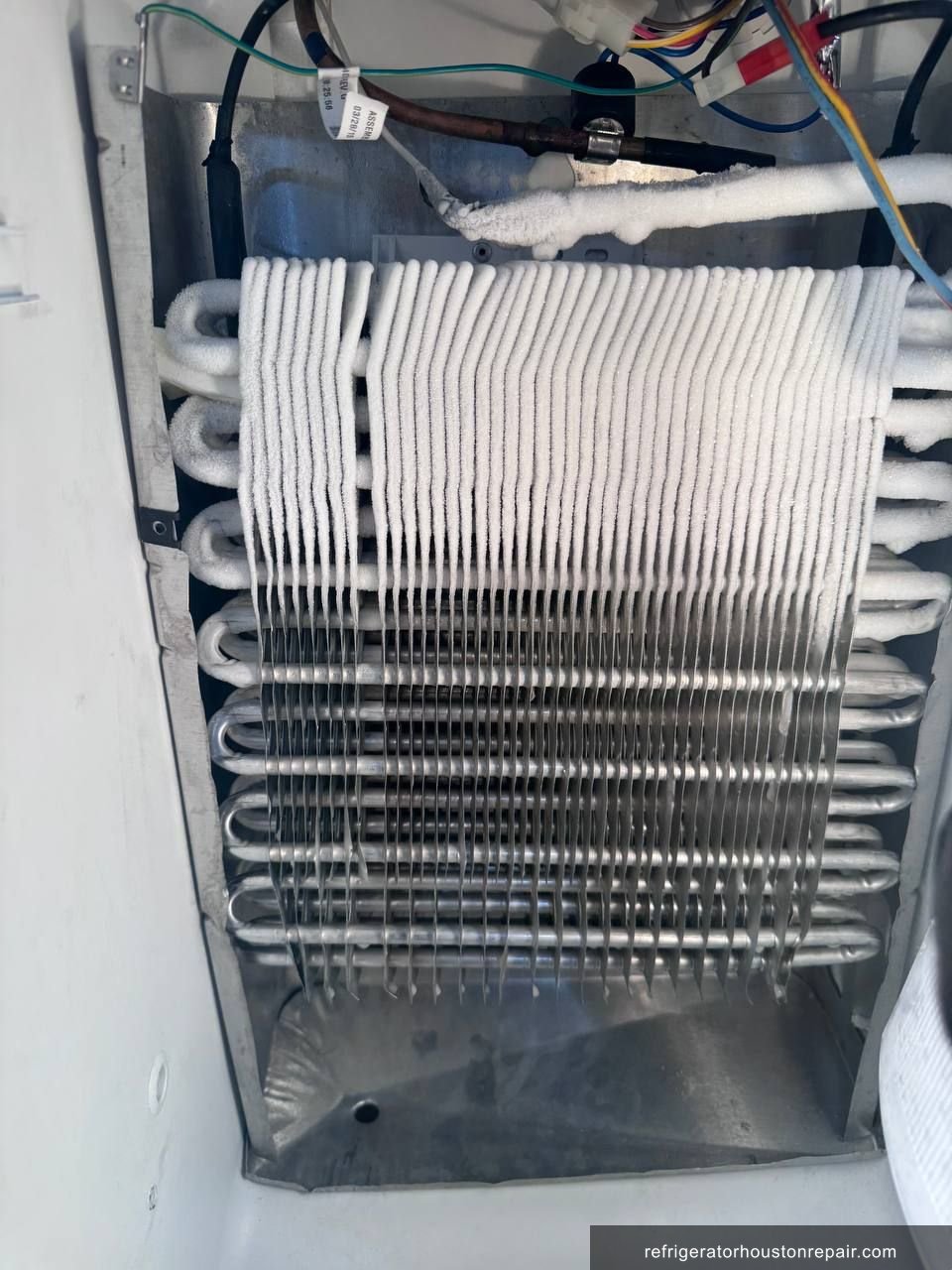

- ✓Step 4: Photographed the evaporator showing the partial frost pattern covering roughly half the coil surface, documented for customer review and repair authorization.
- ✓Step 5: Recovered the remaining R-600a refrigerant from the system using a recovery machine rated for flammable refrigerants, per EPA 608 protocol.
- ✓Step 6: Presented the customer with a sealed system repair estimate of approximately $800, covering evaporator replacement, system evacuation, OEM-spec recharge of 42g R-600a, and full reassembly.
- ✓Step 7: Customer placed the repair on hold pending a decision on whether to proceed given the appliance age of approximately 10 years and prior out-of-pocket parts spending.
- ✓Step 8: Left system in a safely evacuated state with all panels secured. Final operational temperatures of 37°F in the fresh food section and 0°F in the freezer would be confirmed after a full 2-hour runtime post-repair once the customer authorizes the sealed system work.
✓ Result
The diagnostic visit confirmed a refrigerant micro-leak in the aluminum evaporator coil, almost certainly caused during a DIY heating element replacement earlier this year. The freezer has been unable to reach its set temperature since March 2026. A sealed system overhaul priced at approximately $800 was presented to the customer. As of the visit date in July 2026, the customer is weighing the repair cost against the appliance age and the money already spent on parts that did not resolve the problem. The unit is currently not cooling.
💡 Technician Notes
There are two things Electrolux side-by-side owners in Katy need to understand about the EI26SS30JS6A. First, R-600a is a flammable refrigerant. It requires specialized recovery equipment and a technician certified to handle it. You cannot legally or safely recover it with standard HVAC manifold equipment. Second, the heating element on this model sits within a few millimeters of the aluminum evaporator fins. Aluminum evaporators do not bend or flex the way copper coils do. Any lateral pressure during removal, even minor contact, is enough to open a micro-leak that will not show up immediately but will drain the system over weeks. The early warning sign for this specific failure is partial frosting on the evaporator, visible only after removing the rear freezer panel. If you see frost on only one side or the bottom half of the coil, the system is already losing charge. Do not replace parts based on symptom guessing. A proper manifold pressure test takes under 15 minutes and tells you whether the sealed system is intact before you spend money on anything else.
Frequently Asked Questions
Why is my Electrolux EI26SS30JS6A freezer stuck at 35 degrees even after I replaced the defrost thermostat?
A defrost thermostat failure causes heavy frost buildup, but the freezer temperature usually stays cold enough. When the freezer cannot get below 35°F regardless of defrost parts, the sealed system is suspect. On the EI26SS30JS6A, partial evaporator frosting combined with a warm freezer almost always points to R-600a refrigerant loss, not a defrost component problem.
How much does a sealed system repair cost on an Electrolux side-by-side refrigerator in Katy TX?
A sealed system overhaul on an Electrolux EI26SS30JS6A in the Katy area runs approximately $750 to $900 depending on parts needed. That price covers evaporator replacement, refrigerant recovery, system evacuation, OEM R-600a recharge at 42g, and reassembly. R-600a systems cost more to service than R-134a units because of the specialized flammable refrigerant equipment required.
What happens if I keep running my Electrolux refrigerator after a refrigerant leak is found?
Running the Electrolux EI26SS30JS6A with low R-600a charge stresses the compressor because it cycles continuously without reaching target temperatures. Over weeks or months, that sustained overwork shortens compressor life significantly. What starts as an $800 evaporator repair turns into a $1,200 or higher compressor replacement. The sooner the leak is addressed, the better the chances the compressor survives intact.
Is it worth repairing a 10-year-old Electrolux EI26SS30JS6A or should I just replace it?
A 10-year-old Electrolux side-by-side with an intact compressor is worth repairing if the sealed system overhaul cost stays below 50 percent of replacement value. The EI26SS30JS6A was a mid-to-upper tier unit and replacement cost new would be $1,800 or more. At $800 for the sealed system with a working compressor, repair is the smarter financial decision, provided no other major components need replacement at the same time.
Can a DIY heating element replacement really cause a refrigerant leak in an Electrolux refrigerator?
Yes, and it happens more often than people expect. On the EI26SS30JS6A, the defrost heating element is routed directly adjacent to the aluminum evaporator fins. Aluminum tubing is far less forgiving than copper. A small amount of lateral pressure or incidental contact during removal is enough to crack or stress the tubing wall. The micro-leak that results may not show up for weeks but will slowly drain the R-600a charge until the freezer stops cooling.
Repair Summary
- Brand
- Electrolux
- Model
- EI26SS30JS6A
- Repair Type
- Sealed System Diagnosis / Evaporator Micro-Leak Assessment
- Refrigerant
- R-600a
- Root Cause
- DIY heating element replacement caused aluminum evaporator micro-leak
- Parts Replaced
- ✓No parts replaced at this visit. Repair is pending customer authorization.
- ✓Parts required for sealed system overhaul: aluminum evaporator coil assembly (Electrolux OEM for EI26SS30JS6A)
- ✓R-600a refrigerant, 42g per OEM label specification
- ✓Filter drier (replacement required any time the sealed system is opened on R-600a units)
- Location
- Katy, TX 77449
- Status
- ✓ Completed
