Dacor DYF42SBIWR: Ice Maker Stops Mid-Cycle in Richmond, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Ice maker produces ice inconsistently, sometimes working and sometimes not
- •Ice maker drum rotates partially during test cycle then stops without completing full rotation
- •Water inlet valve never opens during harvest cycle, leaving mold cavities unfilled
- •Frozen water locked inside several ice mold cells, indicating incomplete prior harvest cycles
- •Ice maker zone measuring 12 degrees Fahrenheit, warmer than the lower freezer sections
🔍 Diagnosis
When I arrived at the Richmond address in zip 77406, the customer described an ice maker that worked on and off for several months before stopping almost entirely. Before touching anything, I took temperature readings across the freezer compartment. The lower section read 2 degrees Fahrenheit, the middle section read 8 degrees, and the upper zone where the ice maker sits read 12 degrees. Those numbers told me the sealed system was functioning, but the temperature gradient was steeper than it should be for this Dacor DYF42SBIWR cabinet layout. I pulled the ice bin. There were a few loose cubes inside, which confirmed the unit had produced ice at some point recently. I pressed the test button on the ice maker module. The drum started rotating, made it about two-thirds of the way through the harvest cycle, and stopped completely. The water valve never fired. No water entered the mold. Inside the mold cells I found frozen water that should have ejected during a previous cycle. That ice should have thawed during the heating phase of the harvest cycle before the next fill. The fact that it was still there told me the internal heating element was not receiving a proper signal from the ice maker control module. The water valve not activating confirmed the module was also failing to send the fill signal at the end of the cycle. On this type of Dacor built-in ice maker, after three to four years of operation, the control module inside the assembly degrades and loses the ability to sequence the heater and valve reliably. The entire ice maker assembly needs replacement as a unit.
🔧 The Repair
- ✓Step 1: Took ambient temperature readings across three zones of the Dacor DYF42SBIWR freezer compartment using a digital thermometer. Lower zone: 2 degrees Fahrenheit. Middle zone: 8 degrees Fahrenheit. Upper zone near ice maker: 12 degrees Fahrenheit.
- ✓Step 2: Removed the ice storage bin and inspected contents. Found a small quantity of loose ice, confirming intermittent prior production.
- ✓Step 3: Pressed the test button on the ice maker module and observed the harvest cycle. Drum rotated approximately 240 degrees and stopped. Water valve did not open. Cycle did not complete.
- ✓Step 4: Inspected ice mold cells and found several cavities with frozen water locked in place, indicating the internal heating element had not activated correctly during prior harvest attempts.
- ✓Step 5: Confirmed that the ice maker control module was failing to send the correct signals to both the internal heating element and the water inlet valve, making isolated component repair impractical on this assembly.
- ✓Step 6: Photographed the ice maker assembly, the mold cells with frozen water, the ice bin, and the freezer temperature readings across all three zones for the service record.
- ✓Step 7: Quoted the customer approximately $700 for a replacement Dacor ice maker assembly, installation labor, and post-installation calibration. Customer requested time to consider the estimate.
- ✓Step 8: Full operational verification pending customer approval. Based on the diagnostic findings, replacing the ice maker assembly is the correct path forward. Once installed, target temperatures at the ice maker zone should stabilize at or below 8 degrees Fahrenheit for reliable production.
✓ Result
This visit was a diagnostic call. The ice maker failure on this Dacor DYF42SBIWR in Richmond was confirmed: the control module inside the assembly is no longer sequencing the heating element and water valve correctly. A full replacement of the ice maker assembly is the correct repair. The customer in the 77406 area was given a clear price and explanation before making any decision. No guesswork was involved in the diagnosis, and the test cycle results left no ambiguity about what needs to happen next.
💡 Technician Notes
Dacor built-in refrigerators like the DYF42SBIWR use an ice maker assembly where the control module, heating element, and harvest mechanism are all integrated into one unit. You cannot replace just the heater or just the board on this design. When one function fails, the whole assembly goes. The earliest warning sign on this specific failure mode is inconsistency. The ice maker does not fail all at once. It starts skipping cycles, producing fewer cubes than normal, or leaving partial cubes in the bin. If you notice your Dacor ice maker output dropping over two to three weeks, that pattern almost always means the module is degrading. One thing that extends ice maker life on this model is keeping the freezer door seals clean and tight. A warm air leak raises the ice maker zone temperature, and this assembly runs best below 8 degrees Fahrenheit. At 12 degrees or above, cycle reliability drops fast. Do not wait on this repair. Frozen water left in the mold cells puts mechanical stress on the ejector arms during every failed cycle attempt.
Frequently Asked Questions
Why does my Dacor DYF42SBIWR ice maker start and then stop before finishing a cycle?
On the Dacor DYF42SBIWR, the ice maker module controls the harvest heater, drum rotation, and water valve in sequence. When the module degrades, it loses the ability to complete that sequence. The drum starts moving, the heater never fires, the water never fills, and the cycle stops mid-rotation. This is a known failure pattern on this style of Dacor built-in ice maker after three to four years of use.
How much does it cost to replace an ice maker on a Dacor built-in refrigerator in Richmond, TX?
On a Dacor DYF42SBIWR, the ice maker assembly replacement runs approximately $700, which covers the OEM replacement module, installation labor, and calibration. The Dacor assembly is a single integrated unit, so you are replacing the entire mechanism rather than individual parts. Pricing varies by parts availability and access difficulty inside the built-in cabinet.
What happens if I ignore a failing ice maker in my Dacor built-in refrigerator?
Leaving a failing Dacor ice maker in place causes frozen water to build up inside the mold cells. Every time the drum attempts to cycle, it forces the ejector arms against that frozen water. Over time this cracks the ejector mechanism and adds stress to the drive motor. What starts as a module failure becomes a more expensive repair involving additional mechanical damage inside the assembly.
Is it worth repairing the ice maker on a Dacor DYF42SBIWR or should I replace the whole refrigerator?
The DYF42SBIWR is a high-end built-in unit with a long service life when maintained properly. An ice maker failure at three to four years is a normal wear item on this model, not a sign that the refrigerator itself is failing. The sealed system on this unit uses R-134a and typically lasts well over a decade. Repairing the ice maker makes sense as long as the rest of the unit is functioning correctly.
Why is the ice maker zone in my Dacor freezer warmer than the bottom of the freezer?
In the Dacor DYF42SBIWR, cold air flows from the bottom of the freezer upward. The ice maker sits at the top of the compartment, so it naturally sees slightly warmer air than the lower sections. The acceptable spread is small. When the ice maker zone reads above 10 degrees Fahrenheit, production reliability drops. A worn door gasket or a partially blocked air duct behind the freezer liner can push that top-zone temperature higher than the ice maker module is designed to handle.
Repair Summary
- Brand
- Dacor
- Model
- DYF42SBIWR
- Repair Type
- Ice Maker Assembly Diagnosis and Replacement Estimate
- Refrigerant
- R-134a
- Root Cause
- Ice maker module failing to signal heating element and water valve
- Parts Replaced
- ✓No parts replaced at this visit. Diagnosed: Dacor ice maker assembly (OEM module required for DYF42SBIWR, includes integrated heating element and harvest control board)
- Location
- Richmond, TX 77406
- Status
- ✓ Completed
Service Area
We provide refrigerator repair service in Richmond and surrounding areas.
View Richmond Service Area →📸 Repair Photos

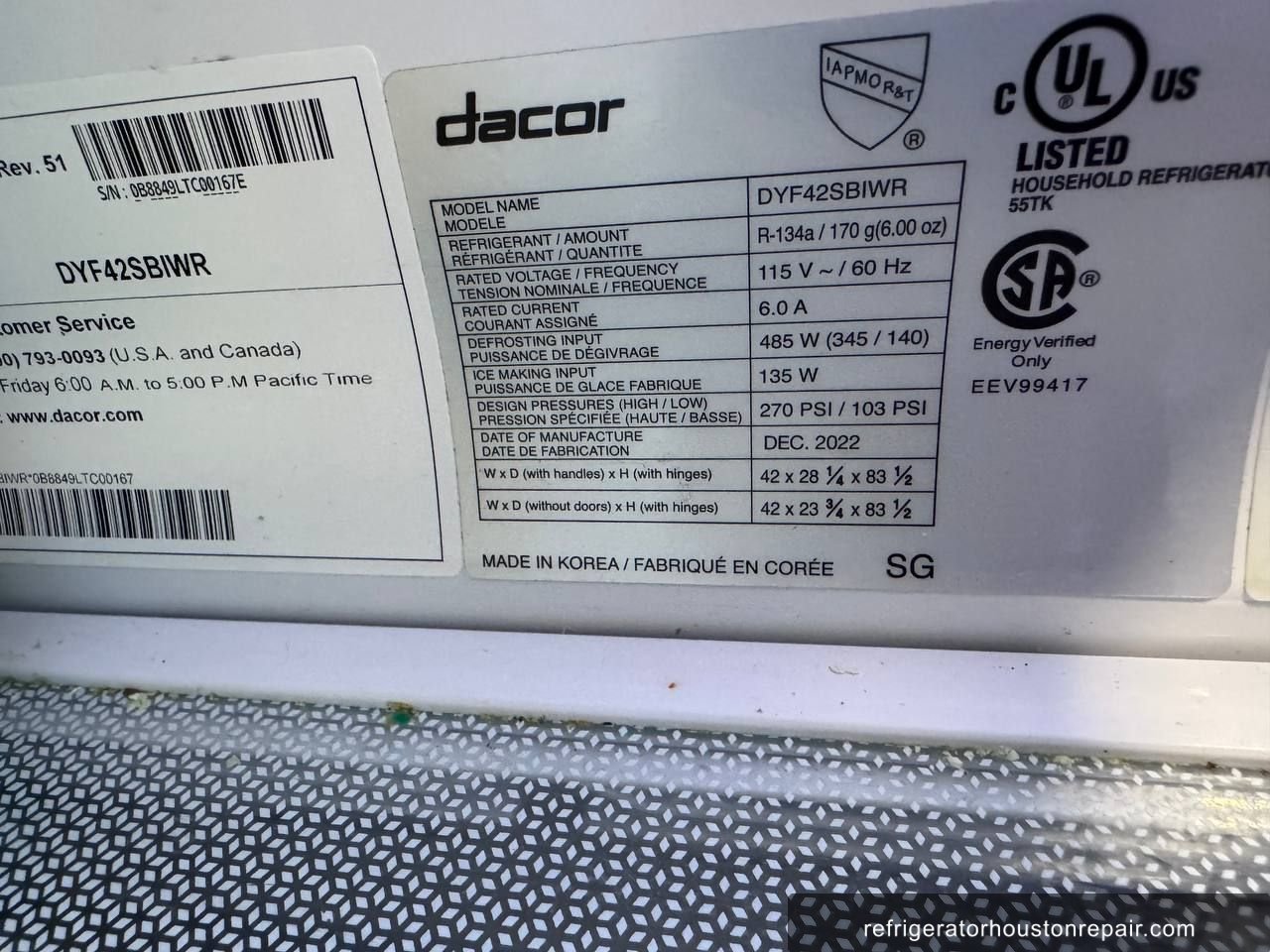

Dacor DYF42SBIWR repair in Richmond, TX — photo 3
