Dacor DYF42SBIWR Evaporator Fan Failure from Ice Blockage
📞 Call (346) 512-3688🔧 Performed by Alex
The Problem
- •Refrigerator compartment stopped cooling normally — fresh food section warm
- •Unusual scraping or grinding noise coming from inside the refrigerator, followed by complete silence
- •Frost and ice visible building up unevenly behind the rear panel of the fridge section
- •Fan noise that gradually worsened over days before the unit went completely quiet
🔍 Diagnosis
Upon arrival at the Clear Lake, TX 77059 residence, the Dacor DYF42SBIWR (serial 0B84RT00614A, manufactured July 2021, rated AC 115V/60Hz, 6.5A, R-134a refrigerant charge 230g/8.11oz) was found with a warm refrigerator compartment and complete absence of airflow from the evaporator section. The technician began by removing the lower shelf assembly and rear evaporator cover panel in the fresh food compartment. Behind the cover, a severe and irregular ice formation was immediately visible around the entire evaporator coil and fan assembly — a classic pattern indicating warm, humid air infiltration rather than a simple defrost cycle failure. The cross-flow (tangential) evaporator fan was physically locked in place by ice encasement. A multimeter continuity test on the fan motor windings confirmed an open-circuit condition — the motor had burned out from sustained rotor blockage and thermal overload. Manifold gauge readings on the sealed system were within spec for R-134a at the rated 320/103 PSI design pressures, ruling out refrigerant loss or compressor failure. A thorough inspection of the evaporator housing perimeter identified the root cause: deformed foam gasket sealing, visible gaps at panel joints, and unprotected wiring pass-throughs. These air infiltration points allowed continuous ingress of warm moist air from the cabinet interior, overwhelming the standard defrost cycle and progressively building ice until the fan was fully blocked. No other components were found faulty.
🔧 The Repair
- ✓Disconnected the Dacor DYF42SBIWR from the power supply at the wall outlet and allowed the unit to stand unpowered before beginning work inside the refrigerator compartment.

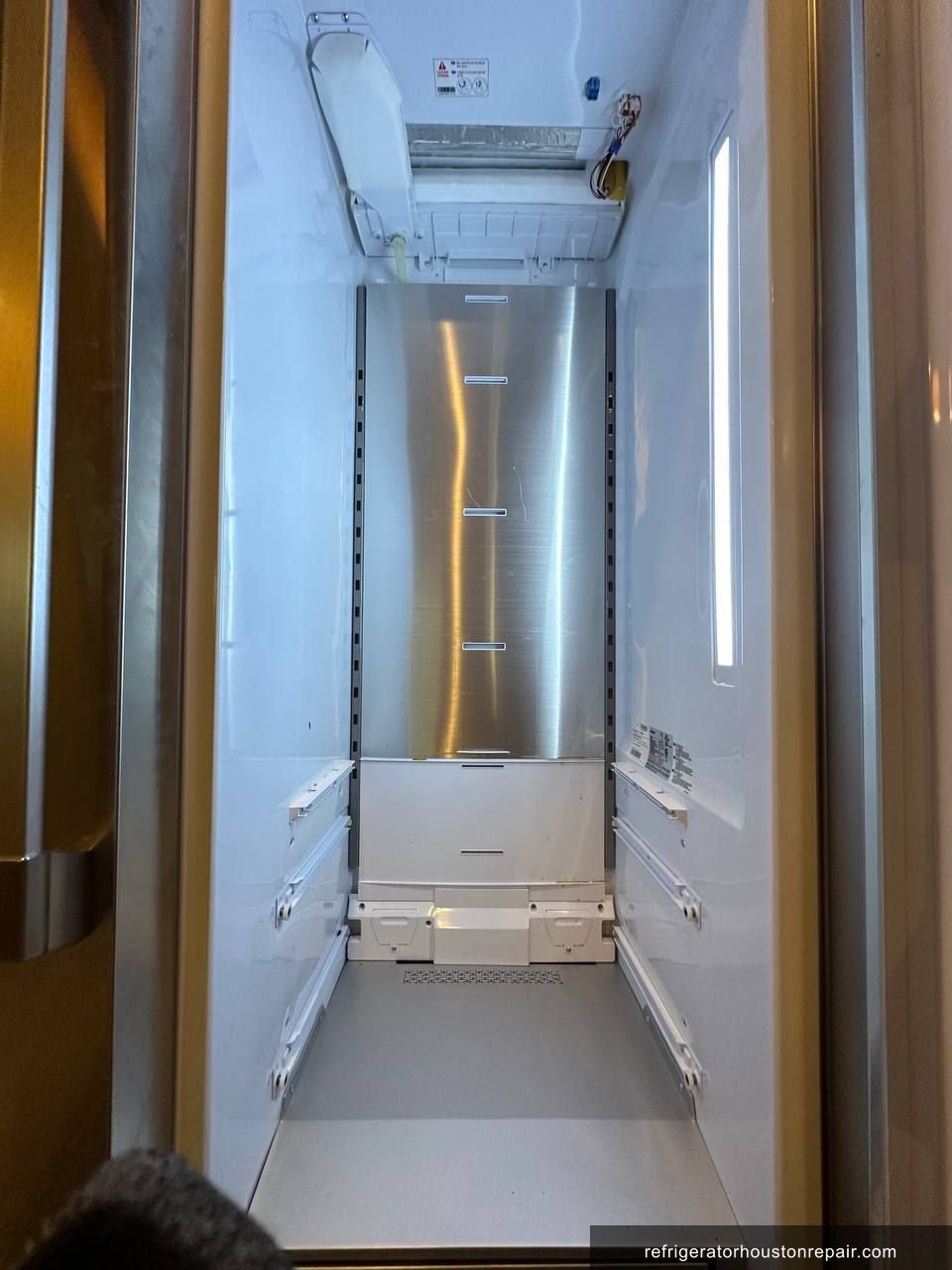

- ✓Removed all shelving and shelf support brackets from the lower fresh food section to gain unobstructed access to the rear evaporator cover panel.
- ✓Detached the evaporator housing cover by removing all mounting fasteners; confirmed severe asymmetric ice accumulation around the evaporator coil and cross-flow fan assembly — consistent with air infiltration rather than defrost heater failure.
- ✓Performed controlled defrost of the evaporator block using a directed thermal steamer, carefully melting ice layer by layer to avoid damaging refrigerant tubing, defrost heater, and wiring harness. Full defrost required extended time due to the density of ice accumulation.
- ✓After complete ice removal, disconnected the fan motor electrical connectors (power and control leads) and removed all mounting hardware securing the cross-flow fan and motor assembly to the evaporator housing.
- ✓Tested the original fan motor with a digital multimeter — resistance check on motor windings showed open circuit (no continuity), confirming burned-out motor coil due to sustained rotor lock.

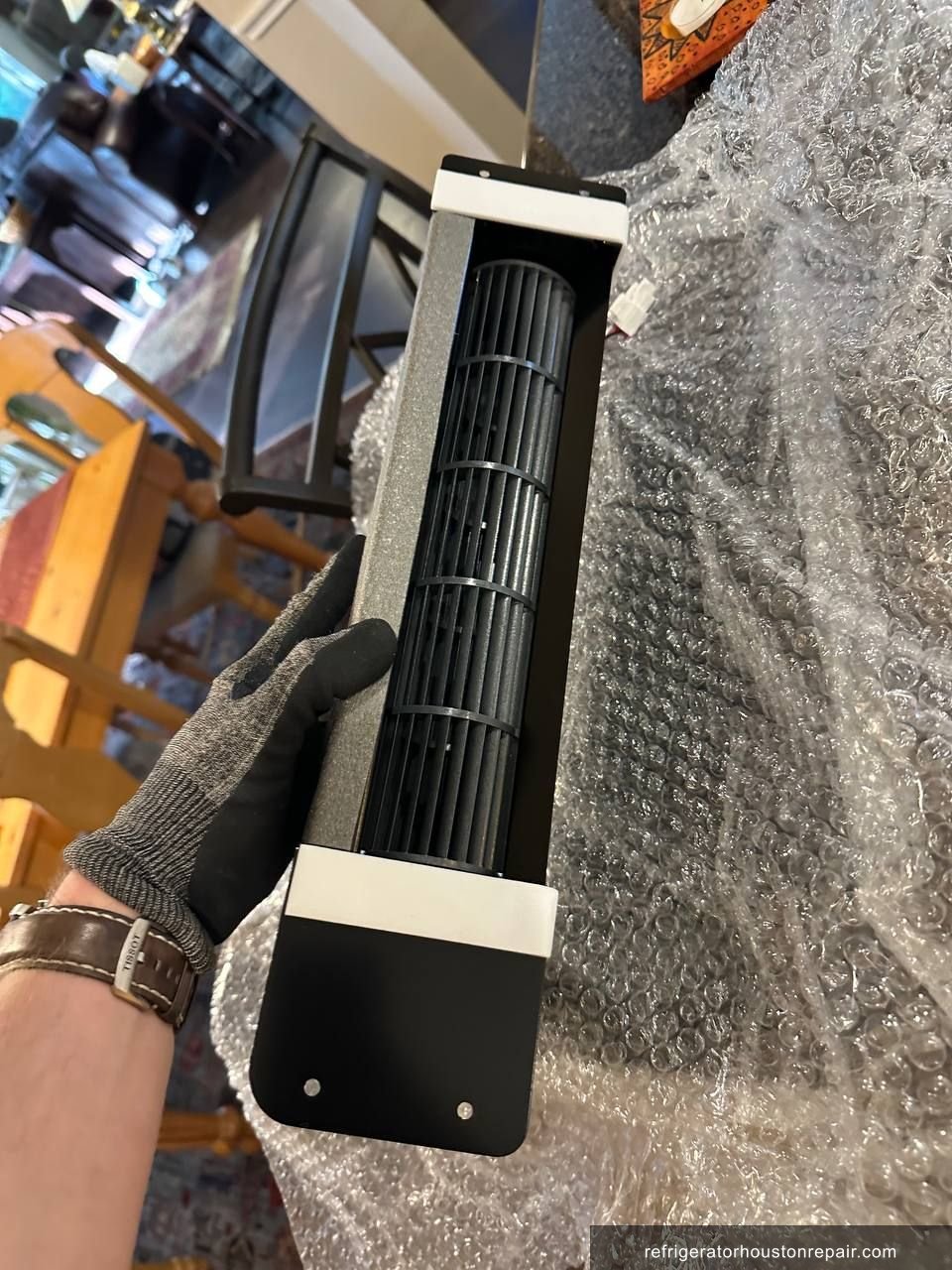

- ✓Sourced and installed an OEM-specification cross-flow (tangential) evaporator fan motor and blade assembly matching the exact part number referenced in the Dacor/Samsung platform service manual for the DYF42SBIWR. Correct blade geometry is critical for proper airflow distribution across the full height of this model's refrigerator compartment.
- ✓Reconnected fan motor electrical connectors per the wiring diagram — power and control leads routed correctly with no strain on connectors.
- ✓Performed a full perimeter inspection of the evaporator housing foam enclosure. Identified and documented all air infiltration points: gaps at foam panel joints, deformed perimeter door gasket/seal, and unsealed wiring pass-through locations.

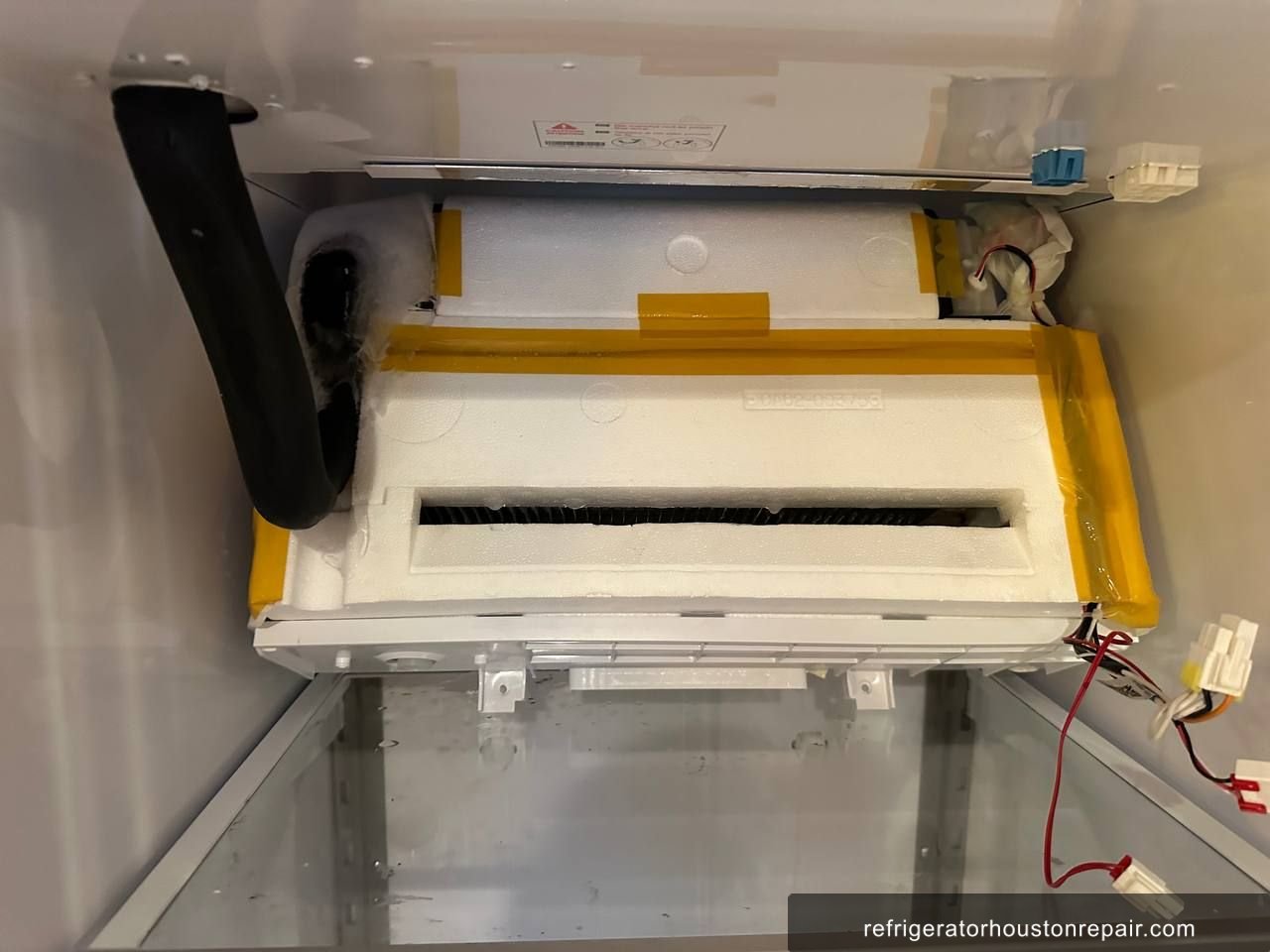

- ✓Sealed all infiltration points using yellow closed-cell foam tape (per Dacor/Samsung factory service specification), applied continuously around the full housing perimeter with no breaks, overlaps managed cleanly at corners to prevent compression gaps. All wiring pass-throughs sealed with appropriate foam filler.
- ✓Reassembled the evaporator housing cover, verifying uniform gasket compression around the entire perimeter with no visible air gaps before securing all fasteners.
- ✓Reconnected the unit to power. Verified cross-flow fan started immediately, ran smoothly without vibration or noise, and produced even airflow through the diffuser vents. Monitored refrigerator compartment temperature over two hours to confirm return to target operating range, verifying successful repair.
✓ Result
Following the fan replacement and complete air-infiltration remediation, the Dacor DYF42SBIWR returned to full operation within approximately two hours of restart — the refrigerator compartment reached its target temperature range confirming normal cooling function. The cross-flow fan ran quietly and without vibration throughout the monitoring period. The customer was relieved to have a fully operational unit without a costly service call escalation. A 90-day labor warranty was provided on all work performed, with parts covered under the supplying vendor's standard replacement guarantee.
💡 Technician Notes
The Dacor DYF42SBIWR is built on the Samsung Electronics platform — a premium-grade architecture that is generally reliable but has a known sensitivity to evaporator housing seal integrity. On this generation of built-in side-by-side refrigerators, the foam gasket and tape sealing the evaporator cover is a wear item that should be inspected annually. Watch for these early warning signs: intermittent scraping or clicking sounds from the fridge section (fan blade contacting developing ice), progressive loss of cooling over days or weeks, or visible frost on the rear interior panel below the evaporator cover. If you notice any of these, shut the unit down and arrange service immediately — continuing to run the unit once ice buildup has begun accelerates fan motor failure. Do not attempt to defrost with sharp tools near the evaporator. On Samsung/Dacor platforms specifically, always insist on OEM-spec cross-flow fan blades — aftermarket substitutes with incorrect blade width or diameter will disrupt airflow balance and cause rapid re-icing.
Frequently Asked Questions
Why did my Dacor DYF42SBIWR evaporator fan burn out if the refrigerator is only a few years old?
Even relatively new Dacor DYF42SBIWR units can suffer evaporator fan failure when the evaporator housing foam seals deteriorate or were imperfectly installed at the factory. Air infiltration causes accelerated ice buildup that mechanically blocks the cross-flow fan rotor, overloading and burning out the motor regardless of the appliance's age. This is a known vulnerability on Samsung-platform built-in refrigerators.
How much does it cost to replace the evaporator fan on a Dacor DYF42SBIWR in Clear Lake, TX?
Evaporator fan replacement on a Dacor DYF42SBIWR in the Clear Lake 77059 area typically involves the cost of the OEM cross-flow fan motor assembly plus labor for defrost, seal inspection, and reassembly. Because air leak remediation is almost always required alongside the fan replacement to prevent recurrence, expect the full repair to address both issues. Contact us for a specific quote based on your unit's condition.
What are the warning signs that my Dacor refrigerator evaporator fan is about to fail from ice buildup?
Early warning signs on the Dacor DYF42SBIWR include a periodic scraping, clicking, or rattling noise from the fresh food compartment — the fan blade making contact with encroaching ice. This progresses to louder grinding, then sudden silence as the motor burns out. You may also notice the fridge section warming gradually over several days before the noise phase even begins, indicating ice has already restricted airflow.
Is it worth repairing a Dacor DYF42SBIWR with a burned-out evaporator fan, or should I replace the refrigerator?
A Dacor DYF42SBIWR is a high-value luxury built-in refrigerator. With a unit only a few years old and a sealed system confirmed in good condition — normal R-134a pressures, healthy compressor — an evaporator fan replacement with proper air seal remediation is absolutely worth pursuing. Replacement cost for a comparable built-in unit would be many times higher than a targeted repair addressing the actual root cause.
Will the evaporator fan on my Dacor DYF42SBIWR fail again after it's been replaced?
If only the fan motor is replaced without sealing the air infiltration points in the evaporator housing, recurrence is highly likely — typically within months. The key to a lasting repair on the DYF42SBIWR is fully sealing all foam panel gaps, the perimeter gasket, and wiring pass-throughs per Dacor/Samsung spec. With proper remediation completed, the repaired unit should perform reliably for years without repeat fan motor failure.
Repair Summary
- Brand
- Dacor
- Model
- DYF42SBIWR
- Repair Type
- Evaporator Fan Replacement / Air Leak Sealing
- Refrigerant
- R-134a
- Root Cause
- Air infiltration caused ice buildup that destroyed evaporator fan motor
- Parts Replaced
- ✓OEM cross-flow (tangential) evaporator fan motor and blade assembly — Dacor/Samsung DYF42SBIWR platform spec, exact OEM part number per factory service manual
- ✓Closed-cell yellow foam sealing tape — full perimeter evaporator housing reseal per Dacor/Samsung factory specification
- Location
- Clear Lake, TX 77059
- Status
- ✓ Completed
