CellarPro 1800 XTS Electronic Controller Failure & Sensor Upgrade
📞 Call (346) 512-3688🔧 Performed by Alex
The Problem
- •Unit completely dead — display blank, no response to controls
- •Compressor not running and no cooling whatsoever
- •Evaporator fan not operating
- •Wine cellar temperature rising to unsafe levels for wine storage
- •Inconsistent temperature readings prior to total failure
🔍 Diagnosis

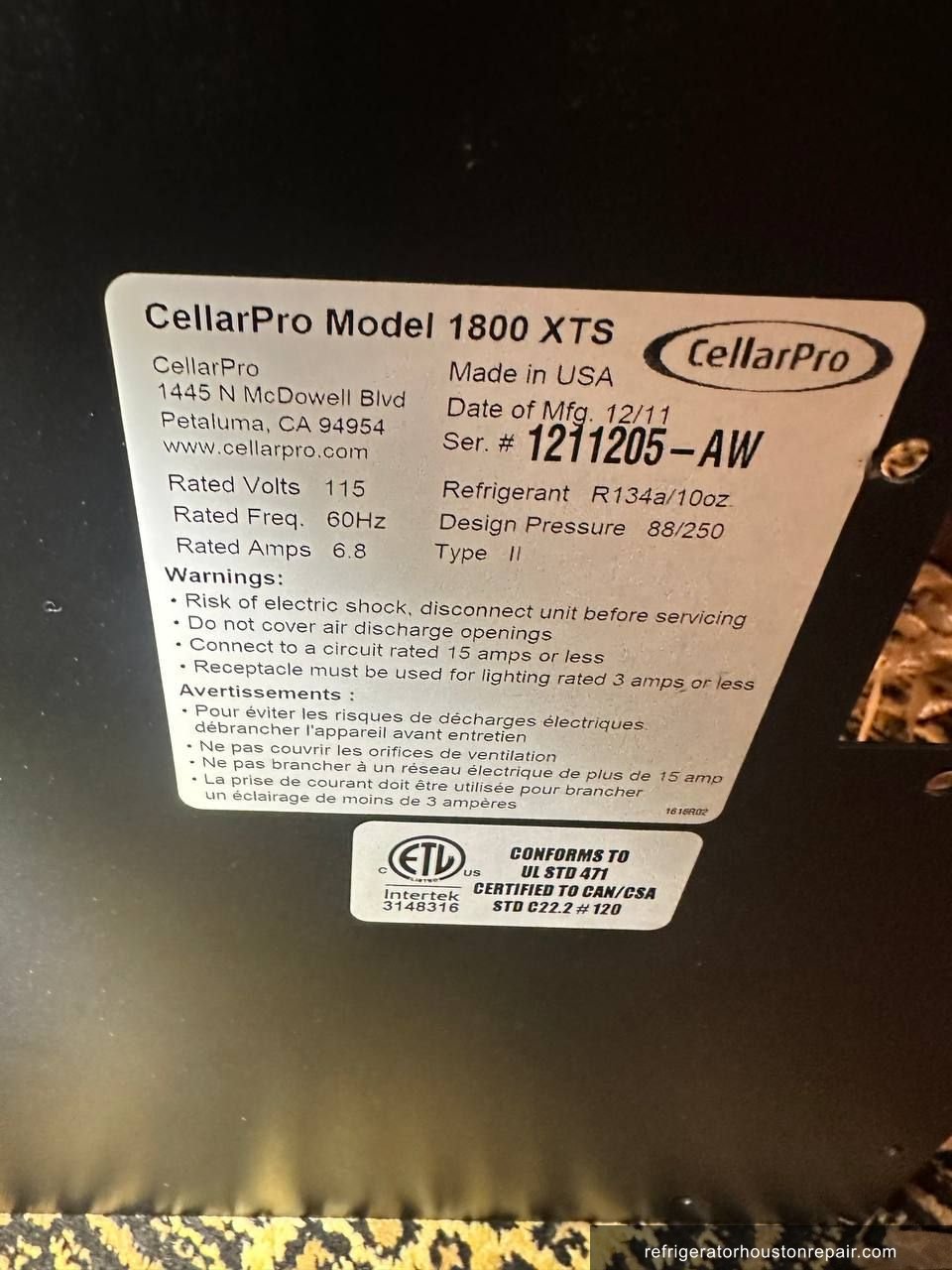

Upon arrival at the Clear Lake, TX 77059 residential property, the CellarPro 1800 XTS cooling unit (Serial No. 1211205-AW, manufactured December 2011, charged with R-134a at 10 oz) was found in a state of complete non-operation. The front display panel was entirely dark, the compressor was silent, and the evaporator fan showed no movement. Initial inspection confirmed the unit was receiving proper line voltage — 115V / 60Hz — verified with a calibrated digital multimeter at the service disconnect and at the unit's terminal block. Voltage was present at the primary input side of the electronic controller board, but no output signals were detected on any of the board's control channels. This pointed conclusively to an internal controller board failure rather than an upstream electrical or sealed-system fault. A refrigerant pressure check using manifold gauges confirmed that system pressures were within expected static range for R-134a with no evidence of refrigerant loss or sealed-system compromise. The compressor windings were checked with the multimeter and showed healthy resistance values across all three terminals, ruling out a compressor failure. The NTC thermistor on the internal temperature sensor was tested and returned readings within the functional range, though its calibration accuracy under enclosed wine room conditions was found insufficient to maintain stable setpoint control — a secondary issue addressed after the primary controller repair. Root cause: failed electronic controller board causing total loss of all control functions.
🔧 The Repair
- ✓Verified incoming line voltage at service disconnect: 115V / 60Hz confirmed within specification using a calibrated digital multimeter.
- ✓Traced voltage through primary wiring harness to electronic controller board input terminals — voltage present at input, no output signals detected on any control channel.
- ✓Confirmed compressor winding integrity by measuring resistance across all three compressor terminals (common, start, run) — all readings within manufacturer's acceptable range, ruling out compressor as failure source.
- ✓Connected refrigerant manifold gauges to the R-134a service port; recorded static pressures consistent with ambient temperature conditions and a 10 oz charge — no refrigerant loss detected, sealed system intact.
- ✓Powered down the unit and safely disconnected all wiring harness connectors from the defective controller board, labeling each connector for accurate reinstallation.
- ✓Removed the defective electronic controller board from its mounting bracket using appropriate screwdrivers, taking care to preserve the mounting hardware and wiring routing.

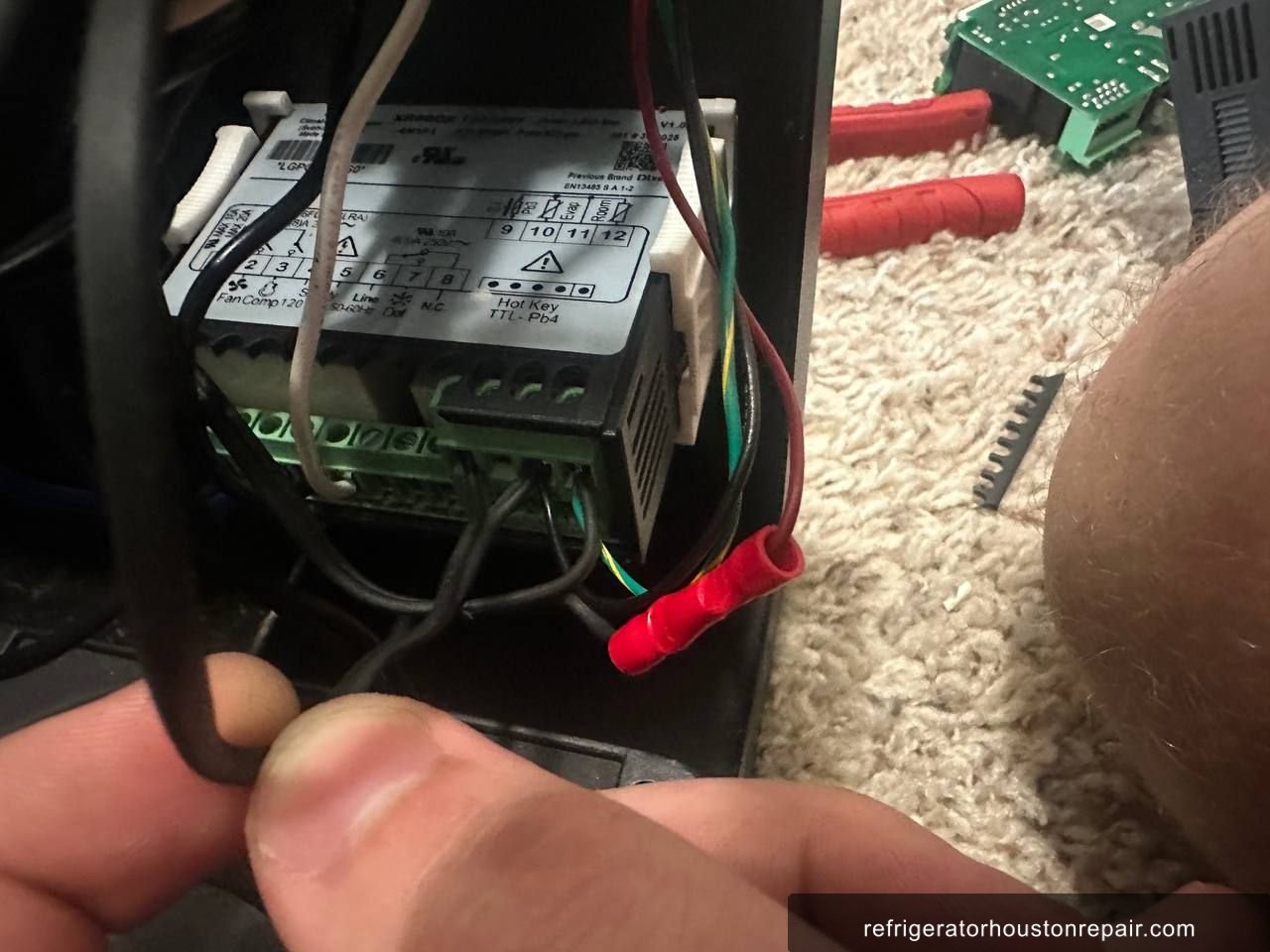

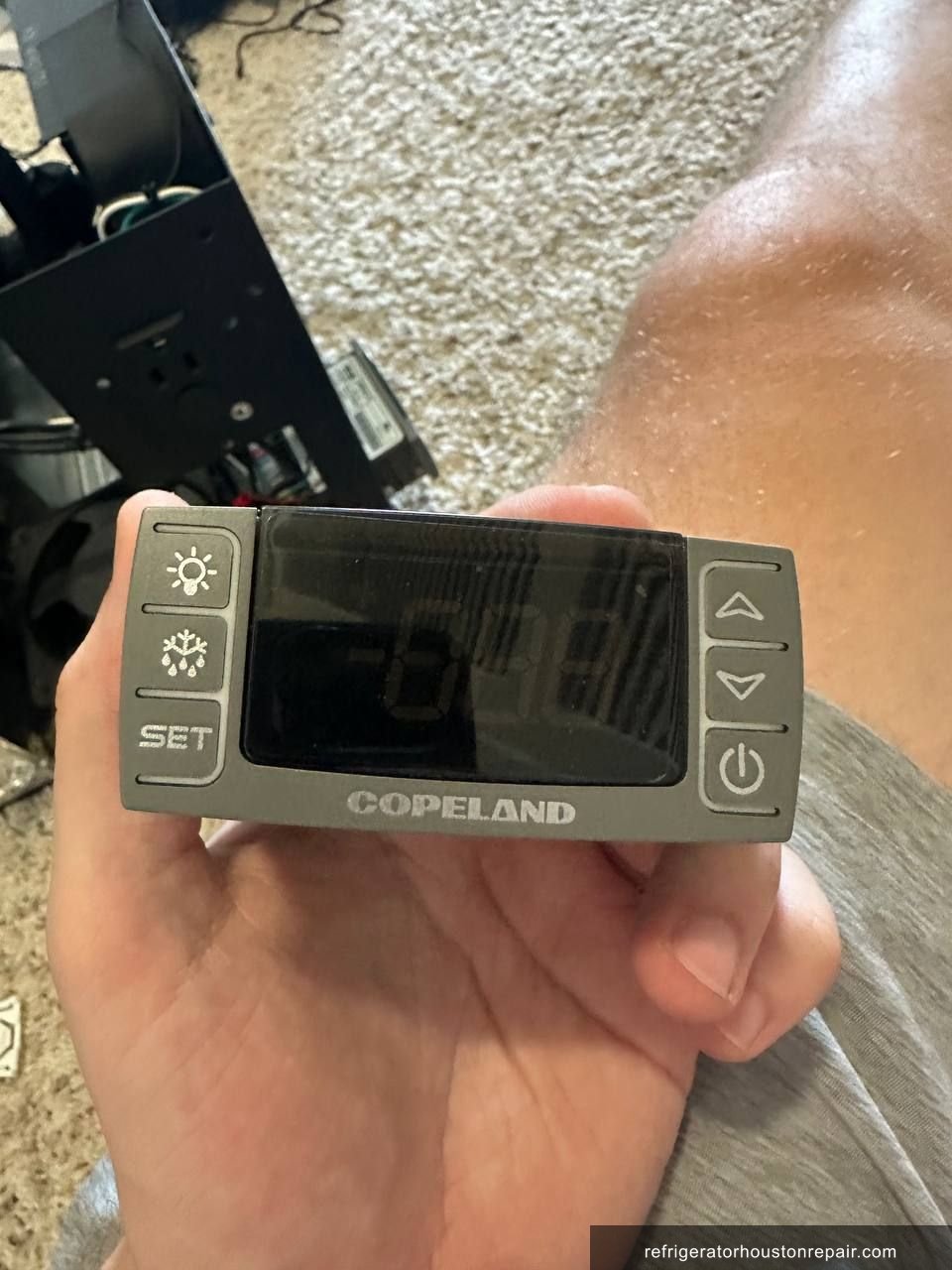

- ✓Installed compatible replacement electronic controller board, securing it to the original mounting bracket and reconnecting all labeled wiring harness connectors in correct orientation.
- ✓Performed full parameter programming of the replacement controller, configuring setpoint temperature, differential range, defrost timing, fan control logic, and alarm thresholds appropriate for wine cellar application.
- ✓Identified that the factory-installed internal NTC temperature sensor, while electrically functional, lacked sufficient accuracy for stable temperature control in the enclosed wine room environment — causing setpoint drift under real-world operating conditions.

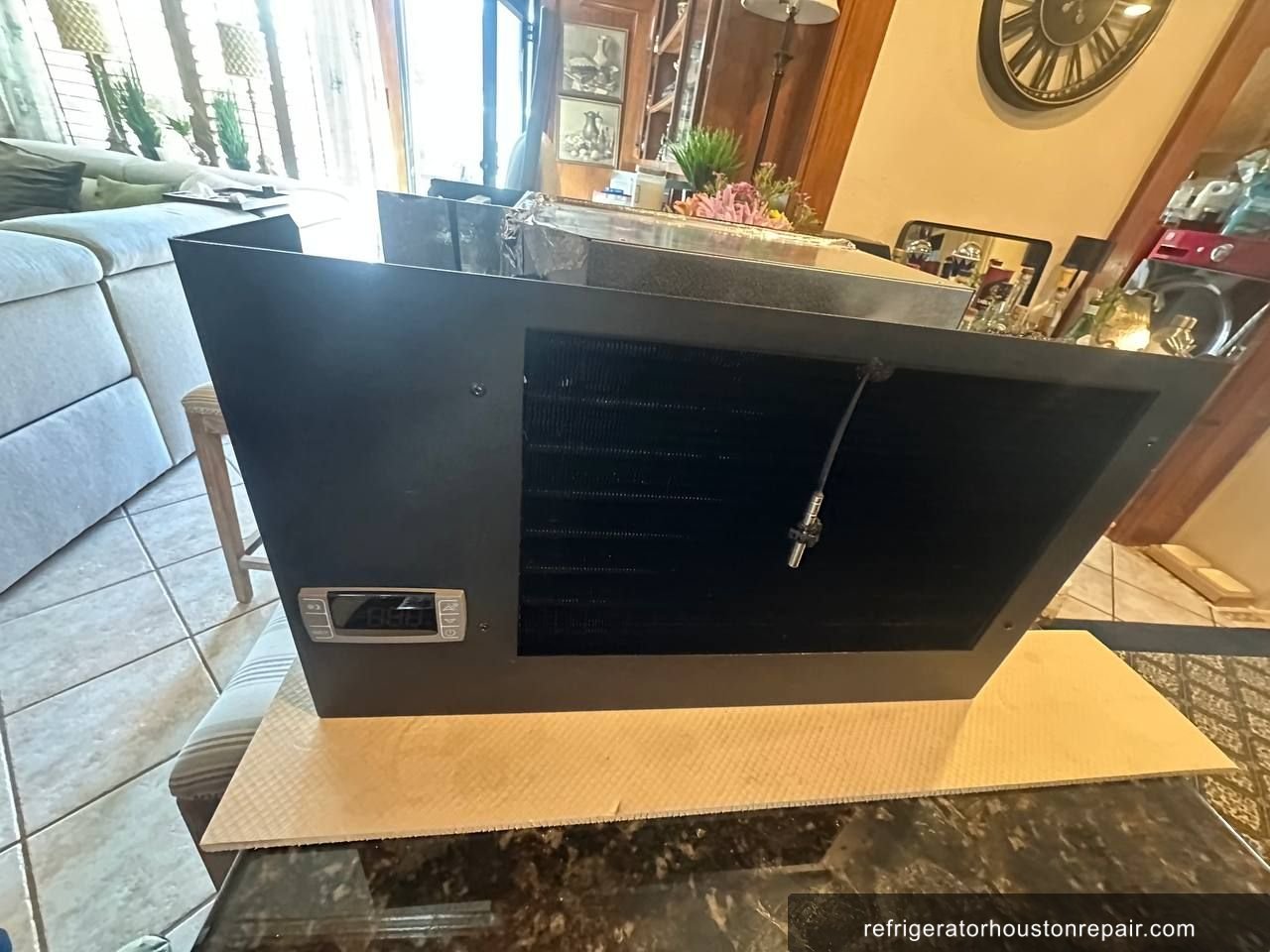

- ✓Selected, routed, and installed a compatible remote thermistor at an optimal location within the wine cellar space for representative ambient reading, securing sensor leads through the unit's designated cable routing path.
- ✓Configured the remote thermistor as the primary temperature measurement channel within the controller programming, with automatic fallback behavior active when no bottle probe is connected — ensuring accurate real-cellar-condition monitoring.

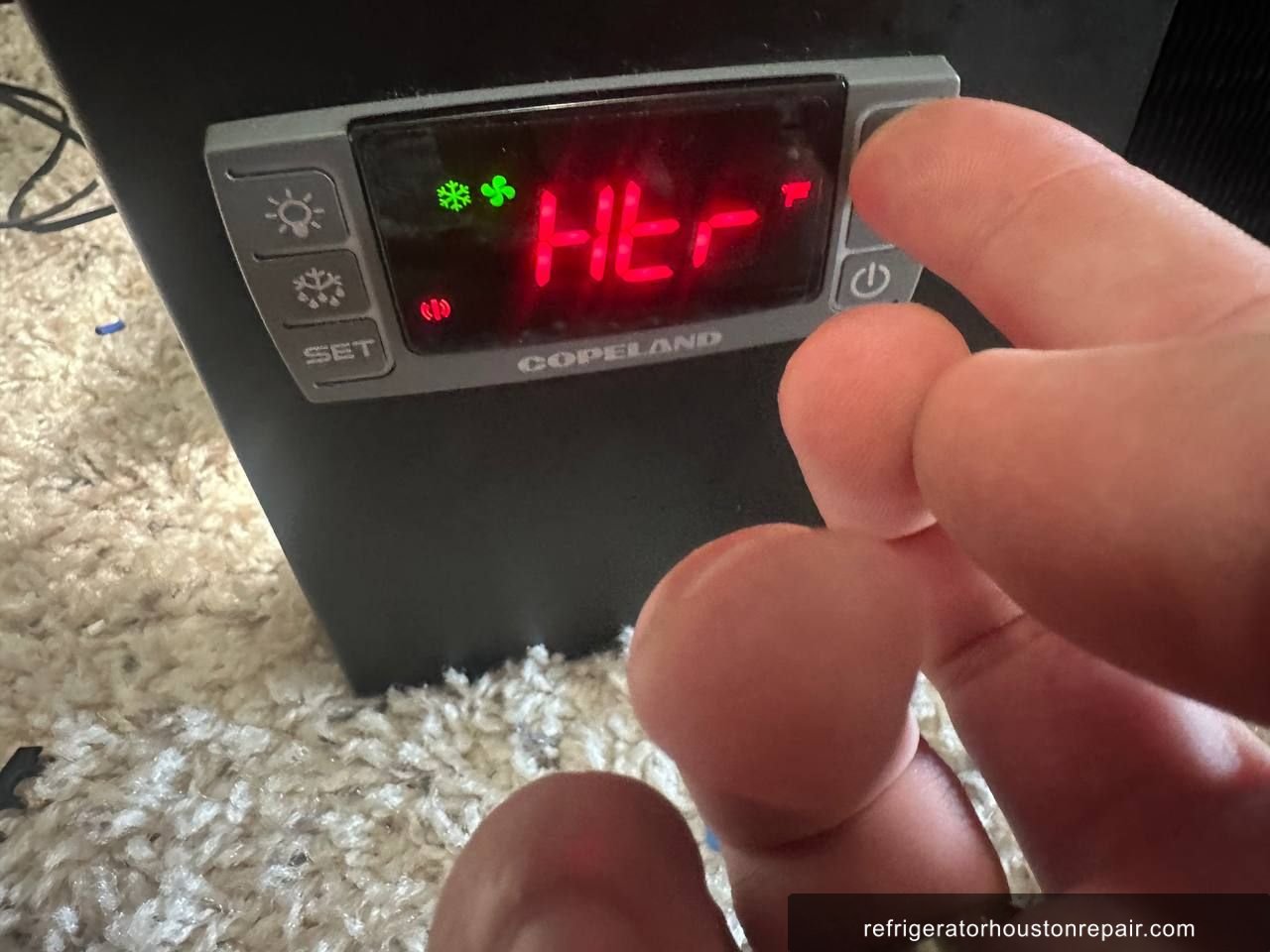

- ✓Powered the unit on and verified full operation: compressor started without hesitation, evaporator fan ran at correct speed, display activated showing live temperature data from the remote thermistor, and thermoregulation system responded correctly to programmed setpoint adjustments.
- ✓Confirmed all electrical parameters at final operation: 115V / 60Hz / 6.8A — consistent with manufacturer's nameplate specifications and confirming no overcurrent condition.
✓ Result
Following replacement of the electronic controller board and installation of the remote thermistor, the CellarPro 1800 XTS returned to full operation. The compressor cycled on cleanly, the evaporator fan ran smoothly, and the unit began pulling the wine room temperature down toward the programmed setpoint within approximately 45 minutes of restart. Temperature stabilization in the target wine storage range was achieved within two hours. The customer expressed significant relief given the value of the wine collection at risk. A 90-day labor warranty was provided on the controller replacement and sensor installation.
💡 Technician Notes
CellarPro cooling units installed in enclosed wine rooms operate under more demanding thermal conditions than standard beverage coolers, which accelerates wear on sensitive electronic components like the controller board. Owners should ensure the unit's intake and exhaust vents remain completely unobstructed — restricted airflow dramatically increases operating temperatures inside the control enclosure, shortening controller lifespan. Inspect and clean the condenser coil at least twice per year; dust accumulation forces the compressor and controls to work harder. Watch for early warning signs of controller trouble: erratic temperature swings, unresponsive display buttons, or setpoint that won't hold. If your CellarPro 1800 XTS shows any of these symptoms, schedule a diagnostic promptly — catching a failing controller early can prevent a complete shutdown and protect your wine collection from temperature damage. Never ignore a blank display, even briefly.
Frequently Asked Questions
Why did my CellarPro 1800 XTS stop working completely with a blank display?
A completely blank display on a CellarPro 1800 XTS almost always points to an electronic controller board failure. When the controller fails, it cuts power to all output functions — display, compressor, and fan — making the unit appear totally dead. A qualified technician can confirm this quickly with a multimeter and replace the board to fully restore operation.
How much does it cost to replace the electronic controller on a CellarPro 1800 XTS, and how long does the repair take?
Controller board replacement on a CellarPro 1800 XTS typically ranges from $280 to $480 depending on parts availability and local labor rates. The repair itself, including full reprogramming and sensor calibration, can generally be completed in two to three hours on-site. Given that the 1800 XTS is a purpose-built wine cellar unit, professional programming of setpoints and fan logic is essential after any board swap.
What are the early warning signs that the controller board on my CellarPro wine cooler is failing?
Early warning signs of a failing CellarPro controller include intermittent display blackouts, temperature setpoint that drifts or won't hold, buttons that become unresponsive, and erratic compressor cycling. You may also notice the unit cooling inconsistently before it stops entirely. Addressing these symptoms promptly can prevent total failure and protect your wine collection from harmful temperature fluctuations.
Is it worth repairing a CellarPro 1800 XTS that is over 10 years old, or should I replace it?
The CellarPro 1800 XTS is a high-quality, purpose-built wine cellar cooling unit that is worth repairing in most cases — especially when the sealed system (compressor, R-134a charge) remains intact. Controller and sensor replacements are mechanical repairs that restore full function at a fraction of replacement cost. If the compressor or sealed system has failed, a cost comparison with a new unit is more appropriate.
Why was a remote thermistor installed on my CellarPro 1800 XTS instead of using the built-in sensor?
The factory internal sensor on the CellarPro 1800 XTS reads temperature at the unit itself rather than in the center of the wine room, which can cause setpoint drift in enclosed cellar environments. A remote thermistor placed inside the cellar gives the controller a more accurate reading of actual wine storage conditions. The CellarPro controller supports this configuration natively and defaults to it when no bottle probe is connected.
Repair Summary
- Brand
- CellarPro
- Model
- 1800 XTS
- Repair Type
- Electronic Controller Replacement / Temperature Sensor Upgrade
- Refrigerant
- R-134a
- Root Cause
- Failed electronic controller caused total unit shutdown
- Parts Replaced
- ✓Electronic controller board — compatible replacement unit, programmed for CellarPro 1800 XTS wine cellar cooling application
- ✓Remote NTC thermistor — configured as primary temperature sensing channel for enclosed wine room environment
- Location
- Clear Lake, TX 77059
- Status
- ✓ Completed
