Bosch B36CT80SNS Freezer Not Cooling — Evaporator Leak Repair

The Problem

•Freezer section not cooling — temperature measured at approximately 70°F instead of 0°F
•Food in the freezer thawing or completely warm to the touch
•Compressor running continuously but no cold air produced in the freezer compartment
•No ice production and freezer interior feeling like room temperature

🔍 Diagnosis

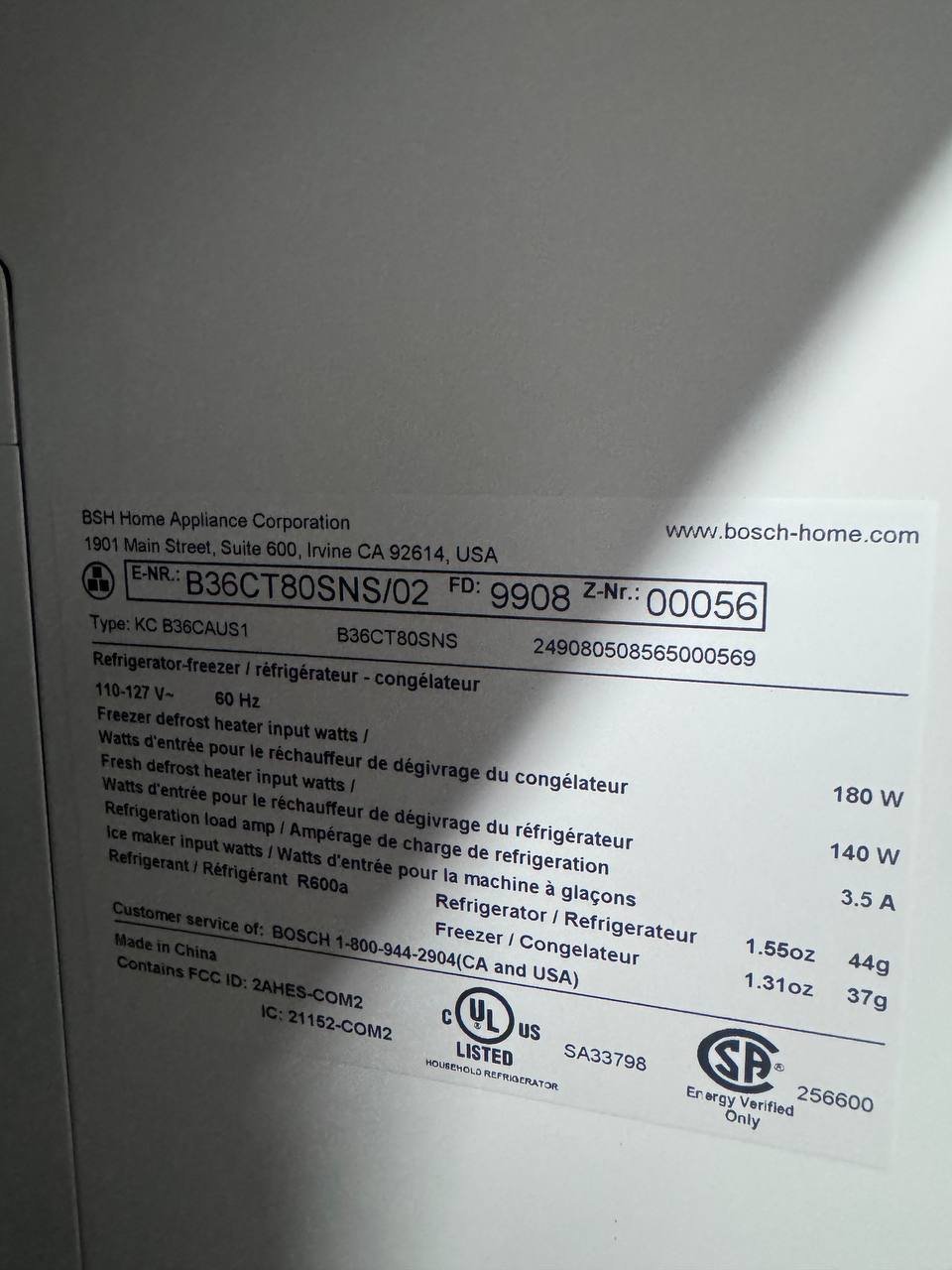

Upon arrival at the customer's home in the Memorial area (ZIP 77043), the technician confirmed the complaint: the freezer section of the Bosch B36CT80SNS French door refrigerator was not cooling. An infrared thermometer reading inside the freezer registered approximately 70°F — far above the required operating range of 0°F to 5°F. The fresh food compartment was marginally cooler but also above safe food storage temperature. The technician first verified that the compressor was running by listening and feeling for vibration at the rear of the unit — the compressor was confirmed operational. A piercing valve (Schrader-type access valve) was installed on the process tube to connect the manifold gauge set without permanently altering the sealed system. Gauge readings revealed an extremely deep vacuum of approximately -18 inches Hg (negative pressure), which is a definitive indicator that refrigerant had fully escaped the system. The label on the unit confirmed the refrigerant type as R-600a (isobutane) at a factory charge of 1.55 oz / 44 g, operating at 110–127V / 60 Hz, 3.5 A. To locate the leak, the technician pressurized the sealed system with dry nitrogen. A leak was detected at the evaporator coil using an electronic leak detector, confirmed with soapy solution. The evaporator coil showed a pinhole breach, likely caused by ice buildup erosion or a micro-crack in the aluminum tubing. Replacement of the evaporator was deemed the only viable repair path.

🔧 The Repair

✓Performed initial system diagnostic: confirmed freezer temperature at ~70°F with digital thermometer; verified compressor operation by physical inspection at the rear of the unit.
✓Installed a Schrader piercing valve on the low-side process tube to access the sealed refrigeration system without cutting the line.

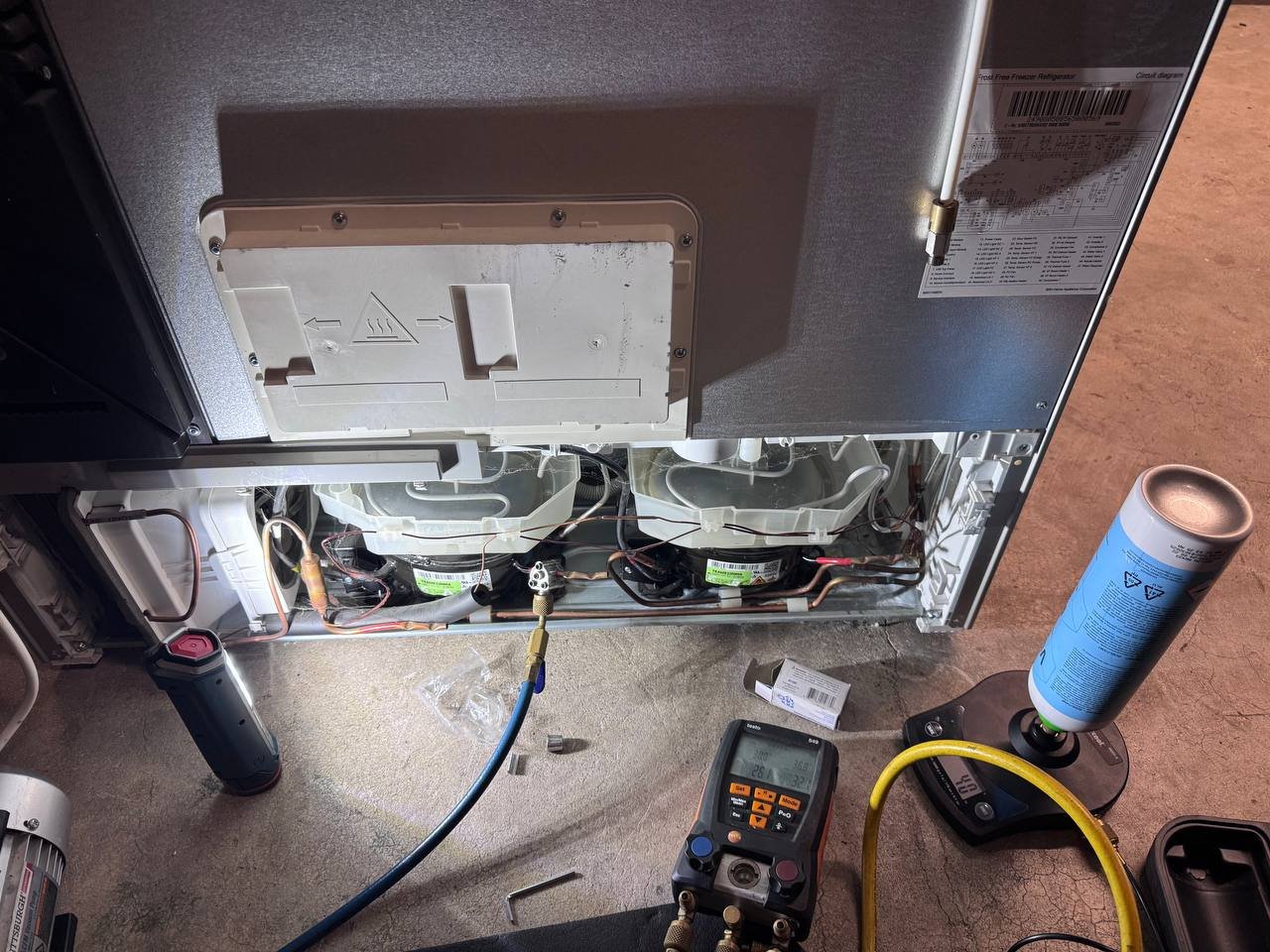

✓Connected a manifold gauge set to the piercing valve and recorded system pressure at approximately -18 in. Hg (deep vacuum), confirming total loss of R-600a refrigerant charge.
✓Pressurized the sealed system with dry nitrogen to approximately 150 PSI to perform a leak search without introducing flammable refrigerant into an open system.
✓Used an electronic refrigerant leak detector and soapy bubble solution to pinpoint the leak location — identified a breach at the evaporator coil inside the freezer compartment.
✓Removed all freezer interior panels, shelving, ice maker components, and insulation wrap to gain full access to the evaporator assembly.
✓Carefully cut and removed the faulty evaporator coil; captured any residual nitrogen pressure safely before disconnecting tubing.
✓Installed the OEM-equivalent replacement evaporator coil, silver-brazed all joints using nitrogen purge brazing technique to prevent internal oxidation scaling.
✓Re-pressurized the completed sealed system with dry nitrogen to 150 PSI and held for 30 minutes — no pressure drop detected, confirming leak-free repair.
✓Connected a two-stage vacuum pump and evacuated the sealed system down to 500 microns; held vacuum for 15 minutes to verify system integrity before charging.
✓Charged the sealed system with R-600a refrigerant to the factory specification of 1.55 oz / 44 g as stated on the appliance nameplate label.
✓Restored all interior panels and components, powered on the unit, and monitored compressor amperage draw against the rated 3.5 A baseline — readings were within normal range. Verified freezer temperature drop over the test period.

✓ Result

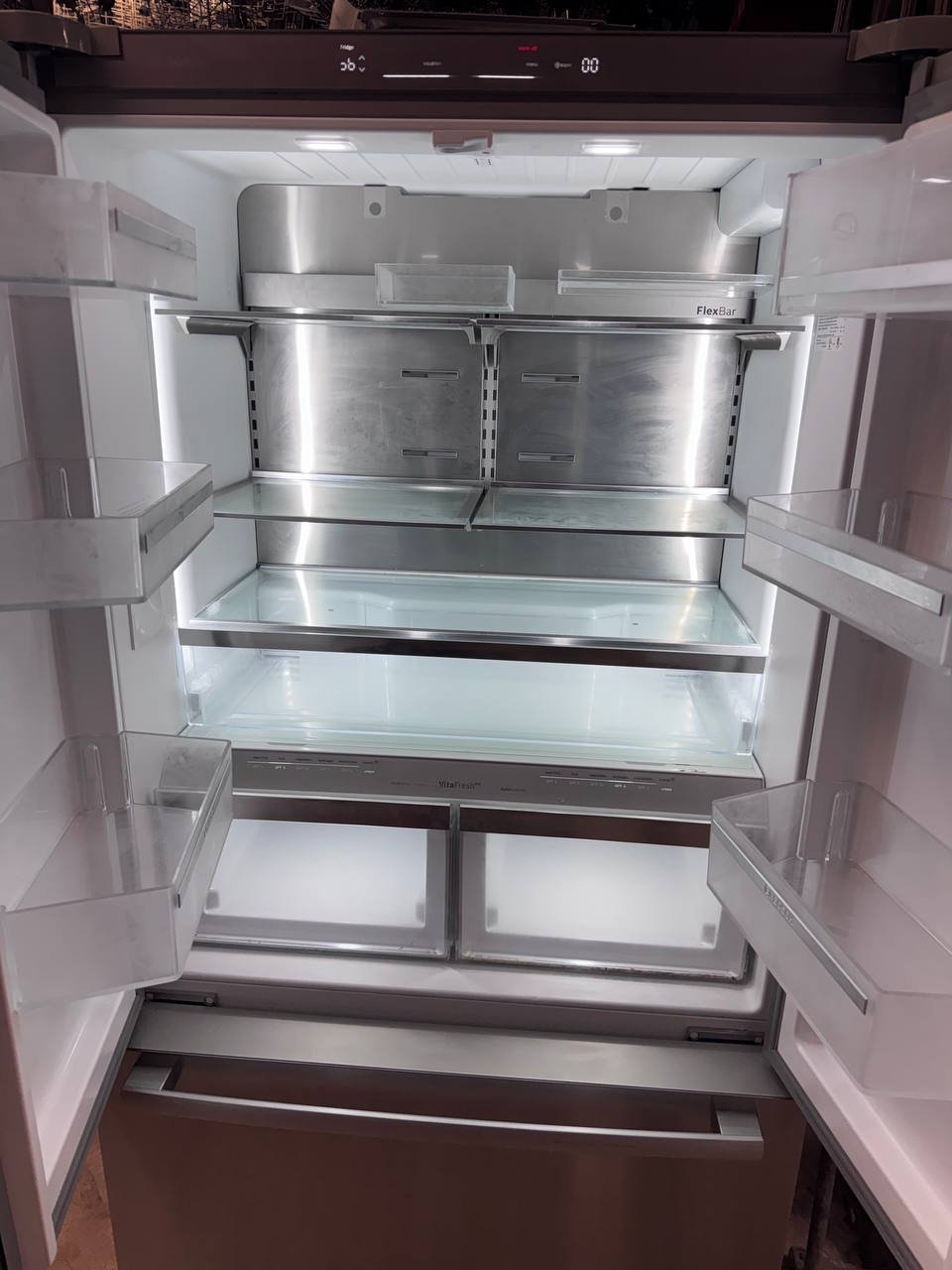

After recharging the sealed system with the factory-specified 1.55 oz of R-600a and restarting the compressor, the freezer compartment began cooling immediately. Within approximately 3–4 hours of monitored operation, the freezer reached a stable temperature of 2°F and the fresh food section stabilized at 37°F — both within optimal ranges. The customer was very satisfied with the same-day repair outcome. A 90-day labor warranty was provided on the sealed system repair and the replacement evaporator coil.

💡 Technician Notes

Bosch French door refrigerators using R-600a (isobutane) are highly efficient but require certified technicians for any sealed system work — R-600a is flammable and demands strict safety protocols including nitrogen purge brazing and proper ventilation. As an owner, watch for early warning signs: unusually warm freezer temps, compressor running non-stop without cooling effect, or unexpected food thawing. These symptoms often indicate a slow refrigerant leak before it becomes a full vacuum loss. Avoid storing sharp or abrasive items directly against interior freezer panels, as physical contact over time can damage the thin evaporator tubing behind the walls. Schedule professional inspection if you notice any of these signs early — catching a small leak before the system loses full charge can reduce repair costs significantly. Annual cleaning of condenser coils also helps the compressor run more efficiently and reduces stress on the entire sealed system.

Frequently Asked Questions

Why is my Bosch freezer not cooling even though the compressor is running?

If your Bosch freezer is warm but the compressor is running, the most likely cause is a refrigerant leak in the sealed system. Once refrigerant escapes, the compressor has nothing to circulate and cannot produce cold. A technician needs to locate the leak, repair it, and recharge the system to factory specification.

What refrigerant does the Bosch B36CT80SNS use and how much?

The Bosch B36CT80SNS uses R-600a (isobutane) refrigerant. The factory charge as shown on the appliance nameplate is 1.55 oz / 44 g. R-600a is a flammable hydrocarbon refrigerant and must only be handled by a certified appliance technician using proper safety procedures.

How do I know if my refrigerator has a refrigerant leak?

Common signs of a refrigerant leak include a freezer that won't get cold despite the compressor running, a deep vacuum reading on manifold gauges (negative pressure), food thawing in the freezer, and the unit running continuously without reaching target temperatures. A technician can confirm with gauge readings and a leak detector.

How long does a sealed system evaporator repair take on a Bosch refrigerator?

A sealed system evaporator replacement on a Bosch French door refrigerator typically takes 3 to 5 hours for the repair itself. After recharging with R-600a, the refrigerator generally reaches safe operating temperatures — freezer at 0–5°F and fresh food at 35–38°F — within 3 to 4 hours of restart.

Is it worth repairing a Bosch refrigerator with a refrigerant leak?

Yes, in most cases it is worth repairing, especially on premium models like the Bosch B36CT80SNS. If the compressor is functional and only the evaporator or a joint has leaked, a sealed system repair restores full performance at a fraction of replacement cost. A certified technician can assess whether the repair is cost-effective for your specific unit.

More BSH Home Appliance Corporation Repairs →Refrigerator Repair in Memorial →

Repair Summary

Brand: BSH Home Appliance Corporation
Model: B36CT80SNS
Repair Type: Sealed System Repair / Evaporator Replacement
Refrigerant: R-600a
Root Cause: Refrigerant leak at evaporator coil causing deep vacuum
Parts Replaced: ✓Evaporator coil assembly — OEM-equivalent replacement for Bosch B36CT80SNS freezer compartment
✓Schrader piercing valve (low-side process tube access fitting)
✓R-600a isobutane refrigerant — 1.55 oz / 44 g per factory nameplate specification
Location: Memorial, TX 77043
Status: ✓ Completed
