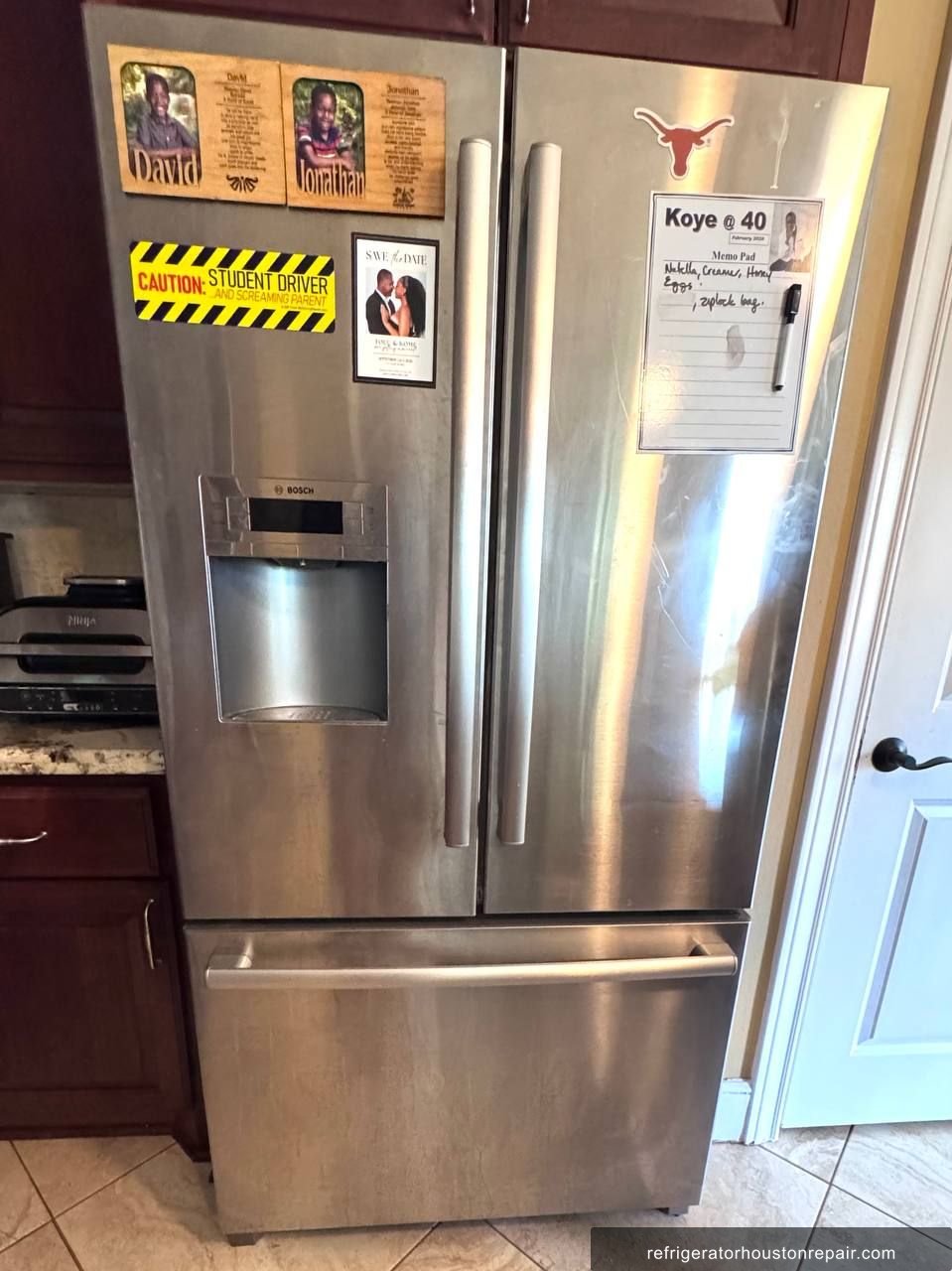

Bosch B26FT70SNS I04: Complete Refrigerant Loss and No Cooling in Richmond, TX
📞 Call (346) 512-3688🔧 Performed by Serhii T.
The Problem
- •Both fresh food and freezer sections reading 73-74°F, matching ambient room temperature
- •Compressor completely silent, no vibration, no cooling cycle running
- •Refrigerator operating in demo mode, suppressing all cooling functions
- •After exiting demo mode and 20-minute wait, interior temperature showed zero drop
- •Sealed system pressure reading at -23 psi with manifold gauges, indicating an empty or restricted system
🔍 Diagnosis
When I arrived at the Richmond home in ZIP 77469, both compartments of the Bosch B26FT70SNS I04 read 73-74°F, which is essentially room temperature. The compressor was not running at all. The first thing I checked was whether the unit had been accidentally placed in demo mode, which is a known behavior on Bosch French door models. Sure enough, demo mode was active. I exited it and waited 20 minutes for the sealed system to respond. Nothing changed. Temperature did not drop a single degree. At that point I knew I had to pierce the sealed system and take pressure readings. I connected my manifold gauges and read -23 psi on the low side. That number tells me the system is either completely empty of R-134a refrigerant or there is a hard restriction. To tell the difference, I unplugged the unit from the wall and watched the pressure recover. Within a few minutes, pressure climbed to +17 psi. That recovery pattern rules out a restriction. A restriction holds pressure flat. What I saw instead was a system with almost no refrigerant left, and what little remained equalized quickly at a very low static pressure. The Bosch B26FT70SNS I04 spec calls for 6.7 oz of R-134a. The system had a fraction of that. The leak was large, the unit was 13 years old, and physically worn. I advised the customer accordingly.
🔧 The Repair
- ✓Step 1: Confirmed both compartments reading 73-74°F using a calibrated digital thermometer on arrival at the Richmond address.
- ✓Step 2: Identified demo mode active on the Bosch B26FT70SNS I04 control board. Exited demo mode using the control panel button sequence specific to this model series.
- ✓Step 3: Waited 20 minutes to allow the compressor and sealed system to respond. Monitored interior temperature and compressor operation. No change observed.
- ✓Step 4: Pierced the low-side service port on the sealed system using a saddle valve tap and connected a manifold gauge set. Recorded low-side pressure at -23 psi.
- ✓Step 5: Unplugged the refrigerator from the wall to allow refrigerant pressures to equalize. Monitored pressure recovery over several minutes.
- ✓Step 6: Recorded equalized static pressure at +17 psi, confirming the system contained minimal R-134a. Normal static pressure for a properly charged R-134a system at room temperature should read between 55-70 psi. The +17 psi reading confirmed a substantial leak rather than a restriction.
- ✓Step 7: Assessed overall unit condition, including age at 13-plus years, cabinet wear, and the scale of repair needed. Calculated that locating the leak, recovering remaining refrigerant, repairing the breach, pressure testing, and recharging to the spec 6.7 oz would not be cost-effective given the unit's condition.
- ✓Step 8: Presented full diagnostic findings to the customer. Customer made the informed decision not to proceed with sealed system repair. No refrigerant was charged. No temperatures to confirm post-repair, as repair was declined.
✓ Result
The diagnostic confirmed a catastrophic R-134a leak in the sealed system of this 13-year-old Bosch B26FT70SNS I04. After I walked the customer through the pressure readings and what a full sealed system repair would involve on a unit this age, they decided not to invest in the repair. That was a reasonable call. The unit had clearly been running degraded for some time, and the cost to locate the leak, repair it, and recharge 6.7 oz of R-134a would have exceeded what the appliance was worth at this stage.
💡 Technician Notes
Bosch French door models in this series are prone to entering demo mode after a power interruption or firmware glitch. Always check for demo mode before assuming a sealed system failure. It is a five-minute check that saves you from an unnecessary repair call. That said, demo mode on this B26FT70SNS I04 was a red herring. The real problem was a long-term refrigerant leak that had slowly emptied the system over time. On Bosch units using R-134a, an early sign of slow refrigerant loss is the compressor running almost continuously without ever reaching target temperature. If your Bosch is humming nonstop but the food is only slightly cool, check it before the system runs completely dry. Once pressure drops to the range I found here, -23 psi running and +17 psi static, the compressor is working against nothing and wearing itself out in the process. For any Bosch refrigerator over 10 years old with a sealed system leak of this scale, I recommend getting a replacement cost estimate before committing to a repair. Sealed system work is labor-intensive and refrigerant costs are not trivial.
Frequently Asked Questions
Why is my Bosch refrigerator not cooling at all and running at room temperature?
On Bosch French door models like the B26FT70SNS, room-temperature readings in both compartments usually mean either demo mode is active or the sealed system has lost refrigerant. Check for demo mode first. If the compressor is silent and the temperature does not drop after exiting demo mode, you likely have a sealed system problem that requires a technician with manifold gauges.
How much does it cost to fix a refrigerant leak on a Bosch refrigerator in Richmond, TX?
A sealed system repair on a Bosch refrigerator in the Richmond, TX area typically runs between $400 and $700 or more, depending on where the leak is located and how much access work is needed. The Bosch B26FT70SNS I04 holds 6.7 oz of R-134a. Add leak search time, recovery, repair, pressure testing, and recharge, and costs add up quickly on older units.
What happens if I ignore a refrigerant leak in my Bosch French door refrigerator?
As refrigerant level drops, the compressor works harder and longer to reach target temperatures. On a Bosch B26FT70SNS, this leads to compressor overheating and eventual compressor failure. By the time the unit stops cooling completely, like this case with -23 psi on the low side, the system is empty. Catching a slow leak early costs far less than dealing with a failed compressor on top of the leak.
Should I repair or replace a 13-year-old Bosch refrigerator with a refrigerant leak?
For a Bosch B26FT70SNS that is 13 years old with a large refrigerant leak, replacement is usually the better financial decision. The sealed system repair alone, excluding any compressor damage, runs several hundred dollars. Bosch refrigerators in this age range are past the point where that investment makes sense unless the unit is otherwise in excellent condition and the leak is small and easily accessed.
What does a -23 psi reading on a refrigerator sealed system mean?
A -23 psi low-side reading on a running R-134a system like the one in the Bosch B26FT70SNS I04 means the system has almost no refrigerant left. Normal low-side operating pressure for R-134a is roughly 0-10 psi under load. Negative pressure, called a vacuum, indicates either a near-empty system or a restriction. Watching the static pressure recover to only +17 psi after shutdown confirmed the system was nearly empty, not restricted.
Repair Summary
- Brand
- Bosch
- Model
- B26FT70SNS I04
- Repair Type
- Sealed System Pressure Diagnostic / Major Refrigerant Leak Evaluation

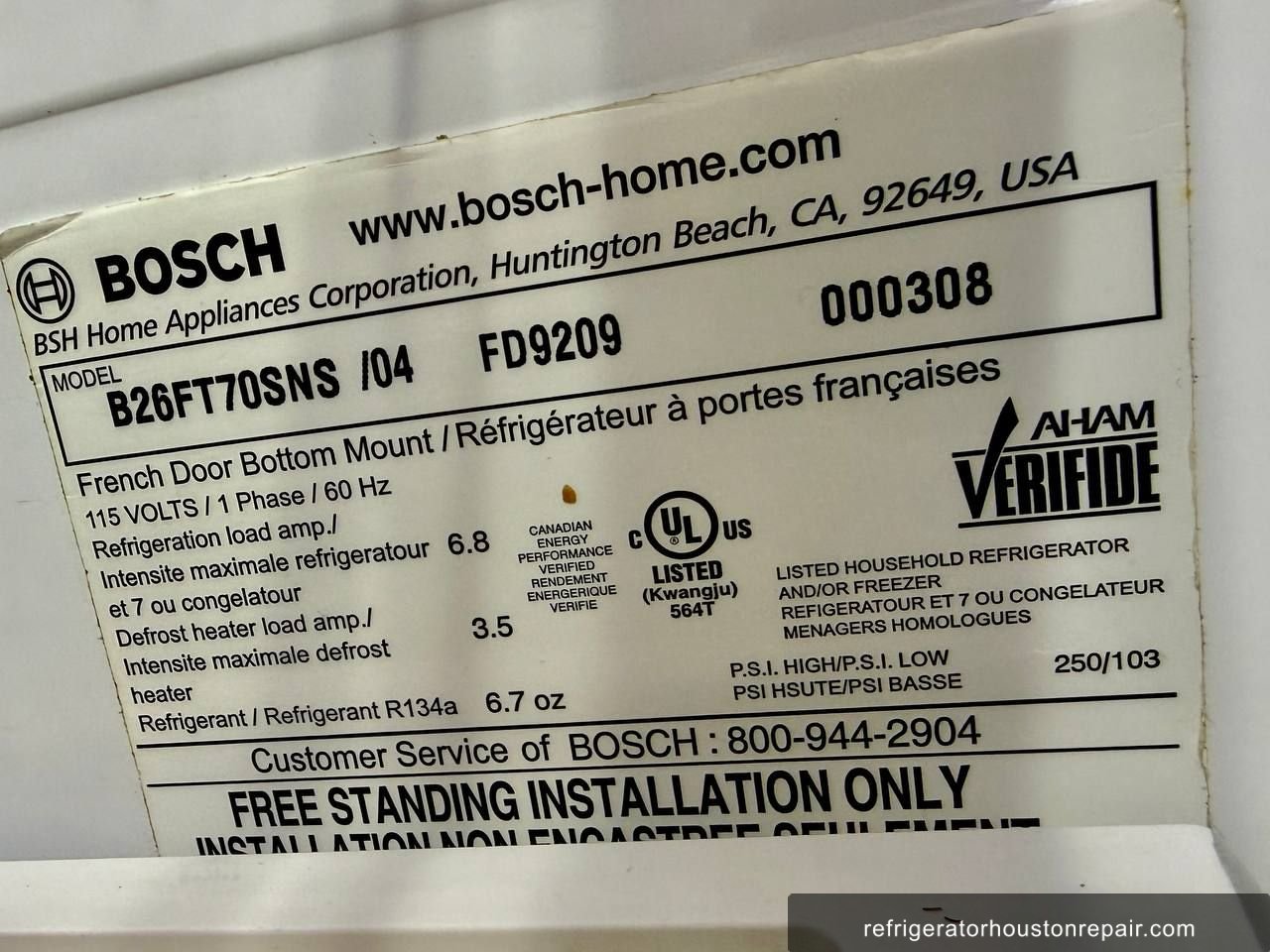

- Refrigerant
- R-134a
- Root Cause
- Catastrophic R-134a refrigerant loss from major sealed system leak
- Parts Replaced
- ✓No parts replaced. Repair was declined by customer after diagnostic findings were presented.
- Location
- Richmond, TX 77469
- Status
- ✓ Completed
